4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#24478) — 112 parça

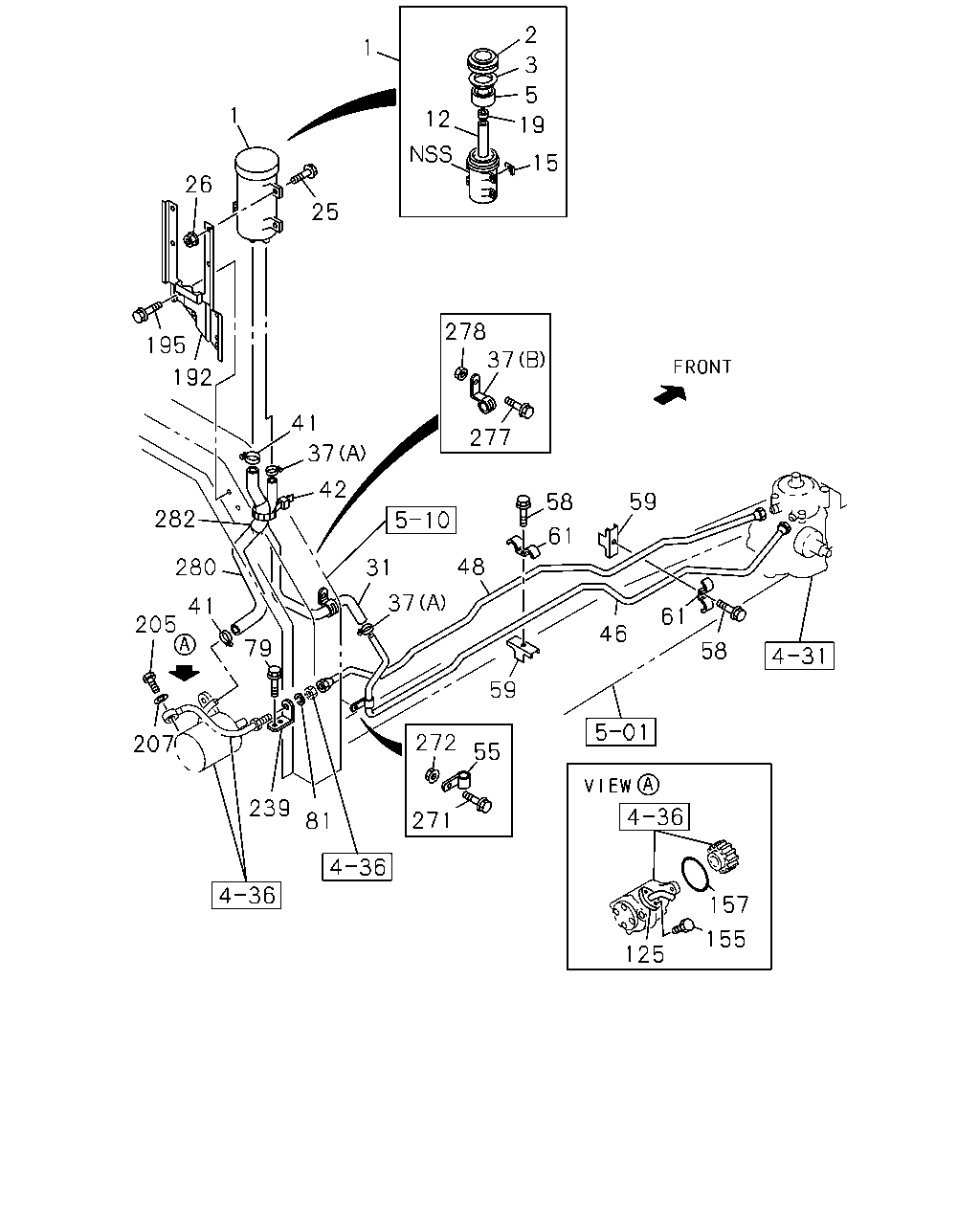

2 1 3 5 1 12 19 15 26 25 278 37 195 192 41 277 37 42 59 58 282 61 48 280 31 37 41 61 205 46 79 58 59 207 272 55 239 271 81 157 155 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	0407-0508
1	TANK ASM; OIL,P/S	1-21210-237-2	01	1	0509-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0407-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0407-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0407-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0407-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0407-0508
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21249-004-0	02	1	0407-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	0407-0611
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	0612-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	04	1	0407-
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG<31L>	1-21115-465-2	01	1	0407-
31	HOSE; P/S OIL TANK,INL 6SD1 TCS ENG<83L>	1-21116-974-0	01	1	0407-
37	CLIP; HOSE,P/S 6SD1 TCN ENG<31L> (B) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0407-
37	CLIP; HOSE,P/S 6SD1 TCS ENG<83L> (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0407-
37	CLIP; HOSE,P/S 6SD1 TCS ENG<83L> (D) ID=24 L=24	1-09701-001-1	01	1	0407-
37	CLIP; HOSE,P/S (A) ID=26 THA	1-09704-082-0	02	1	0407-
41	CLIP; HOSE,P/S ID=32 THA	1-09704-085-0	02	1	0407-
42	CLIP; HOSE,P/S L=250	1-09707-126-0	01	1	0407-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG<31L>	1-21115-464-0	01	1	0407-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCS ENG<83L>	1-21117-031-0	01	1	0407-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG<31L>	1-21115-340-0	01	1	0407-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCS ENG<83L>	1-21117-030-0	01	1	0407-
55	CLIP; P/S RUBBER HOSE ID=16 L=40	9-09525-576-0	01	1	0407-0606
55	CLIP; P/S RUBBER HOSE ID=16 L=40	0-95235-576-0	01	1	0607-
58	BOLT; CLIP M8X45 FLANGE	0-28080-845-0	02	1	0407-0512
58	BOLT; CLIP M8X45 FLANGE THA	0-28050-845-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0407-
61	CLIP; OIL PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0407-
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0407-0611
79	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	0612-
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0407-0603
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-
125	CONNECTOR; P/S PUMP 6SD1 TCN ENG<31L>	1-21122-019-2	01	1	0407-
155	BOLT; CONNECTOR 6SD1 TCN ENG<31L> M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0407-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	0407-
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	0407-
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	03	1	0407-0611
195	BOLT; BRKT M10X25 FLANGE THA	0-28651-025-0	03	1	0612-
205	BOLT; EYE,FLEX HOSE,P/S 6SD1 TCN ENG<31L> M18X36	1-09675-205-0	01	1	0407-
207	GASKET; FLEX HOSE,P/S PUMP 6SD1 TCN ENG<31L> ID=18	9-09571-418-0	02	1	0407-
239	BRACKET; FLEX HOSE 6SD1 TCN ENG<31L>	1-47475-805-1	01	1	0407-
239	BRACKET; FLEX HOSE 6SD1 TCS ENG<83L>	1-47479-256-0	01	1	0407-
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28680-825-0	01	1	0407-0611
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE THA	0-28650-825-0	01	1	0612-
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91150-108-0	01	1	0407-
277	BOLT; HOSE CLIP 6SD1 TCN ENG<31L> M8X25 FLANGE	0-28680-825-0	01	1	0407-0611
277	BOLT; HOSE CLIP 6SD1 TCN ENG<31L> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-
277	BOLT; HOSE CLIP 6SD1 TCS ENG<83L> M8X25 FLANGE	0-28680-825-0	02	1	0407-0611
277	BOLT; HOSE CLIP 6SD1 TCS ENG<83L> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-
278	NUT; HOSE CLIP 6SD1 TCN ENG<31L> M8 FLANGE	0-91150-108-0	01	1	0407-
278	NUT; HOSE CLIP 6SD1 TCS ENG<83L> M8 FLANGE	0-91150-108-0	02	1	0407-
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG<31L>	1-21115-048-1	01	1	0407-
280	HOSE; P/S OIL PUMP,INL 6SD1 TCS ENG<83L>	1-21116-804-0	01	1	0407-
282	SLEEVE; RUBBER,PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0407-

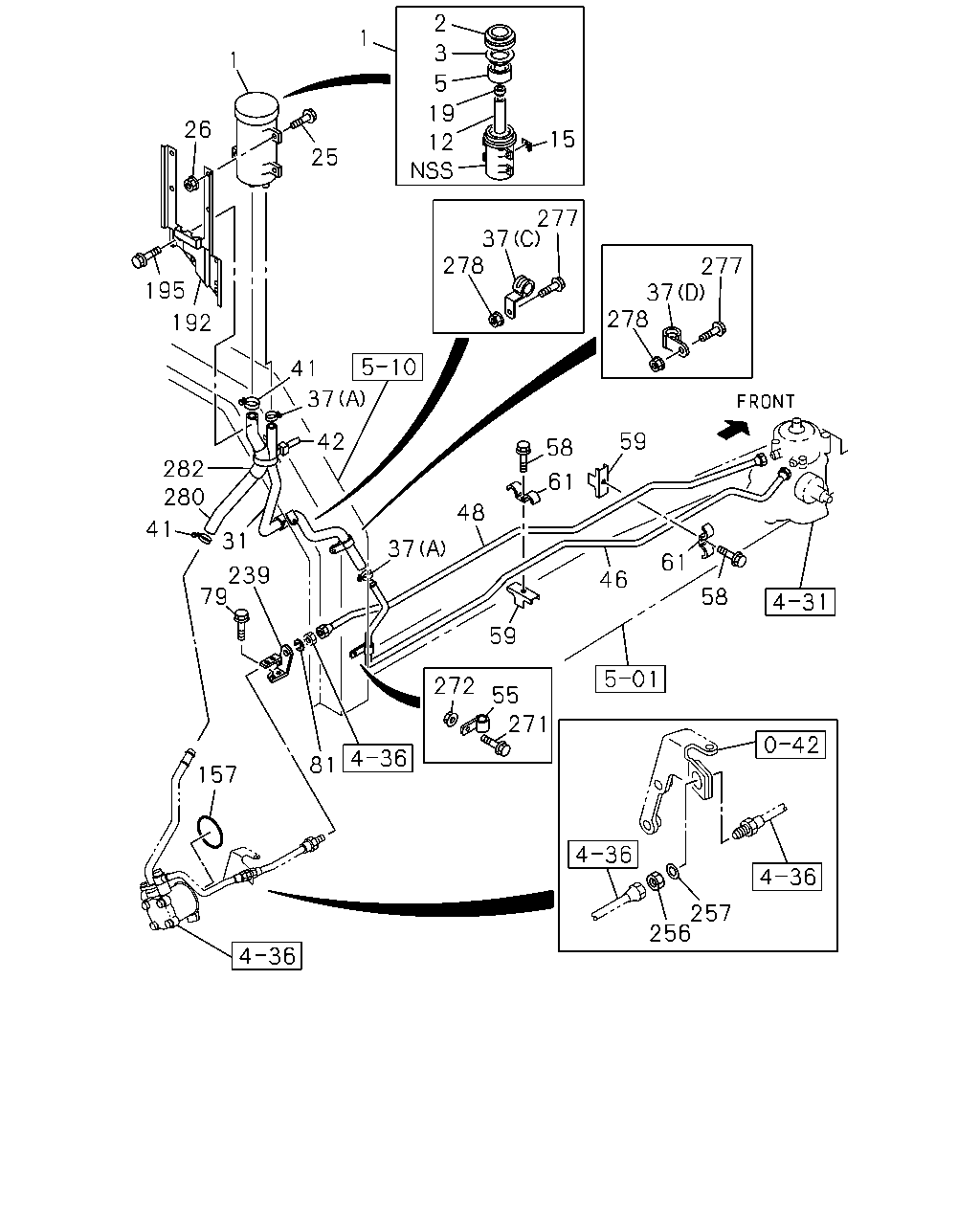

2 1 3 1 5 19 26 15 12 25 277 37 278 277 37 278 195 192 41 37 42 59 58 282 280 61 48 41 31 37 61 239 79 46 58 59 272 55 271 81 157 257 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	0407-0508
1	TANK ASM; OIL,P/S	1-21210-237-2	01	1	0509-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0407-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0407-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0407-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0407-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0407-0508
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21249-004-0	02	1	0407-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	0407-0611
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	0612-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	04	1	0407-
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG<31L>	1-21115-465-2	01	1	0407-
31	HOSE; P/S OIL TANK,INL 6SD1 TCS ENG<83L>	1-21116-974-0	01	1	0407-
37	CLIP; HOSE,P/S 6SD1 TCN ENG<31L> (B) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0407-
37	CLIP; HOSE,P/S 6SD1 TCS ENG<83L> (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0407-
37	CLIP; HOSE,P/S 6SD1 TCS ENG<83L> (D) ID=24 L=24	1-09701-001-1	01	1	0407-
37	CLIP; HOSE,P/S (A) ID=26 THA	1-09704-082-0	02	1	0407-
41	CLIP; HOSE,P/S ID=32 THA	1-09704-085-0	02	1	0407-
42	CLIP; HOSE,P/S L=250	1-09707-126-0	01	1	0407-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG<31L>	1-21115-464-0	01	1	0407-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCS ENG<83L>	1-21117-031-0	01	1	0407-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG<31L>	1-21115-340-0	01	1	0407-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCS ENG<83L>	1-21117-030-0	01	1	0407-
55	CLIP; P/S RUBBER HOSE ID=16 L=40	9-09525-576-0	01	1	0407-0606
55	CLIP; P/S RUBBER HOSE ID=16 L=40	0-95235-576-0	01	1	0607-
58	BOLT; CLIP M8X45 FLANGE	0-28080-845-0	02	1	0407-0512
58	BOLT; CLIP M8X45 FLANGE THA	0-28050-845-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0407-
61	CLIP; OIL PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0407-
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0407-0611
79	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	0612-
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0407-0603
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	0407-
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	0407-
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	03	1	0407-0611
195	BOLT; BRKT M10X25 FLANGE THA	0-28651-025-0	03	1	0612-
239	BRACKET; FLEX HOSE 6SD1 TCN ENG<31L>	1-47475-805-1	01	1	0407-
239	BRACKET; FLEX HOSE 6SD1 TCS ENG<83L>	1-47479-256-0	01	1	0407-
256	NUT; UNION 6SD1 TCS ENG<83L> M20	9-99111-420-0	01	1	0407-0512
256	NUT; UNION 6SD1 TCS ENG<83L> M20	0-91111-520-0	01	1	0601-
257	WASHER; LK,UNION 6SD1 TCS ENG<83L> ID=20.2	9-09150-520-0	01	1	0407-0603
257	WASHER; LK,UNION 6SD1 TCS ENG<83L> ID=20.2	0-91510-520-0	01	1	0604-
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28680-825-0	01	1	0407-0611
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE THA	0-28650-825-0	01	1	0612-
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91150-108-0	01	1	0407-
277	BOLT; HOSE CLIP 6SD1 TCN ENG<31L> M8X25 FLANGE	0-28680-825-0	01	1	0407-0611
277	BOLT; HOSE CLIP 6SD1 TCN ENG<31L> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-
277	BOLT; HOSE CLIP 6SD1 TCS ENG<83L> M8X25 FLANGE	0-28680-825-0	02	1	0407-0611
277	BOLT; HOSE CLIP 6SD1 TCS ENG<83L> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-
278	NUT; HOSE CLIP 6SD1 TCN ENG<31L> M8 FLANGE	0-91150-108-0	01	1	0407-
278	NUT; HOSE CLIP 6SD1 TCS ENG<83L> M8 FLANGE	0-91150-108-0	02	1	0407-
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG<31L>	1-21115-048-1	01	1	0407-
280	HOSE; P/S OIL PUMP,INL 6SD1 TCS ENG<83L>	1-21116-804-0	01	1	0407-
282	SLEEVE; RUBBER,PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0407-
