Sayfa 1-50B - Isuzu EPC

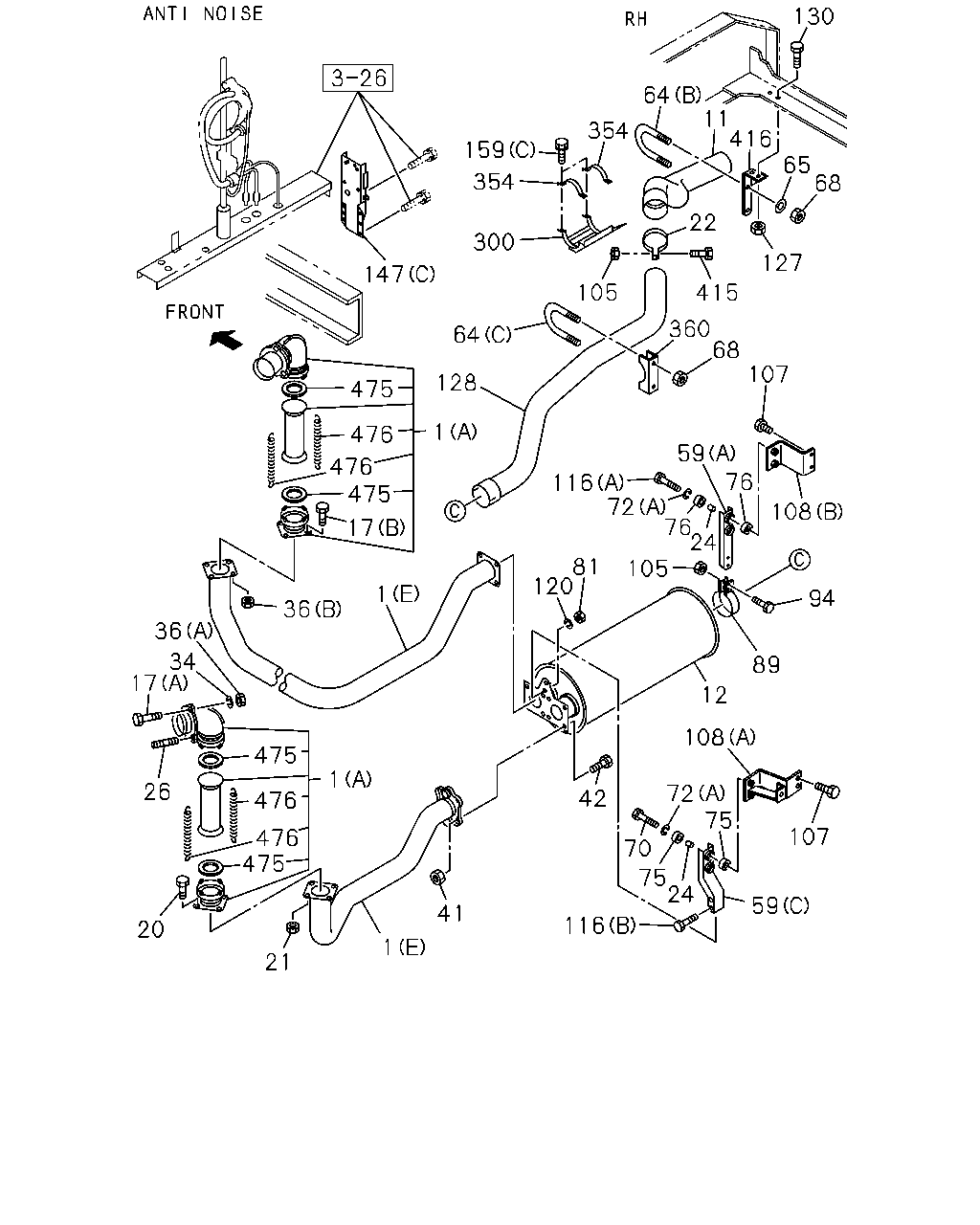

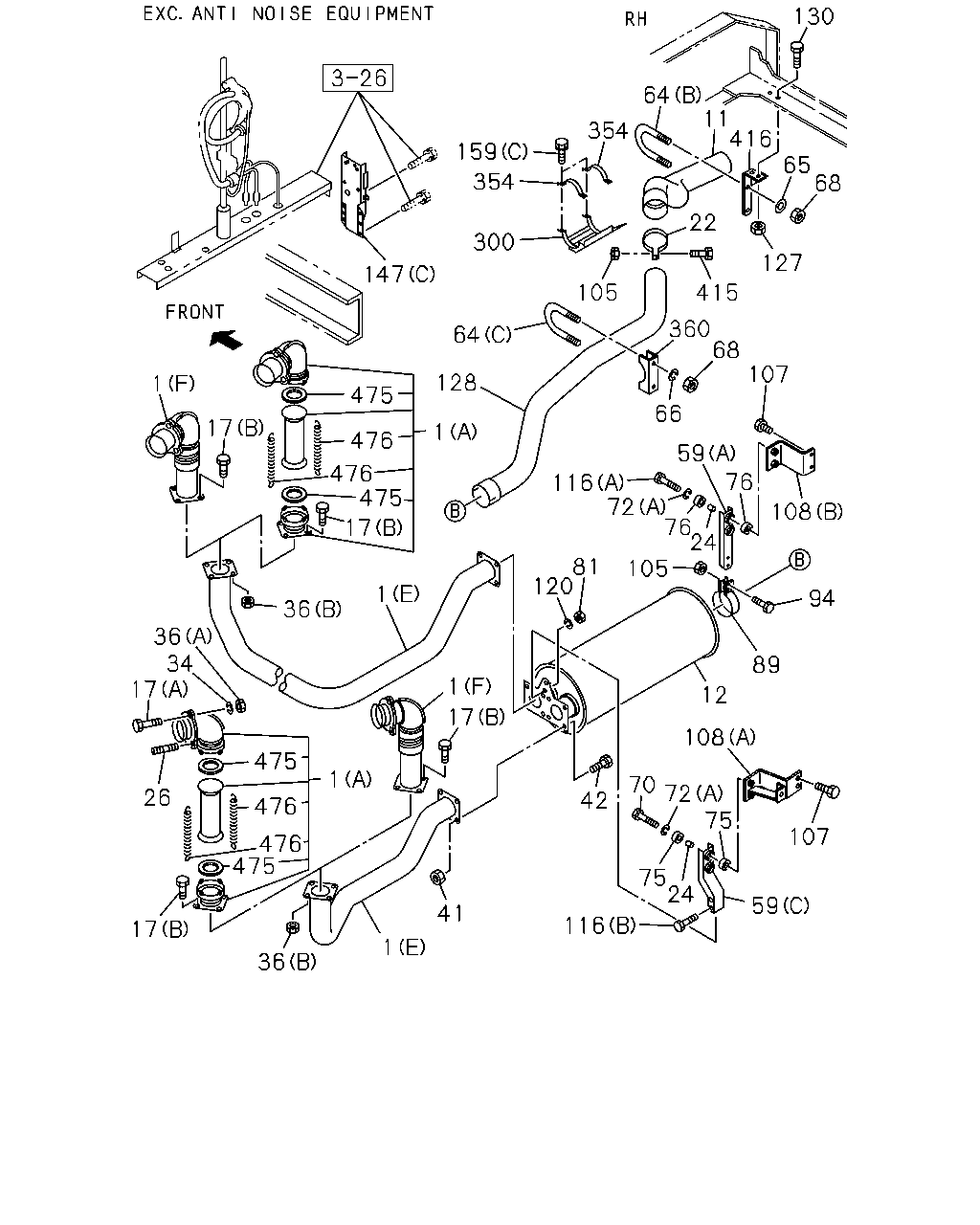

1-50B — EXHAUST PIPE AND SILENCER (#2447) — 443 parça

130 64 11 416 354 159 65 68 354 22 300 127 147 105 415 360 68 64 107 128 1 475 66 17 476 475 1 476 59 76 116 72 76 24 108 17 81 120 105 1 94 36 36 34 17 89 1 12 17 108 475 1 70 72 75 26 42 476 475 476 107 75 24 59 41 116 17 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22121-916-0	01	1	9002-9306
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22121-917-0	01	1	9002-9306
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-542-2	01	1	9411-
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (E)	1-22122-659-0	01	1	9411-
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-541-2	01	1	9411-
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (E)	1-22122-653-0	01	1	9411-
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22121-248-0	01	1	9002-9110
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22121-770-0	01	1	9111-9410
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-770-0	01	1	9411-
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	1-22121-881-0	01	1	9002-9410
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-881-0	01	1	9411-
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22121-250-0	01	1	9002-9110
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22121-771-0	01	1	9111-9410
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-771-0	01	1	9411-
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	1-22121-880-0	01	1	9002-9410
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-880-0	01	1	9411-
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22121-596-1	01	1	9002-9306
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (B)	1-22121-701-0	01	1	9002-9306
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (C)	1-22121-702-0	01	1	9002-9306
11	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-136-0	01	1	9002-
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-681-0	01	1	9411-
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-596-1	01	1	9002-9410
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-596-1	01	1	9411-
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-659-1	01	1	9002-9103
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-659-2	01	1	9104-9306
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9002-
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9005
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9006-9306
17	BOLT; EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	04	1	9411-
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9307-9410
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9411-
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-163-0	02	1	9002-9306
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	01	1	9002-
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	04	1	9002-9306
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	04	1	9307-
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-
36	NUT; EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	04	1	9411-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9002-
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	08	1	9002-9410
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	08	1	9411-
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9002-
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9002-
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-379-0	01	1	9307-
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (C)	1-22151-604-0	01	1	9411-
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22151-353-2	01	1	9002-9410
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22151-353-2	01	1	9411-
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-379-0	01	1	9002-9306
64	U-BOLT; EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22113-063-1	01	1	9002-9306
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5	1-22139-077-1	01	1	9307-9502
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=150	1-22113-008-1	01	1	9503-
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8 L=173.5	1-22113-020-0	01	1	9002-9006
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22113-061-0	01	1	9007-
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22113-033-0	01	1	9002-9103
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5	1-22139-077-1	01	1	9104-9306
65	WASHER; PL TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22	9-09160-708-0	02	1	9002-9306
66	WASHER; LK,U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	02	1	9002-9306
66	WASHER; LK,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	04	1	9002-9306
68	NUT; U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9002-9306
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9307-
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9307-
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	04	1	9002-9306
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	9-01056-050-0	02	1	9002-9004
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	02	1	9005-9011
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	02	1	9012-9306
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	02	1	9307-
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=10.2	9-09150-510-0	04	1	9002-9011
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=10.2	9-09150-510-0	04	1	9012-9306
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=10.2	9-09150-510-0	04	1	9307-
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	04	1	9002-9011
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	04	1	9012-9306
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40	1-22159-094-0	08	1	9307-
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	04	1	9012-9306
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. FUEL TANK 200L+300L<W64> M12	9-99110-512-0	02	1	9402-9410
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	02	1	9411-
81	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9>,FUEL TANK 200L+300L<W64> M12	9-99110-512-0	02	1	9411-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9307-
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9411-
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2> D=79	1-22133-218-0	01	1	9002-9410
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> D=79	1-22133-218-0	01	1	9411-
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9011
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 W/LK WASHER	0-50040-835-0	02	1	9012-9302
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28080-835-0	02	1	9303-9306
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28080-835-0	02	1	9307-
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	04	1	9002-9306
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9012-9306
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9002-
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9002-9011
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35	9-01911-235-0	02	1	9002-9005
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35 W/LK WASHER	0-50041-235-0	02	1	9006-9011
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35 W/LK WASHER	0-50041-235-0	02	1	9012-9306
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35	9-01911-235-0	03	1	9002-9005
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35 W/LK WASHER	0-50041-235-0	03	1	9006-9306
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35 W/LK WASHER	0-50041-235-0	05	1	9307-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-577-1	01	1	9002-9011
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-577-2	01	1	9012-9306
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-576-2	01	1	9307-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-577-2	01	1	9307-
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	0-10806-050-0	02	1	9307-
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	9-01056-050-0	02	1	9002-9004
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	0-10806-050-0	02	1	9005-9011
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	0-10806-050-0	02	1	9012-9306
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X75	9-01056-075-0	02	1	9002-9004
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X75	0-10806-075-0	02	1	9005-
120	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	02	1	9002-
127	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9002-9306
127	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9>	1-22126-151-0	01	1	9411-
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-135-1	01	1	9002-9410
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22122-135-1	01	1	9411-
130	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204
130	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302
130	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28080-830-0	02	1	9303-9306
130	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28080-830-0	02	1	9307-
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-582-2	01	1	9002-9306
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (B)	1-22151-518-4	01	1	9002-9306
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-408-4	01	1	9002-9306
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-53497-365-2	01	1	9002-9306
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9002-9306
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9307-9312
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> AIR DRYER<PS7> (C)	1-53497-365-2	01	1	9307-9312
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-53497-365-2	01	1	9401-
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9302
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 FLANGE	0-28080-820-0	08	1	9303-9306
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-9306
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> REAR SHOCK ABSORBER(GL6) (C) M8X20 W/LK WASHER	9-01900-820-0	04	1	9010-9204
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> REAR SHOCK ABSORBER(GL6) (C) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> REAR SHOCK ABSORBER(GL6) (C) M8X20 FLANGE	0-28080-820-0	04	1	9303-
300	PROTECTOR; HEAT,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> REAR SHOCK ABSORBER(GL6)	1-22119-248-0	01	1	9010-
354	CLAMP; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> REAR SHOCK ABSORBER(GL6)	1-22119-246-0	02	1	9010-
360	PIECE; DIST,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-060-1	01	1	9002-
415	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40	9-01901-040-0	01	1	9002-9204
415	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-
416	BRACKET; RR EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-582-0	01	1	9002-
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	04	1	9411-
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-223-0	04	1	9111-9408
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> OD=112	1-22119-294-0	04	1	9409-9410
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	04	1	9411-
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9411-
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-09583-248-0	08	1	9111-9410
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9411-

130 64 11 416 354 159 65 68 354 22 300 127 147 105 415 360 68 64 107 128 475 476 475 1 476 59 76 116 72 76 24 108 17 81 120 105 1 94 36 36 34 17 89 12 108 475 1 26 72 75 42 476 107 476 475 70 75 24 59 41 116 20 1 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22121-916-0	01	1	9002-9306
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22121-917-0	01	1	9002-9306
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-542-2	01	1	9411-
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (E)	1-22122-659-0	01	1	9411-
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-541-2	01	1	9411-
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (E)	1-22122-653-0	01	1	9411-
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22121-248-0	01	1	9002-9110
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22121-770-0	01	1	9111-9410
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-770-0	01	1	9411-
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	1-22121-881-0	01	1	9002-9410
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-881-0	01	1	9411-
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22121-250-0	01	1	9002-9110
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22121-771-0	01	1	9111-9410
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-771-0	01	1	9411-
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	1-22121-880-0	01	1	9002-9410
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-880-0	01	1	9411-
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22121-596-1	01	1	9002-9306
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (B)	1-22121-701-0	01	1	9002-9306
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (C)	1-22121-702-0	01	1	9002-9306
11	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-136-0	01	1	9002-
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-681-0	01	1	9411-
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-596-1	01	1	9002-9410
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-596-1	01	1	9411-
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-659-1	01	1	9002-9103
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-659-2	01	1	9104-9306
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9002-
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9005
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9006-9306
17	BOLT; EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	04	1	9411-
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9307-9410
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9411-
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	04	1	9411-
20	BOLT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9005
20	BOLT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	08	1	9006-9306
21	NUT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	04	1	9411-
21	NUT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-412-0	08	1	9002-9306
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-163-0	02	1	9002-9306
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	01	1	9002-
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	04	1	9002-9306
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	04	1	9307-
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-
36	NUT; EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	04	1	9411-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9002-
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	08	1	9002-9410
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	08	1	9411-
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9002-
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9002-
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-379-0	01	1	9307-
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (C)	1-22151-604-0	01	1	9411-
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22151-353-2	01	1	9002-9410
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22151-353-2	01	1	9411-
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-379-0	01	1	9002-9306
64	U-BOLT; EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22113-063-1	01	1	9002-9306
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5	1-22139-077-1	01	1	9307-9502
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=150	1-22113-008-1	01	1	9503-
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8 L=173.5	1-22113-020-0	01	1	9002-9006
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22113-061-0	01	1	9007-
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22113-033-0	01	1	9002-9103
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5	1-22139-077-1	01	1	9104-9306
65	WASHER; PL TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22	9-09160-708-0	02	1	9002-9306
68	NUT; U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9002-9306
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9307-
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9307-
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	04	1	9002-9306
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	9-01056-050-0	02	1	9002-9004
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	02	1	9005-9011
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	02	1	9012-9306
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	02	1	9307-
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=10.2	9-09150-510-0	04	1	9002-9011
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=10.2	9-09150-510-0	04	1	9012-9306
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=10.2	9-09150-510-0	04	1	9307-
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	04	1	9002-9011
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	04	1	9012-9306
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40	1-22159-094-0	08	1	9307-
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	04	1	9012-9306
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. FUEL TANK 200L+300L<W64> M12	9-99110-512-0	02	1	9402-9410
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	02	1	9411-
81	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9>,FUEL TANK 200L+300L<W64> M12	9-99110-512-0	02	1	9411-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9307-
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9411-
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2> D=79	1-22133-218-0	01	1	9002-9410
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> D=79	1-22133-218-0	01	1	9411-
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9011
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 W/LK WASHER	0-50040-835-0	02	1	9012-9302
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28080-835-0	02	1	9303-9306
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28080-835-0	02	1	9307-
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	04	1	9002-9306
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9012-9306
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9002-
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9002-9011
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35	9-01911-235-0	02	1	9002-9005
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35 W/LK WASHER	0-50041-235-0	02	1	9006-9011
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35 W/LK WASHER	0-50041-235-0	02	1	9012-9306
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35	9-01911-235-0	03	1	9002-9005
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35 W/LK WASHER	0-50041-235-0	03	1	9006-9306
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35 W/LK WASHER	0-50041-235-0	05	1	9307-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-577-1	01	1	9002-9011
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-577-2	01	1	9012-9306
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-576-2	01	1	9307-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-577-2	01	1	9307-
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	0-10806-050-0	02	1	9307-
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	9-01056-050-0	02	1	9002-9004
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	0-10806-050-0	02	1	9005-9011
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	0-10806-050-0	02	1	9012-9306
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X75	9-01056-075-0	02	1	9002-9004
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X75	0-10806-075-0	02	1	9005-
120	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	02	1	9002-
127	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9002-9306
127	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9>	1-22126-151-0	01	1	9411-
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-135-1	01	1	9002-9410
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22122-135-1	01	1	9411-
130	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204
130	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302
130	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28080-830-0	02	1	9303-9306
130	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28080-830-0	02	1	9307-
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-582-2	01	1	9002-9306
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (B)	1-22151-518-4	01	1	9002-9306
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-408-4	01	1	9002-9306
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-53497-365-2	01	1	9002-9306
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9002-9306
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9307-9312
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> AIR DRYER<PS7> (C)	1-53497-365-2	01	1	9307-9312
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-53497-365-2	01	1	9401-
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9302
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 FLANGE	0-28080-820-0	08	1	9303-9306
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-9306
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> REAR SHOCK ABSORBER(GL6) (C) M8X20 W/LK WASHER	9-01900-820-0	04	1	9010-9204
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> REAR SHOCK ABSORBER(GL6) (C) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> REAR SHOCK ABSORBER(GL6) (C) M8X20 FLANGE	0-28080-820-0	04	1	9303-
300	PROTECTOR; HEAT,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> REAR SHOCK ABSORBER(GL6)	1-22119-248-0	01	1	9010-
354	CLAMP; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> REAR SHOCK ABSORBER(GL6)	1-22119-246-0	02	1	9010-
360	PIECE; DIST,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-060-1	01	1	9002-
415	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40	9-01901-040-0	01	1	9002-9204
415	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-
416	BRACKET; RR EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-582-0	01	1	9002-
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	04	1	9411-
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-223-0	04	1	9111-9408
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> OD=112	1-22119-294-0	04	1	9409-9410
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	04	1	9411-
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9411-
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-09583-248-0	08	1	9111-9410
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9411-

126 151 88 159 444 445 161 201 134 45 77 446 77 439 447 161 64 448 161 159 58 66 68 151 438 432 159 161 438 52 431 159 159 147 429 22 436 134 201 427 148 420 12 421 429 135 42 427 105 427 427 423 197 193 197 434 433 149 422 147 420 36 34 424 20 420 41 1 17 1 1 21 20 26 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22121-916-0	01	1	9002-9306
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22121-917-0	01	1	9002-9306
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-542-2	01	1	9411-
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (E)	1-22122-659-0	01	1	9411-
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-541-2	01	1	9411-
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (E)	1-22122-653-0	01	1	9411-
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22121-248-0	01	1	9002-9110
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22121-770-0	01	1	9111-9410
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-770-0	01	1	9411-
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	1-22121-881-0	01	1	9002-9410
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-881-0	01	1	9411-
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22121-250-0	01	1	9002-9110
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22121-771-0	01	1	9111-9410
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-771-0	01	1	9411-
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	1-22121-880-0	01	1	9002-9410
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-880-0	01	1	9411-
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22121-596-1	01	1	9002-9306
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (B)	1-22121-701-0	01	1	9002-9306
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (C)	1-22121-702-0	01	1	9002-9306
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-681-0	01	1	9411-
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-596-1	01	1	9002-9410
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-596-1	01	1	9411-
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-659-1	01	1	9002-9103
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-659-2	01	1	9104-9306
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9002-
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9005
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9006-9306
17	BOLT; EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	04	1	9411-
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9307-9410
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9411-
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	04	1	9411-
20	BOLT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9005
20	BOLT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	08	1	9006-9306
21	NUT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	04	1	9411-
21	NUT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-412-0	08	1	9002-9306
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-163-0	02	1	9002-9306
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	01	1	9002-
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-
36	NUT; EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	04	1	9411-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9002-
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	08	1	9002-9410
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	08	1	9411-
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9002-
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9002-
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-
45	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	9-01056-050-0	02	1	9002-9004
45	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	02	1	9005-9306
52	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9002-9306
58	BRACKET; EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-169-0	01	1	9002-9306
64	U-BOLT; EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22113-063-1	01	1	9002-9306
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5	1-22139-077-1	01	1	9307-9502
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=150	1-22113-008-1	01	1	9503-
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8 L=173.5	1-22113-020-0	01	1	9002-9006
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22113-061-0	01	1	9007-
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22113-033-0	01	1	9002-9103
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5	1-22139-077-1	01	1	9104-9306
66	WASHER; LK,U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	02	1	9002-9306
66	WASHER; LK,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	04	1	9002-9306
68	NUT; U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9002-9306
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9307-
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9307-
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	04	1	9002-9306
77	RUBBER; CUSHION,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	04	1	9002-9306
88	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	01	1	9002-9306
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	04	1	9002-9306
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9012-9306
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9002-
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9002-9011
126	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22112-639-1	01	1	9002-9011
126	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22112-639-1	01	1	9012-9306
134	WASHER; LK,STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=10.2	9-09150-510-0	01	1	9002-9306
134	WASHER; LK,STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=14.2	9-09150-614-0	01	1	9002-9306
135	WASHER; PL,STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=15	9-09160-514-0	01	1	9002-9306
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-582-2	01	1	9002-9306
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (B)	1-22151-518-4	01	1	9002-9306
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-408-4	01	1	9002-9306
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-53497-365-2	01	1	9002-9306
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9002-9306
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9307-9312
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> AIR DRYER<PS7> (C)	1-53497-365-2	01	1	9307-9312
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-53497-365-2	01	1	9401-
148	WASHER; LK,CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	04	1	9002-9306
149	WASHER; LK,PIPE BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	04	1	9002-9306
151	PROTECTOR; HEAT,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22159-099-1	01	1	9002-9306
151	PROTECTOR; HEAT,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22159-104-2	01	1	9002-9306
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9302
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 FLANGE	0-28080-820-0	08	1	9303-9306
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-9306
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> REAR SHOCK ABSORBER(GL6) (C) M8X20 W/LK WASHER	9-01900-820-0	04	1	9010-9204
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> REAR SHOCK ABSORBER(GL6) (C) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> REAR SHOCK ABSORBER(GL6) (C) M8X20 FLANGE	0-28080-820-0	04	1	9303-
161	WASHER; PL,HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22	9-09160-708-0	08	1	9002-9306
193	NUT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9002-9306
197	BRACKET; EXH PIPE,VERTICAL EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) REAR	1-22151-405-2	01	1	9002-9306
197	BRACKET; EXH PIPE,VERTICAL EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) FRONT	1-22151-409-2	01	1	9002-9306
201	BOLT; STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X50	9-01056-050-0	01	1	9002-9004
201	BOLT; STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X50	0-10806-050-0	01	1	9005-9306
201	BOLT; STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M14X40	9-92061-440-0	01	1	9002-9306
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12X25	9-01911-225-0	04	1	9002-9005
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12X25 W/LK WASHER	0-50041-225-0	04	1	9006-9306
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X32 W/LK WASHER	9-01911-232-0	03	1	9002-9005
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X32 W/LK WASHER	0-50041-232-0	03	1	9006-9306
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M12X45	9-01911-245-0	03	1	9002-9005
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M12X45 W/LK WASHER	0-50041-245-0	03	1	9006-9306
421	BOLT; PIPE BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	9-01056-050-0	04	1	9002-9004
421	BOLT; PIPE BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	04	1	9005-9306
422	NUT; PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	04	1	9002-9306
423	BOLT; PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005
423	BOLT; PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306
424	NUT; BRKT TO PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-412-0	04	1	9002-9304
424	NUT; BRKT TO PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9305-9306
427	SUPPORT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	16	1	9002-9306
429	COLLAR; DIST,SUPPORT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	08	1	9002-9306
431	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40	9-01901-040-0	02	1	9002-9204
431	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 W/LK WASHER	0-50041-040-0	02	1	9205-9306
432	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9002-9306
433	BRACKET; STAY,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-609-0	01	1	9002-9306
434	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X35 W/LK WASHER	9-01911-035-0	04	1	9002-9002
434	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X35 W/LK WASHER	0-50041-035-0	04	1	9003-9306
436	STAY; SUPPORT,EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22151-608-0	01	1	9002-9306
438	RUBBER; SUPPORT,STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	02	1	9002-9306
439	TUBE; DIST,SUPPORT RUBBER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=23.2	9-22159-009-1	01	1	9002-9109
439	TUBE; DIST,SUPPORT RUBBER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	01	1	9110-9306
444	BOLT; PIPE CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40	9-01901-040-0	01	1	9002-9204
444	BOLT; PIPE CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-9306
445	NUT; PIPE CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9002-9306
446	PIECE; DIST,EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	02	1	9002-9306
447	WASHER; LK,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	02	1	9002-9306
448	PIECE; DIST,U-BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-064-0	01	1	9002-9306

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
