3-83 — FIXING PARTS; TRAILER PIPING
(#24468) — 39 parça
◀

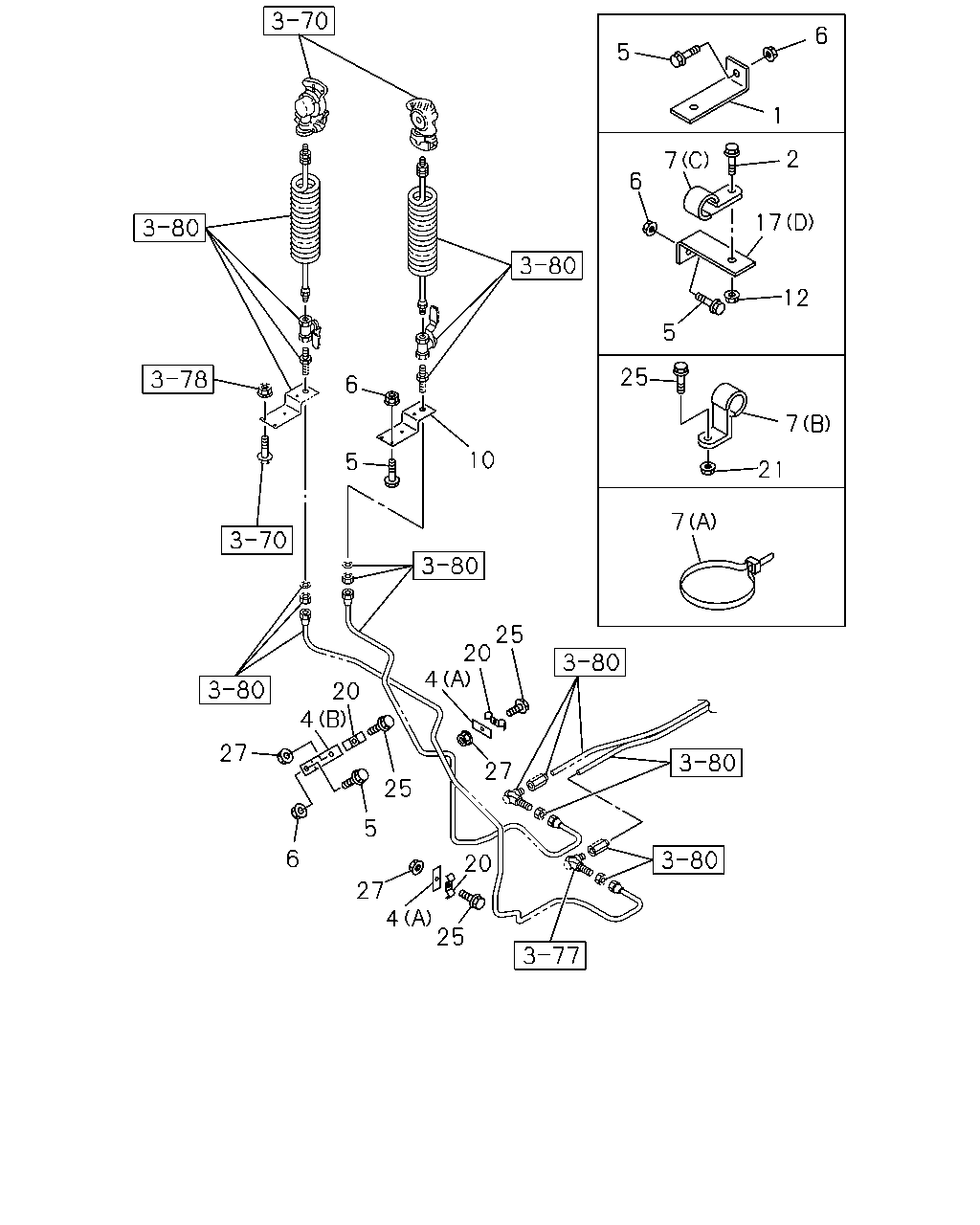

[383A] FRAME SIDE (31 parça)

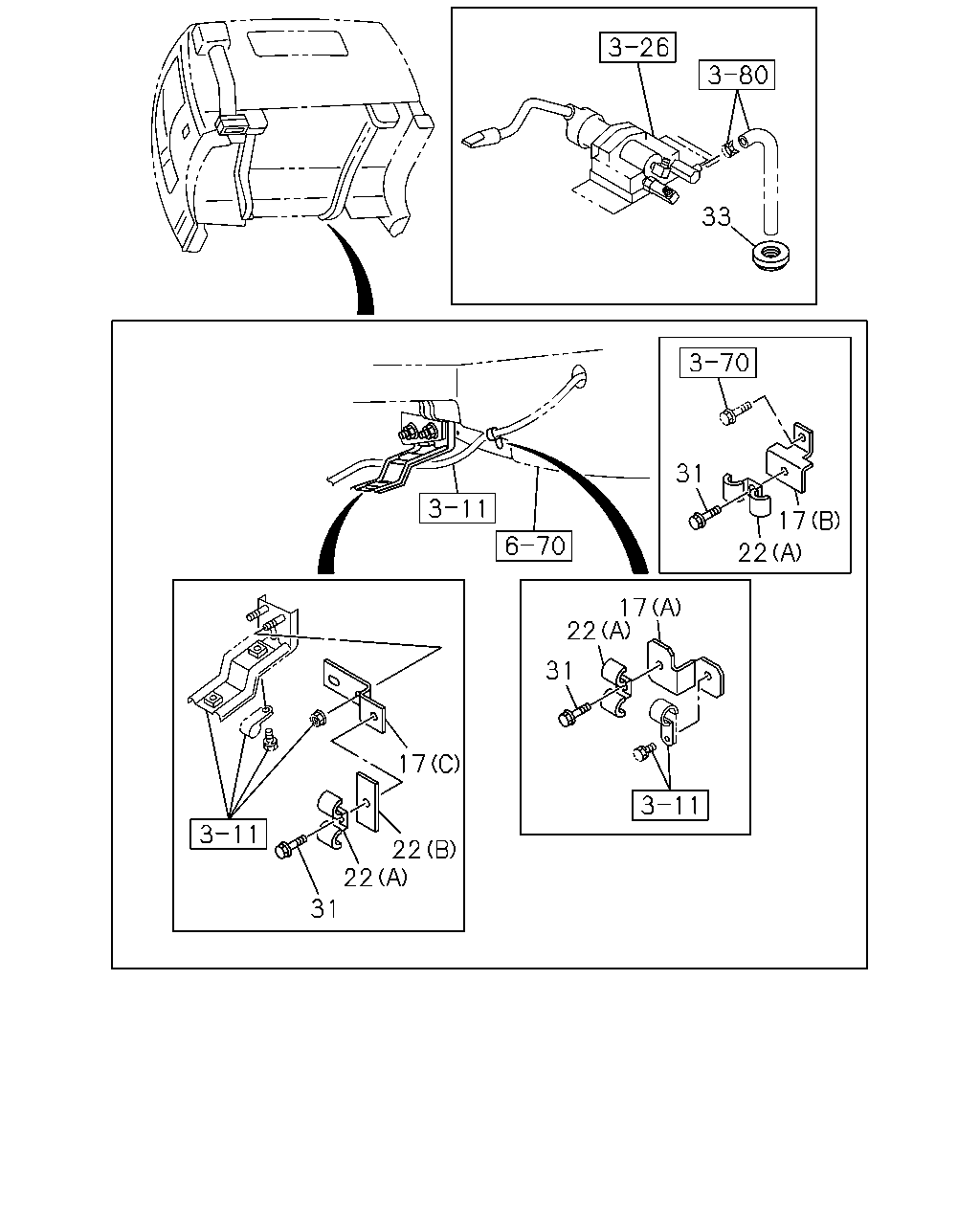

[383A] CAB SIDE (8 parça)
▶
6
5
1
2
7
6
17
12
5
25
6
7
10
5
21
7
25
20
4
20
4
27
27
25
5
6
20
27
4
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CLIP
L=100
1-47477-715-3
02
1
0407-
2
BOLT; CLIP
M8X25 FLANGE
0-28680-825-0
01
1
0407-0611
2
BOLT; CLIP
M8X25 FLANGE THA
0-28650-825-0
01
1
0612-
4
BRACKET; AIR PIPE
(A) L=50 THA
1-47475-299-2
02
1
0407-
4
BRACKET; AIR PIPE
(B)
1-47478-150-0
01
1
0407-
5
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
01
1
0407-0611
5
BOLT; BRKT
M8X30 FLANGE THA
0-28650-830-0
01
1
0612-
5
BOLT; BRKT
M8X35 FLANGE
0-28680-835-0
02
1
0407-0611
5
BOLT; BRKT
M8X35 FLANGE THA
0-28650-835-0
02
1
0612-
5
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
04
1
0407-0611
5
BOLT; BRKT
M8X25 FLANGE THA
0-28650-825-0
04
1
0612-
6
NUT; BRKT
M8 FLANGE
0-91150-108-0
07
1
0407-0602
6
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
07
1
0603-
7
CLIP; NYLON TUBE
(C) ID=35 L=33
1-09700-945-0
01
1
0407-
7
CLIP; NYLON TUBE
(B) ID=16 H=25 L=25
1-09701-162-0
02
1
0407-
7
CLIP; NYLON TUBE
(A) L=250
1-09707-126-0
05
1
0407-
10
BRACKET; AIR PIPE
THA
8-97917-596-2
01
1
0407-
12
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0407-0602
12
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
0603-
17
BRACKET; CLIP
(B)
1-47475-461-0
01
1
0407-
17
BRACKET; CLIP
(D) L=145
1-47475-655-0
01
1
0407-
17
BRACKET; CLIP
(C)
1-79738-817-0
01
1
0407-
17
BRACKET; CLIP
(A)
1-79738-828-0
01
1
0407-
20
CLIP; AIR PIPE
ID=13 & 13 L=21.5 & 21.5
1-09700-689-0
03
1
0407-
21
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
0407-0602
21
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
02
1
0603-
25
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
03
1
0407-0611
25
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
03
1
0612-
25
BOLT; CLIP
M8X25 FLANGE
0-28680-825-0
02
1
0407-0611
25
BOLT; CLIP
M8X25 FLANGE THA
0-28650-825-0
02
1
0612-
27
NUT; CLIP
M8 FLANGE
0-91150-108-0
03
1
0407-
33
31
17
22
17
22
31
17
22
22
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
BRACKET; CLIP
(B)
1-47475-461-0
01
1
0407-
17
BRACKET; CLIP
(D) L=145
1-47475-655-0
01
1
0407-
17
BRACKET; CLIP
(C)
1-79738-817-0
01
1
0407-
17
BRACKET; CLIP
(A)
1-79738-828-0
01
1
0407-
22
CLIP; AIR PIPE
(A) ID=11 & 11 L=17.5 & 17.5 THA
1-09700-739-0
03
1
0407-
22
CLIP; AIR PIPE
(B) L=50 THA
1-47475-299-2
01
1
0407-
31
BOLT; CLIP,AIR PIPE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
0407-
33
GROMMET; AIR PIPE
OD=24
9-61166-007-0
01
1
0407-
