Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10945 - GXZ(THAI)EURO2
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#24467) — 68 parça
◀

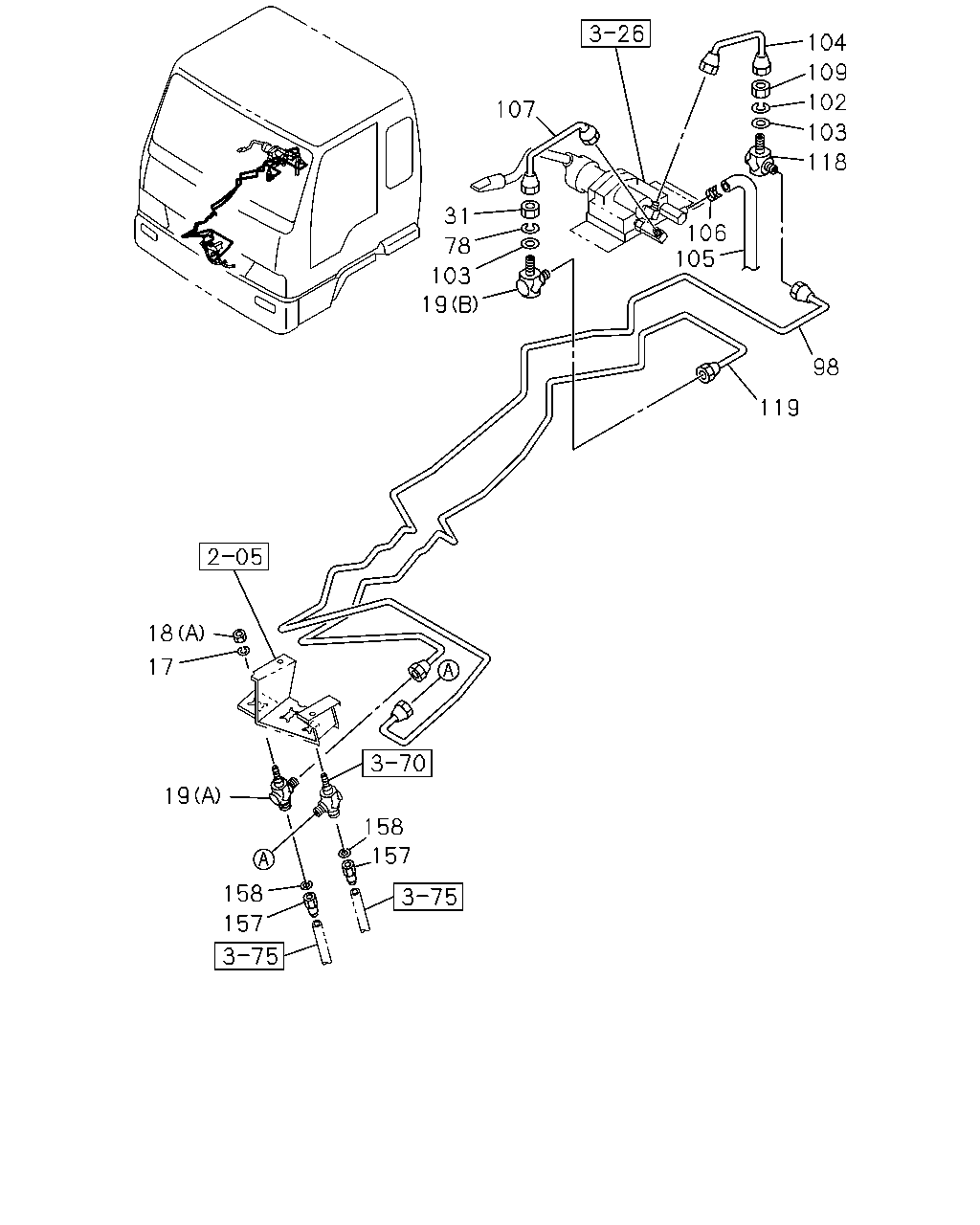

[380A] CAB SIDE (32 parça)

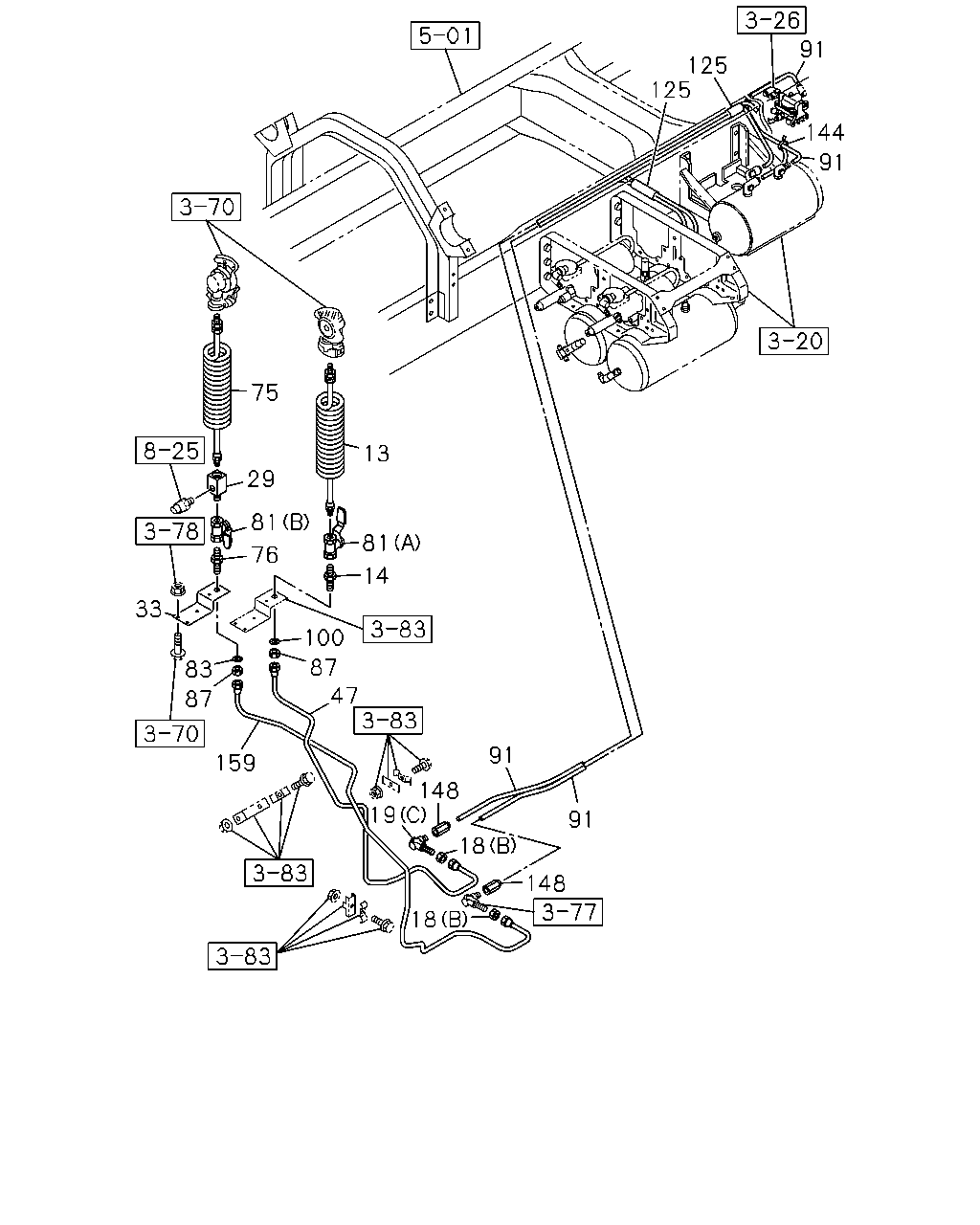

[380A] FRAME SIDE (36 parça)
▶
104
109
102
107
103
118
31
106
105
78
103
19
98
119
18
17
19
158
157
158
157
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
WASHER; LK,UNION
ID=12.2
9-09150-512-0
01
1
0407-0603
17
WASHER; LK,UNION
ID=12.2
0-91510-512-0
01
1
0604-
18
NUT; UNION
(A) M12
9-99111-412-0
01
1
0407-0512
18
NUT; UNION
(A) M12
0-91111-512-0
01
1
0601-
18
NUT; UNION
(B) M20
9-99111-420-0
02
1
0407-0512
18
NUT; UNION
(B) M20
0-91111-520-0
02
1
0601-
19
UNION; AIR PIPE
(A)
1-09654-325-0
01
1
0407-
19
UNION; AIR PIPE
(B) M16 ELBOW
9-09225-010-1
01
1
0407-0607
19
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-010-0
01
1
0608-
19
UNION; AIR PIPE
(C) M20
9-09235-212-1
01
1
0407-0607
19
UNION; AIR PIPE
(C) M20
0-92135-212-0
01
1
0608-
31
NUT; UNION
M16
9-99111-416-0
01
1
0407-0512
31
NUT; UNION
M16
0-91111-516-0
01
1
0601-
78
WASHER; LK
ID=16.2
9-09150-516-0
01
1
0407-0603
78
WASHER; LK
ID=16.2
0-91510-516-0
01
1
0604-
98
PIPE; AIR,FLEX HOSE TO JOINT
1-49124-209-0
01
1
0407-
102
WASHER; LK,JOINT
ID=16.2
9-09150-516-0
01
1
0407-0603
102
WASHER; LK,JOINT
ID=16.2
0-91510-516-0
01
1
0604-
103
WASHER; PL,JOINT
ID=17
9-09160-516-0
02
1
0407-0605
103
WASHER; PL,JOINT
ID=17 OD=30
0-91610-516-0
02
1
0606-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
6SD1 TCN ENG<31L>
1-49116-038-0
01
1
0407-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
6SD1 TCS ENG<83L>
1-49123-202-0
01
1
0407-
105
PIPE; VINYL,EXH,PARKING BRK VLV
6SD1 TCN ENG<31L> L=260 ID=9.5 SERVICED BY L=10000 THA
9-09914-701-0
01
1
0407-
105
PIPE; VINYL,EXH,PARKING BRK VLV
6SD1 TCS ENG<83L> L=240 ID=9.5 SERVICED BY L=10000 THA
9-09914-701-0
01
1
0407-
106
CLIP; PIPE
ID=14
8-94238-572-0
01
1
0407-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49116-039-0
01
1
0407-
109
NUT; JOINT
M16
9-99111-416-0
01
1
0407-0512
109
NUT; JOINT
M16
0-91111-516-0
01
1
0601-
118
JOINT; AIR PIPE
1-09661-460-0
01
1
0407-
119
PIPE; AIR,JOINT TO FLEX HOSE
1-49124-210-0
01
1
0407-
157
ADAPTER
1-09660-728-1
02
1
0407-
158
GASKET; UNION
ID=11 OD=18
9-09572-510-0
02
1
0407-
91
125
125
144
91
75
13
29
81
81
76
14
100
87
47
83
87
91
159
148
19
91
18
148
18
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HOSE; FLEX,TRAILER SERVICE
1-49216-038-1
01
1
0407-
14
CONNECTOR; AIR PIPE
1-09650-236-1
01
1
0407-
18
NUT; UNION
(A) M12
9-99111-412-0
01
1
0407-0512
18
NUT; UNION
(A) M12
0-91111-512-0
01
1
0601-
18
NUT; UNION
(B) M20
9-99111-420-0
02
1
0407-0512
18
NUT; UNION
(B) M20
0-91111-520-0
02
1
0601-
19
UNION; AIR PIPE
(A)
1-09654-325-0
01
1
0407-
19
UNION; AIR PIPE
(B) M16 ELBOW
9-09225-010-1
01
1
0407-0607
19
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-010-0
01
1
0608-
19
UNION; AIR PIPE
(C) M20
9-09235-212-1
01
1
0407-0607
19
UNION; AIR PIPE
(C) M20
0-92135-212-0
01
1
0608-
29
CONNECTOR; COCK
PT1/2
1-09664-041-1
01
1
0407-
33
BRACKET
THA
8-97917-596-2
01
1
0407-
47
PIPE; AIR,UNION TO UNION
6SD1 TCN ENG<31L>
1-49123-238-0
01
1
0407-0701
47
PIPE; AIR,UNION TO UNION
6SD1 TCS ENG<83L> L=1521 SERVICED BY L=1600
1-49115-467-0
01
1
0407-0701
47
PIPE; AIR,UNION TO UNION
L=1521 SERVICED BY L=1600
1-49115-467-0
01
1
0702-
75
HOSE; FLEX,TRAILER EMERGENCY
1-49216-038-1
01
1
0407-
76
NIPPLE; AIR PIPE
1-09650-236-1
01
1
0407-
81
COCK; AIR COUPLING
(B) RED
1-09680-091-0
01
1
0407-
81
COCK; AIR COUPLING
(A) BLUE
1-09680-092-0
01
1
0407-
83
WASHER; LK,CONNECTOR
ID=20.2
9-09150-520-0
01
1
0407-0603
83
WASHER; LK,CONNECTOR
ID=20.2
0-91510-520-0
01
1
0604-
87
NUT
M20
9-99111-420-0
02
1
0407-0512
87
NUT
M20
0-91111-520-0
02
1
0601-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
02
1
0407-
91
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87410-070-0
03
1
0407-
100
WASHER; LK,AIR PIPE
ID=20.2
9-09150-520-0
01
1
0407-0603
100
WASHER; LK,AIR PIPE
ID=20.2
0-91510-520-0
01
1
0604-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
02
1
0407-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87410-098-0
01
1
0407-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87410-100-0
03
1
0407-
144
CLIP; BAND
L=250
1-09707-126-0
01
1
0407-
148
ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT
1-09660-877-0
02
1
0407-
159
PIPE; AIR,UNION TO CONNECTOR
6SD1 TCN ENG<31L>
1-49123-237-0
01
1
0407-0701
159
PIPE; AIR,UNION TO CONNECTOR
6SD1 TCS ENG<83L>
1-49124-174-0
01
1
0407-0701
159
PIPE; AIR,UNION TO CONNECTOR
1-49124-174-0
01
1
0702-
