3-77 — BRAKE PIPING; AIR,REAR
(#24465) — 19 parça
◀

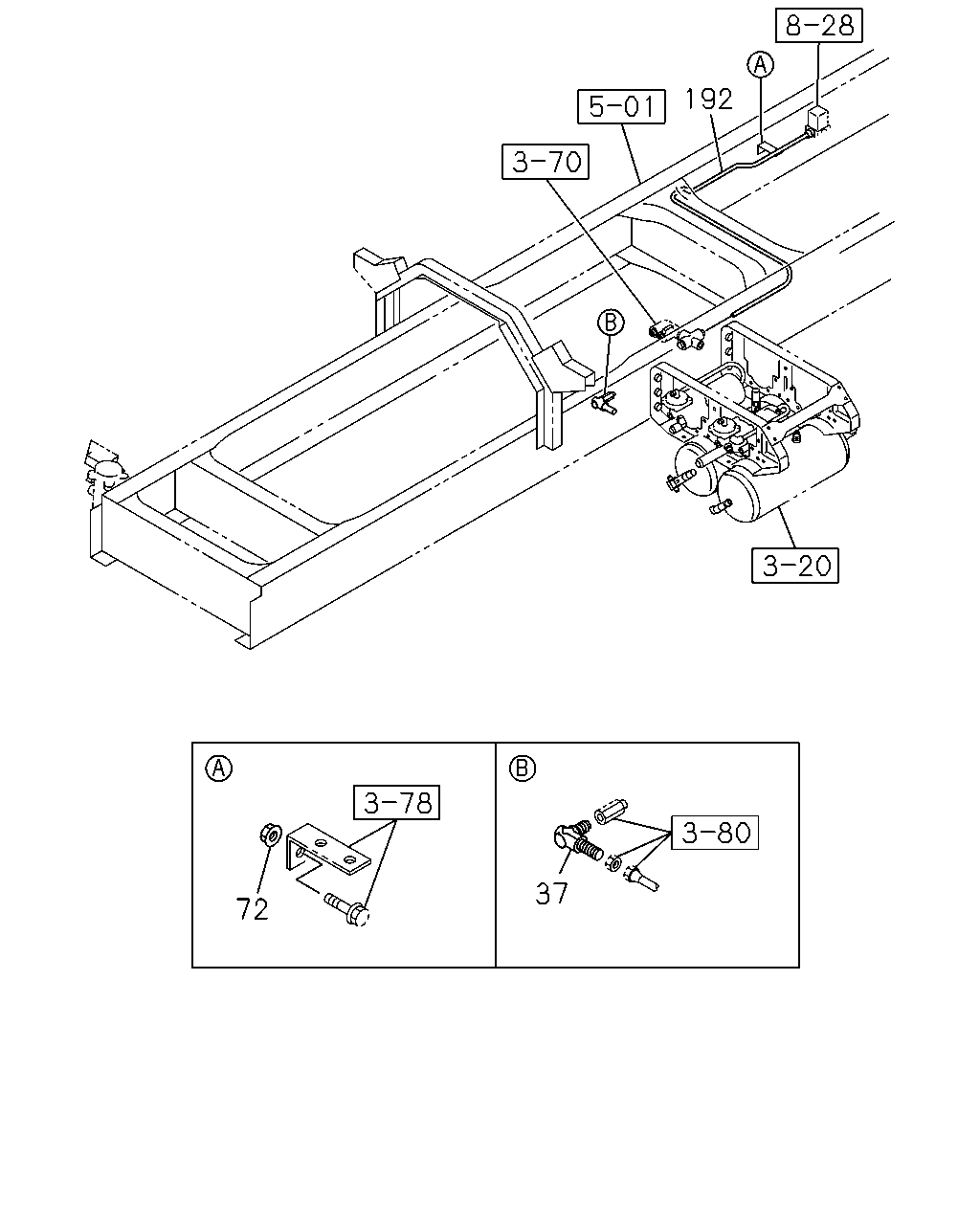

[377A] FRAME SIDE (5 parça)
[377A] CAB SIDE (14 parça)
▶
192
37
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
M20
9-09235-212-1
01
1
0407-0607
37
UNION; AIR PIPE
M20
0-92135-212-0
01
1
0608-
72
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0407-0602
72
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
02
1
0603-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
0407-
206
1
60
61
181
316
61
285
126
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,FLEX HOSE TO BRK VLV
1-49112-854-0
01
1
0407-
46
NIPPLE; AIR PIPE
1-09660-807-2
01
1
0407-
60
NUT; NIPPLE,AIR PIPE
M16
9-99111-416-0
01
1
0407-0512
60
NUT; NIPPLE,AIR PIPE
M16
0-91111-516-0
01
1
0601-
61
WASHER; LK,NIPPLE
ID=16.2
9-09150-516-0
02
1
0407-0603
61
WASHER; LK,NIPPLE
ID=16.2
0-91510-516-0
02
1
0604-
126
UNION; NYLON TUBE
1-09660-807-2
01
1
0407-
181
NUT; TUBE UNION
M16
9-99111-416-0
01
1
0407-0512
181
NUT; TUBE UNION
M16
0-91111-516-0
01
1
0601-
206
PIPE; AIR,BRK VLV TO FLEX HOSE
1-49112-855-1
01
1
0407-
285
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
01
1
0407-0605
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
01
1
0606-
316
WASHER; PL
ID=17
9-09160-516-0
01
1
0407-0605
316
WASHER; PL
ID=17 OD=30
0-91610-516-0
01
1
0606-
