Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10945 - GXZ(THAI)EURO2
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#24464) — 20 parça
◀

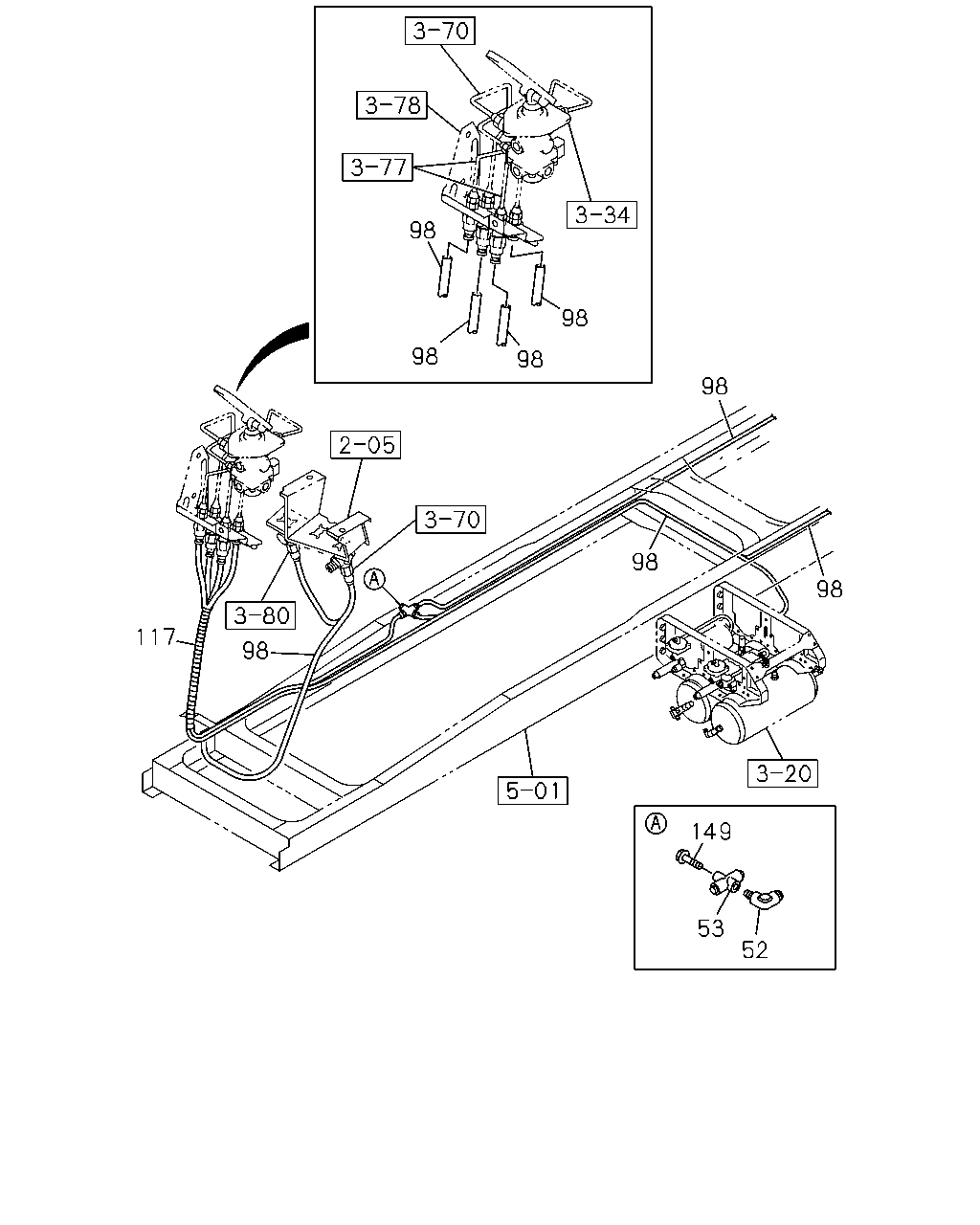

[375A] FRAME SIDE (12 parça)
[375A] CAB SIDE (8 parça)
▶
98
98
98
98
98
98
98
117
98
149
53
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
CONNECTOR; NYLON TUBE
DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0407-
53
UNION; ELBOW
DIN12X2 & R3/8 3WAY
1-09661-131-0
01
1
0407-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0407-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0407-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0407-
98
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0407-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0407-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0407-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0407-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
AR
1
0407-
149
BOLT; UNION
M8X20 FLANGE
0-28080-820-0
01
1
0407-0611
149
BOLT; UNION
M8X20 FLANGE THA
0-28050-820-0
01
1
0612-
118
115
116
138
115
116
138
114
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
114
UNION; NYLON TUBE
1-09660-807-2
02
1
0407-
115
NUT; TUBE UNION
M16
9-99111-416-0
02
1
0407-0512
115
NUT; TUBE UNION
M16
0-91111-516-0
02
1
0601-
116
WASHER; LK,TUBE UNION
ID=16.2
9-09150-516-0
02
1
0407-0603
116
WASHER; LK,TUBE UNION
ID=16.2
0-91510-516-0
02
1
0604-
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=419
1-49115-942-3
01
1
0407-
138
WASHER; PL,UNION
ID=17
9-09160-516-0
02
1
0407-0605
138
WASHER; PL,UNION
ID=17 OD=30
0-91610-516-0
02
1
0606-
