3-70 — BRAKE PIPING; AIR,AIR MASTER (#24463) — 108 parça

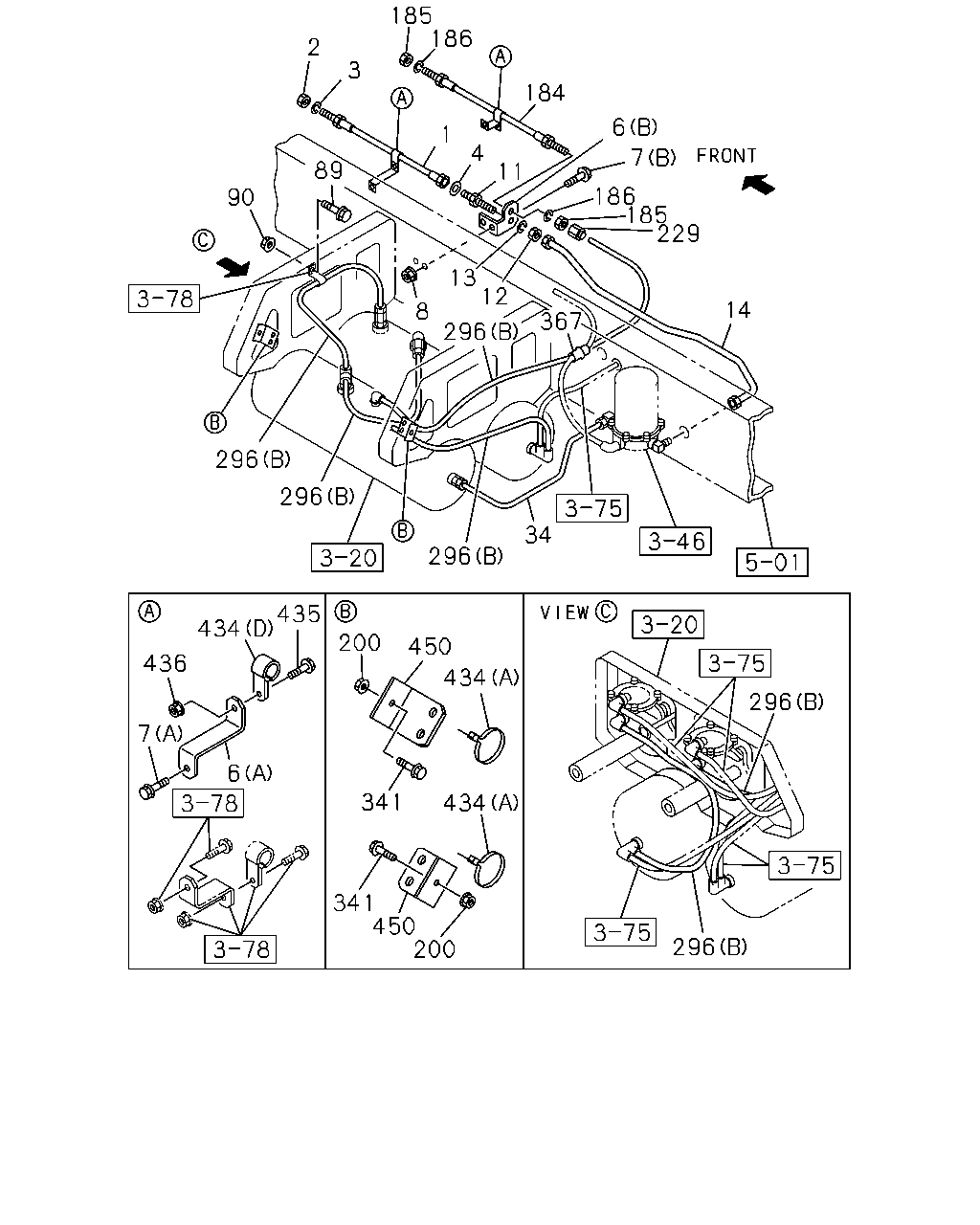

çizim 25793
185 186 2 3 184 6 1 4 7 89 11 186 185 229 90 13 12 367 14 8 296 296 296 34 296 435 434 200 450 436 434 296 7 6 341 434 341 450 200 296
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=560 		0-07806-560-1 01 1 0407-0605
1 HOSE; FLEX,AIR TANK
L=560 		0-57806-560-1 01 1 0606-
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 01 1 0407-0512
2 NUT; FLEX HOSE,AIR TANK
M20 		0-91111-520-0 01 1 0601-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 01 1 0407-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		0-91510-520-0 01 1 0604-
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 0407-
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47476-200-0 01 1 0407-
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47479-304-0 01 1 0407-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0407-0611
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 0612-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0407-0611
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X35 FLANGE THA 		0-28650-835-0 02 1 0612-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE THA 		0-91180-108-0 02 1 0603-
11 UNION; AIR PIPE
M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0407-
12 NUT; UNION
M20 		9-99111-420-0 01 1 0407-0512
12 NUT; UNION
M20 		0-91111-520-0 01 1 0601-
13 WASHER; LK,UNION
ID=20.2 		9-09150-520-0 01 1 0407-0603
13 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 01 1 0604-
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-236-0 01 1 0407-
34 PIPE; AIR
L=707 		1-49124-338-0 01 1 0407-
89 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0611
89 BOLT; TUBE CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 0612-
90 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
90 NUT; TUBE CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0603-
184 HOSE; FLEX,AIR GOV
6SD1 TCN ENG<31L> 		1-09363-721-0 01 1 0407-
184 HOSE; FLEX,AIR GOV
6SD1 TCS ENG<83L> L=580 		1-09363-692-0 01 1 0407-
185 NUT; FLEX HOSE,AIR GOV
6SD1 TCN ENG<31L> M12 		9-09840-280-0 02 1 0407-
185 NUT; FLEX HOSE,AIR GOV
6SD1 TCS ENG<83L> M12 		9-09840-280-0 01 1 0407-
186 WASHER; LK,FLEX HOSE,AIR GOV
6SD1 TCN ENG<31L> ID=12.2 		9-09150-512-0 02 1 0407-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
6SD1 TCN ENG<31L> ID=12.2 		0-91510-512-0 02 1 0604-
186 WASHER; LK,FLEX HOSE,AIR GOV
6SD1 TCS ENG<83L> ID=12.2 		9-09150-512-0 01 1 0407-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
6SD1 TCS ENG<83L> ID=12.2 		0-91510-512-0 01 1 0604-
200 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
200 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 0603-
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0409-
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407-0408
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407-0408
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0409-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-1 01 1 0407-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407-
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611
341 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0407-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 01 1 0407-
434 CLIP
(D) ID=26 L=27 		1-09701-006-0 01 1 0407-
434 CLIP
(A) L=250 		1-09707-126-0 02 1 0407-
434 CLIP
(C) ID=17 THA 		1-09987-105-1 01 1 0407-
434 CLIP
(B) THA 		8-94297-486-0 02 1 0407-
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0611
435 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 0612-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0603-
450 BRACKET; CLIP 1-47479-307-0 02 1 0407-

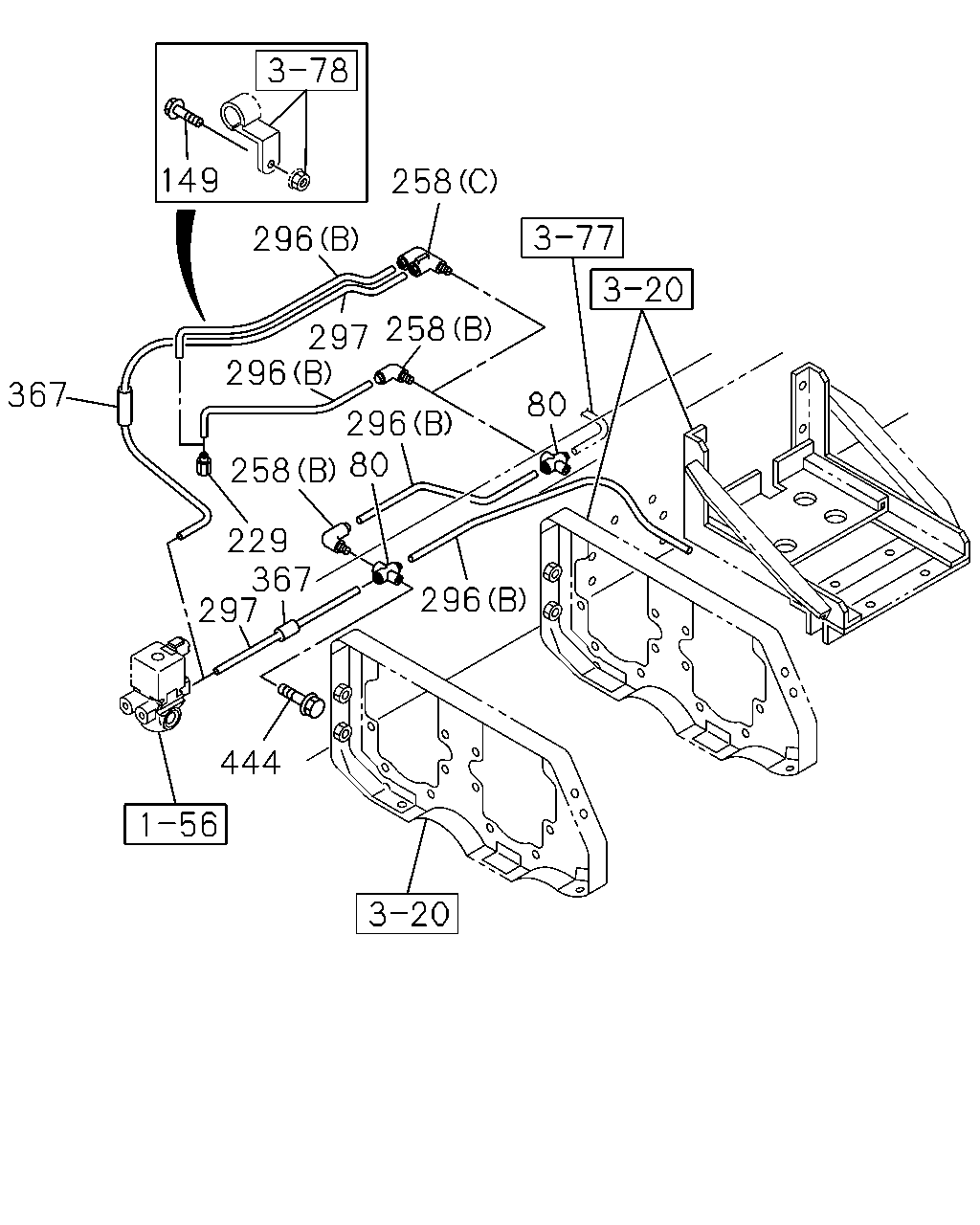

çizim 84124
149 258 296 258 297 296 367 80 296 258 80 229 367 297 296 444
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0407-
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0407-
149 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28680-835-0 01 1 0407-0611
149 BOLT; TUBE CLIP
M8X35 FLANGE THA 		0-28650-835-0 01 1 0612-
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0409-
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407-0408
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407-0408
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0409-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0407-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0407-
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG<31L> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0407-
258 CONNECTOR; NYLON TUBE
6SD1 TCS ENG<83L> (C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0407-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-1 01 1 0407-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0407-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0407-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 01 1 0407-
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 02 1 0407-0407
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 02 1 0407-0611
444 BOLT; UNION
M8X20 FLANGE THA 		0-28050-820-0 02 1 0612-

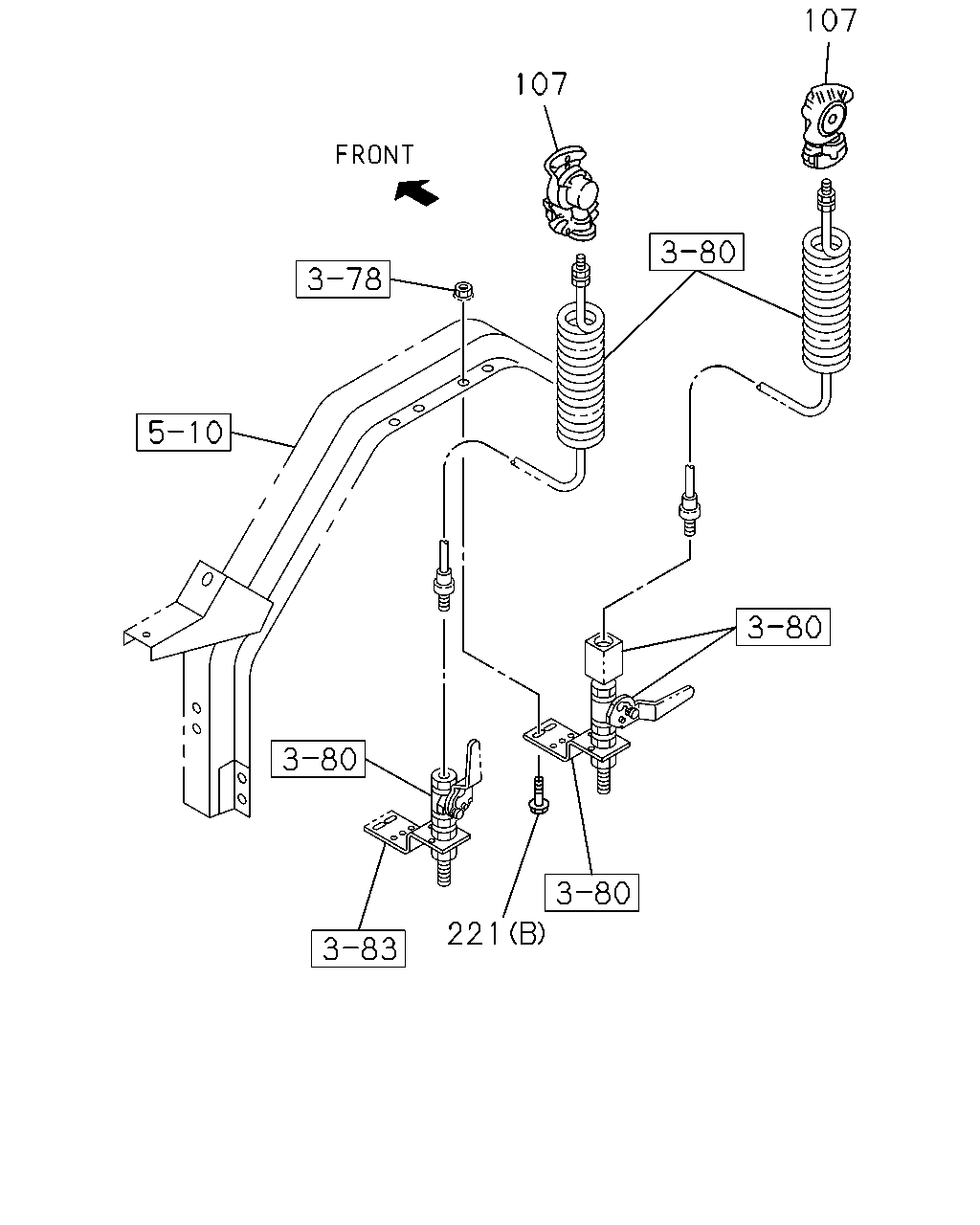

çizim 84396
107 107 221
BalonParca AdiParca NoAdetTipApplied Date
107 COUPLING; SERVICE
BLUE 		1-47465-151-0 01 1 0407-
107 COUPLING; SERVICE
RED 		1-47465-152-0 01 1 0407-
221 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611
221 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 0612-
221 BOLT; BRKT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0407-

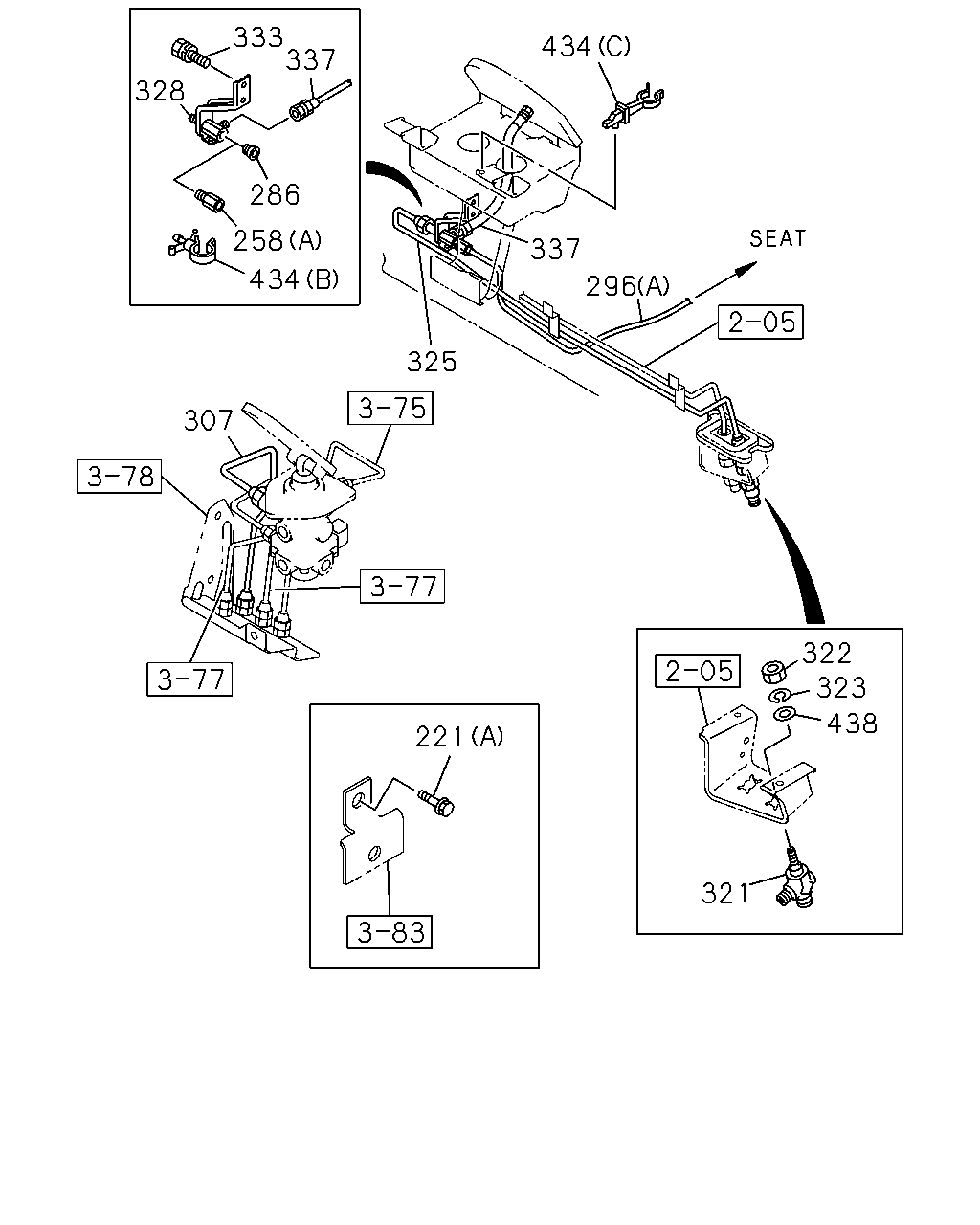

çizim 86635
333 337 434 328 286 258 337 434 296 325 307 322 323 438 221 321
BalonParca AdiParca NoAdetTipApplied Date
221 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611
221 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 0612-
221 BOLT; BRKT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0407-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0407-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0407-
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG<31L> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0407-
258 CONNECTOR; NYLON TUBE
6SD1 TCS ENG<83L> (C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0407-
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> 		9-09204-510-0 01 1 0407-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-1 01 1 0407-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0407-
321 JOINT; FLEX HOSE 1-09656-711-0 01 1 0407-
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0407-
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604-
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0407-0603
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0407-
328 UNION; AIR PIPE 1-47470-362-2 01 1 0407-
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0407-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 0407-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 0606-
434 CLIP
(D) ID=26 L=27 		1-09701-006-0 01 1 0407-
434 CLIP
(A) L=250 		1-09707-126-0 02 1 0407-
434 CLIP
(C) ID=17 THA 		1-09987-105-1 01 1 0407-
434 CLIP
(B) THA 		8-94297-486-0 02 1 0407-
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0407-
