3-58 — FIXING PARTS; OIL PIPING (#24462) — 58 parça

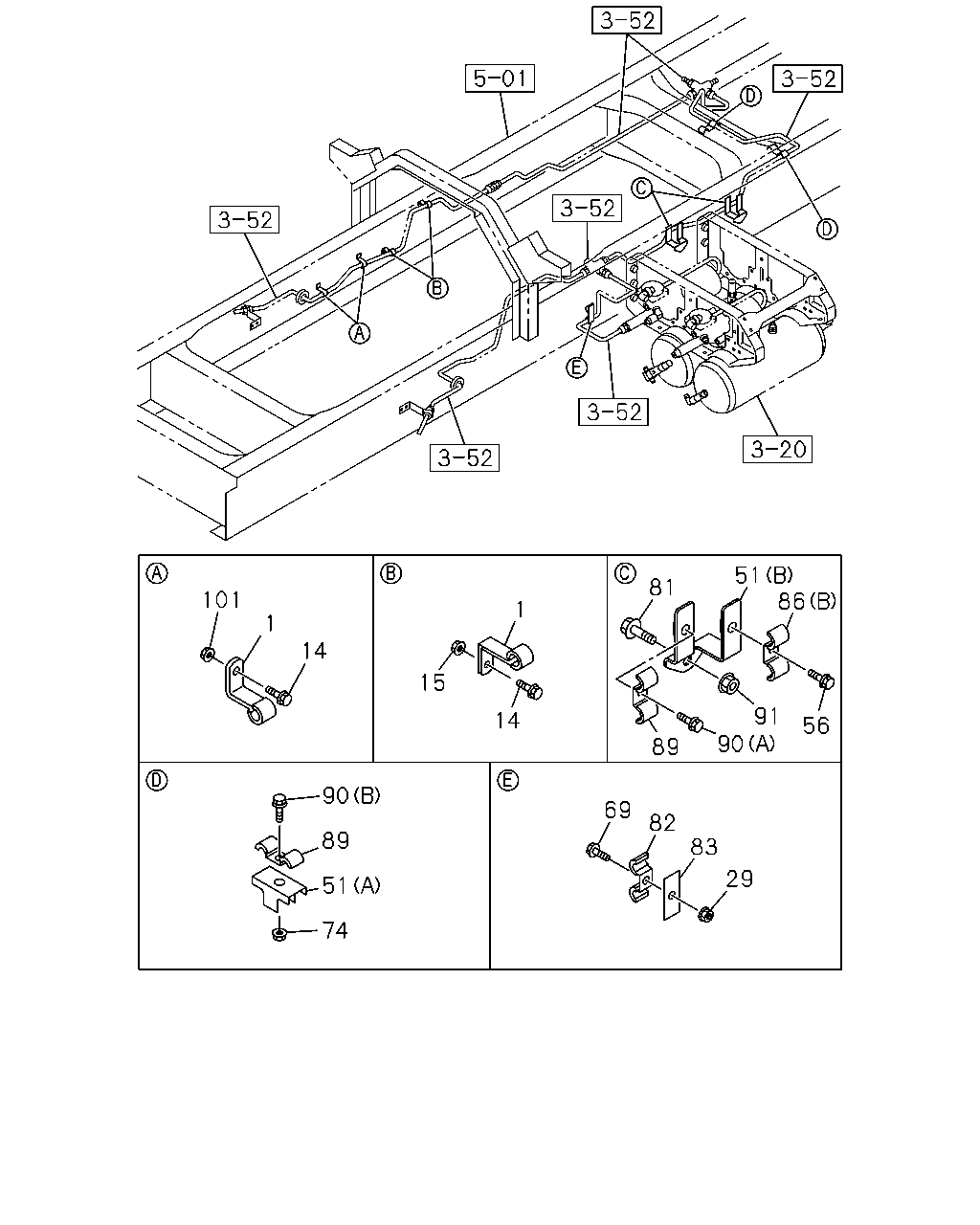

çizim 84723
51 86 81 101 1 1 14 15 91 90 14 56 89 90 69 82 89 83 29 51 74
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; OIL PIPE TO BODY
ID=6 H=20 L=20 THA 		1-09700-603-0 02 1 0407-
1 CLIP; OIL PIPE TO BODY
ID=6 H=20 L=20 THA 		1-09700-603-0 03 1 0407-
14 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0611
14 BOLT; CLIP,OIL PIPE
M8X30 FLANGE THA 		0-28650-830-0 02 1 0612-
14 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 03 1 0407-0611
14 BOLT; CLIP,OIL PIPE
M8X30 FLANGE THA 		0-28650-830-0 03 1 0612-
15 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 0407-0602
15 NUT; CLIP,OIL PIPE
M8 FLANGE THA 		0-91180-108-0 03 1 0603-
29 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
29 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0603-
51 BRACKET; OIL PIPE
(A) 		1-47475-427-1 01 1 0407-
51 BRACKET; OIL PIPE
(A) 		1-47475-427-1 02 1 0407-
51 BRACKET; OIL PIPE
(B) 		1-47478-774-0 02 1 0407-
56 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0407-0611
56 BOLT; CLIP
M8X30 FLANGE THA 		0-28650-830-0 01 1 0612-
69 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0611
69 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 0612-
74 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
74 NUT; CLIP,OIL PIPE
M8 FLANGE THA 		0-91180-108-0 02 1 0603-
81 BOLT; BRKT,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0611
81 BOLT; BRKT,OIL PIPE
M8X30 FLANGE THA 		0-28650-830-0 02 1 0612-
82 CLIP; OIL PIPE
ID=7 & 9 L=17.5 & 17.5 THA 		1-09700-746-0 01 1 0407-
83 BRACKET; PIPE CLIP
L=50 THA 		1-47475-299-2 01 1 0407-
86 CLIP; OIL PIPE
(A) ID=6 H=20 L=20 THA 		1-09700-603-0 01 1 0407-
86 CLIP; OIL PIPE
(B) ID=16 & 7 L=21 & 17 THA 		1-09700-675-0 01 1 0407-
89 CLIP; OIL PIPE
ID=7 & 9 L=17.5 & 17.5 THA 		1-09700-746-0 04 1 0407-
90 BOLT; CLIP,OIL PIPE
(A) M8X14 FLANGE 		0-28080-814-0 02 1 0407-
90 BOLT; CLIP,OIL PIPE
(B) M8X45 FLANGE 		0-28080-845-0 02 1 0407-0512
90 BOLT; CLIP,OIL PIPE
(B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0601-
91 NUT; BRKT,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
91 NUT; BRKT,OIL PIPE
M8 FLANGE THA 		0-91180-108-0 02 1 0603-
101 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
101 NUT; CLIP,OIL PIPE
M8 FLANGE THA 		0-91180-108-0 02 1 0603-

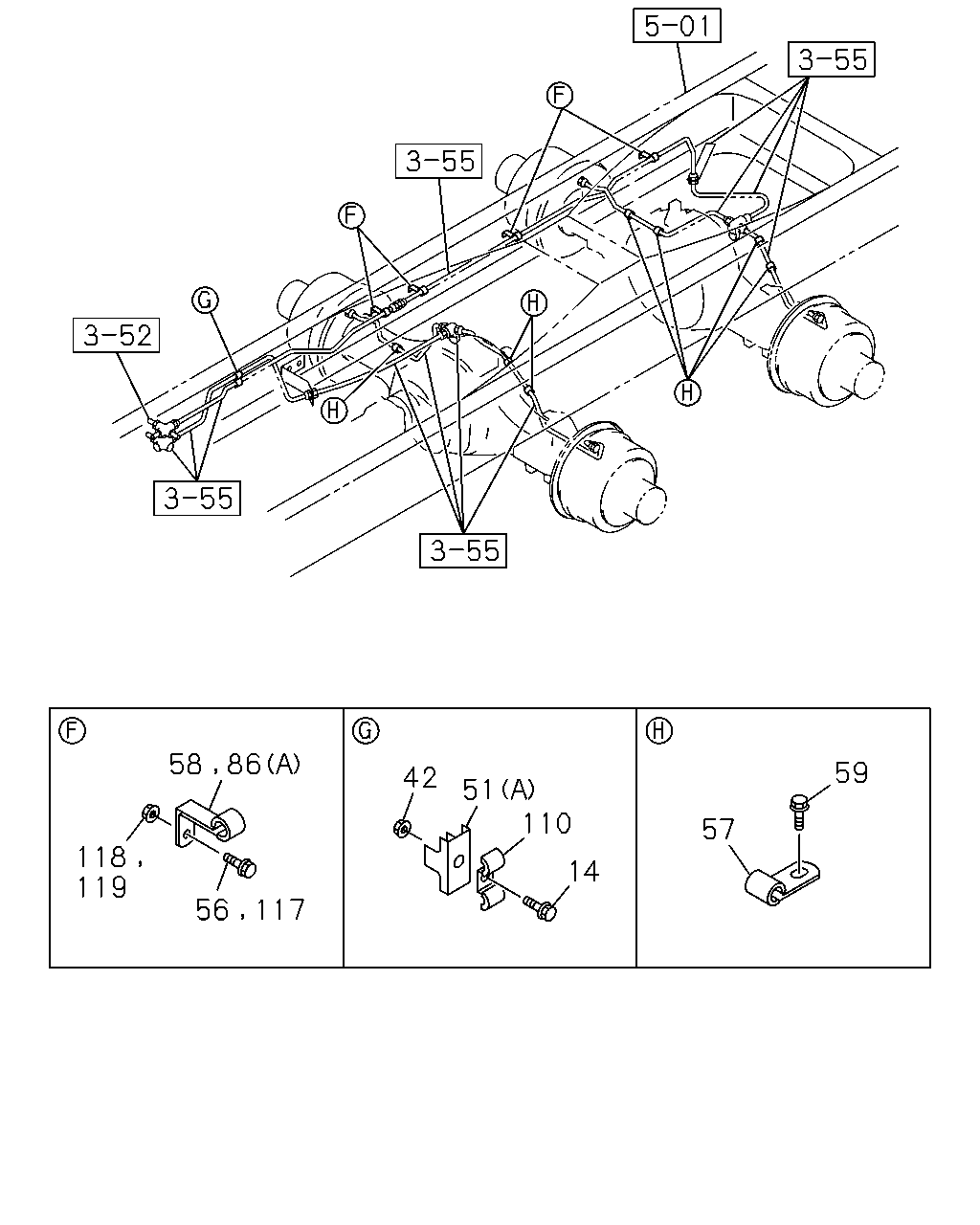

çizim 84724
59 42 51 110 57 118 119 14 58 86 56 117
BalonParca AdiParca NoAdetTipApplied Date
14 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0611
14 BOLT; CLIP,OIL PIPE
M8X30 FLANGE THA 		0-28650-830-0 02 1 0612-
14 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 03 1 0407-0611
14 BOLT; CLIP,OIL PIPE
M8X30 FLANGE THA 		0-28650-830-0 03 1 0612-
42 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
42 NUT; CLIP,OIL PIPE
M8 FLANGE THA 		0-91180-108-0 01 1 0603-
51 BRACKET; OIL PIPE
(A) 		1-47475-427-1 01 1 0407-
51 BRACKET; OIL PIPE
(A) 		1-47475-427-1 02 1 0407-
51 BRACKET; OIL PIPE
(B) 		1-47478-774-0 02 1 0407-
56 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0407-0611
56 BOLT; CLIP
M8X30 FLANGE THA 		0-28650-830-0 01 1 0612-
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		9-09524-635-0 07 1 0407-0606
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		0-95234-635-0 07 1 0607-
58 CLIP; OIL PIPE
ID=6 H=20 L=20 THA 		1-09700-603-0 03 1 0407-
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE THA 		0-28050-810-0 07 1 0601-
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28080-810-0 07 1 0407-0512
86 CLIP; OIL PIPE
(A) ID=6 H=20 L=20 THA 		1-09700-603-0 01 1 0407-
86 CLIP; OIL PIPE
(B) ID=16 & 7 L=21 & 17 THA 		1-09700-675-0 01 1 0407-
110 CLIP; OIL PIPE
ID=7 & 7 L=17.5 & 17.5 THA 		1-09700-745-0 01 1 0407-
117 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 03 1 0407-0611
117 BOLT; CLIP,OIL PIPE
M8X30 FLANGE THA 		0-28650-830-0 03 1 0612-
118 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 0407-0602
118 NUT; CLIP,OIL PIPE
M8 FLANGE THA 		0-91180-108-0 03 1 0603-
119 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
119 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0603-
