Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10945 - GXZ(THAI)EURO2
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶

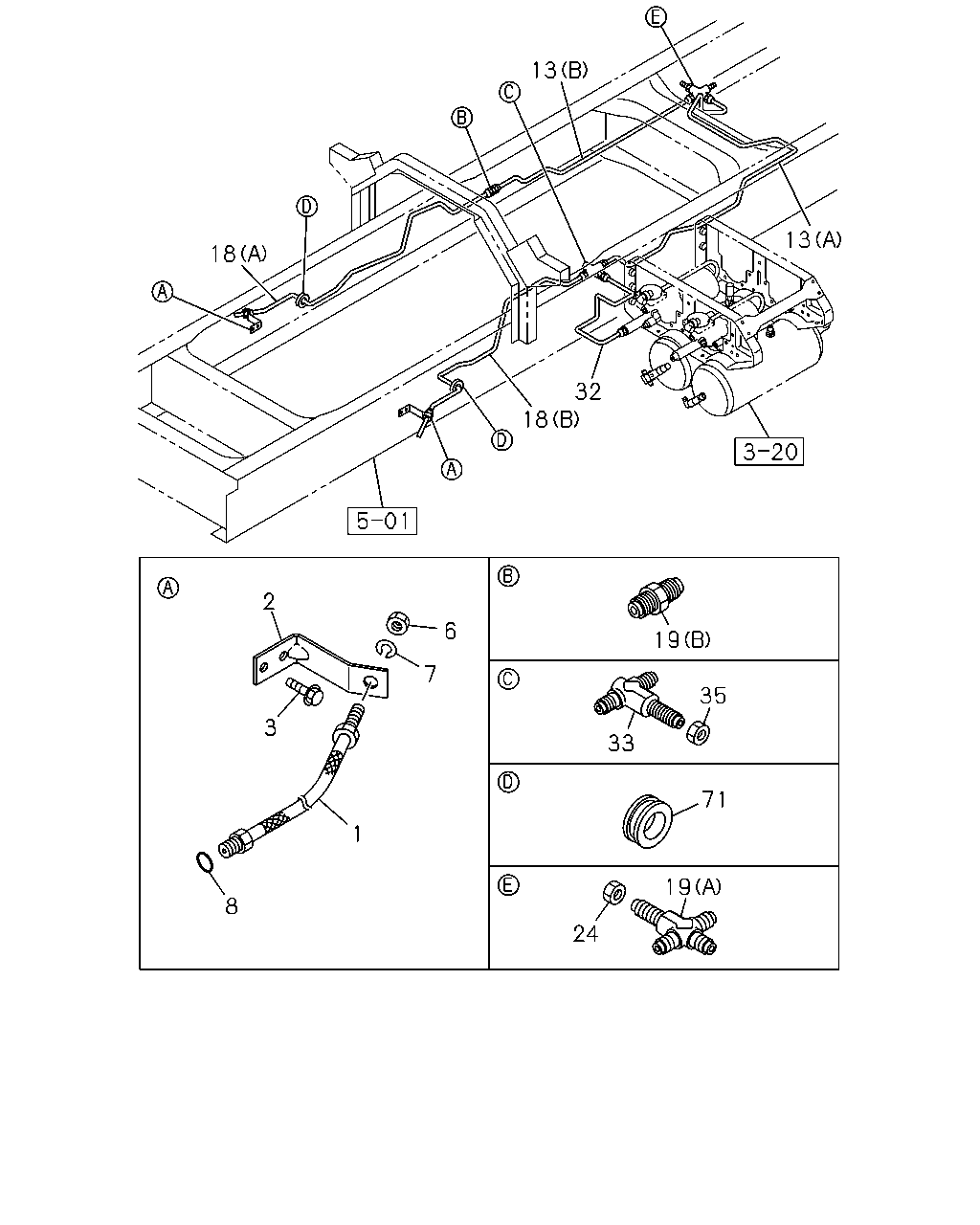

3-52 — BRAKE PIPING; OIL,FRONT
(#24460) — 22 parça
13
13
18
32
18
2
6
19
7
35
3
33
71
1
19
8
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=650
1-09364-200-0
02
1
0407-
2
BRACKET; FLEX HOSE,FRT BRK
1-47479-285-0
02
1
0407-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE
0-28680-820-0
04
1
0407-0611
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE THA
0-28650-820-0
04
1
0612-
6
NUT; FLEX HOSE,FRT BRK
M12
9-09840-280-0
02
1
0407-
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
9-09150-512-0
02
1
0407-0603
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
0-91510-512-0
02
1
0604-
8
GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17
9-09920-472-0
02
1
0407-
13
PIPE; OIL,UNION TO UNION
(A) THA
8-97922-166-0
01
1
0407-
13
PIPE; OIL,UNION TO UNION
(B) THA
8-97922-167-0
01
1
0407-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) THA
8-97922-168-2
01
1
0407-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) THA
8-97922-169-0
01
1
0407-
19
UNION; OIL PIPE
(A)
1-09656-232-1
01
1
0407-
19
UNION; OIL PIPE
(B) M12 L=40
9-09223-006-1
01
1
0407-0607
19
UNION; OIL PIPE
(B) M12 L=40
0-92113-006-0
01
1
0608-
24
NUT; UNION,OIL PIPE
M12
9-99111-412-0
01
1
0407-0512
24
NUT; UNION,OIL PIPE
M12
0-91111-512-0
01
1
0601-
32
PIPE; OIL,AIR MASTER TO UNION
THA
8-97922-165-1
01
1
0407-
33
UNION; OIL PIPE
1-09656-487-1
01
1
0407-
35
NUT; UNION,OIL PIPE
M14
9-99111-414-0
01
1
0407-0512
35
NUT; UNION,OIL PIPE
M14
0-91111-514-0
01
1
0601-
71
GROMMET; OIL PIPE
ID=28 OD=35 T=17
9-09956-256-2
02
1
0407-
