Sayfa 1-50A - Isuzu EPC

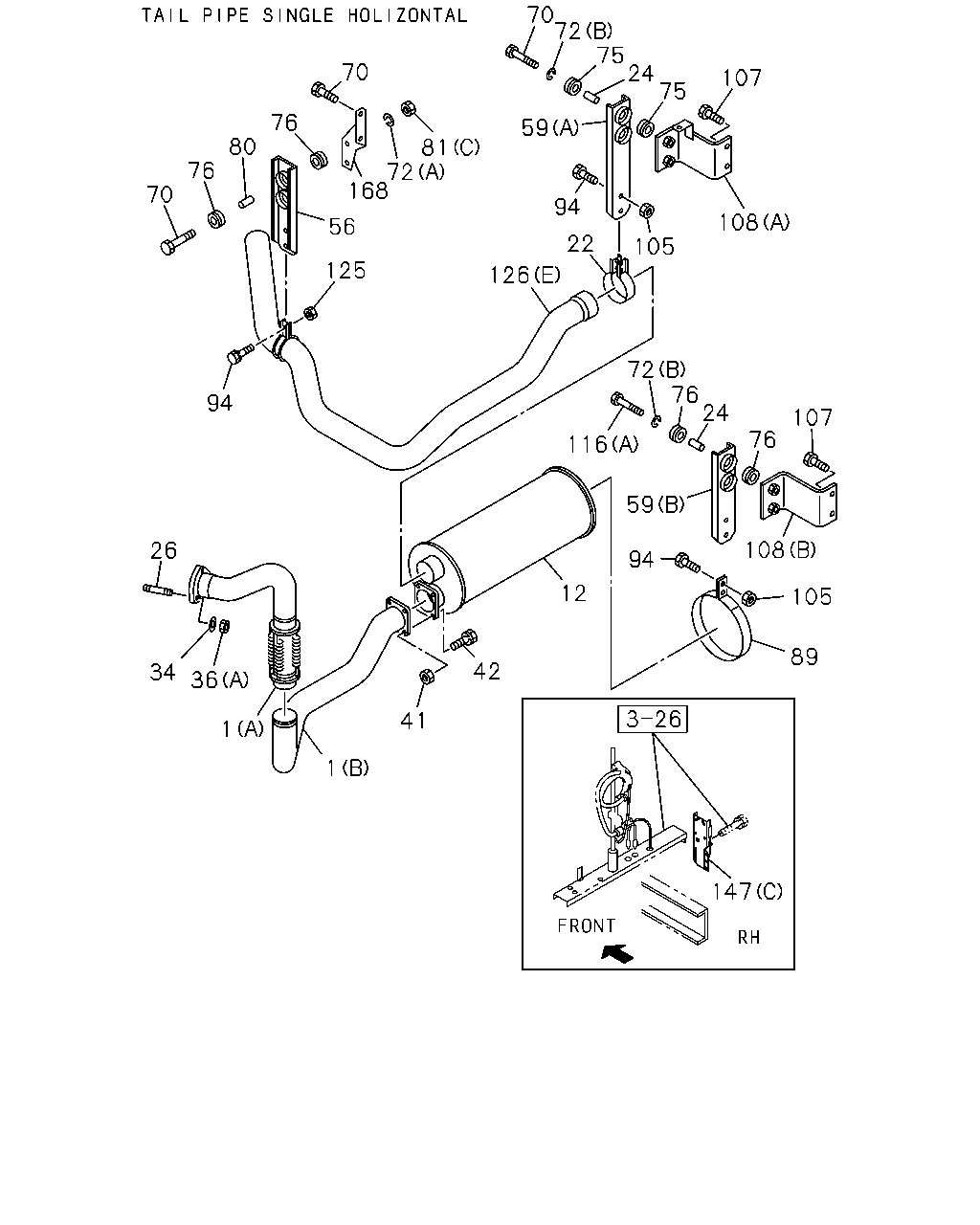

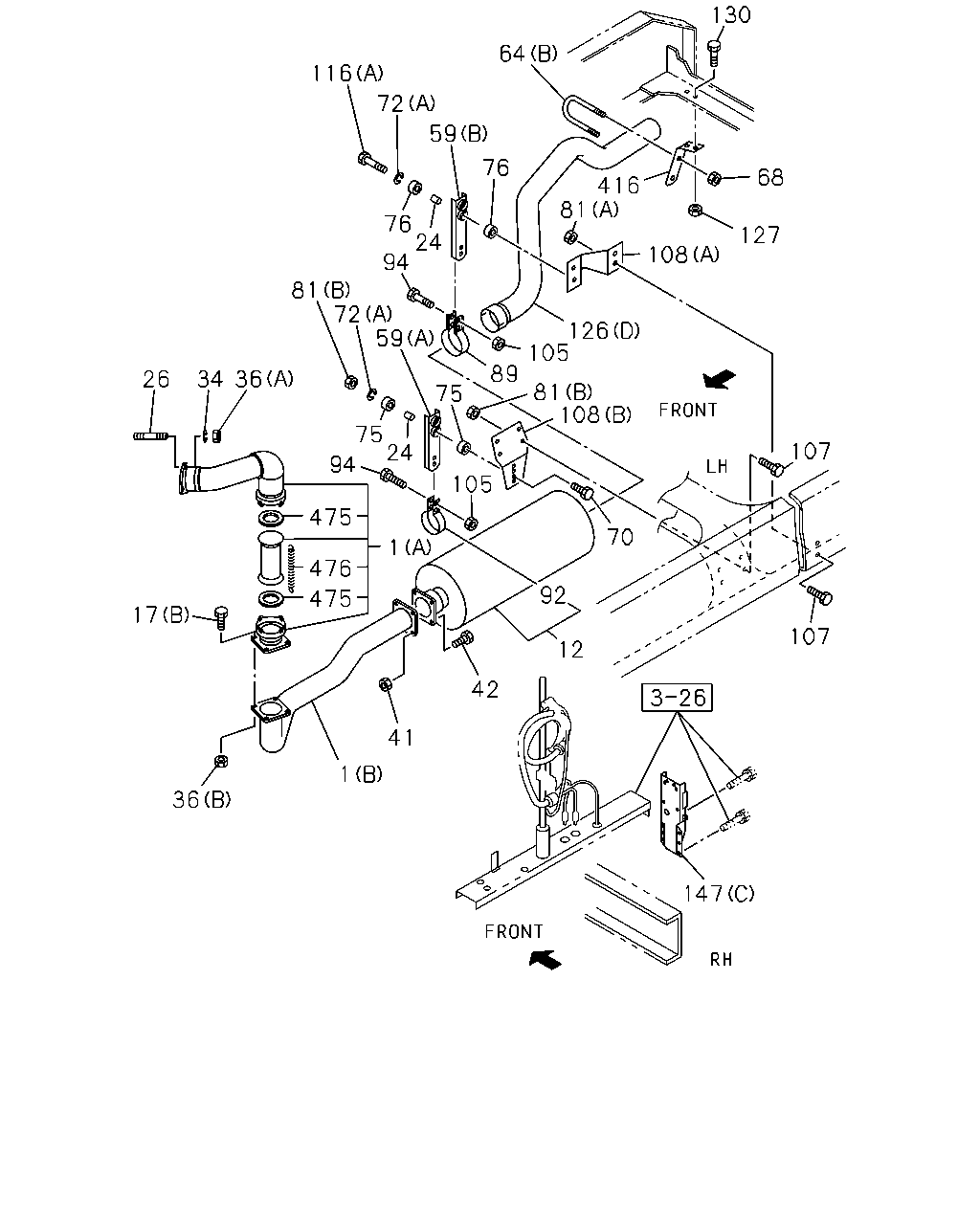

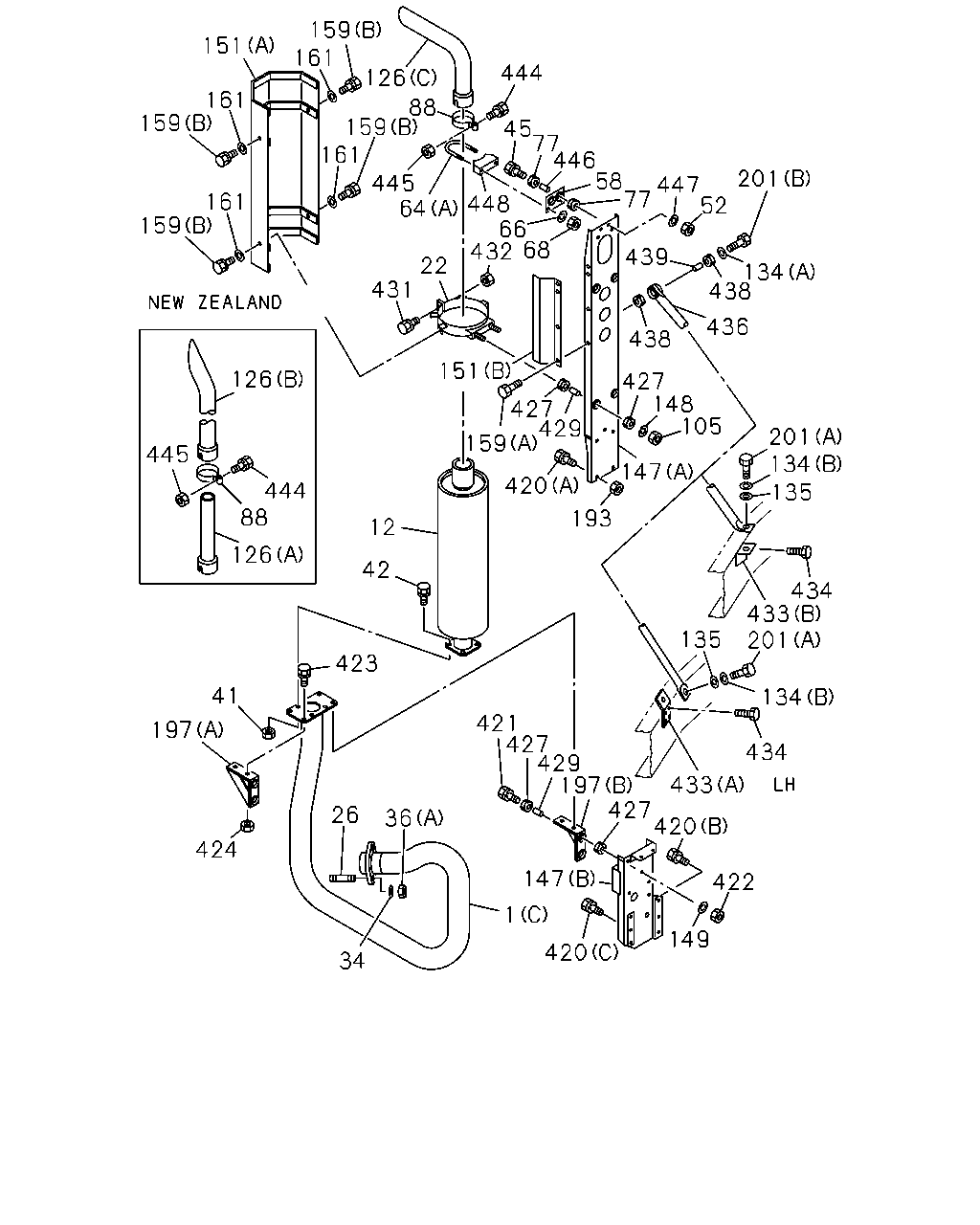

1-50A — EXHAUST PIPE AND SILENCER (#2446) — 392 parça

159 161 151 444 126 161 159 88 159 161 45 77 446 58 447 77 52 201 445 64 448 66 161 159 439 22 134 438 431 436 438 151 126 427 148 105 427 429 201 134 135 159 445 147 420 444 88 193 12 126 42 434 433 201 135 423 41 134 421 427 429 197 427 420 197 434 433 26 36 424 147 422 1 149 420 34 432 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-026-0	01	1	9002-9004	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-081-0	01	1	9005-9011	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-081-1	01	1	9012-9306	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22122-081-1	01	1	9307-		●
1	PIPE; EXH (C)	1-22121-930-0	01	1	9002-			●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22121-936-0	01	1	9012-9306		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22121-940-0	01	1	9012-9306		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22122-416-0	01	1	9307-9401		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22122-417-0	01	1	9307-		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22121-553-3	01	1	9402-		●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22140-641-2	01	1	9002-9103	●	●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22140-627-3	01	1	9104-9306	●	●
12	SILENCER ASM; EXH	1-22140-626-2	01	1	9002-9103			●
12	SILENCER ASM; EXH	1-22140-754-1	01	1	9307-			●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22140-595-1	01	1	9012-9306		●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-763-0	01	1	9307-		●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-756-1	01	1	9307-		●
12	SILENCER ASM; EXH	1-22140-659-2	01	1	9104-9306			●
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22133-163-0	02	1	9002-9306	●	●	●
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-163-0	02	1	9307-		●	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> D=79	1-22133-218-0	01	1	9012-9306		●
26	STUD; EXH MANIF	1-09302-090-0	03	1	9002-	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9002-	●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	9002-	●	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	04	1	9307-9410		●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	04	1	9411-		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9002-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X40	9-01911-240-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X40 W/LK WASHER	0-50041-240-0	04	1	9006-9306	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 W/LK WASHER	0-50041-240-0	04	1	9307-		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005			●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306			●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-			●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-		●
45	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X50	9-01056-050-0	02	1	9002-9004	●		●
45	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X50	0-10806-050-0	02	1	9005-9306	●	●	●
45	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	02	1	9307-		●	●
52	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9002-9306	●	●	●
52	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9307-		●	●
58	BRACKET; EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22131-169-0	01	1	9002-9306	●	●	●
58	BRACKET; EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-169-0	01	1	9307-		●	●
64	U-BOLT; EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22113-063-1	01	1	9002-9306	●	●	●
64	U-BOLT; EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22113-063-1	01	1	9307-		●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5	1-22139-077-1	01	1	9307-9502		●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=150	1-22113-008-1	01	1	9503-		●
66	WASHER; LK,U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=8.2	9-09150-508-0	02	1	9002-9306	●	●	●
66	WASHER; LK,U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	02	1	9307-		●	●
68	NUT; U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-9306	●	●	●
68	NUT; U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-		●	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9307-		●
77	RUBBER; CUSHION,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22159-065-0	04	1	9002-9306	●	●	●
77	RUBBER; CUSHION,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40	1-22159-094-0	04	1	9307-		●	●
88	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=97	1-22133-043-1	01	1	9002-9306	●	●	●
88	CLAMP; EXH PIPE NYLON TUBE AIR PIPING<Z29> ID=97	1-22133-043-1	01	1	9002-9306	●	●	●
88	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	01	1	9307-		●	●
88	CLAMP; EXH PIPE NEW ZEALAND EQUIPMENT(PK5) ID=97	1-22133-043-1	01	1	9307-		●
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	04	1	9002-9306	●	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9012-9306		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9012-9306		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-		●
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	04	1	9307-		●	●
126	PIPE; EXH,RR NEW ZEALAND EQUIPMENT(PK5) (A)	1-22112-265-1	01	1	9002-	●	●	●
126	PIPE; EXH,RR NEW ZEALAND EQUIPMENT(PK5) (B)	1-22112-640-1	01	1	9002-	●	●	●
126	PIPE; EXH,RR EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-22112-639-1	01	1	9002-9011			●
126	PIPE; EXH,RR EXC. NEW ZEALAND EQUIPMENT(PK5),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22112-639-1	01	1	9012-9306		●	●
126	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALANDEQUIPMENT(PK5) (C)	1-22112-639-1	01	1	9307-		●	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22122-100-1	01	1	9012-9306		●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22126-096-0	01	1	9307-		●
134	WASHER; LK,STAY EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) ID=10.2	9-09150-510-0	01	1	9002-9306	●	●	●
134	WASHER; LK,STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=10.2	9-09150-510-0	01	1	9307-		●	●
134	WASHER; LK,STAY EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) ID=14.2	9-09150-614-0	01	1	9002-9306	●	●	●
134	WASHER; LK,STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=14.2	9-09150-614-0	01	1	9307-		●	●
135	WASHER; PL,STAY EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=15	9-09160-514-0	01	1	9002-9306	●	●	●
135	WASHER; PL,STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=15	9-09160-514-0	01	1	9307-		●	●
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-582-2	01	1	9002-9306	●	●	●
147	BRACKET; VERTICAL PIPE EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-518-4	01	1	9002-9306	●	●	●
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22151-408-4	01	1	9002-9306	●	●	●
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-408-5	01	1	9307-		●	●
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> (B)	1-22151-582-2	01	1	9307-			●
147	BRACKET; VERTICAL PIPE EXC. AIR DRYER<PS7> (B)	1-22151-518-4	01	1	9307-			●
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-53497-365-2	01	1	9002-9306		●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9002-9306		●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9307-9312		●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-53497-365-2	01	1	9401-		●
148	WASHER; LK,CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=10.2	9-09150-510-0	04	1	9002-9306	●	●	●
148	WASHER; LK,CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	04	1	9307-		●	●
149	WASHER; LK,PIPE BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=10.2	9-09150-510-0	04	1	9002-9306	●	●	●
149	WASHER; LK,PIPE BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	04	1	9307-		●	●
151	PROTECTOR; HEAT,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22159-099-1	01	1	9002-9306	●	●	●
151	PROTECTOR; HEAT,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22159-099-1	01	1	9307-		●	●
151	PROTECTOR; HEAT,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22159-104-2	01	1	9002-9306	●	●	●
151	PROTECTOR; HEAT,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22159-104-2	01	1	9307-		●	●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005	●		●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9302	●	●	●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M8X20 FLANGE	0-28080-820-0	08	1	9303-9306	●	●	●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204	●	●	●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-9306	●	●	●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9307-		●	●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 FLANGE	0-28080-820-0	08	1	9307-		●	●
161	WASHER; PL,HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=8.4 OD=22	9-09160-708-0	08	1	9002-9306	●	●	●
161	WASHER; PL,HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22	9-09160-708-0	08	1	9307-		●	●
193	NUT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	04	1	9002-9306	●	●	●
193	NUT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9307-		●	●
197	BRACKET; EXH PIPE,VERTICAL EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) REAR	1-22151-405-2	01	1	9002-9306	●	●	●
197	BRACKET; EXH PIPE,VERTICAL EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) FRONT	1-22151-409-2	01	1	9002-9306	●	●	●
197	BRACKET; EXH PIPE,VERTICAL EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) REAR	1-22151-405-2	01	1	9307-		●	●
197	BRACKET; EXH PIPE,VERTICAL EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) FRONT	1-22151-409-2	01	1	9307-		●	●
201	BOLT; STAY EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X50	9-01056-050-0	01	1	9002-9004	●		●
201	BOLT; STAY EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X50	0-10806-050-0	01	1	9005-9306	●	●	●
201	BOLT; STAY EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M14X40	9-92061-440-0	01	1	9002-9306	●	●	●
201	BOLT; STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X50	0-10806-050-0	01	1	9307-		●	●
201	BOLT; STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M14X40	9-92061-440-0	01	1	9307-		●	●
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M12X25	9-01911-225-0	04	1	9002-9005	●		●
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M12X25 W/LK WASHER	0-50041-225-0	04	1	9006-9306	●	●	●
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12X32 W/LK WASHER	9-01911-232-0	03	1	9002-9005	●		●
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12X32 W/LK WASHER	0-50041-232-0	03	1	9006-9306	●	●	●
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M12X45	9-01911-245-0	03	1	9002-9005	●	●	●
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M12X45 W/LK WASHER	0-50041-245-0	03	1	9006-9306	●	●	●
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12X25 W/LK WASHER	0-50041-225-0	04	1	9307-		●	●
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X32 W/LK WASHER	0-50041-232-0	03	1	9307-		●	●
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M12X45 W/LK WASHER	0-50041-245-0	03	1	9307-		●	●
421	BOLT; PIPE BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X50	9-01056-050-0	04	1	9002-9004	●		●
421	BOLT; PIPE BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X50	0-10806-050-0	04	1	9005-9306	●	●	●
421	BOLT; PIPE BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	04	1	9307-		●	●
422	NUT; PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	04	1	9002-9306	●	●	●
422	NUT; PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	04	1	9307-		●	●
423	BOLT; PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●	●
423	BOLT; PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●	●	●
423	BOLT; PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-		●	●
424	NUT; BRKT TO PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-412-0	04	1	9002-9304	●	●	●
424	NUT; BRKT TO PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	04	1	9305-9306	●	●	●
424	NUT; BRKT TO PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9307-		●	●
427	SUPPORT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22159-065-0	16	1	9002-9306	●	●	●
427	SUPPORT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40	1-22159-094-0	16	1	9307-		●	●
429	COLLAR; DIST,SUPPORT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	08	1	9002-9306	●	●	●
429	COLLAR; DIST,SUPPORT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	08	1	9307-		●	●
431	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X40	9-01901-040-0	02	1	9002-9204	●	●	●
431	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X40 W/LK WASHER	0-50041-040-0	02	1	9205-9306	●	●	●
431	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 W/LK WASHER	0-50041-040-0	02	1	9307-		●	●
432	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9002-9306	●	●	●
432	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9307-		●	●
433	BRACKET; STAY,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22151-609-0	01	1	9002-9306	●	●	●
433	BRACKET; STAY,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-532-0	01	1	9307-		●	●
434	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X35 W/LK WASHER	9-01911-035-0	04	1	9002-9002	●		●
434	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X35 W/LK WASHER	0-50041-035-0	04	1	9003-9306	●	●	●
434	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X35 W/LK WASHER	0-50041-035-0	04	1	9307-		●	●
436	STAY; SUPPORT,EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22151-608-0	01	1	9002-9306	●	●	●
436	STAY; SUPPORT,EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22151-513-0	01	1	9307-		●	●
438	RUBBER; SUPPORT,STAY EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22159-065-0	02	1	9002-9306	●	●	●
438	RUBBER; SUPPORT,STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40	1-22159-094-0	02	1	9307-		●	●
439	TUBE; DIST,SUPPORT RUBBER EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=23.2	9-22159-009-1	01	1	9002-9109	●	●	●
439	TUBE; DIST,SUPPORT RUBBER EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	01	1	9110-9306	●	●	●
439	TUBE; DIST,SUPPORT RUBBER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	01	1	9307-9507		●	●
439	TUBE; DIST,SUPPORT RUBBER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=25	1-14234-083-0	01	1	9508-		●	●
444	BOLT; PIPE CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X40	9-01901-040-0	01	1	9002-9204	●	●	●
444	BOLT; PIPE CLAMP NEW ZEALAND EQUIPMENT(PK5) M10X40	9-01901-040-0	01	1	9002-9204	●	●	●
444	BOLT; PIPE CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-9306	●	●	●
444	BOLT; PIPE CLAMP NEW ZEALAND EQUIPMENT(PK5) M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-9306	●	●	●
444	BOLT; PIPE CLAMP NEW ZEALAND EQUIPMENT(PK5) M10X40 W/LK WASHER	0-50041-040-0	01	1	9307-	●	●	●
444	BOLT; PIPE CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 W/LK WASHER	0-50041-040-0	01	1	9307-		●	●
445	NUT; PIPE CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	01	1	9002-9306	●	●	●
445	NUT; PIPE CLAMP NEW ZEALAND EQUIPMENT(PK5) M10	9-09110-510-0	01	1	9002-9306	●	●	●
445	NUT; PIPE CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9307-		●	●
445	NUT; PIPE CLAMP NEW ZEALAND EQUIPMENT(PK5) M10	9-09110-510-0	01	1	9307-		●
446	PIECE; DIST,EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	02	1	9002-9306	●	●	●
446	PIECE; DIST,EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	02	1	9307-		●	●
447	WASHER; LK,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=10.2	9-09150-510-0	02	1	9002-9306	●	●	●
447	WASHER; LK,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	02	1	9307-		●	●
448	PIECE; DIST,U-BOLT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22113-064-0	01	1	9002-9306	●	●	●
448	PIECE; DIST,U-BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-064-0	01	1	9307-		●	●

70 72 75 24 75 70 107 76 59 80 81 72 168 76 70 94 108 56 22 105 125 126 72 76 24 94 107 76 116 59 108 26 94 12 105 89 42 34 36 41 1 1 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-026-0	01	1	9002-9004	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-081-0	01	1	9005-9011	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-081-1	01	1	9012-9306	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22122-081-1	01	1	9307-		●
1	PIPE; EXH (C)	1-22121-930-0	01	1	9002-			●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22121-936-0	01	1	9012-9306		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22121-940-0	01	1	9012-9306		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22122-416-0	01	1	9307-9401		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22122-417-0	01	1	9307-		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22121-553-3	01	1	9402-		●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22140-641-2	01	1	9002-9103	●	●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22140-627-3	01	1	9104-9306	●	●
12	SILENCER ASM; EXH	1-22140-626-2	01	1	9002-9103			●
12	SILENCER ASM; EXH	1-22140-754-1	01	1	9307-			●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22140-595-1	01	1	9012-9306		●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-763-0	01	1	9307-		●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-756-1	01	1	9307-		●
12	SILENCER ASM; EXH	1-22140-659-2	01	1	9104-9306			●
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22133-163-0	02	1	9002-9306	●	●	●
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-163-0	02	1	9307-		●	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> D=79	1-22133-218-0	01	1	9012-9306		●
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	04	1	9002-9306		●
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	04	1	9307-		●
26	STUD; EXH MANIF	1-09302-090-0	03	1	9002-	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9002-	●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	9002-	●	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	04	1	9307-9410		●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	04	1	9411-		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9002-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X40	9-01911-240-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X40 W/LK WASHER	0-50041-240-0	04	1	9006-9306	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 W/LK WASHER	0-50041-240-0	04	1	9307-		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005			●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306			●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-			●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-		●
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22151-379-0	01	1	9012-9306		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22131-374-1	01	1	9012-9306		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22131-375-0	01	1	9012-9306		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-379-0	01	1	9307-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-504-0	01	1	9307-		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X55	0-10806-055-0	01	1	9012-9207		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X55	0-10806-055-0	02	1	9208-9306		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	02	1	9012-9306		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X50	0-10806-050-0	02	1	9012-9306		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	02	1	9307-		●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) ID=10.2	9-09150-510-0	01	1	9012-9207		●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) ID=10.2	9-09150-510-0	02	1	9208-9306		●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) ID=10.2	9-09150-510-0	04	1	9012-9306		●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=10.2	9-09150-510-0	04	1	9307-		●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22159-065-0	04	1	9012-9306		●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40	1-22159-094-0	08	1	9307-		●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22159-065-0	04	1	9012-9306		●
80	COLLAR; DIST,SUPPORT RUBBER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	01	1	9012-9207		●
80	COLLAR; DIST,SUPPORT RUBBER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	02	1	9208-9306		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10	9-09110-510-0	02	1	9012-9306		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10	9-09110-510-0	06	1	9307-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10	9-09110-510-0	04	1	9307-		●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22133-164-0	01	1	9012-9306		●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-172-2	01	1	9307-9410		●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-172-2	01	1	9411-		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9011		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9012-9302		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9012-9302		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9012-9302		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-9306		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-9306		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-9306		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28080-835-0	02	1	9307-		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28080-835-0	02	1	9307-		●
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	04	1	9002-9306	●	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9012-9306		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9012-9306		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-		●
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	04	1	9307-		●	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X30 W/LK WASHER	0-50041-030-0	02	1	9012-9306		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X30 W/LK WASHER	0-50041-030-0	06	1	9307-9410		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X30 W/LK WASHER	0-50041-030-0	02	1	9411-		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X35 W/LK WASHER	0-50041-235-0	02	1	9012-9306		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X30 W/LK WASHER	0-50041-030-0	04	1	9411-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22151-592-0	01	1	9012-9306		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22131-593-0	01	1	9307-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-660-0	01	1	9307-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-577-2	01	1	9012-9306		●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	0-10806-050-0	02	1	9307-		●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X50	0-10806-050-0	02	1	9012-9306		●
125	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9012-9306		●
126	PIPE; EXH,RR NEW ZEALAND EQUIPMENT(PK5) (A)	1-22112-265-1	01	1	9002-	●	●	●
126	PIPE; EXH,RR NEW ZEALAND EQUIPMENT(PK5) (B)	1-22112-640-1	01	1	9002-	●	●	●
126	PIPE; EXH,RR EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-22112-639-1	01	1	9002-9011			●
126	PIPE; EXH,RR EXC. NEW ZEALAND EQUIPMENT(PK5),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22112-639-1	01	1	9012-9306		●	●
126	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALANDEQUIPMENT(PK5) (C)	1-22112-639-1	01	1	9307-		●	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22122-100-1	01	1	9012-9306		●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22126-096-0	01	1	9307-		●
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-582-2	01	1	9002-9306	●	●	●
147	BRACKET; VERTICAL PIPE EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-518-4	01	1	9002-9306	●	●	●
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22151-408-4	01	1	9002-9306	●	●	●
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-408-5	01	1	9307-		●	●
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> (B)	1-22151-582-2	01	1	9307-			●
147	BRACKET; VERTICAL PIPE EXC. AIR DRYER<PS7> (B)	1-22151-518-4	01	1	9307-			●
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-53497-365-2	01	1	9002-9306		●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9002-9306		●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9307-9312		●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-53497-365-2	01	1	9401-		●
168	BRACKET; EXH PIPE,FRT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22131-585-1	01	1	9012-9306		●

130 64 116 72 59 76 68 416 81 76 24 94 127 108 81 72 59 126 105 89 26 34 36 75 81 108 75 24 105 107 94 475 70 1 476 92 475 17 107 12 42 41 1 36 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-026-0	01	1	9002-9004	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-081-0	01	1	9005-9011	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-081-1	01	1	9012-9306	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22122-081-1	01	1	9307-		●
1	PIPE; EXH (C)	1-22121-930-0	01	1	9002-			●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22121-936-0	01	1	9012-9306		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22121-940-0	01	1	9012-9306		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22122-416-0	01	1	9307-9401		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22122-417-0	01	1	9307-		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22121-553-3	01	1	9402-		●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22140-641-2	01	1	9002-9103	●	●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22140-627-3	01	1	9104-9306	●	●
12	SILENCER ASM; EXH	1-22140-626-2	01	1	9002-9103			●
12	SILENCER ASM; EXH	1-22140-754-1	01	1	9307-			●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22140-595-1	01	1	9012-9306		●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-763-0	01	1	9307-		●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-756-1	01	1	9307-		●
12	SILENCER ASM; EXH	1-22140-659-2	01	1	9104-9306			●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-9410		●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	0-50041-230-0	04	1	9411-		●
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	04	1	9002-9306		●
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	04	1	9307-		●
26	STUD; EXH MANIF	1-09302-090-0	03	1	9002-	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9002-	●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	9002-	●	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	04	1	9307-9410		●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	04	1	9411-		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9002-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X40	9-01911-240-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X40 W/LK WASHER	0-50041-240-0	04	1	9006-9306	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 W/LK WASHER	0-50041-240-0	04	1	9307-		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005			●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306			●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-			●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22131-374-1	01	1	9012-9306		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22131-375-0	01	1	9012-9306		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-379-0	01	1	9307-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-504-0	01	1	9307-		●
64	U-BOLT; EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22113-063-1	01	1	9002-9306	●	●	●
64	U-BOLT; EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22113-063-1	01	1	9307-		●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5	1-22139-077-1	01	1	9307-9502		●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=150	1-22113-008-1	01	1	9503-		●
68	NUT; U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-9306	●	●	●
68	NUT; U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-		●	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9307-		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X55	0-10806-055-0	01	1	9012-9207		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X55	0-10806-055-0	02	1	9208-9306		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	02	1	9012-9306		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X50	0-10806-050-0	02	1	9012-9306		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	02	1	9307-		●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) ID=10.2	9-09150-510-0	01	1	9012-9207		●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) ID=10.2	9-09150-510-0	02	1	9208-9306		●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) ID=10.2	9-09150-510-0	04	1	9012-9306		●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=10.2	9-09150-510-0	04	1	9307-		●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22159-065-0	04	1	9012-9306		●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40	1-22159-094-0	08	1	9307-		●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22159-065-0	04	1	9012-9306		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10	9-09110-510-0	02	1	9012-9306		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10	9-09110-510-0	06	1	9307-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10	9-09110-510-0	04	1	9307-		●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22133-164-0	01	1	9012-9306		●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-172-2	01	1	9307-9410		●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-172-2	01	1	9411-		●
92	CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> D=101.4	1-22133-170-1	01	1	9307-		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9011		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9012-9302		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9012-9302		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9012-9302		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-9306		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-9306		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-9306		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28080-835-0	02	1	9307-		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28080-835-0	02	1	9307-		●
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	04	1	9002-9306	●	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9012-9306		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9012-9306		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-		●
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	04	1	9307-		●	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X30 W/LK WASHER	0-50041-030-0	02	1	9012-9306		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X30 W/LK WASHER	0-50041-030-0	06	1	9307-9410		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X30 W/LK WASHER	0-50041-030-0	02	1	9411-		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X35 W/LK WASHER	0-50041-235-0	02	1	9012-9306		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X30 W/LK WASHER	0-50041-030-0	04	1	9411-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22151-592-0	01	1	9012-9306		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22131-593-0	01	1	9307-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-660-0	01	1	9307-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-577-2	01	1	9012-9306		●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	0-10806-050-0	02	1	9307-		●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X50	0-10806-050-0	02	1	9012-9306		●
126	PIPE; EXH,RR NEW ZEALAND EQUIPMENT(PK5) (A)	1-22112-265-1	01	1	9002-	●	●	●
126	PIPE; EXH,RR NEW ZEALAND EQUIPMENT(PK5) (B)	1-22112-640-1	01	1	9002-	●	●	●
126	PIPE; EXH,RR EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-22112-639-1	01	1	9002-9011			●
126	PIPE; EXH,RR EXC. NEW ZEALAND EQUIPMENT(PK5),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22112-639-1	01	1	9012-9306		●	●
126	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALANDEQUIPMENT(PK5) (C)	1-22112-639-1	01	1	9307-		●	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22122-100-1	01	1	9012-9306		●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22126-096-0	01	1	9307-		●
127	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-		●
130	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28080-830-0	02	1	9307-		●
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-582-2	01	1	9002-9306	●	●	●
147	BRACKET; VERTICAL PIPE EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-518-4	01	1	9002-9306	●	●	●
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22151-408-4	01	1	9002-9306	●	●	●
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-408-5	01	1	9307-		●	●
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> (B)	1-22151-582-2	01	1	9307-			●
147	BRACKET; VERTICAL PIPE EXC. AIR DRYER<PS7> (B)	1-22151-518-4	01	1	9307-			●
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-53497-365-2	01	1	9002-9306		●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9002-9306		●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9307-9312		●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-53497-365-2	01	1	9401-		●
416	BRACKET; RR EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-592-0	01	1	9307-		●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-223-0	02	1	9307-		●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-09583-248-0	04	1	9307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
