3-20 — AIR TANK (#24455) — 94 parça

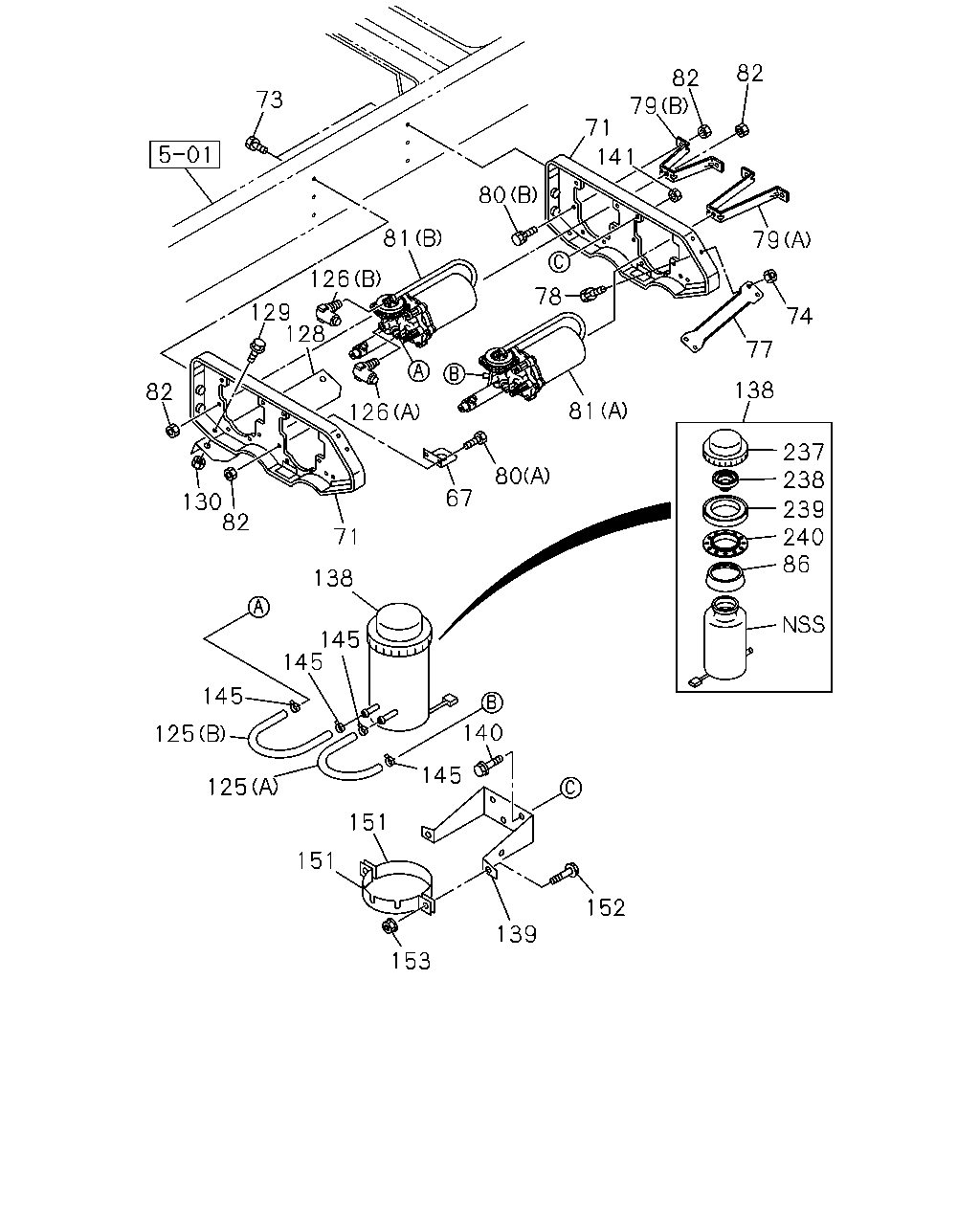

çizim 23985
82 82 79 73 71 141 80 81 79 126 78 129 128 74 77 138 82 81 126 237 238 80 67 130 82 239 240 86 71 138 145 145 145 140 125 145 125 151 151 152 139 153
BalonParca AdiParca NoAdetTipApplied Date
67 STAY; SUB TANK
THA 		1-48317-321-2 01 1 0407-
71 BRACKET; AIR MASTER,TANDEM 1-53318-276-1 02 1 0407-
73 BOLT; BRKT TO FRAME,AIR MASTER
M12X40 FLANGE 		0-28681-240-0 06 1 0407-0512
73 BOLT; BRKT TO FRAME,AIR MASTER
M12X40 FLANGE 		0-28651-240-0 06 1 0601-
74 NUT; STAY AIR MASTER
M10 FLANGE THA 		0-91180-210-0 04 1 0603-
74 NUT; STAY AIR MASTER
M10 FLANGE 		0-91150-210-0 04 1 0407-0602
77 STAY; AIR MASTER UPR 1-53318-293-1 01 1 0407-
78 BOLT; STAY AIR MASTER
M10X30 FLANGE 		0-28681-030-0 04 1 0407-0611
78 BOLT; STAY AIR MASTER
M10X30 FLANGE THA 		0-28651-030-0 04 1 0612-
79 STAY; AIR MASTER TO BRKT
(A) 		1-53318-347-0 01 1 0407-0805
79 STAY; AIR MASTER TO BRKT
(A) 		8-98120-254-0 01 1 0806-
79 STAY; AIR MASTER TO BRKT
(B) 		1-53318-348-0 01 1 0407-
80 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 0407-0611
80 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28651-030-0 04 1 0612-
80 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 02 1 0407-0611
80 BOLT; BRKT
(A) M10X25 FLANGE THA 		0-28651-025-0 02 1 0612-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. (A) 		1-47800-794-0 01 1 0407-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. (B) 		1-47800-795-0 01 1 0407-
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE THA 		0-91180-210-0 16 1 0603-
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91150-210-0 16 1 0407-0602
86 SEAL; DUST 1-47529-019-0 01 1 0407-
125 HOSE; OIL TANK TO AIR MASTER
(A) 		1-47469-118-0 01 1 0407-
125 HOSE; OIL TANK TO AIR MASTER
(B) 		1-47469-119-0 01 1 0407-
126 CONNECTOR; ELBOW
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0407-
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0407-
126 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0407-
128 PROTECTOR 1-53319-018-0 01 1 0407-
129 BOLT; PROTECTOR FIX
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0611
129 BOLT; PROTECTOR FIX
M8X30 FLANGE THA 		0-28650-830-0 02 1 0612-
130 NUT; PROTECTOR FIX
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
130 NUT; PROTECTOR FIX
M8 FLANGE THA 		0-91180-108-0 02 1 0603-
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0407-
139 BRACKET; OIL TANK 1-47537-153-0 01 1 0407-
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE 		0-28681-025-0 03 1 0407-0611
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE THA 		0-28651-025-0 03 1 0612-
141 NUT; OIL TANK TO BRKT
M10 FLANGE THA 		0-91180-210-0 03 1 0603-
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91150-210-0 03 1 0407-0602
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 THA 		1-09704-102-0 04 1 0407-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 0407-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0611
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE THA 		0-28650-820-0 02 1 0612-
153 NUT; OIL TANK TO BAND
M8 		0-91110-508-0 02 1 0601-
153 NUT; OIL TANK TO BAND
M8 		9-09110-408-0 02 1 0407-0512
237 CAP; OIL TANK 1-47525-030-0 01 1 0407-
238 PLATE; BAFFLE 1-47529-022-0 01 1 0407-
239 FILTER; DUST 1-47529-017-0 01 1 0407-
240 HOLDER; FILTER 1-47529-018-0 01 1 0407-

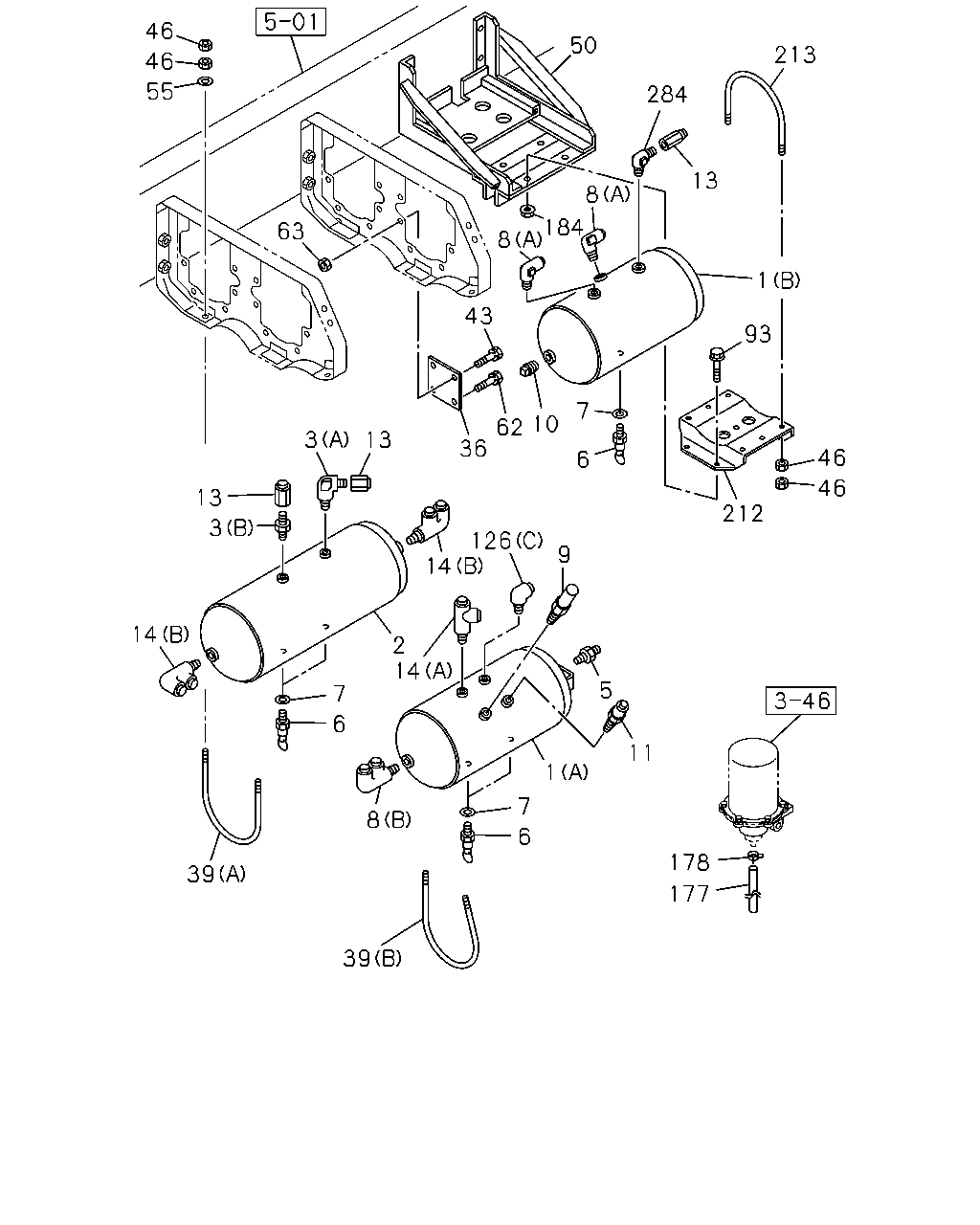

çizim 25807
46 50 213 46 55 284 13 8 184 63 8 1 43 93 7 10 62 3 13 36 46 6 46 13 212 3 126 14 9 14 2 14 5 7 6 11 1 7 8 6 178 39 177 39
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(B) 		1-48330-538-0 01 1 0407-
1 TANK ASM; AIR
(A) 		1-48370-493-0 01 1 0407-
2 TANK; AIR 1-48370-810-0 01 1 0407-
3 VALVE; CHECK,AIR TANK
(B) THA 		1-48410-182-3 01 1 0407-
3 VALVE; CHECK,AIR TANK
(A) M20 & PT3/4 ELBOW THA 		1-48410-412-0 01 1 0407-
5 UNION; AIR TANK
M22 & PT3/4 THA 		1-48410-136-3 01 1 0407-
6 COCK; DRAIN,AIR TANK
THA 		1-48312-015-0 02 1 0407-
6 COCK; DRAIN,AIR TANK
THA 		1-48312-015-0 03 1 0407-
7 GASKET; DRAIN COCK
ID=14 THA 		1-09630-145-0 02 1 0407-
7 GASKET; DRAIN COCK
ID=14 THA 		1-09630-145-0 03 1 0407-
8 CONNECTOR; AIR TANK
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0407-
8 CONNECTOR; AIR TANK
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0407-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
530KPA THA 		1-48340-054-1 01 1 0407-
10 PLUG; AIR TANK
PT1/4 		9-99204-513-0 01 1 0407-
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 0407-
13 ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0407-
13 ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0407-
14 UNION; 3 WAY,AIR TANK
(A) DIN8X2 & R3/8 3WAY 		1-09661-007-0 01 1 0407-
14 UNION; 3 WAY,AIR TANK
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0407-
36 STAY; MAIN TANK 1-48317-760-0 01 1 0407-
39 U-BOLT; AIR TANK
(A) THA 		1-48317-301-0 02 1 0407-
39 U-BOLT; AIR TANK
(B) THA 		1-48317-302-0 01 1 0407-
43 BOLT; STAY,AIR TANK,MAIN
M10X30 FLANGE 		0-28681-030-0 02 1 0407-0611
43 BOLT; STAY,AIR TANK,MAIN
M10X30 FLANGE THA 		0-28651-030-0 02 1 0612-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0601-
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 0601-
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 0407-0512
46 NUT; U-BOLT
M8 		9-09110-408-0 12 1 0407-0512
50 STAY; AIR TANK
THA 		8-97911-600-1 01 1 0407-
55 WASHER; PL,U-BOLT
ID=8.4 OD=18 		0-91610-608-0 04 1 0606-
55 WASHER; PL,U-BOLT
ID=8.4 OD=18 		9-09160-608-0 04 1 0407-0605
62 BOLT; SUPPORT
M10X25 FLANGE 		0-28681-025-0 02 1 0407-0611
62 BOLT; SUPPORT
M10X25 FLANGE THA 		0-28651-025-0 02 1 0612-
63 NUT; SUPPORT
M10 FLANGE THA 		0-91180-210-0 02 1 0603-
63 NUT; SUPPORT
M10 FLANGE 		0-91150-210-0 02 1 0407-0602
93 BOLT; FIX
M10X30 FLANGE 		0-28681-030-0 04 1 0407-0611
93 BOLT; FIX
M10X30 FLANGE THA 		0-28651-030-0 04 1 0612-
126 CONNECTOR; ELBOW
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0407-
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0407-
126 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0407-
177 HOSE; RUBBER,DRAIN
L=90 		9-09712-638-0 01 1 0407-
178 CLIP; HOSE
ID=33.6 		8-94362-518-0 01 1 0407-
184 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 0603-
184 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0407-0602
212 BRACKET; AIR TANK TRAILER 1-48317-543-0 01 1 0407-
213 BOLT; U AIR TANK
L=210 		1-48317-458-1 02 1 0407-
284 CONNECTOR; MAG VLV
M20 & PT3/4 ELBOW THA 		1-48410-412-0 01 1 0407-
