3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#24450) — 22 parça
◀

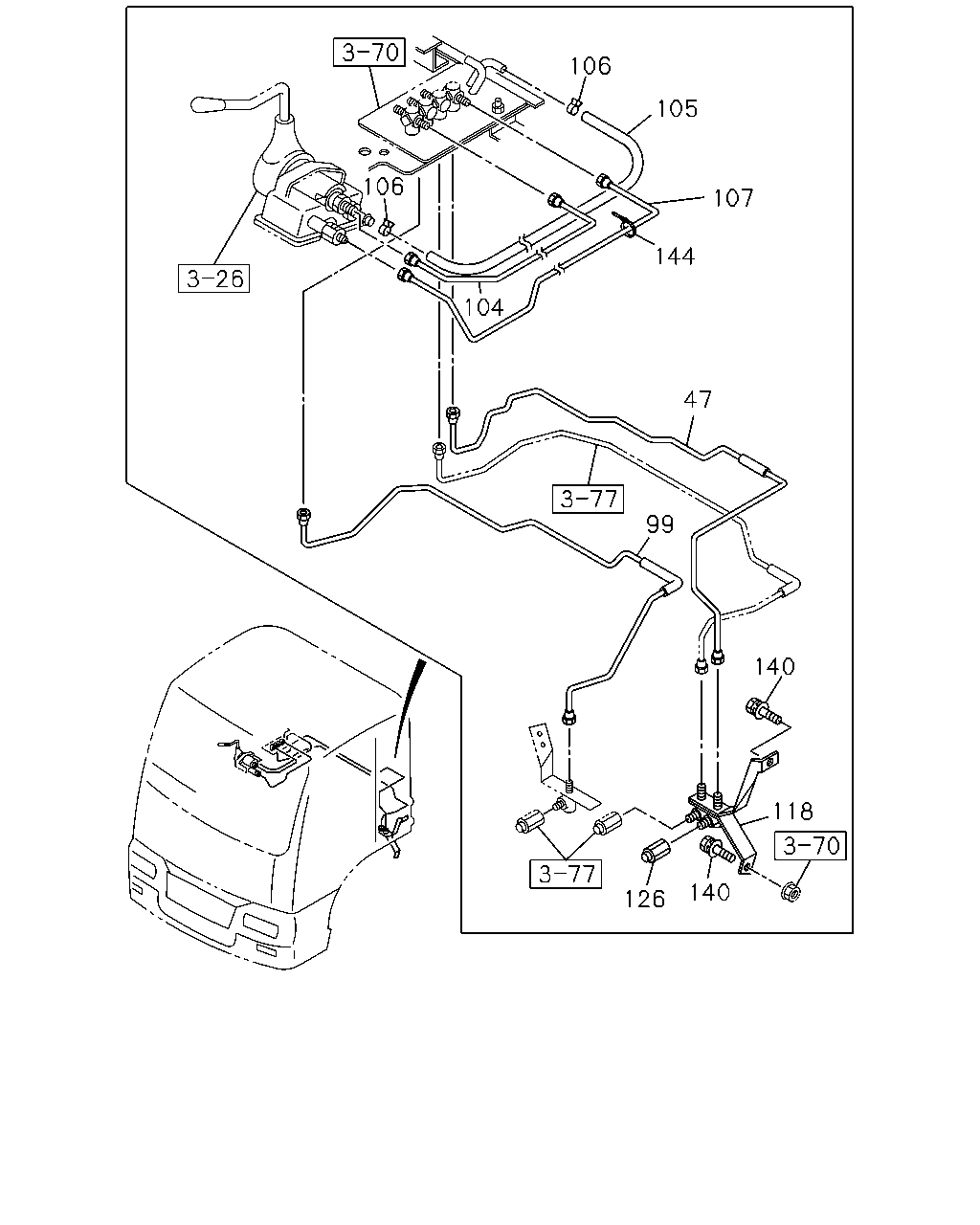

[380A] CAB SIDE (11 parça)

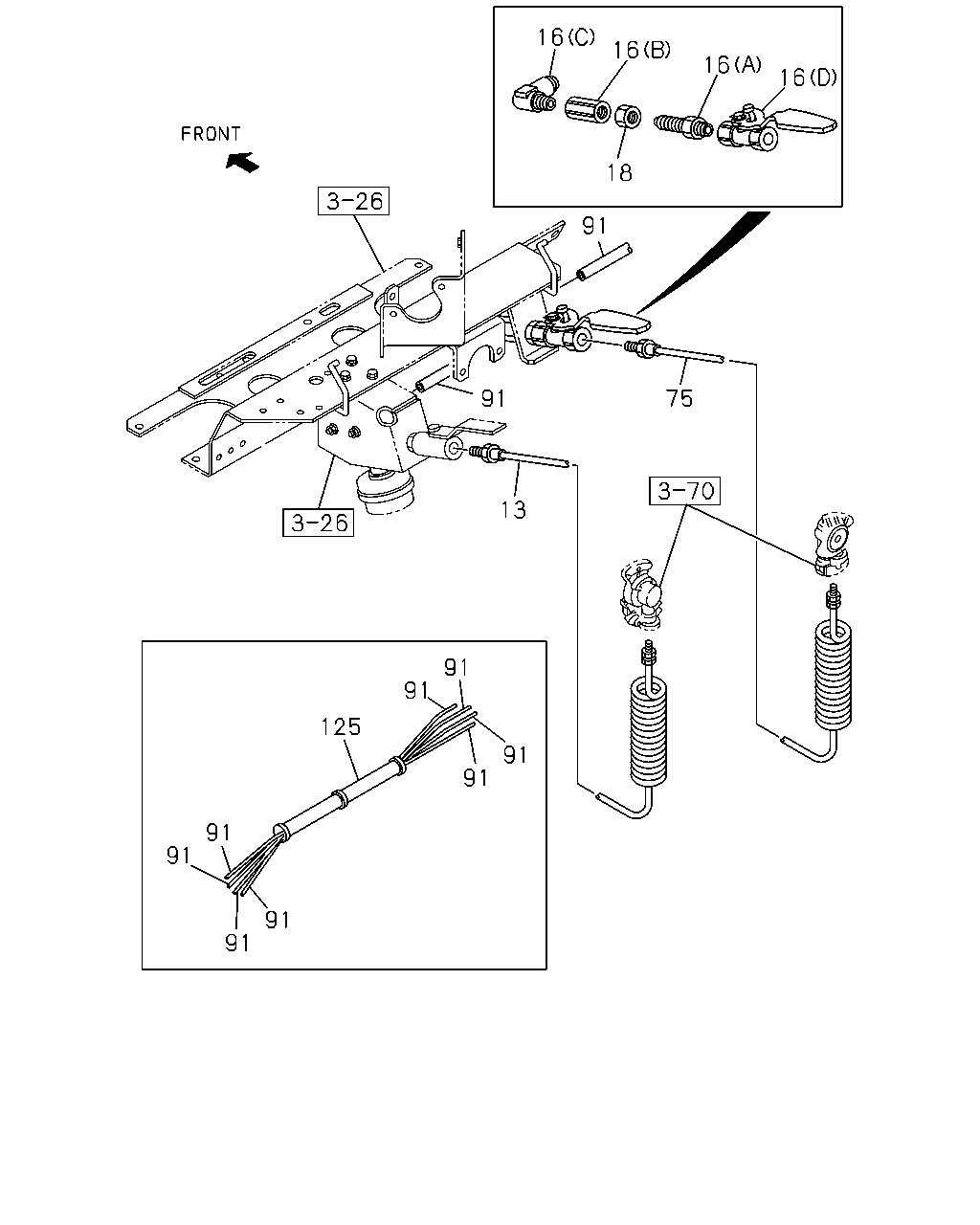

[380A] FRAME SIDE (11 parça)
▶
106
105
106
107
144
104
47
99
140
118
140
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
PIPE; AIR,UNION TO UNION
L=1910 SERVICED BY L=1950
1-47428-854-0
01
1
0603-
99
PIPE; AIR,JOINT TO JOINT
1-49122-057-1
01
1
0603-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49121-477-0
01
1
0603-
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
0603-
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
0603-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
0603-
118
JOINT; AIR PIPE
1-47470-608-1
01
1
0603-
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0603-
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0603-0904
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
144
CLIP; BAND
L=140
5-09707-031-1
01
1
0603-
16
16
16
16
18
91
91
75
13
91
91
125
91
91
91
91
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HOSE; FLEX,TRAILER SERVICE
1-49215-539-1
01
1
0603-
16
UNION; AIR PIPE
(A)
1-09650-121-1
01
1
0603-
16
UNION; AIR PIPE
(B) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
0603-
16
UNION; AIR PIPE
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0603-
16
UNION; AIR PIPE
(D) RED
1-09680-091-0
01
1
0603-
18
NUT; UNION
M16
0-91111-516-0
01
1
0603-
75
HOSE; FLEX,TRAILER EMERGENCY
1-49215-539-1
01
1
0603-
91
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0603-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0603-
91
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0603-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0603-
