Isuzu WW
▶
TRUCKS
▶
EXD
▶
11024 - EXD AUSTRALIA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

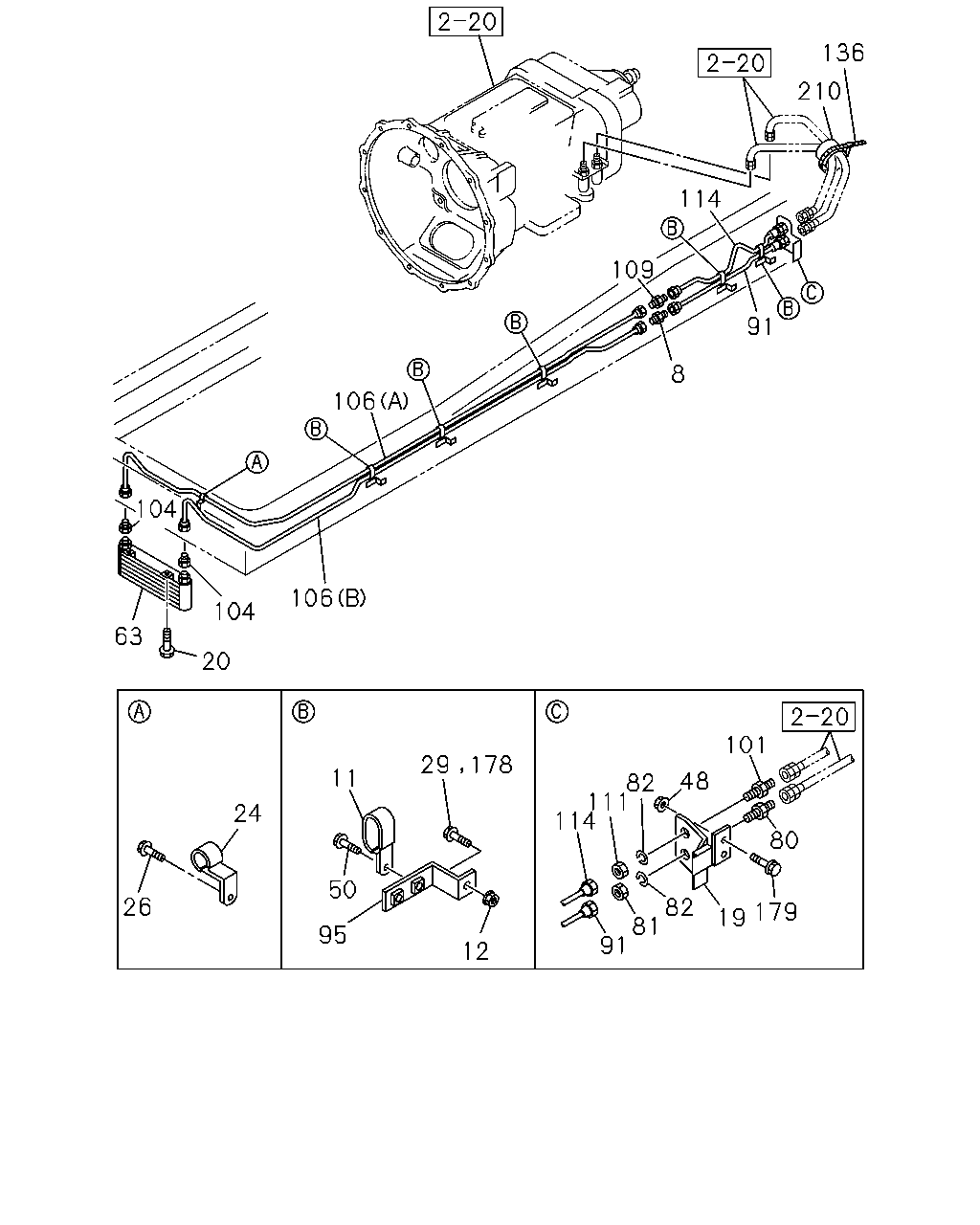

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#24431) — 36 parça
136
210
114
109
91
8
106
104
106
104
63
20
101
29
178
11
48
82
111
114
24
80
50
26
82
81
91
179
19
95
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
UNION
M22
9-09233-015-1
01
1
0603-0607
8
UNION
M22 L=51
0-92123-015-0
01
1
0608-
11
CLIP; PIPE
ID=16X2 L=20
9-09535-535-0
05
1
0603-0606
11
CLIP; PIPE
ID=16X2 L=20
0-95325-535-0
05
1
0607-
12
NUT; BRKT
M8 FLANGE
0-91150-108-0
05
1
0603-0603
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
05
1
0603-
19
BRACKET; FLEX HOSE
1-47471-440-0
01
1
0603-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
0603-
24
CLIP; OIL PIPE
ID=15 H=24 L=20
1-09700-606-0
01
1
0603-
26
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0603-
29
BOLT; FILTER TO BRKT
M8X30 FLANGE
0-28650-830-0
04
1
0603-
48
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0603-0603
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
05
1
0603-
63
COOLER; OIL
1-21700-290-0
01
1
0603-0609
63
COOLER; OIL
1-21700-394-0
01
1
0610-1405
63
COOLER; OIL
8-98269-766-0
01
1
1406-
80
UNION; FLEX HOSE
1-09654-261-1
01
1
0603-
81
NUT; UNION
M22
0-91111-522-0
01
1
0603-
82
WASHER; LK,UNION
ID=22.5
9-09150-522-0
02
1
0603-0603
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
02
1
0604-
91
PIPE; OIL,FLEX HOSE TO UNION
L=928
1-49167-844-0
01
1
0603-
95
BRACKET; CLIP
1-47479-482-0
05
1
0603-
101
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-1
01
1
0603-0604
101
UNION; FLEX HOSE
1-09654-261-1
01
1
0605-
104
CONNECTOR; COOLER
1-09654-398-0
02
1
0603-
106
PIPE ASM; OIL,COOLER TO UNION
(B) L=1739
1-49166-967-0
01
1
0603-
106
PIPE ASM; OIL,COOLER TO UNION
(A) L=2349
1-49166-969-0
01
1
0603-
109
UNION
M22
9-09233-015-1
01
1
0603-0607
109
UNION
M22 L=51
0-92123-015-0
01
1
0608-
111
NUT; UNION
M22
0-91111-522-0
01
1
0603-
114
PIPE; OIL,UNION TO FLEX HOSE
L=841
1-49167-846-0
01
1
0603-
136
CLIP; FLEX HOSE
L=350
1-09707-183-0
01
1
0603-
178
BOLT; BRKT,CLIP
M8X30 FLANGE
0-28650-830-0
01
1
0603-
179
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0603-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
0603-
