◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11024 - EXD AUSTRALIA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#24429) — 134 parça

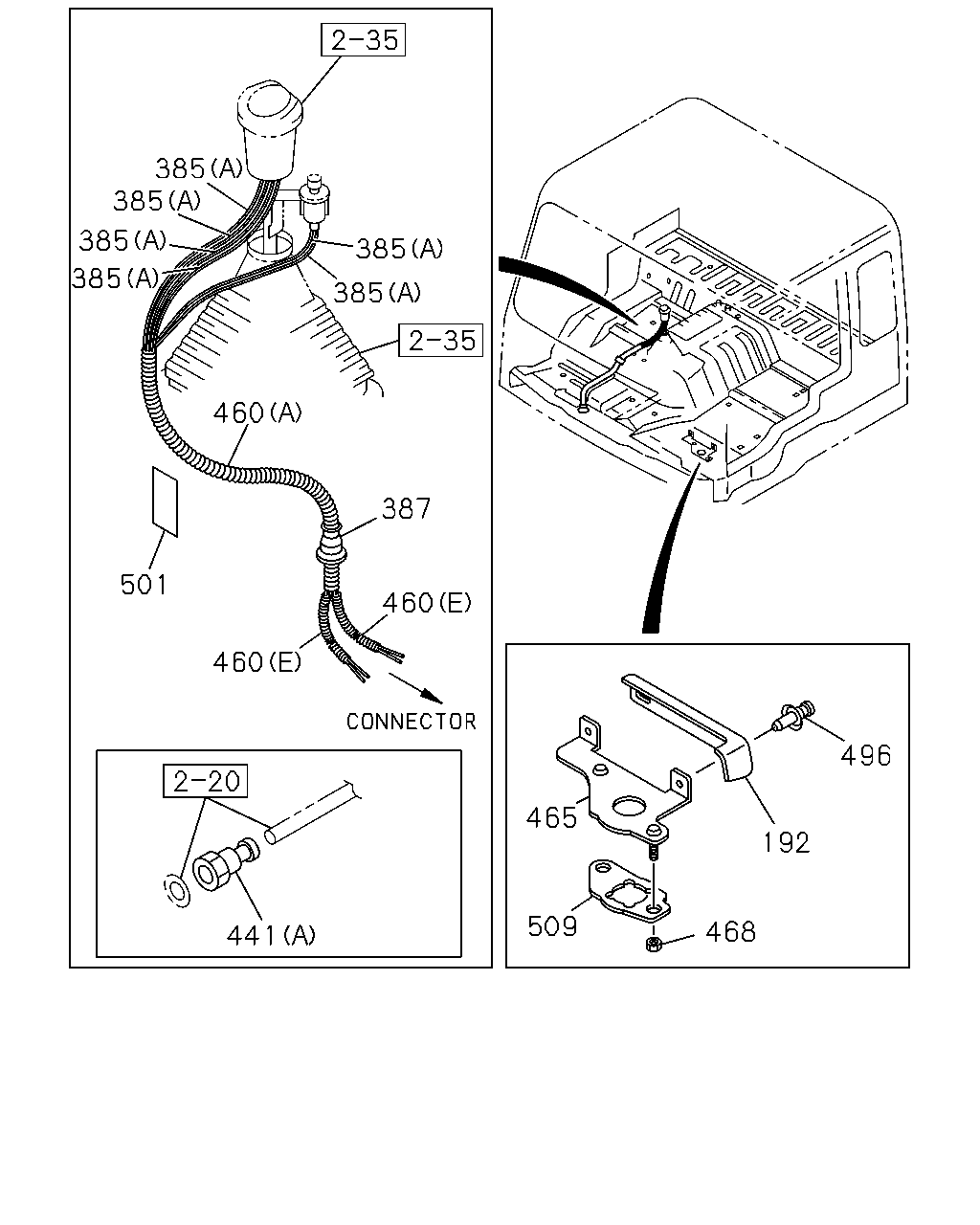

çizim 90180
385 385 385 385 385 385 460 387 501 460 460 496 465 192 509 468 441
BalonParca AdiParca NoAdetTipApplied Date
192 COVER 1-79907-090-0 01 1 0603-0610
385 TUBE; NYLON
(A) L=1770 L=1820 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0603-
385 TUBE; NYLON
(A) L=1770 L=1820 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0603-
385 TUBE; NYLON
(A) L=1770 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0603-0607
385 TUBE; NYLON
(A) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0608-
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0603-0607
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0608-
385 TUBE; NYLON
(B) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0603-
385 TUBE; NYLON
(A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0603-
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0603-
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0603-
387 GROMMET; CONT TUBE,FULLER 1-09332-135-0 01 1 0603-
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0603-
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 06 1 0603-0607
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 04 1 0608-0804
441 CONNECTOR; NYLON TUBE
(B) 		8-98120-561-0 04 1 0805-
460 TUBE; CORRUGATE
(A) L=1170 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0608-0803
460 TUBE; CORRUGATE
(A) ID=10 L=400 SERVICED BY L=6000 		1-83129-337-0 01 1 0804-
460 TUBE; CORRUGATE
(A) L=1170 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0603-0607
460 TUBE; CORRUGATE
(A) L=1170 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0608-
460 TUBE; CORRUGATE
(B) L=2500 SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0603-
460 TUBE; CORRUGATE
(C) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0603-
460 TUBE; CORRUGATE
(D) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0603-
460 TUBE; CORRUGATE
(E) L=250 SERVICED BY L=800 		1-83129-031-1 02 1 0603-0607
460 TUBE; CORRUGATE
(E) L=250 SERVICED BY L=800 		1-83129-031-1 01 1 0608-0803
460 TUBE; CORRUGATE
(E) L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 0804-
460 TUBE; CORRUGATE
(F) L=50 SERVICED BY L=800 		1-83129-031-1 01 1 0603-
465 BRACKET; CONNECTOR 1-47478-772-1 01 1 0603-0610
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0603-0610
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0611-
496 FASTENER
D8X13.5 		1-09987-248-1 02 1 0603-0610
501 SEAL; HARNESS PROTECTOR
180X40 		1-72498-019-1 04 1 0603-
509 SEAL; BRKT 1-47479-978-0 01 1 0603-0610

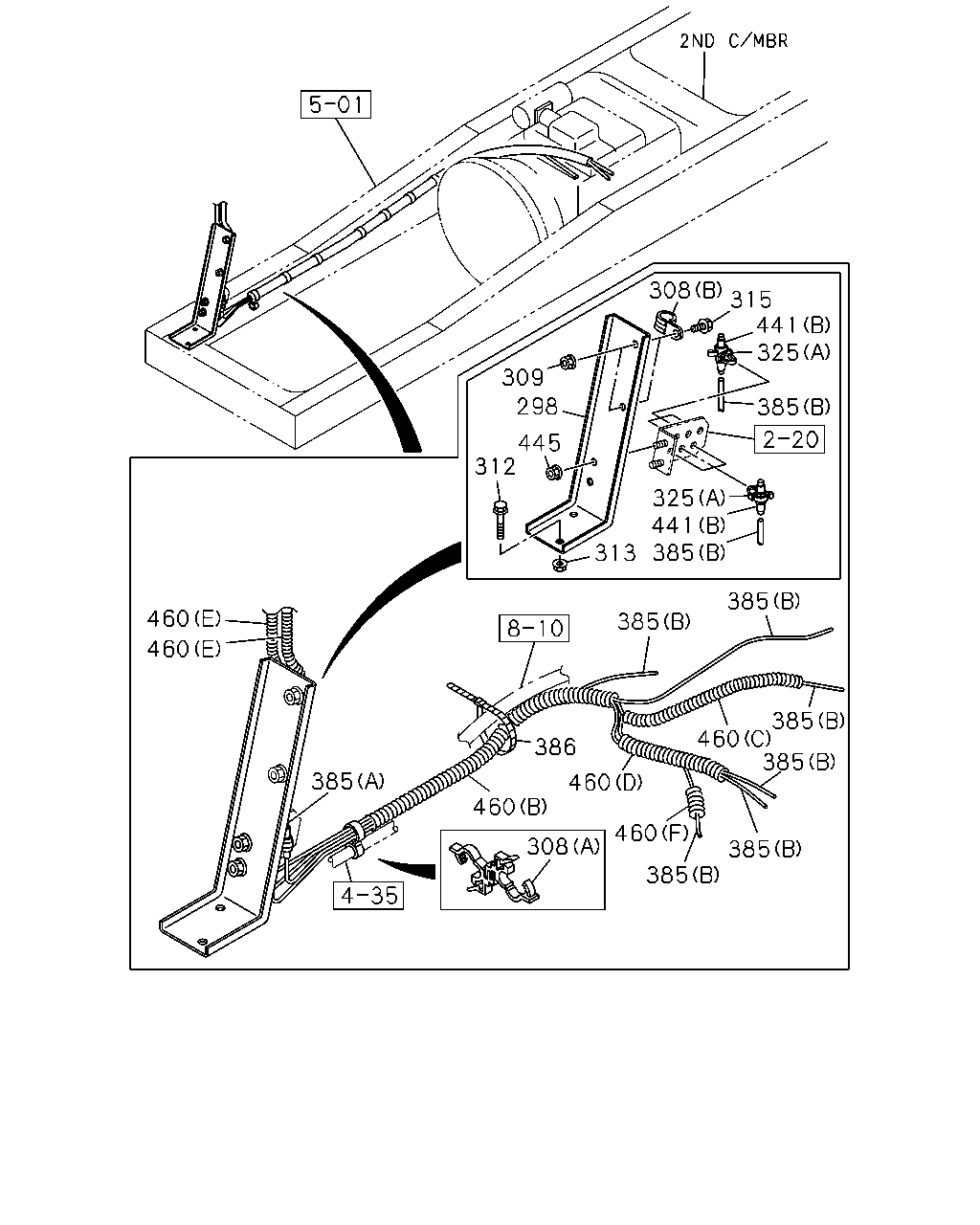

çizim 90240
308 315 441 325 309 298 385 445 312 325 441 385 313 385 460 385 460 385 460 385 386 385 460 460 460 308 385 385
BalonParca AdiParca NoAdetTipApplied Date
298 BRACKET 1-47471-383-0 01 1 0603-
308 CLIP; PIPE
(A) ID=12-16 & 12-16 		1-09709-191-0 01 1 0603-
308 CLIP; PIPE
(B) ID=19 L=28 		9-09525-856-0 02 1 0603-0606
308 CLIP; PIPE
(B) ID=19 L=28 		0-95235-856-0 02 1 0607-
309 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
309 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
312 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0603-
313 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
313 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0603-
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 06 1 0603-0607
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 04 1 0608-
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0603-0606
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607-
385 TUBE; NYLON
(A) L=1770 L=1820 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0603-
385 TUBE; NYLON
(A) L=1770 L=1820 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0603-
385 TUBE; NYLON
(A) L=1770 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0603-0607
385 TUBE; NYLON
(A) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0608-
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0603-0607
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0608-
385 TUBE; NYLON
(B) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0603-
385 TUBE; NYLON
(A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0603-
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0603-
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0603-
386 CLIP; CONT CABLE & TUBE
L=350 		1-09707-183-0 08 1 0603-
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0603-
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 06 1 0603-0607
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 04 1 0608-0804
441 CONNECTOR; NYLON TUBE
(B) 		8-98120-561-0 04 1 0805-
445 NUT; BRKT,NIPPLE
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
445 NUT; BRKT,NIPPLE
M8 FLANGE 		0-91180-108-0 02 1 0603-
460 TUBE; CORRUGATE
(A) L=1170 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0608-0803
460 TUBE; CORRUGATE
(A) ID=10 L=400 SERVICED BY L=6000 		1-83129-337-0 01 1 0804-
460 TUBE; CORRUGATE
(A) L=1170 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0603-0607
460 TUBE; CORRUGATE
(A) L=1170 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0608-
460 TUBE; CORRUGATE
(B) L=2500 SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0603-
460 TUBE; CORRUGATE
(C) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0603-
460 TUBE; CORRUGATE
(D) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0603-
460 TUBE; CORRUGATE
(E) L=250 SERVICED BY L=800 		1-83129-031-1 02 1 0603-0607
460 TUBE; CORRUGATE
(E) L=250 SERVICED BY L=800 		1-83129-031-1 01 1 0608-0803
460 TUBE; CORRUGATE
(E) L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 0804-
460 TUBE; CORRUGATE
(F) L=50 SERVICED BY L=800 		1-83129-031-1 01 1 0603-

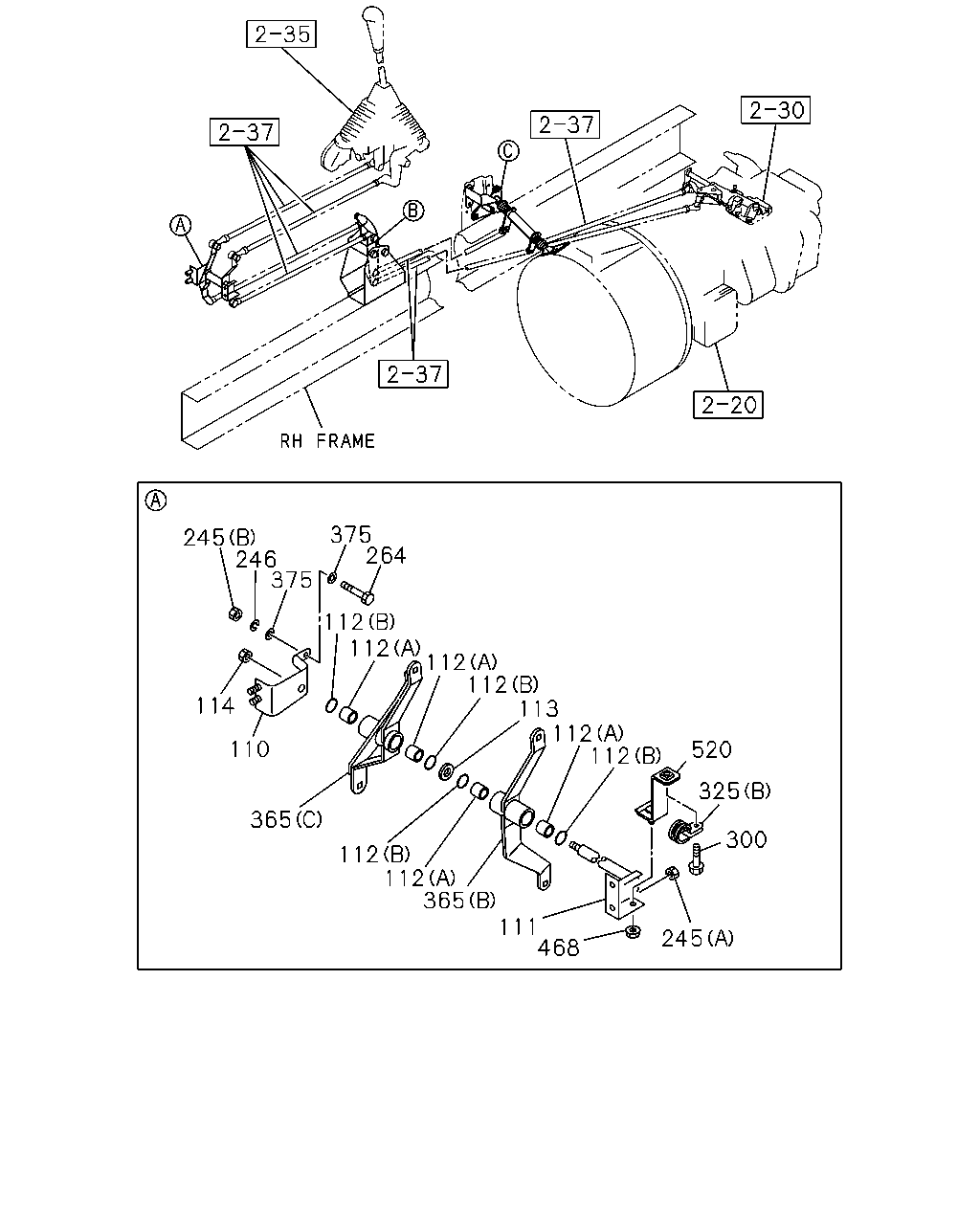

çizim 90536
375 264 245 246 375 112 112 112 112 113 112 112 114 110 520 325 365 300 112 112 365 111 468 245
BalonParca AdiParca NoAdetTipApplied Date
110 BRACKET; RELAY LEVER,1ST 1-33657-598-0 01 1 0603-
111 SHAFT; RELAY LEVER,1ST 1-33619-468-1 01 1 0603-
112 BUSHING; RELAY LEVER
(A) 		1-09330-119-0 04 1 0603-
112 BUSHING; RELAY LEVER
(B) 		1-09623-594-0 04 1 0603-
113 WASHER; RELAY LEVER
ID=17 		9-09160-516-0 01 1 0603-0605
113 WASHER; RELAY LEVER
ID=17 OD=30 		0-91610-516-0 01 1 0606-
114 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 01 1 0603-0603
114 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 01 1 0603-
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91150-210-0 02 1 0603-0603
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91180-210-0 02 1 0603-1304
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91180-110-0 02 1 1305-
245 NUT; BRKT,RELAY LEVER
(B) M10 		1-09984-142-0 01 1 0603-
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 01 1 0603-
264 BOLT; BRKT,RELAY LEVER
M10X105 		1-79198-008-1 01 1 0603-
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0603-0904
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 06 1 0603-0607
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 04 1 0608-
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0603-0606
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0603-
365 LEVER; RELAY,SELECT
(C) 		1-33651-790-1 01 1 0603-
365 LEVER; RELAY,SELECT
(B) 		1-33651-805-1 01 1 0603-
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0603-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0603-0610
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0611-
520 BRACKET; NYLON TUBE 1-79996-628-0 01 1 0603-

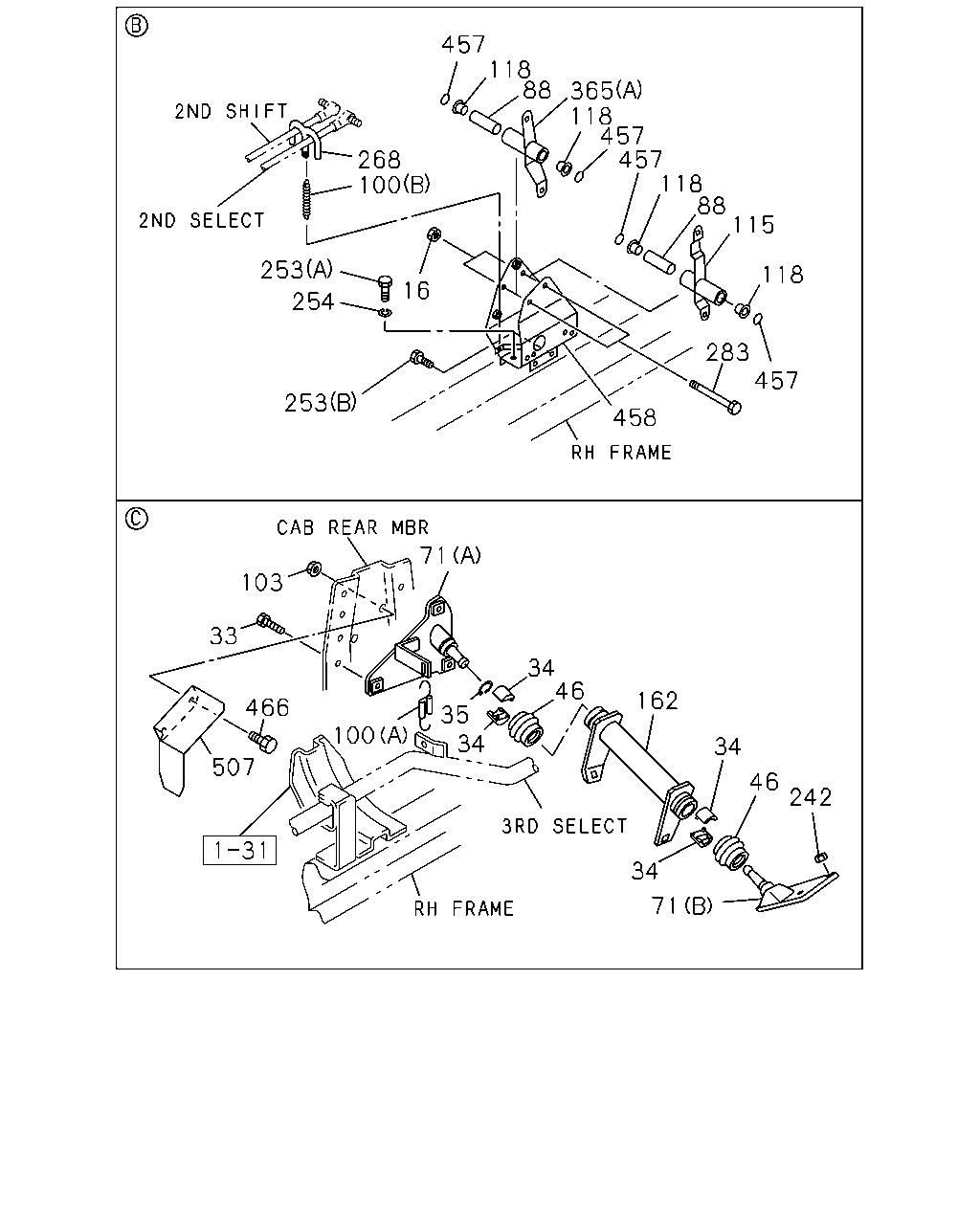

çizim 106082
457 118 88 365 118 457 457 118 88 115 268 100 253 118 16 254 283 457 253 458 71 103 33 34 46 162 466 35 34 100 34 507 46 242 34 71
BalonParca AdiParca NoAdetTipApplied Date
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 0603-0603
16 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 02 1 0603-
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28651-030-0 03 1 0603-1003
33 BOLT; BRKT,3RD RELAY LEVER
M10X35 FLANGE 		0-28651-035-0 03 1 1004-
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 0603-
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 0603-
46 SEAL; DUST,RELAY LEVER 1-33659-248-0 02 1 0603-
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 0603-
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-706-0 01 1 0603-
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 0603-
100 SPRING
(B) 		1-09583-319-0 01 1 0603-
100 SPRING
(A) 		1-09583-351-0 01 1 0603-
103 NUT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
103 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
115 LEVER; RELAY,2ND SHIFT 1-33651-769-1 01 1 0603-
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 0603-
162 LEVER; RELAY 1-33651-625-1 01 1 0603-
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91150-212-0 03 1 0603-0603
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91180-212-0 03 1 0603-
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 0603-
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0603-
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 0603-0603
254 WASHER; LK,RELAY LEVER
ID=14.2 		0-91510-614-0 02 1 0604-
268 BRACKET; LINK ROD 1-33657-216-0 01 1 0603-
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 0603-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0603-
365 LEVER; RELAY,SELECT
(C) 		1-33651-790-1 01 1 0603-
365 LEVER; RELAY,SELECT
(B) 		1-33651-805-1 01 1 0603-
457 GASKET 1-09623-594-0 04 1 0603-
458 BRACKET; 2ND RELAY LEVER 1-33657-664-1 01 1 0603-
466 BOLT; FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0603-
507 PROTECTOR; HEAT 1-14181-287-1 01 1 0603-
