2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#24428) — 32 parça

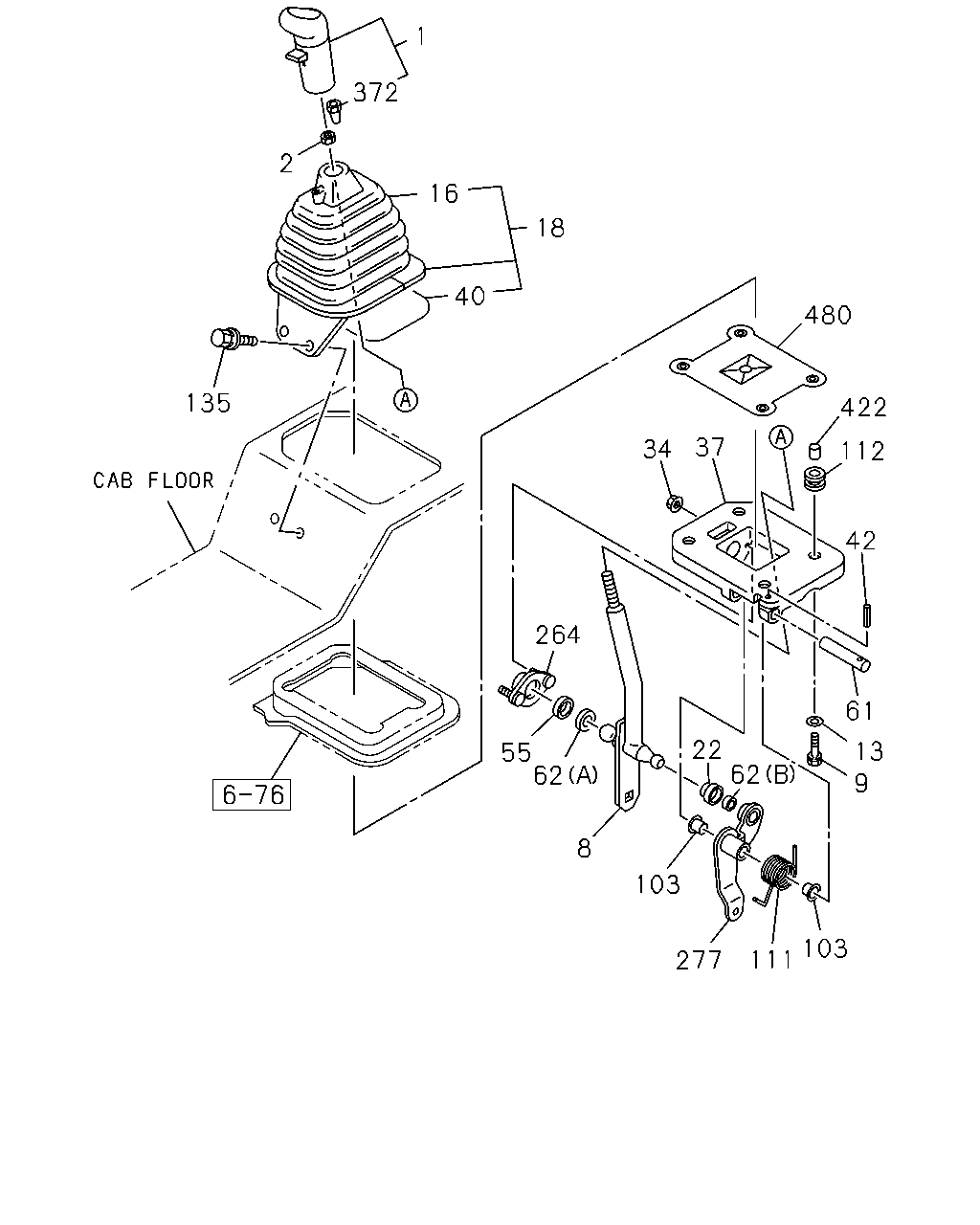

çizim 90237
1 372 2 16 18 40 480 135 422 37 34 112 42 264 61 22 62 13 55 62 9 8 103 103 111 277
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER 1-33611-116-0 01 1 0603-0804
1 KNOB; CHANGE LEVER 8-98120-384-0 01 1 0805-1401
1 KNOB; CHANGE LEVER 8-98224-285-0 01 1 1402-
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 0603-
8 LEVER; CHANGE 1-33613-349-0 01 1 0603-
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28650-825-0 04 1 0603-
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 0603-0605
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		0-91610-708-0 04 1 0606-
16 BOOT; CHANGE LEVER 1-79996-367-1 01 1 0603-
18 BOOT; CHANGE LEVER 1-79996-435-2 01 1 0603-
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0603-
34 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603-
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0603-0802
37 BRACKET; CHANGE LEVER SUPPORT 8-98100-876-1 01 1 0803-
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 0603-
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0603-
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0603-0802
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0603-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0603-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0603-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0603-
111 SPRING 1-09585-133-1 01 1 0603-
112 RUBBER; CUSHION 8-97091-426-0 04 1 0603-0810
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0603-0904
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
264 PLATE; COVER 1-33619-469-0 01 1 0603-
277 LEVER; RELAY 1-33651-636-1 01 1 0603-
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 04 1 0603-0804
372 CONNECTOR; CHANGE LEVER 8-98114-396-0 04 1 0805-
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0603-
480 RUBBER; COVER 1-33619-554-0 01 1 0603-0810
480 RUBBER; COVER 8-98119-365-0 01 1 0811-
