2-05 — CLUTCH PIPING (#24421) — 111 parça

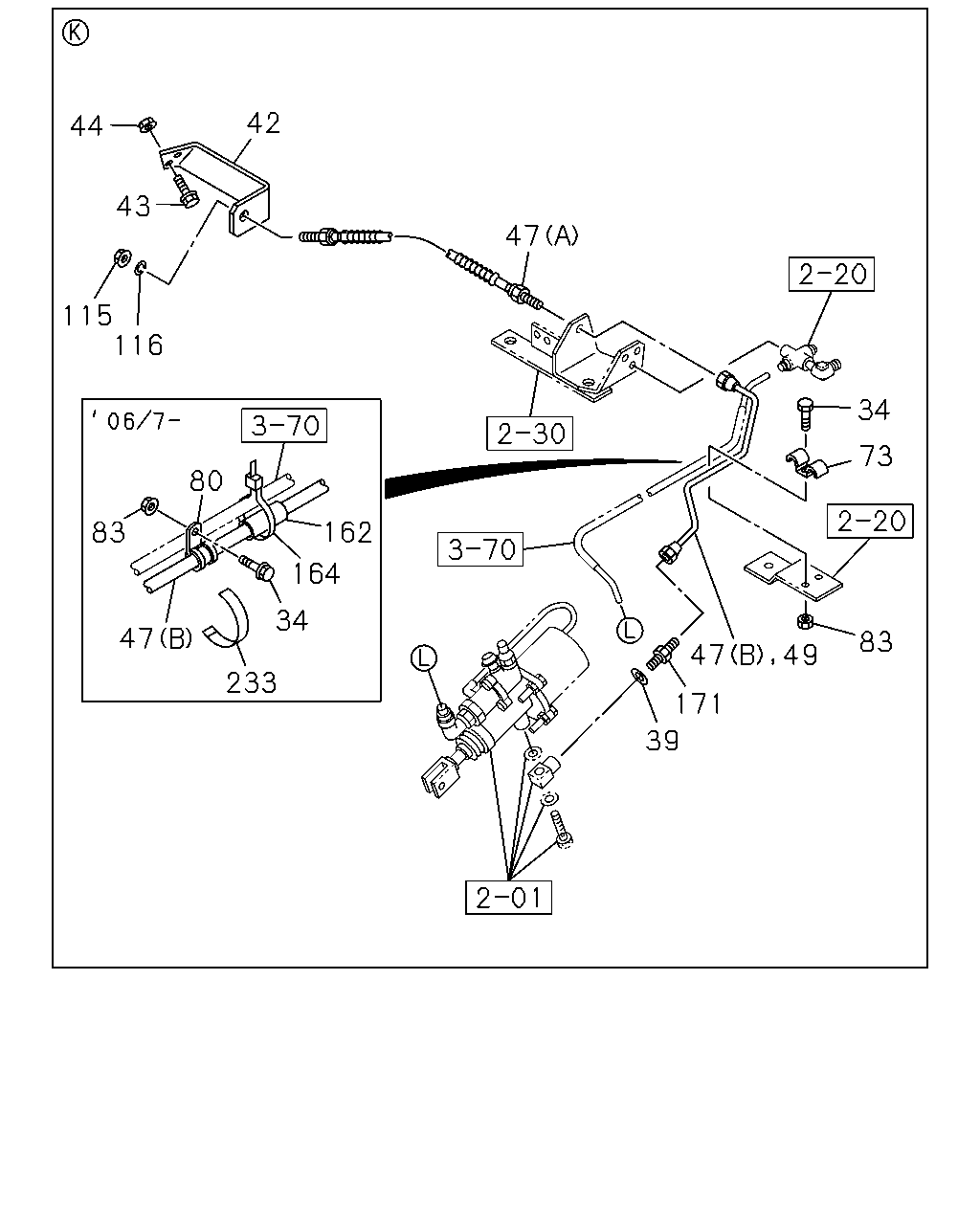

42 44 43 47 115 116 34 73 80 83 162 164 34 47 83 233 171 39 47 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0603-0606
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	0607-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0603-
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	0603-
42	BRACKET; FLEX HOSE,CLU CONT	1-47471-446-0	01	1	0603-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0603-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0603-0603
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	0607-
47	HOSE; FLEX,CLU CONT (A) L=400	1-09364-263-0	01	1	0603-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER	1-49161-120-0	01	1	0603-0606
73	CLIP; OIL PIPE ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0603-
80	CLIP; HOSE ID=16 L=50	1-09701-158-0	01	1	0607-
83	NUT; PIPE CLIP M8	0-91110-508-0	01	1	0603-0606
83	NUT; PIPE CLIP M8	0-91110-508-0	02	1	0607-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0603-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0603-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
162	COVER; RUBBER,FLEX HOSE ID=14 OD=18 L=60	1-09337-030-0	01	1	0607-
164	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	01	1	0607-
171	CONNECTOR; CLU BOOSTER	1-09650-256-2	01	1	0603-
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0607-

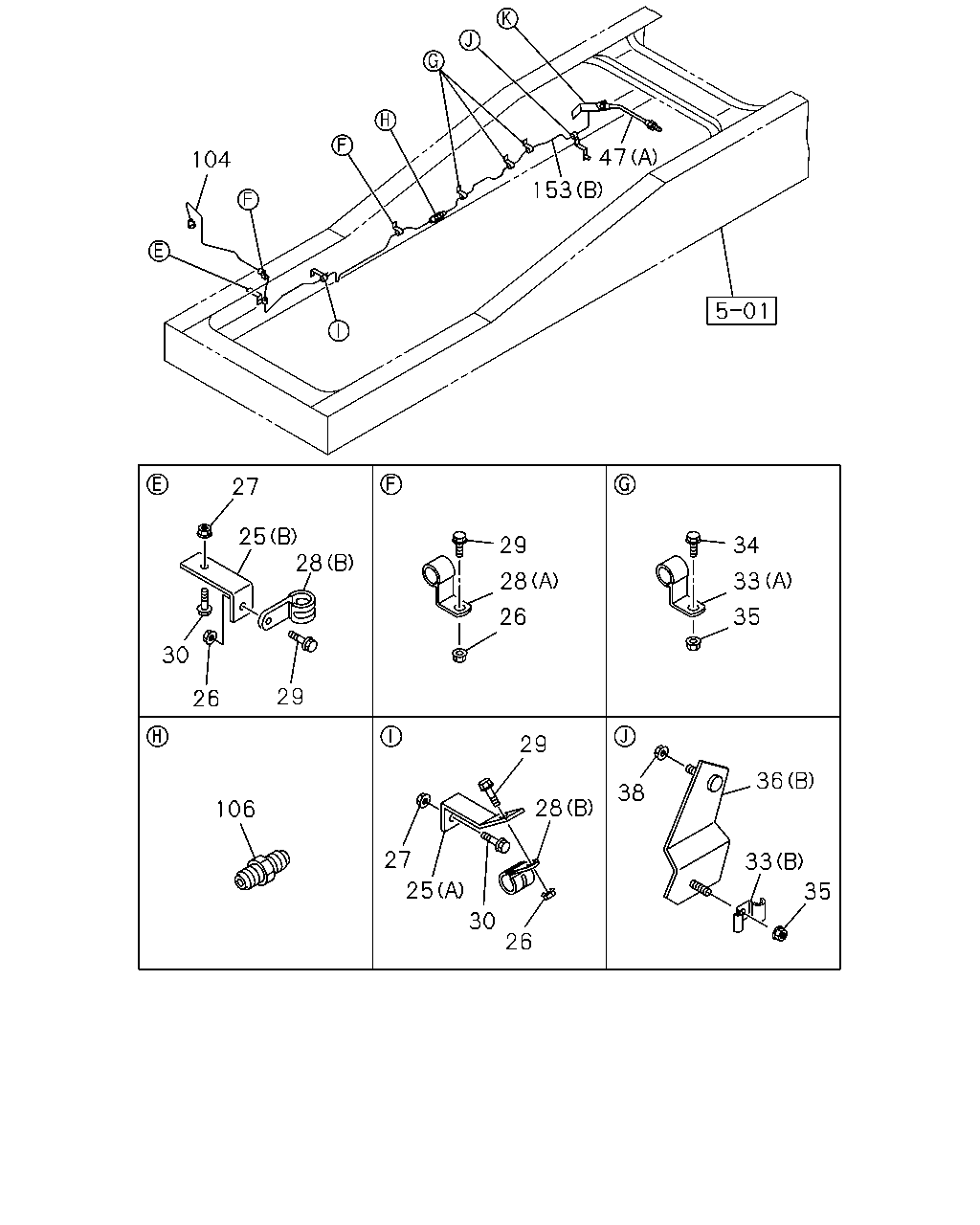

47 104 153 27 25 28 34 29 28 33 26 35 30 29 26 29 36 38 28 106 27 33 25 35 30 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (B) L=55	1-47475-304-0	01	1	0603-
25	BRACKET; OIL PIPE (A)	1-47477-406-0	01	1	0603-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0603-0603
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-
27	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0603-0603
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0603-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0603-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	02	1	0603-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	0607-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	03	1	0603-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0603-
30	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0603-
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0603-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0603-
33	CLIP; OIL PIPE (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0603-0607
33	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0608-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0603-0606
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	0607-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0603-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0603-0603
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
36	BRACKET; CLIP (B)	1-47471-444-0	01	1	0603-0609
36	BRACKET; CLIP (B)	8-98060-696-0	01	1	0610-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0603-
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0603-0603
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	0607-
47	HOSE; FLEX,CLU CONT (A) L=400	1-09364-263-0	01	1	0603-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1628 SERVICED BY L=1700	1-47428-767-0	01	1	0603-0712
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1555 SERVICED BY L=1700	1-47428-767-0	01	1	0801-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0603-0607
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0603-0802
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0803-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1744 SERVICED BY L=1800	1-47428-768-0	01	1	0603-0609
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1750 SERVICED BY L=1800	1-47428-768-0	01	1	0610-

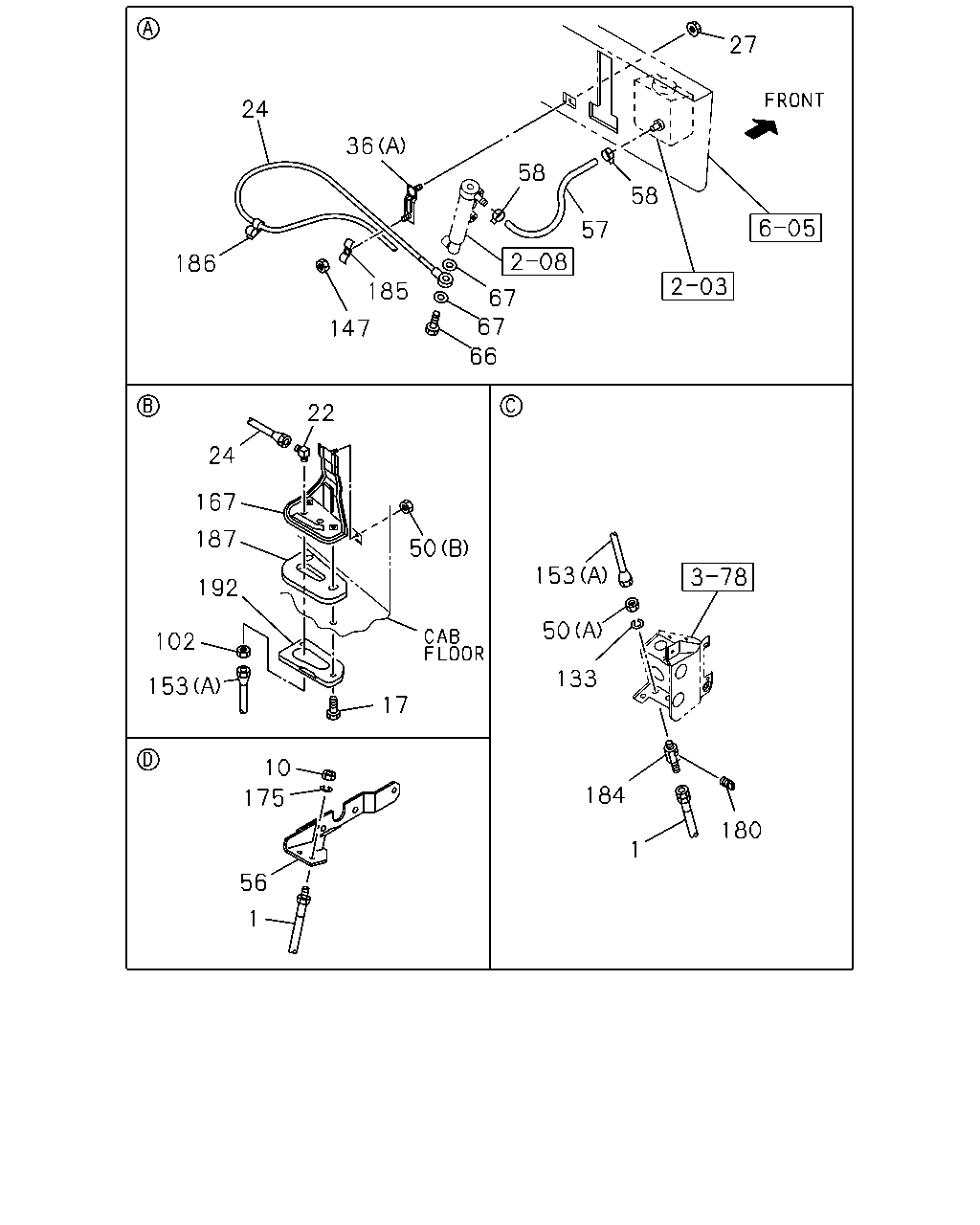

27 24 36 58 58 57 186 185 67 67 147 66 22 24 167 187 50 153 192 50 102 133 153 17 10 184 175 180 1 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	1-09364-879-1	01	1	0603-0703
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0704-
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0603-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0603-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0603-0607
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0603-
27	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0603-0603
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0603-
36	BRACKET; CLIP (B)	1-47471-444-0	01	1	0603-0609
36	BRACKET; CLIP (B)	8-98060-696-0	01	1	0610-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0603-
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0603-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0603-
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0603-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0603-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0603-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0603-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0603-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0603-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0603-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0603-0802
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0803-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1744 SERVICED BY L=1800	1-47428-768-0	01	1	0603-0609
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1750 SERVICED BY L=1800	1-47428-768-0	01	1	0610-
167	BRACKET; UNION	1-71117-183-3	01	1	0603-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0603-0603
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
180	PLUG; PIPE	9-09204-510-0	01	1	0603-0804
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0603-0804
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0603-0606
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0607-
186	HOLDER; CLIP	8-94107-710-0	02	1	0603-
187	SEAL; BRKT	1-71117-222-0	01	1	0603-
192	PLATE	1-71117-221-0	01	1	0603-

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	1-09364-879-1	01	1	0603-0703
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0704-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0603-
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0603-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1628 SERVICED BY L=1700	1-47428-767-0	01	1	0603-0712
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1555 SERVICED BY L=1700	1-47428-767-0	01	1	0801-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0603-0802
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0803-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1744 SERVICED BY L=1800	1-47428-768-0	01	1	0603-0609
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1750 SERVICED BY L=1800	1-47428-768-0	01	1	0610-
167	BRACKET; UNION	1-71117-183-3	01	1	0603-
