1-41A — FUEL PIPING; CHASSIS (#2442) — 102 parça

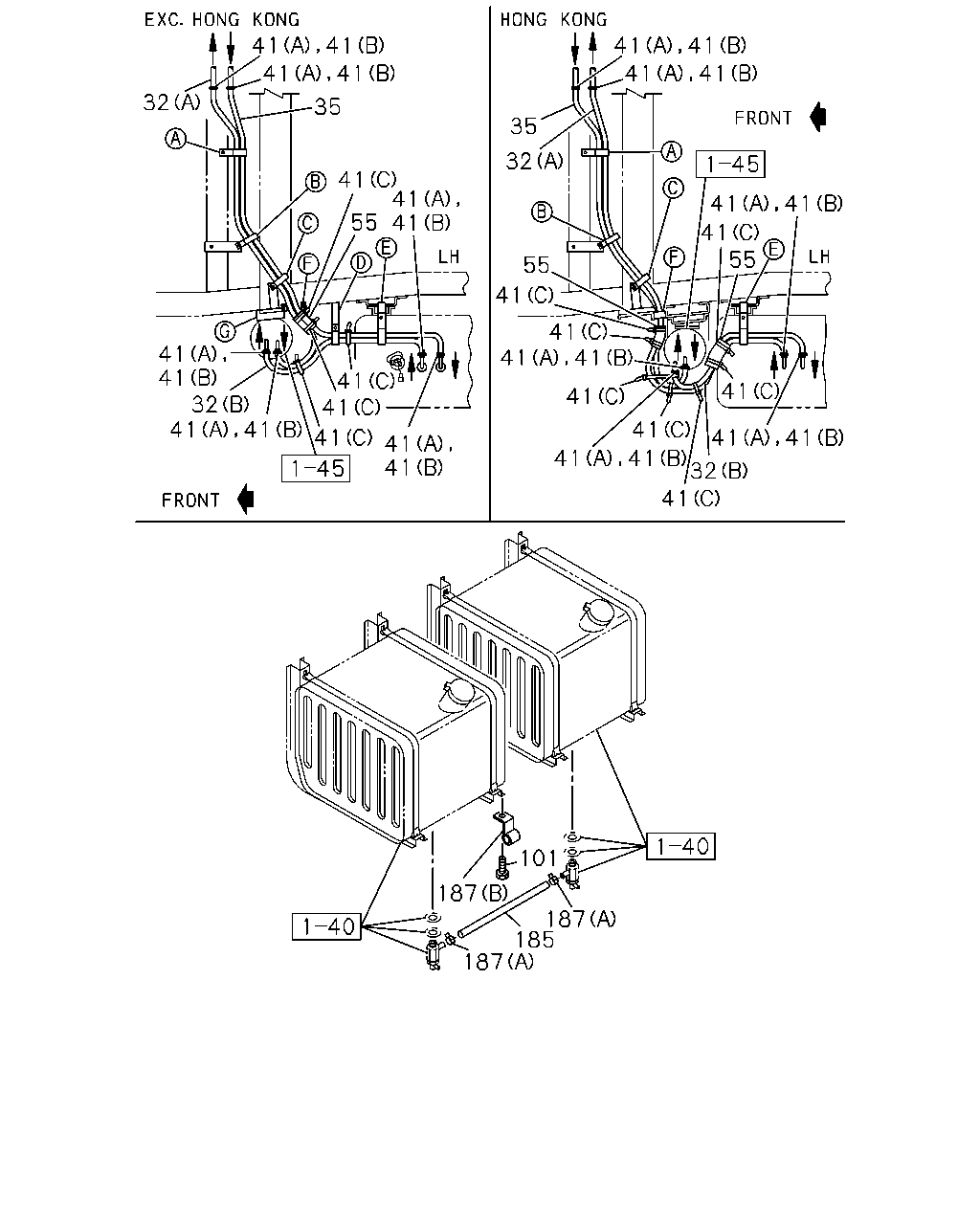

41 41 41 41 41 41 32 35 35 32 41 41 41 41 41 55 55 41 41 41 41 41 32 41 41 41 41 41 41 41 41 41 41 41 41 32 41 41 101 187 187 185 187 41 41 55 41 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	PIPE; DELIVERY,FUEL TANK (A) L=1350 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9307-	●		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+300L<W64> (B) L=970 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 200L+300L<W64> (B) L=1100 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9204	●	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),FUEL TANK 200L+300L<W64> (B) L=1100 SERVICED BY L=10000	9-09914-701-0	01	1	9205-	●	●	●
32	PIPE; DELIVERY,FUEL TANK HONG KONG EQUIPMENT(PQ1) (B) L=800 SERVICED BY L=10000	9-09914-701-0	01	1	9205-9306			●
32	PIPE; DELIVERY,FUEL TANK HONG KONG EQUIPMENT(PQ1) (B) L=700 SERVICED BY L=10000	9-09914-701-0	01	1	9307-			●
35	PIPE; FUEL TANK,RETURN L=1550 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9204	●	●	●
35	PIPE; FUEL TANK,RETURN EXC. HONG KONG EQUIPMENT(PQ1) L=1550 SERVICED BY L=10000	9-09914-701-0	01	1	9205-9306	●	●	●
35	PIPE; FUEL TANK,RETURN EXC. HONG KONG EQUIPMENT(PQ1) L=1550	0-01160-300-0	01	1	9307-9307	●		●
35	PIPE; FUEL TANK,RETURN EXC. HONG KONG EQUIPMENT(PQ1) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	9308-	●		●
35	PIPE; FUEL TANK,RETURN HONG KONG EQUIPMENT(PQ1) L=1930 SERVICED BY L=10000	9-09914-701-0	01	1	9205-9306			●
35	PIPE; FUEL TANK,RETURN HONG KONG EQUIPMENT(PQ1) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	9307-			●
41	CLIP; FUEL PIPE,FUEL TANK (C) L=250	5-09707-030-1	04	1	9002-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	06	1	9002-9306	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	9307-	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	02	1	9307-	●		●
41	CLIP; FUEL PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1) (C) L=250	5-09707-030-0	03	1	9207-9306			●
41	CLIP; FUEL PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1) (C) L=250	5-09707-030-1	02	1	9307-			●
55	COVER; PIPE,FUEL TANK L=150	1-09369-006-1	01	1	9002-9204	●	●	●
55	COVER; PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1) L=150	1-09369-006-1	02	1	9205-9306			●
55	COVER; PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1) L=1300	1-09360-677-1	02	1	9307-			●
55	COVER; PIPE,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1) L=150	1-09369-006-1	01	1	9205-9306	●	●	●
55	COVER; PIPE,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1) L=1300	1-09360-677-1	01	1	9307-	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9303-	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 200L+300L<W64> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●
101	BOLT; CLIP,FUEL PIPE EXC. HONG KONG EQUIPMENT(PQ1),FUEL TANK 200L+300L<W64> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●
101	BOLT; CLIP,FUEL PIPE EXC. HONG KONG EQUIPMENT(PQ1),FUEL TANK 200L+300L<W64> M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+300L<W64> L=900 ID=12 SERVICED BY L=10000	9-09914-914-0	01	1	9002-	●	●	●
185	PIPE; FUEL TANK TO TANK EXC. FUEL TANK 200L+300L<W64> L=650	1-09366-122-0	01	1	9002-9306	●	●	●
185	PIPE; FUEL TANK TO TANK EXC. FUEL TANK 200L+300L<W64> L=650 SERVICED BY L=10000	9-09914-914-0	01	1	9307-	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK (B) ID=17	1-09700-840-0	02	1	9002-	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK (A) ID=18	1-09707-011-1	02	1	9002-	●	●	●

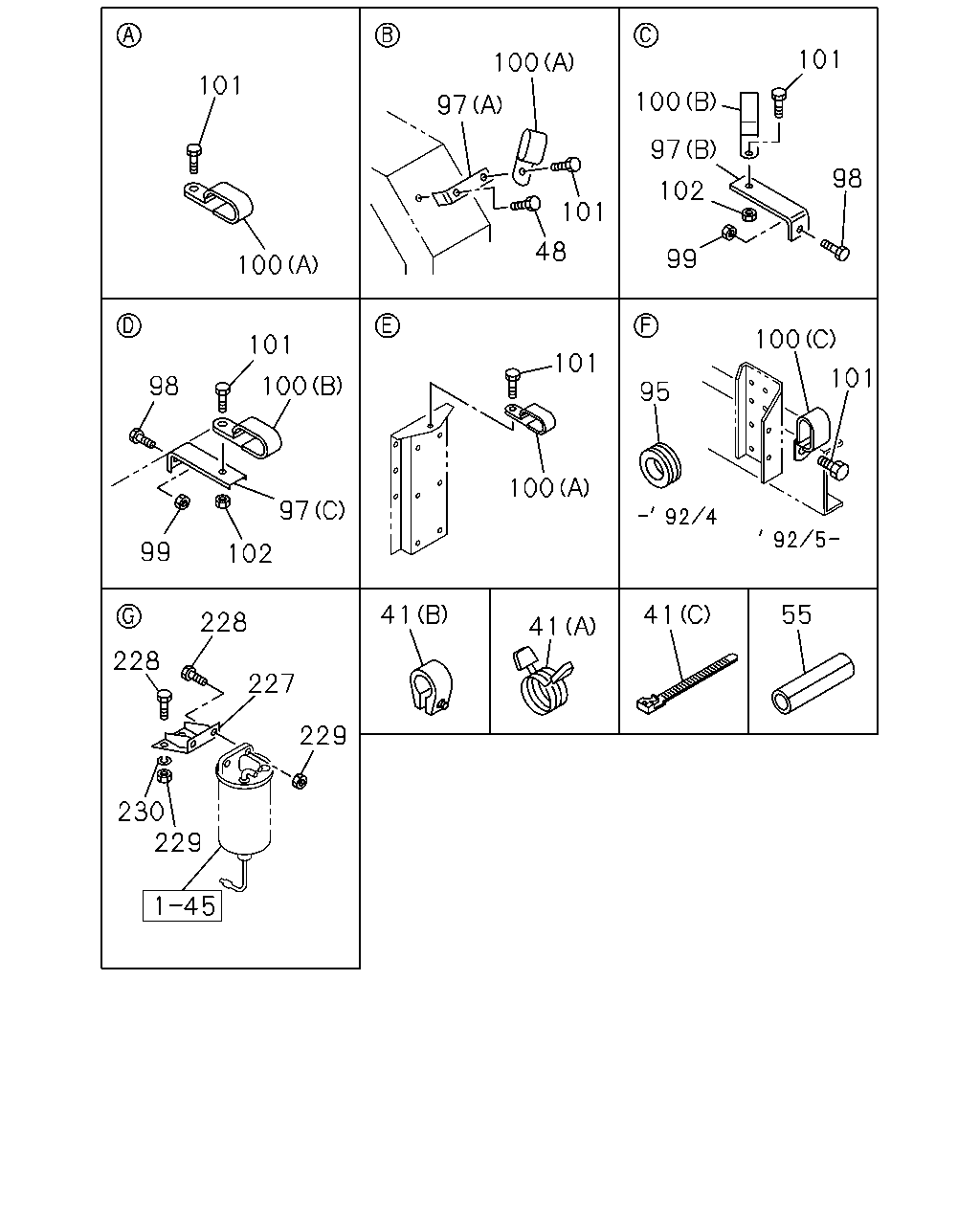

101 100 101 100 97 97 98 102 101 48 99 100 100 101 101 101 98 100 95 100 97 99 102 41 55 41 228 41 228 227 229 230 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
41	CLIP; FUEL PIPE,FUEL TANK (C) L=250	5-09707-030-1	04	1	9002-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	06	1	9002-9306	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	9307-	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	02	1	9307-	●		●
41	CLIP; FUEL PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1) (C) L=250	5-09707-030-0	03	1	9207-9306			●
41	CLIP; FUEL PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1) (C) L=250	5-09707-030-1	02	1	9307-			●
48	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●	●
48	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●	●
48	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●	●
55	COVER; PIPE,FUEL TANK L=150	1-09369-006-1	01	1	9002-9204	●	●	●
55	COVER; PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1) L=150	1-09369-006-1	02	1	9205-9306			●
55	COVER; PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1) L=1300	1-09360-677-1	02	1	9307-			●
55	COVER; PIPE,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1) L=150	1-09369-006-1	01	1	9205-9306	●	●	●
55	COVER; PIPE,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1) L=1300	1-09360-677-1	01	1	9307-	●	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-1	01	1	9002-9204	●	●	●
97	BRACKET; CLIP (B)	1-22518-099-0	01	1	9002-	●	●	●
97	BRACKET; CLIP (A) L=118	1-47475-359-0	01	1	9002-	●	●	●
97	BRACKET; CLIP EXC. SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> (C) L=55	1-47475-304-0	01	1	9002-9111	●	●	●
97	BRACKET; CLIP EXC. FUEL TANK 200L+300L<W64> (C) L=55	1-47475-304-0	01	1	9112-9306	●	●	●
97	BRACKET; CLIP EXC. HONG KONG EQUIPMENT(PQ1),FUEL TANK 200L+300L<W64> (C) L=55	1-47475-304-0	01	1	9307-9404	●		●
97	BRACKET; CLIP EXC. HONG KONG EQUIPMENT(PQ1),FUEL TANK 200L+300L<W64> (C) L=95	1-82699-085-0	01	1	9405-	●		●
98	BOLT; BRKT,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●
98	BOLT; BRKT,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●
98	BOLT; BRKT,FUEL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
98	BOLT; BRKT,FUEL PIPE EXC. SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9111	●	●	●
98	BOLT; BRKT,FUEL PIPE EXC. FUEL TANK 200L+300L<W64> M8X25 W/LK WASHER	9-01900-825-0	01	1	9112-9204	●	●	●
98	BOLT; BRKT,FUEL PIPE EXC. FUEL TANK 200L+300L<W64> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●	●
98	BOLT; BRKT,FUEL PIPE EXC. FUEL TANK 200L+300L<W64> M8X25 FLANGE	0-28080-825-0	01	1	9303-9306	●	●	●
98	BOLT; BRKT,FUEL PIPE EXC. HONG KONG EQUIPMENT(PQ1),FUEL TANK 200L+300L<W64> M8X25 FLANGE	0-28080-825-0	01	1	9307-	●		●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	01	1	9002-9111	●	●	●
99	NUT; BRKT,CLIP,FUEL TANK EXC. SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> M8	9-09110-408-0	01	1	9002-9111	●	●	●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	01	1	9112-9306	●	●	●
99	NUT; BRKT,CLIP,FUEL TANK EXC. FUEL TANK 200L+300L<W64> M8	9-09110-408-0	01	1	9112-9306	●	●	●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	01	1	9307-	●		●
99	NUT; BRKT,CLIP,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),FUEL TANK 200L+300L<W64> M8	9-09110-408-0	01	1	9307-	●		●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	01	1	9002-9204	●	●	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 200L+300L<W64> (B) ID=16X2 L=20	9-09535-536-0	01	1	9002-9204	●	●	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	01	1	9205-	●	●	●
100	CLIP; FUEL PIPE EXC. HONG KONG EQUIPMENT(PQ1),FUEL TANK 200L+300L<W64> (B) ID=16X2 L=20	9-09535-536-0	01	1	9205-	●	●	●
100	CLIP; FUEL PIPE (A) ID=16X2 L=50	9-09535-586-0	01	1	9002-	●	●	●
100	CLIP; FUEL PIPE (A) ID=16X2 L=50	9-09535-586-0	02	1	9002-	●	●	●
100	CLIP; FUEL PIPE (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9205-	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9303-	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 200L+300L<W64> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●
101	BOLT; CLIP,FUEL PIPE EXC. HONG KONG EQUIPMENT(PQ1),FUEL TANK 200L+300L<W64> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●
101	BOLT; CLIP,FUEL PIPE EXC. HONG KONG EQUIPMENT(PQ1),FUEL TANK 200L+300L<W64> M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
102	NUT; CLIP,FUEL PIPE M8	9-09110-408-0	01	1	9002-9204	●	●	●
102	NUT; CLIP,FUEL PIPE EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	01	1	9205-	●	●	●
227	BRACKET; FUEL SEDIMENTER	1-22518-081-0	01	1	9002-9204	●	●	●
227	BRACKET; FUEL SEDIMENTER EXC. HONG KONG EQUIPMENT(PQ1)	1-22518-081-1	01	1	9205-	●	●	●
228	BOLT; BRKT,SEDIMENTER M14X45	9-92051-445-0	02	1	9002-9005	●	●
228	BOLT; BRKT,SEDIMENTER M14X45	0-20801-445-0	02	1	9006-	●	●	●
228	BOLT; BRKT,SEDIMENTER M12X35	9-92061-235-0	02	1	9002-9204	●	●	●
228	BOLT; BRKT,SEDIMENTER EXC. HONG KONG EQUIPMENT(PQ1) M12X35	9-92061-235-0	02	1	9205-	●	●	●
229	NUT; BRKT,FUEL FILTER M14	9-99110-414-0	02	1	9002-	●	●	●
229	NUT; BRKT,FUEL FILTER M12	9-99110-512-0	02	1	9002-9204	●	●	●
229	NUT; BRKT,FUEL FILTER EXC. HONG KONG EQUIPMENT(PQ1) M12	9-99110-512-0	02	1	9205-	●	●	●
230	WASHER; LK,BRKT,FUEL TANK ID=12.2	9-09150-812-0	02	1	9002-9204	●	●	●
230	WASHER; LK,BRKT,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1) ID=12.2	9-09150-812-0	02	1	9205-	●	●	●
