Isuzu WW
▶
TRUCKS
▶
EXD
▶
11024 - EXD AUSTRALIA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶

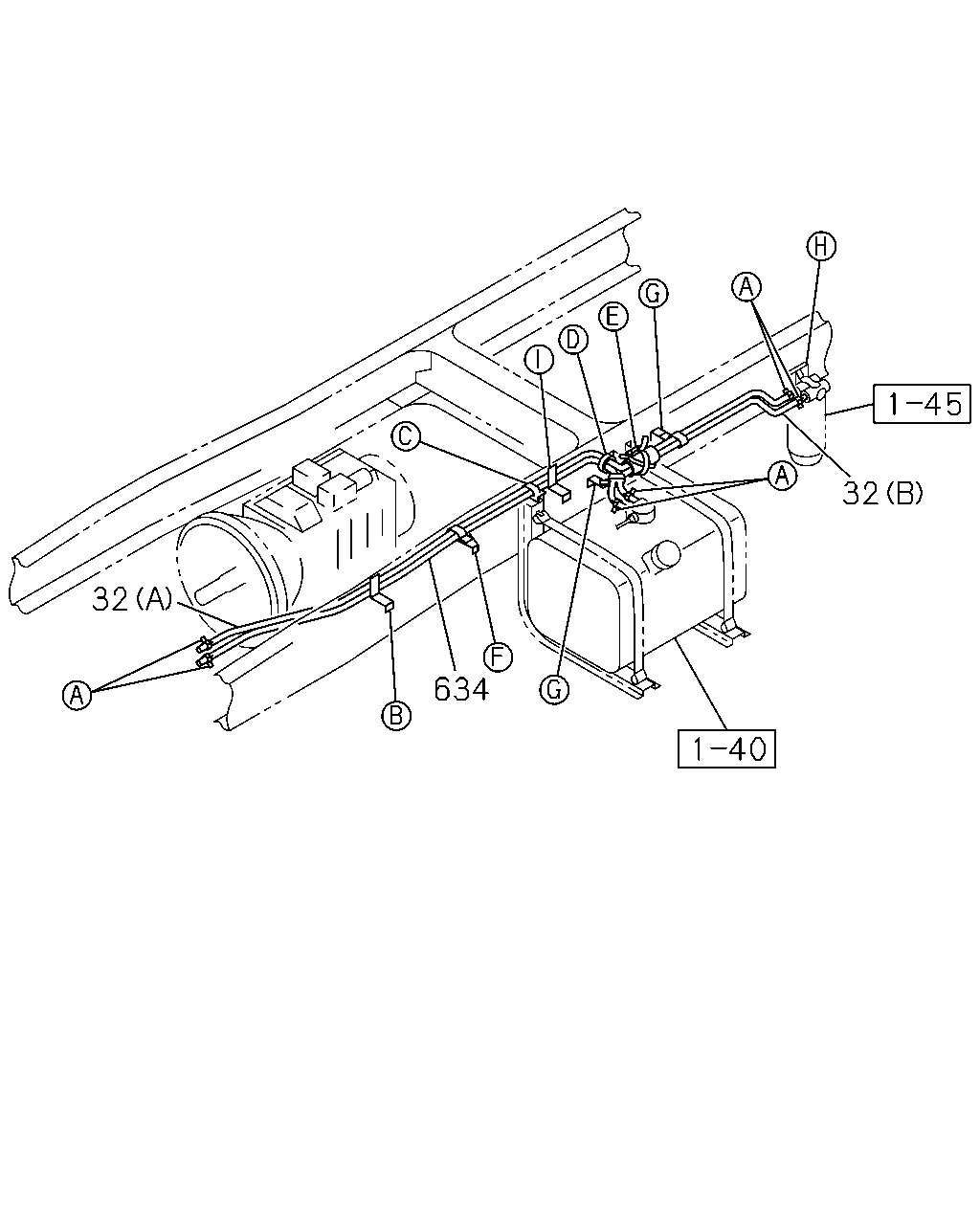

1-41 — FUEL PIPING; CHASSIS
(#24414) — 31 parça
◀
[141A] PIPING (3 parça)

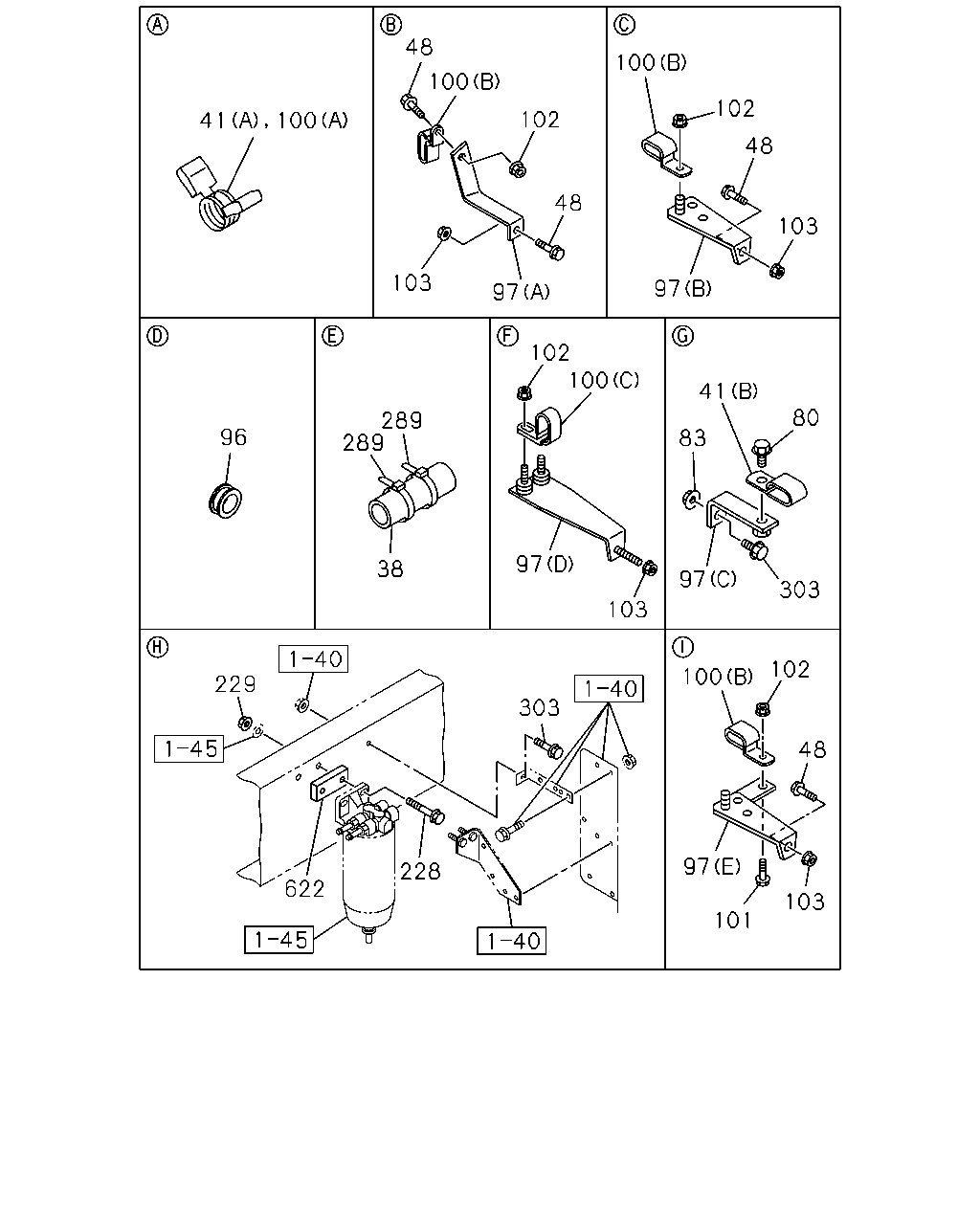

[141A] FIXING PARTS (28 parça)
▶
32
32
634
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(B) L=900 SERVICED BY L=3000
0-01260-300-0
01
1
0603-
32
PIPE; DELIVERY,FUEL TANK
(A) L=1950 SERVICED BY L=3000
0-01260-300-0
01
1
0603-
634
HOSE; RUBBER RETURN
L=1650 SERVICED BY L=3000
0-01260-300-0
01
1
0603-
48
100
100
102
102
100
41
48
48
103
103
97
97
102
100
41
80
289
289
96
83
97
38
97
303
103
102
100
229
303
48
97
228
622
103
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300
1-09360-677-1
02
1
0603-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=14X29 H=15 L=20
1-09700-744-0
02
1
0603-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14
1-09704-102-0
04
1
0603-
48
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
04
1
0603-
80
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
0-28650-820-0
02
1
0603-
83
NUT; CLIP,FUEL TANK
M8 FLANGE
0-91150-108-0
02
1
0603-0603
83
NUT; CLIP,FUEL TANK
M8 FLANGE
0-91180-108-0
02
1
0603-
96
GROMMET; PIPE,FUEL TANK
ID=28 OD=35 T=25
1-09332-011-1
01
1
0603-
97
BRACKET; CLIP
(E)
1-47479-851-0
01
1
0603-
97
BRACKET; CLIP
(D)
1-47471-045-0
01
1
0603-
97
BRACKET; CLIP
(B)
1-47479-723-0
01
1
0603-
97
BRACKET; CLIP
(A)
1-47479-646-0
01
1
0603-
97
BRACKET; CLIP
(C)
1-47475-927-0
02
1
0603-
100
CLIP; FUEL PIPE
(B) ID=14X29 H=15 L=20
1-09700-744-0
03
1
0603-
100
CLIP; FUEL PIPE
(C)
1-09701-299-0
01
1
0603-
100
CLIP; FUEL PIPE
(A) ID=14
1-09704-102-0
02
1
0603-
101
BOLT; CLIP,FUEL PIPE
M8X20 FLANGE
0-28650-820-0
01
1
0609-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91150-108-0
04
1
0603-0603
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91180-108-0
04
1
0603-
103
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
0603-0603
103
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0603-
228
BOLT; BRKT,SEDIMENTER
M10X50 FLANGE
0-28051-050-0
02
1
0603-
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91150-210-0
02
1
0603-0603
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91180-210-0
02
1
0603-
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
04
1
0603-
303
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
03
1
0603-
622
SPACER; BRKT
1-53168-492-0
01
1
0603-0909
622
SPACER; BRKT
8-98124-944-0
01
1
0910-
