Isuzu WW
▶
TRUCKS
▶
EXD
▶
11024 - EXD AUSTRALIA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

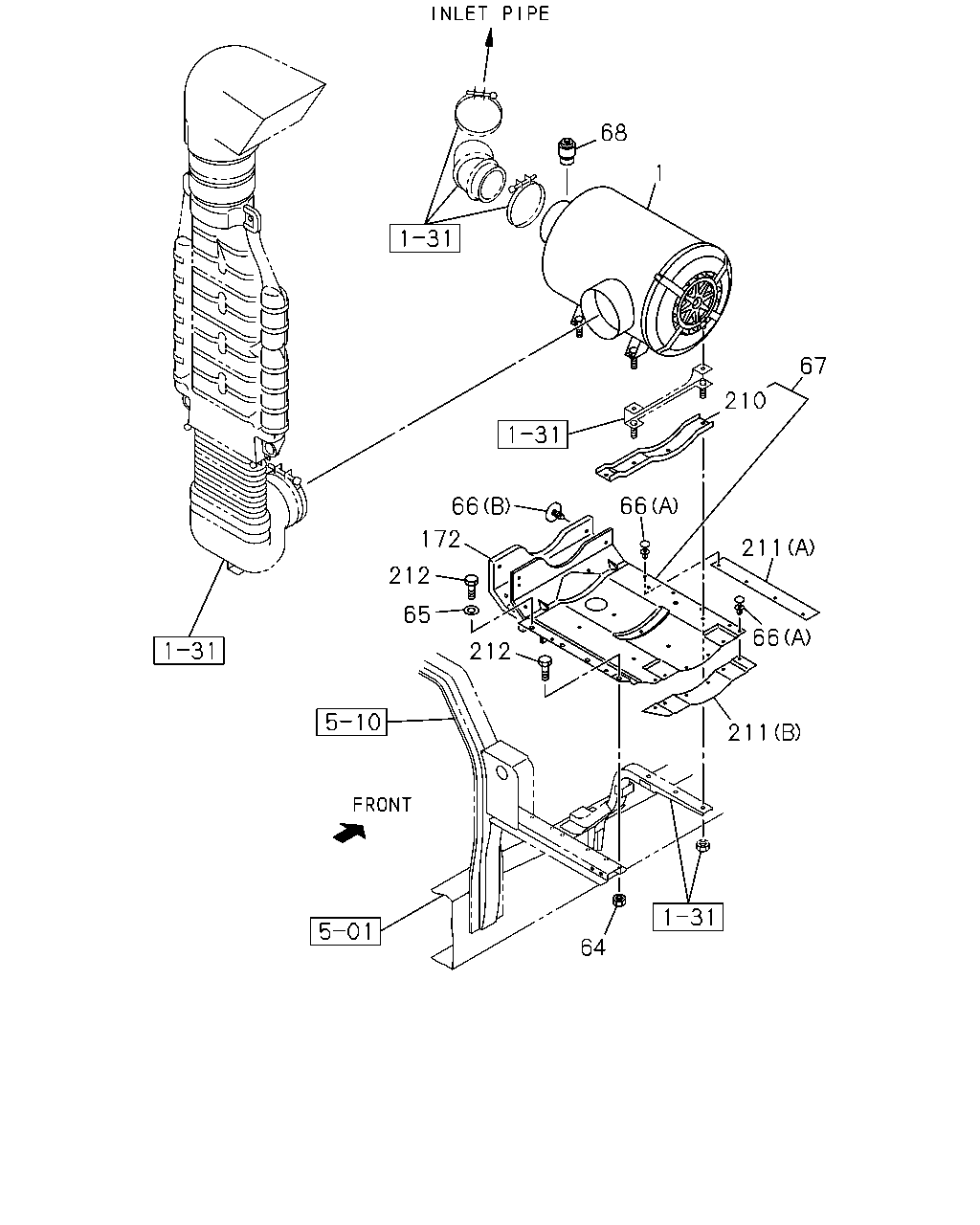

1-30 — AIR CLEANER
(#24410) — 19 parça
◀
[130A] FIXING;ASM AND OTHER PARTS (14 parça)
[130A] COMPONENT;AIR CLEANER (5 parça)
▶
68
1
67
210
66
66
172
211
212
212
65
66
211
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
1-14210-821-0
01
1
0603-
64
NUT; BAND BRKT
M10 FLANGE
0-91150-210-0
04
1
0603-0603
64
NUT; BAND BRKT
M10 FLANGE
0-91180-210-0
04
1
0603-
65
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
04
1
0603-1204
65
WASHER; PL
ID=10.5
0-91610-710-0
04
1
1205-
66
CLIP; ACL
(A)
5-09987-033-0
10
1
0603-
66
CLIP; ACL
(B)
8-94279-048-0
06
1
0603-
67
COVER; ACL
1-53419-416-0
01
1
0603-
68
INDICATOR; SERVICE
1-14219-212-0
01
1
0704-
172
INSULATOR; NOISE
1-53449-105-0
01
1
0603-
210
BRACKET; ACL MTG
1-53419-283-0
02
1
0603-
211
RUBBER; SEAL
(A)
1-79931-007-0
01
1
0603-
211
RUBBER; SEAL
(B)
1-79931-008-2
01
1
0603-
212
BOLT; MUD COVER
M10X25 FLANGE
0-28651-025-0
04
1
0603-
1
27
26
94
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
1-14210-821-0
01
1
0603-
8
COVER ASM; ACL
1-14212-132-0
01
1
0603-
26
FILTER; ACL,INNER
1-14215-220-0
01
1
0603-
27
FILTER; ACL,OUTER
1-14215-213-0
01
1
0603-
94
VALVE; VACUATOR
1-14219-192-0
01
1
0603-
