Isuzu WW
▶
TRUCKS
▶
EXD
▶
11024 - EXD AUSTRALIA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#24409) — 35 parça
◀

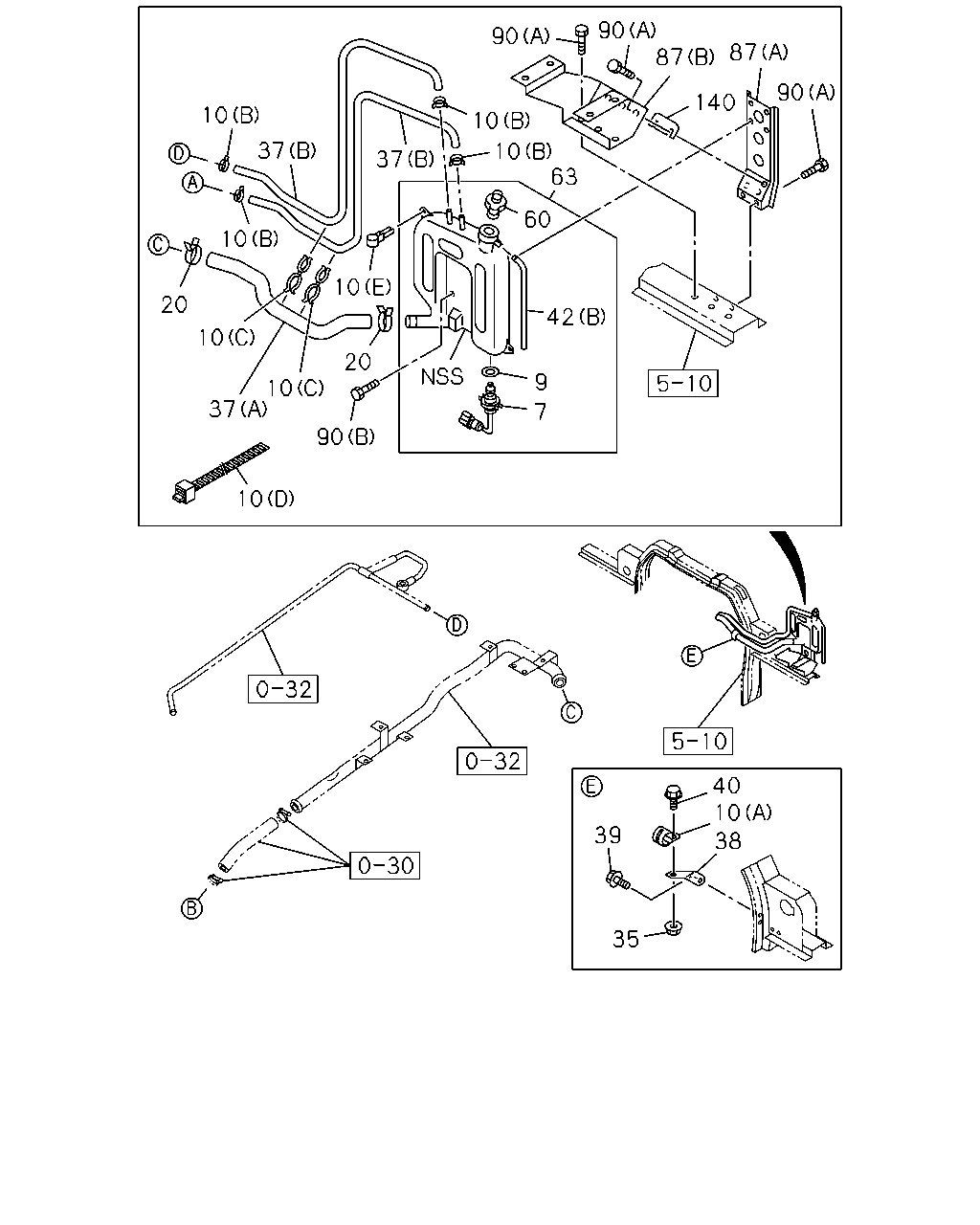

[111A] SUB TANK SIDE (25 parça)

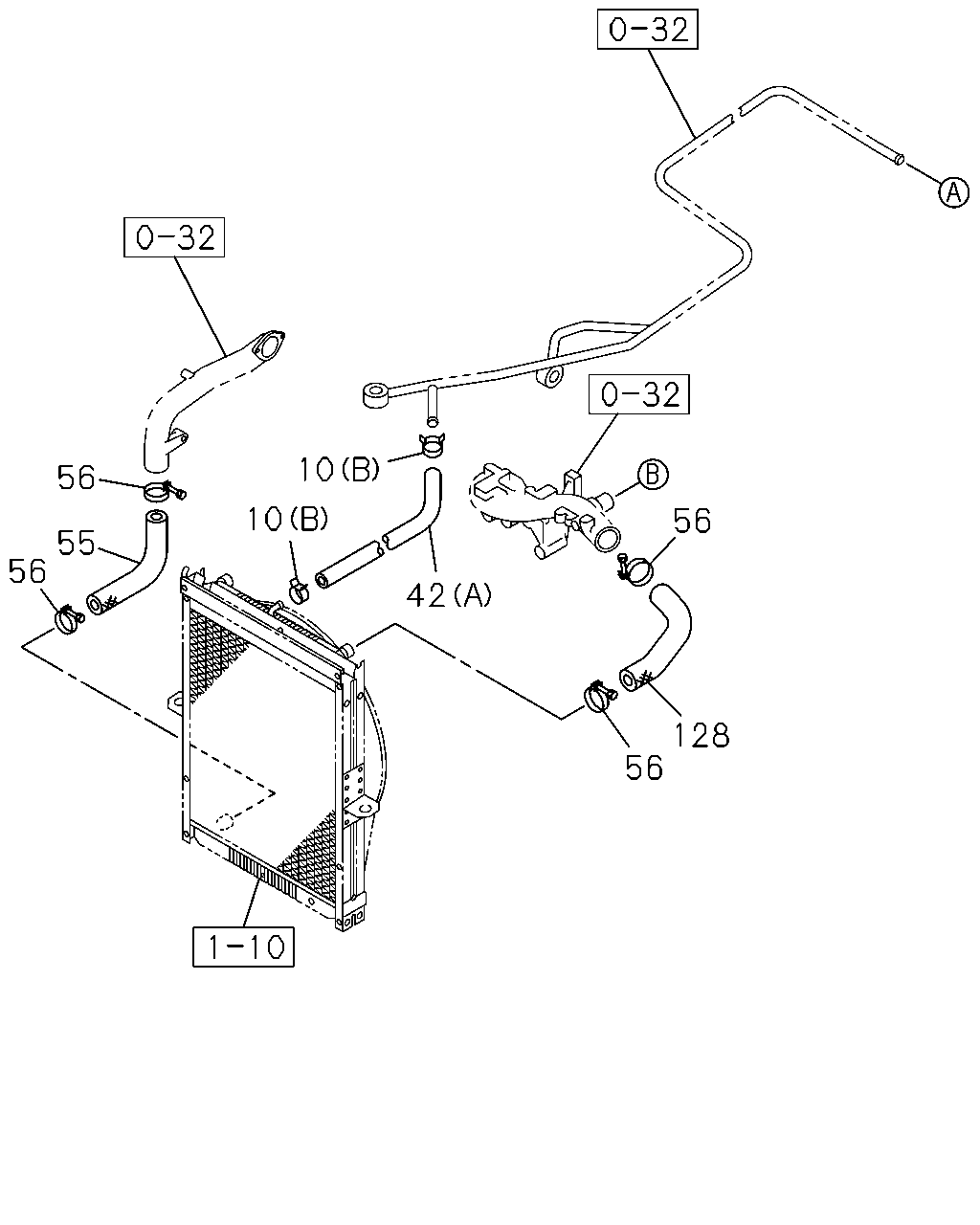

[111A] RADIATOR SIDE (10 parça)
▶
90
87
90
87
90
140
10
10
37
10
63
37
60
10
10
20
42
10
20
9
10
37
7
90
10
40
10
38
39
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
SWITCH ASM; TANK
1-82480-093-1
01
1
0603-1206
7
SWITCH ASM; TANK
8-97640-800-0
01
1
1207-
9
GASKET; SWITCH
ID=28 OD=35
1-09630-130-0
01
1
0603-
10
CLIP; RUBBER HOSE
(E) ID=28 L=58
1-09700-400-0
02
1
0603-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
0603-
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
0603-
10
CLIP; RUBBER HOSE
(D) L=350
1-09707-183-0
01
1
0603-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
08
1
0603-
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
0603-
35
NUT
M10 FLANGE
0-91150-210-0
01
1
0603-0603
35
NUT
M10 FLANGE
0-91180-210-0
01
1
0603-
37
HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000
0-03559-300-0
02
1
0603-
37
HOSE; RUBBER
(A)
1-21437-755-1
01
1
0603-
38
BRACKET; RUBBER HOSE
1-21489-180-0
01
1
0603-
39
BOLT; BRKT FIX
M8X20 FLANGE
0-28650-820-0
01
1
0603-
40
BOLT; CLIP
M10X20 FLANGE
0-28651-020-0
01
1
0603-
42
HOSE; RUBBER
(A) L=400 SERVICED BY L=3000
0-03559-300-0
01
1
0603-
42
HOSE; RUBBER
(B) L=850
1-21489-154-0
01
1
0603-
60
CAP; SUB TANK
1-21450-137-0
01
1
0603-
63
TANK ASM; SUB
1-21481-143-2
01
1
0603-
87
BRACKET; SUB TANK
(B)
1-21489-155-0
01
1
0603-
87
BRACKET; SUB TANK
(A)
1-21489-162-0
01
1
0603-
90
BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE
0-28650-820-0
06
1
0603-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
0603-
140
SHIM
T=0.8
1-53458-716-0
AR
1
0603-
10
56
10
56
55
56
42
128
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(E) ID=28 L=58
1-09700-400-0
02
1
0603-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
0603-
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
0603-
10
CLIP; RUBBER HOSE
(D) L=350
1-09707-183-0
01
1
0603-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
08
1
0603-
42
HOSE; RUBBER
(A) L=400 SERVICED BY L=3000
0-03559-300-0
01
1
0603-
42
HOSE; RUBBER
(B) L=850
1-21489-154-0
01
1
0603-
55
HOSE; WATER,RAD OUTLET
1-21437-997-2
01
1
0603-
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
04
1
0603-
128
HOSE; WATER,RAD INL
1-21437-866-1
01
1
0603-
