0-66 — GENERATOR (#24405) — 48 parça

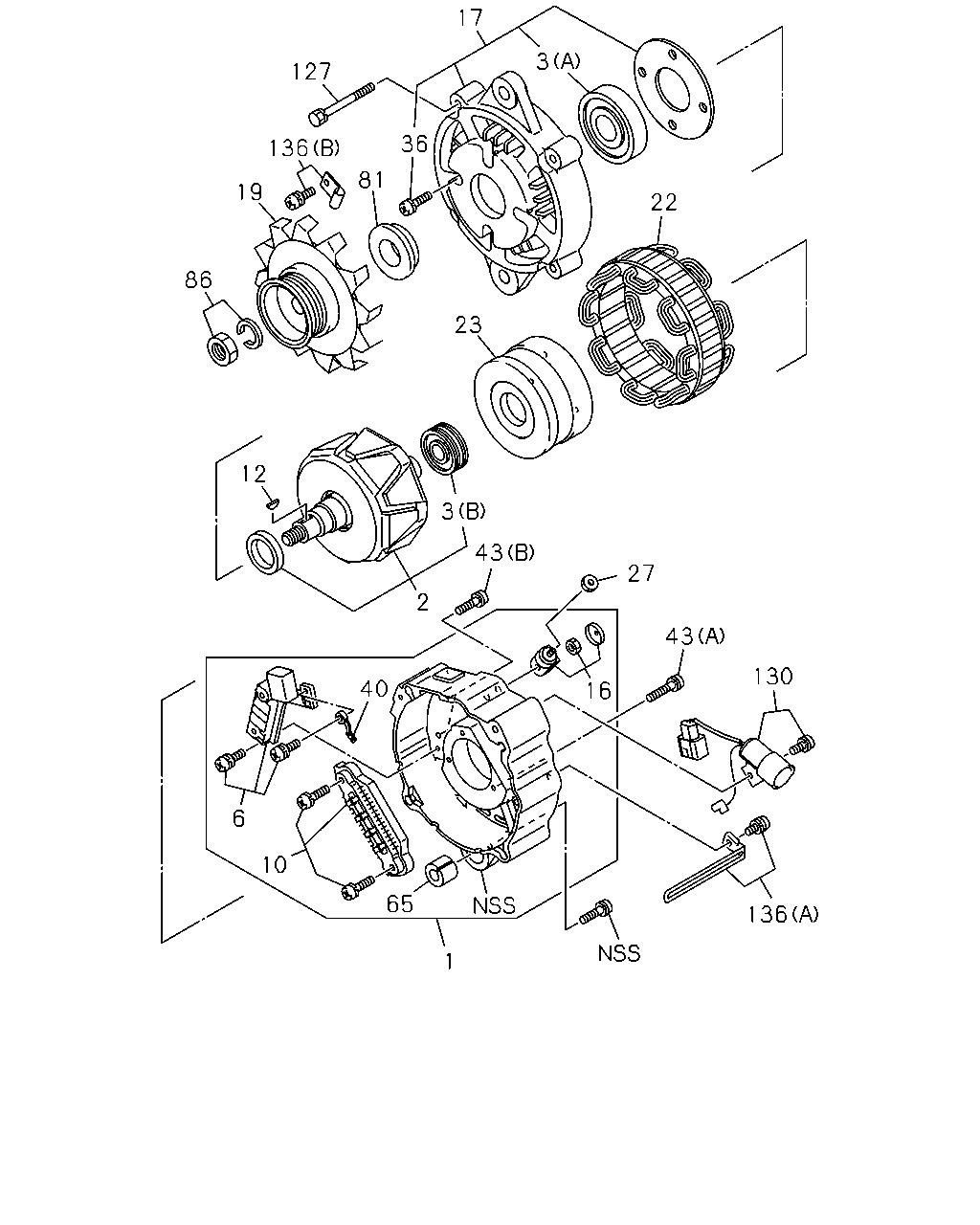

çizim 90182
17 3 127 36 136 81 19 22 86 23 12 3 43 27 2 43 130 40 16 6 10 65 136 1
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 1-81200-572-8 		8-98024-557-3 01 1 0810-
1 COVER ASM; RR,GEN
ASM PART: A = 1-81200-572-8 		8-98024-557-3 01 1 -0811
2 ROTOR; GEN
ASM PART: A = 1-81200-572-8 		1-81221-105-0 01 1 -0811
2 ROTOR; GEN
ASM PART: A = 1-81200-572-8 		1-81221-105-0 01 1 0810-
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 1-81200-572-8 		1-81229-815-0 01 1 0810-
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 1-81200-572-8 		1-81229-815-0 01 1 -0811
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 1-81200-572-8 		1-81229-816-0 01 1 -0811
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 1-81200-572-8 		1-81229-816-0 01 1 0810-
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 1-81200-572-8 		1-81260-019-0 01 1 -0811
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 1-81200-572-8 		1-81260-019-0 01 1 0810-
10 RECTIFIER; GEN
ASM PART: A = 1-81200-572-8 		1-81219-141-0 01 1 -0811
10 RECTIFIER; GEN
ASM PART: A = 1-81200-572-8 		1-81219-141-0 01 1 0810-
12 KEY; ROTOR,GEN
ASM PART: A = 1-81200-572-8 		1-81229-822-0 01 1 -0811
12 KEY; ROTOR,GEN
ASM PART: A = 1-81200-572-8 		1-81229-822-0 01 1 0810-
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: A = 1-81200-572-8 		1-81229-890-0 01 1 0810-
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: A = 1-81200-572-8 		1-81229-890-0 01 1 -0811
17 COVER ASM; FRT,GEN
ASM PART: A = 1-81200-572-8 		1-81213-116-1 01 1 -0811
17 COVER ASM; FRT,GEN
ASM PART: A = 1-81200-572-8 		1-81213-116-1 01 1 0810-
19 PULLEY; GEN
ASM PART: A = 1-81200-572-8 		1-81222-139-1 01 1 -0811
19 PULLEY; GEN
ASM PART: A = 1-81200-572-8 		1-81222-139-1 01 1 0810-
22 STATOR; GEN
ASM PART: A = 1-81200-572-8 		1-81211-135-0 01 1 0810-
22 STATOR; GEN
ASM PART: A = 1-81200-572-8 		1-81211-135-0 01 1 -0811
23 COIL; ROTOR GEN
ASM PART: A = 1-81200-572-8 		1-81212-031-0 01 1 0810-
23 COIL; ROTOR GEN
ASM PART: A = 1-81200-572-8 		1-81212-031-0 01 1 -0811
27 NUT; RECTIFIER,GEN
ASM PART: A = 1-81200-572-8 		1-81229-772-0 01 1 0810-
27 NUT; RECTIFIER,GEN
ASM PART: A = 1-81200-572-8 		1-81229-772-0 01 1 -0811
36 SCREW; FRT COVER
ASM PART: A = 1-81200-572-8 		1-81229-814-0 01 1 -0811
36 SCREW; FRT COVER
ASM PART: A = 1-81200-572-8 		1-81229-814-0 01 1 0810-
40 PLATE; RR COVER
ASM PART: A = 1-81200-572-8 		1-81222-164-1 01 1 -0811
40 PLATE; RR COVER
ASM PART: A = 1-81200-572-8 		1-81222-164-1 01 1 0810-
43 SCREW; RR END COVER
(A) ASM PART: A = 1-81200-572-8 		1-81229-774-0 01 1 0810-
43 SCREW; RR END COVER
(A) ASM PART: A = 1-81200-572-8 		1-81229-774-0 01 1 -0811
43 SCREW; RR END COVER
(B) ASM PART: A = 1-81200-572-8 		1-81229-817-0 01 1 -0811
43 SCREW; RR END COVER
(B) ASM PART: A = 1-81200-572-8 		1-81229-817-0 01 1 0810-
65 CONDENSER; GEN
ASM PART: A = 1-81200-572-8 		1-84132-016-0 01 1 0810-
65 CONDENSER; GEN
ASM PART: A = 1-81200-572-8 		1-84132-016-0 01 1 -0811
81 SPACER; ROTOR,GEN
ASM PART: A = 1-81200-572-8 		1-81229-813-0 01 1 0810-
81 SPACER; ROTOR,GEN
ASM PART: A = 1-81200-572-8 		1-81229-813-0 01 1 -0811
86 NUT SET; PULLEY,GEN
ASM PART: A = 1-81200-572-8 		8-97178-134-0 01 1 0810-
86 NUT SET; PULLEY,GEN
ASM PART: A = 1-81200-572-8 		8-97178-134-0 01 1 -0811
127 BOLT SET; GEN
ASM PART: A = 1-81200-572-8 		1-81229-812-0 01 1 0810-
127 BOLT SET; GEN
ASM PART: A = 1-81200-572-8 		1-81229-812-0 01 1 -0811
130 CONNECTOR; GEN
ASM PART: A = 1-81200-572-8 		1-81229-894-0 01 1 0810-
130 CONNECTOR; GEN
ASM PART: A = 1-81200-572-8 		1-81229-894-0 01 1 -0811
136 CLAMP; GENERATOR
(A) ASM PART: A = 1-81200-572-8 		1-81229-775-0 01 1 0810-
136 CLAMP; GENERATOR
(A) ASM PART: A = 1-81200-572-8 		1-81229-775-0 01 1 -0811
136 CLAMP; GENERATOR
(B) ASM PART: A = 1-81200-572-8 		1-81229-897-0 01 1 -0811
136 CLAMP; GENERATOR
(B) ASM PART: A = 1-81200-572-8 		1-81229-897-0 01 1 0810-
