◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11024 - EXD AUSTRALIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#24403) — 107 parça
çizim 89675
64 208 208 208
BalonParca AdiParca NoAdetTipApplied Date
64 BOX; BATTERY RELAY 1-82510-648-0 01 1 0603-
208 FUSE
(C) 80A 		1-82516-031-0 01 1 0603-
208 FUSE
(B) 100A 		1-82516-032-0 01 1 0603-
208 FUSE
(A) 40A GREEN 		8-94468-662-0 05 1 0603-
çizim 90390
9 9 9 22 99 99 9 9 107 158 18 9 22 25
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
(E) ID=20 H=23 L=27 		1-09700-861-0 01 1 0603-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 03 1 0603-
9 CLIP; BATTERY CABLE
(C) ID=19 L=28 		9-09525-856-0 01 1 0603-0606
9 CLIP; BATTERY CABLE
(C) ID=19 L=28 		0-95235-856-0 01 1 0607-0607
9 CLIP; BATTERY CABLE
(C) ID=19 L=20 		0-95235-836-0 01 1 0607-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 01 1 0603-
9 CLIP; BATTERY CABLE
(B) L=250 		5-09707-030-1 02 1 0603-
18 CLIP; BATTERY CABLE
ID=20 H=23 L=27 		1-09700-861-0 02 1 0603-
22 CLIP; BATTERY CABLE
(C) ID=20 H=23 L=27 		1-09700-861-0 06 1 0603-
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0603-
22 CLIP; BATTERY CABLE
(A) ID=21 L=30 H=40 		1-09700-991-1 02 1 0603-
25 CLIP; BATTERY CABLE TO BRKT
ID=20 H=23 L=27 		1-09700-861-0 01 1 0603-
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		1-09700-679-1 01 1 0603-
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 0603-
107 CLIP; BAND
L=350 		1-09707-183-0 01 1 0603-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 0603-
çizim 90482
23 73 23 21 10 21 26 81 100 69 66 108 110 76 101 76 57 162 11 60 109 155 180 12 27 28 24 63
BalonParca AdiParca NoAdetTipApplied Date
10 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28650-820-0 06 1 0603-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 0603-0605
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 0606-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 06 1 0603-0603
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 06 1 0603-
21 BOLT; CLIP CABLE
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0603-
21 BOLT; CLIP CABLE
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0603-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=120 H=35 		1-82698-088-0 01 1 0603-
23 BRACKET; CABLE CLIP TO FRAME
(A) L=95 		1-82699-085-0 03 1 0603-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 03 1 0603-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 04 1 0603-
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0603-
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 04 1 0603-0603
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0603-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		9-09150-606-0 01 1 0603-0603
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 0604-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0603-
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0603-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0603-
73 BRACKET; BATTERY CABLE 1-82699-104-0 01 1 0603-
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91150-108-0 08 1 0603-0603
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91180-108-0 08 1 0603-
76 NUT; BATTERY CABLE
(B) M10 FLANGE 		0-91150-210-0 01 1 0603-0603
76 NUT; BATTERY CABLE
(B) M10 FLANGE 		0-91180-210-0 01 1 0603-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 08 1 0603-
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0603-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0603-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 0603-0603
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 0604-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0603-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0603-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 0603-0605
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 0606-
180 NUT; COVER
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 0603-

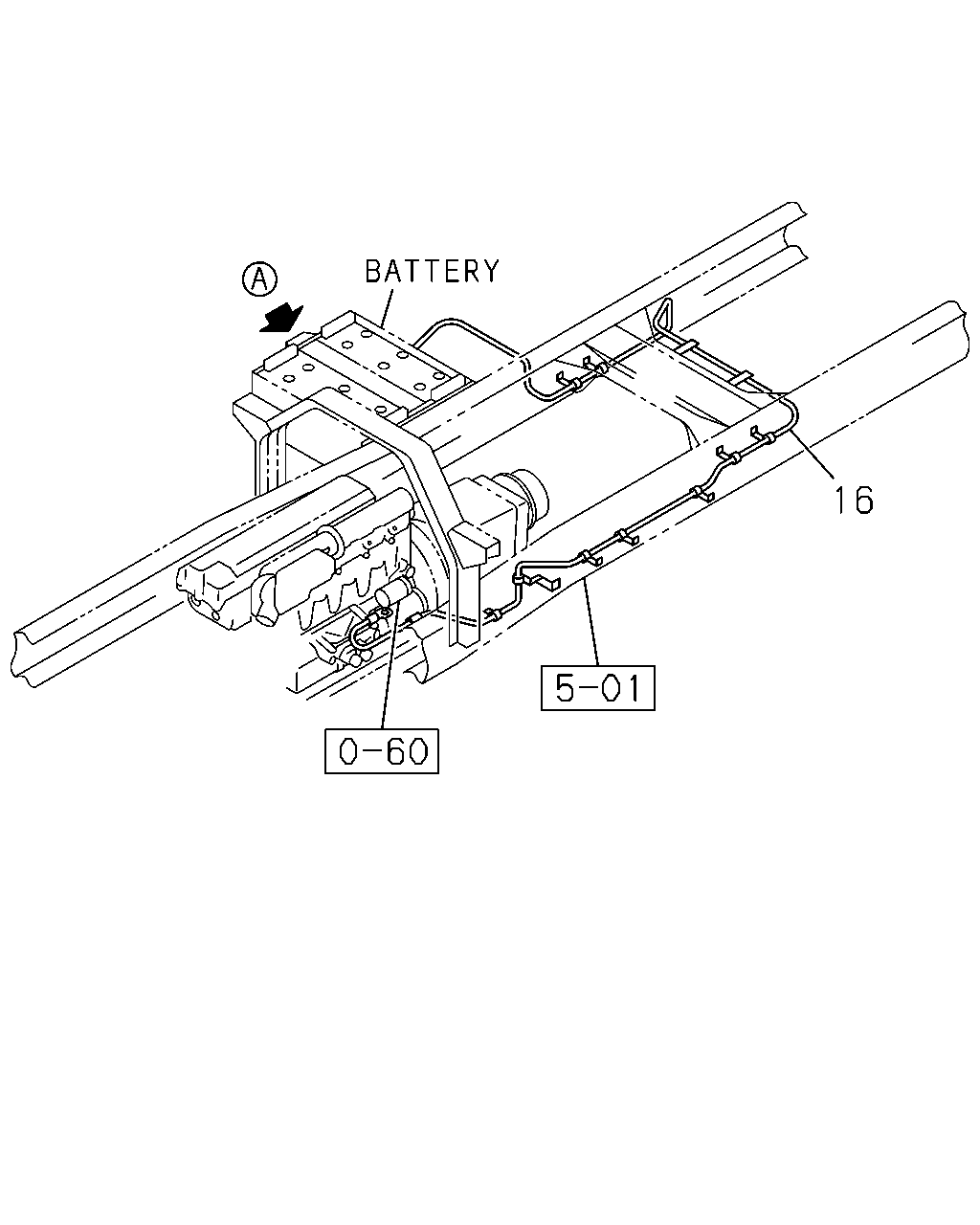

çizim 105734
16
BalonParca AdiParca NoAdetTipApplied Date
16 CABLE; STARTER TO RELAY
L=5130 		1-82652-941-1 01 1 0603-0708
16 CABLE; STARTER TO RELAY
L=5130 		1-82653-011-0 01 1 0709-

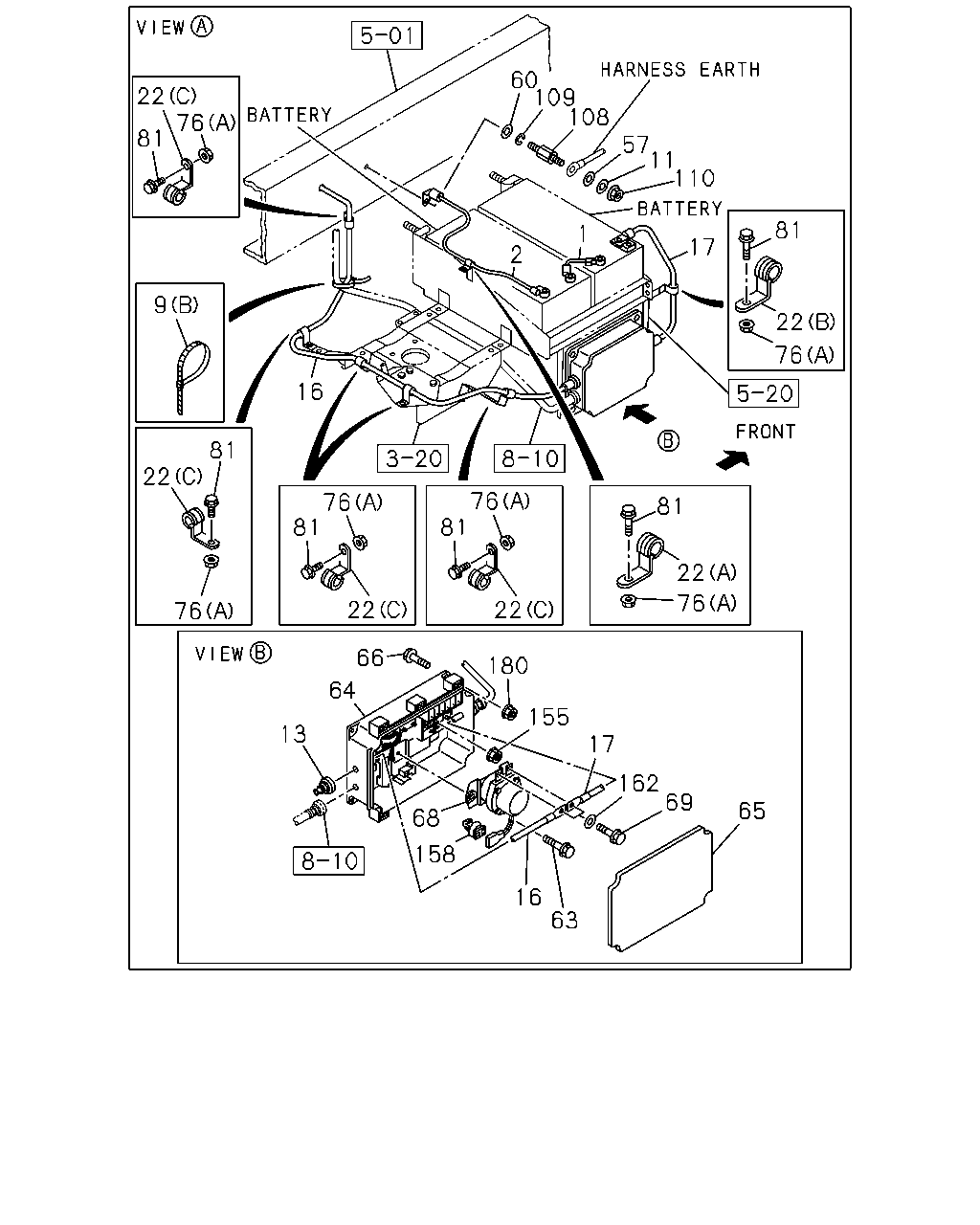

çizim 105823
60 109 108 22 76 81 57 11 110 81 1 17 2 9 22 76 16 81 22 76 81 76 81 81 22 76 22 22 76 66 180 64 155 13 17 162 69 65 68 158 16 63
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> L=265 		1-82650-390-1 01 1 0603-
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-391-1 01 1 0603-
2 CABLE; BATTERY
L=720 		1-82650-386-1 01 1 0603-
9 CLIP; BATTERY CABLE
(E) ID=20 H=23 L=27 		1-09700-861-0 01 1 0603-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 03 1 0603-
9 CLIP; BATTERY CABLE
(C) ID=19 L=28 		9-09525-856-0 01 1 0603-0606
9 CLIP; BATTERY CABLE
(C) ID=19 L=28 		0-95235-856-0 01 1 0607-0607
9 CLIP; BATTERY CABLE
(C) ID=19 L=20 		0-95235-836-0 01 1 0607-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 01 1 0603-
9 CLIP; BATTERY CABLE
(B) L=250 		5-09707-030-1 02 1 0603-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 0603-0605
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 0606-
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 0603-
16 CABLE; STARTER TO RELAY
L=5130 		1-82652-941-1 01 1 0603-0708
16 CABLE; STARTER TO RELAY
L=5130 		1-82653-011-0 01 1 0709-
17 CABLE; BATTERY (+) TO RELAY
L=640 		1-82652-762-3 01 1 0603-
22 CLIP; BATTERY CABLE
(C) ID=20 H=23 L=27 		1-09700-861-0 06 1 0603-
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0603-
22 CLIP; BATTERY CABLE
(A) ID=21 L=30 H=40 		1-09700-991-1 02 1 0603-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0603-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		9-09150-606-0 01 1 0603-0603
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 0604-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0603-
64 BOX; BATTERY RELAY 1-82510-648-0 01 1 0603-
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 0603-
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0603-
68 RELAY; BATTERY 1-82550-313-0 01 1 0603-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0603-
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91150-108-0 08 1 0603-0603
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91180-108-0 08 1 0603-
76 NUT; BATTERY CABLE
(B) M10 FLANGE 		0-91150-210-0 01 1 0603-0603
76 NUT; BATTERY CABLE
(B) M10 FLANGE 		0-91180-210-0 01 1 0603-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 08 1 0603-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0603-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 0603-0603
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 0604-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0603-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0603-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 0603-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 0603-0605
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 0606-
180 NUT; COVER
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 0603-
