Isuzu WW
▶
TRUCKS
▶
EXD
▶
11024 - EXD AUSTRALIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶
0-42 — FUEL PUMP AND PIPE
(#24397) — 24 parça
◀

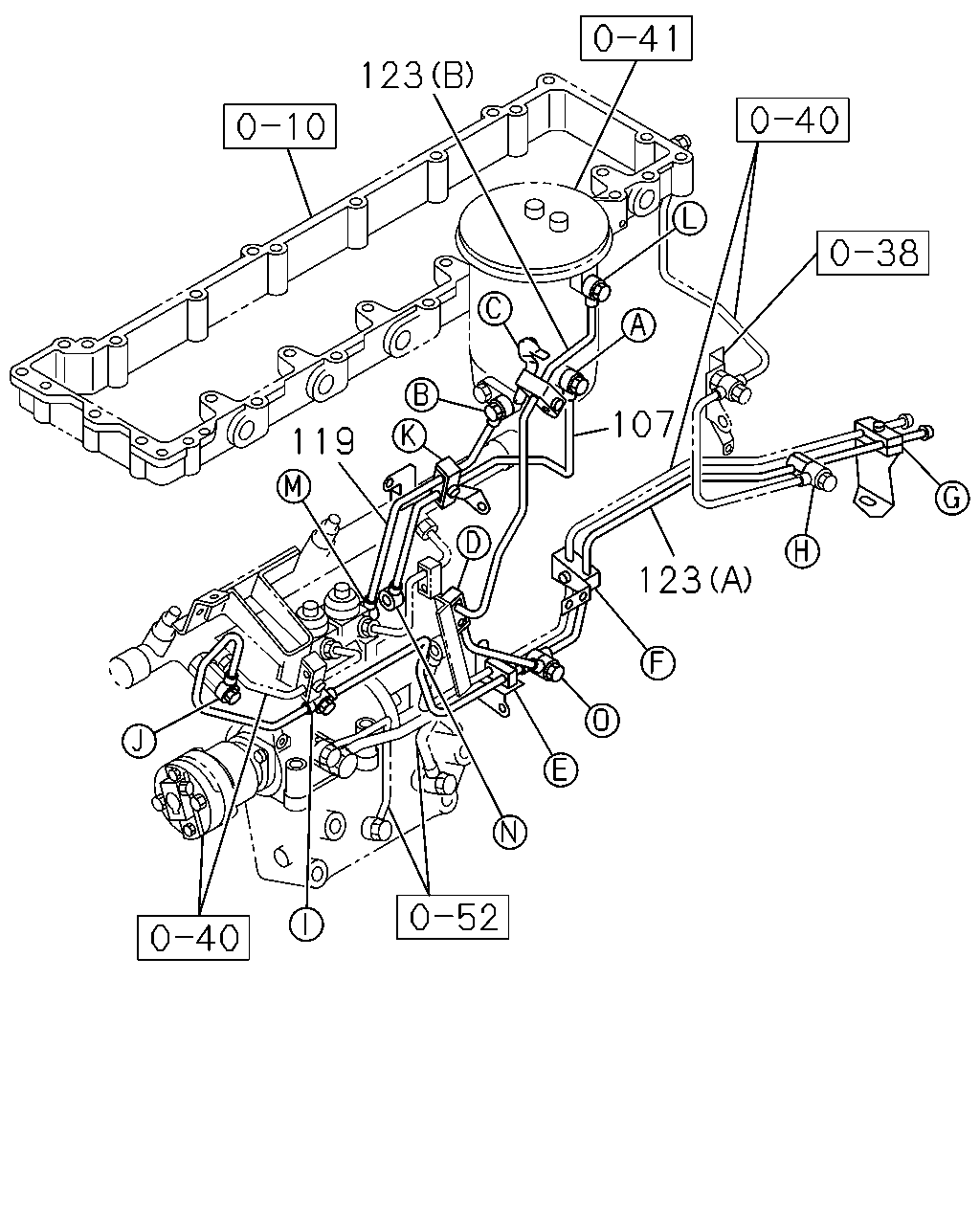

[042A] NO.1 (4 parça)

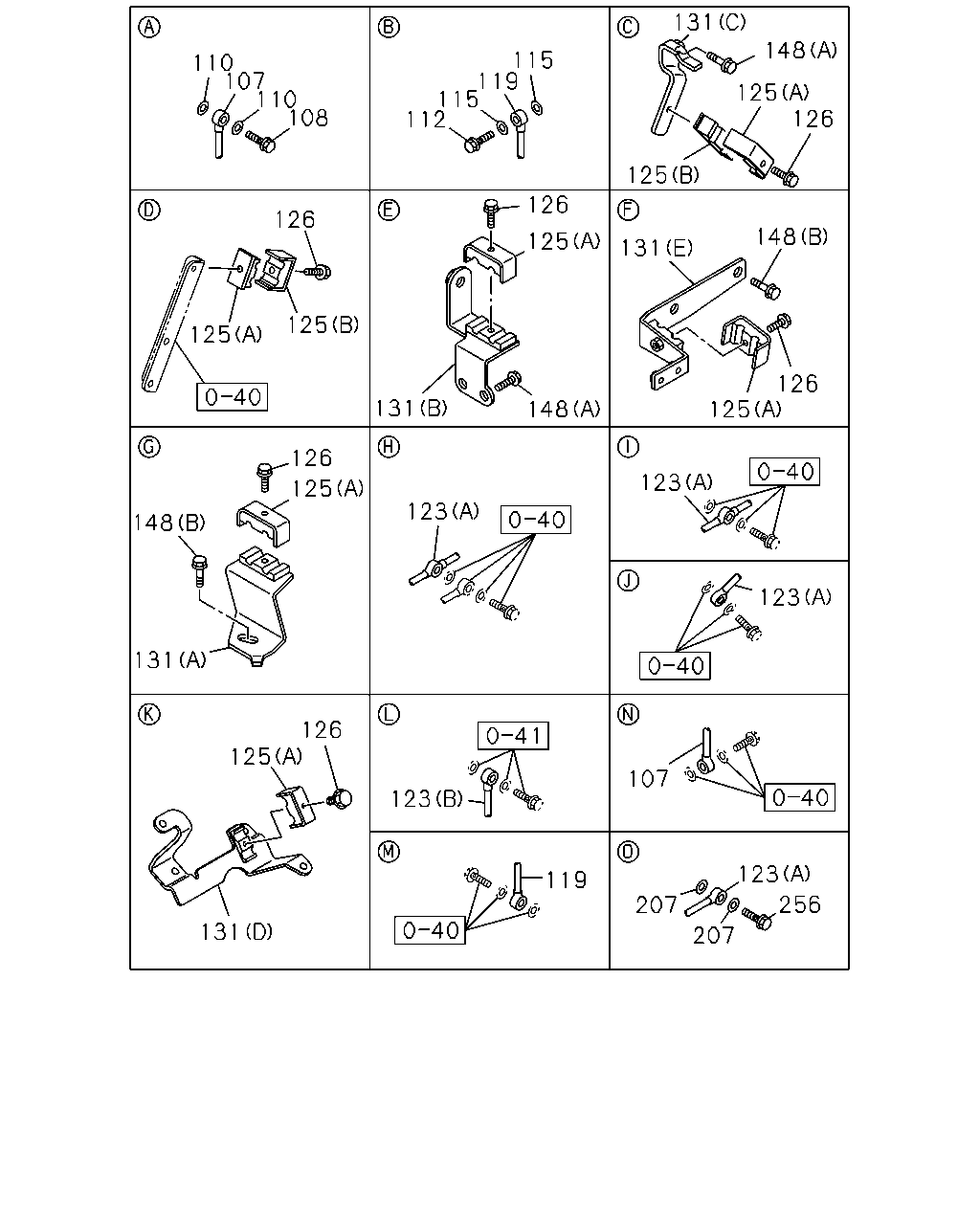

[042A] NO.2 (20 parça)
▶
123
107
119
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
1-15416-258-0
01
1
0603-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
1-15416-259-0
01
1
0603-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
1-15416-687-0
01
1
0603-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
1-15416-688-0
01
1
0603-
131
148
115
119
115
112
110
107
110
108
125
126
125
126
126
148
125
131
125
125
126
131
148
125
126
123
125
123
148
123
131
126
125
107
123
123
119
256
207
131
207
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
1-15416-258-0
01
1
0603-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0603-
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
02
1
0603-
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0603-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
02
1
0603-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
1-15416-259-0
01
1
0603-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
1-15416-687-0
01
1
0603-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
1-15416-688-0
01
1
0603-
125
CLIP; FUEL PIPE
(B) ID=9 & 9 L=25
1-09701-180-0
02
1
0603-
125
CLIP; FUEL PIPE
(A) ID=9 & 9 L=25
8-94393-280-3
06
1
0603-
126
BOLT; CLIP,FUEL PIPE
M6X30 FLANGE
0-28050-630-0
06
1
0603-
131
BRACKET; FUEL PIPE CLIP
(B)
1-15419-529-1
01
1
0603-
131
BRACKET; FUEL PIPE CLIP
(A)
1-15419-577-0
01
1
0603-
131
BRACKET; FUEL PIPE CLIP
(E)
1-15419-600-1
01
1
0603-
131
BRACKET; FUEL PIPE CLIP
(C)
1-15419-646-0
01
1
0603-
131
BRACKET; FUEL PIPE CLIP
(D)
1-15419-667-0
01
1
0603-
148
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
04
1
0603-
148
BOLT; BRKT
(B) M10X20 FLANGE
0-28151-020-0
03
1
0603-
207
GASKET; EYE BOLT
ID=14.2 OD=25
1-09630-141-0
02
1
0603-
256
BOLT; EYE,FUEL PIPE
M14X27 FLANGE
1-09675-086-0
01
1
0603-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
