0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#24393) — 79 parça

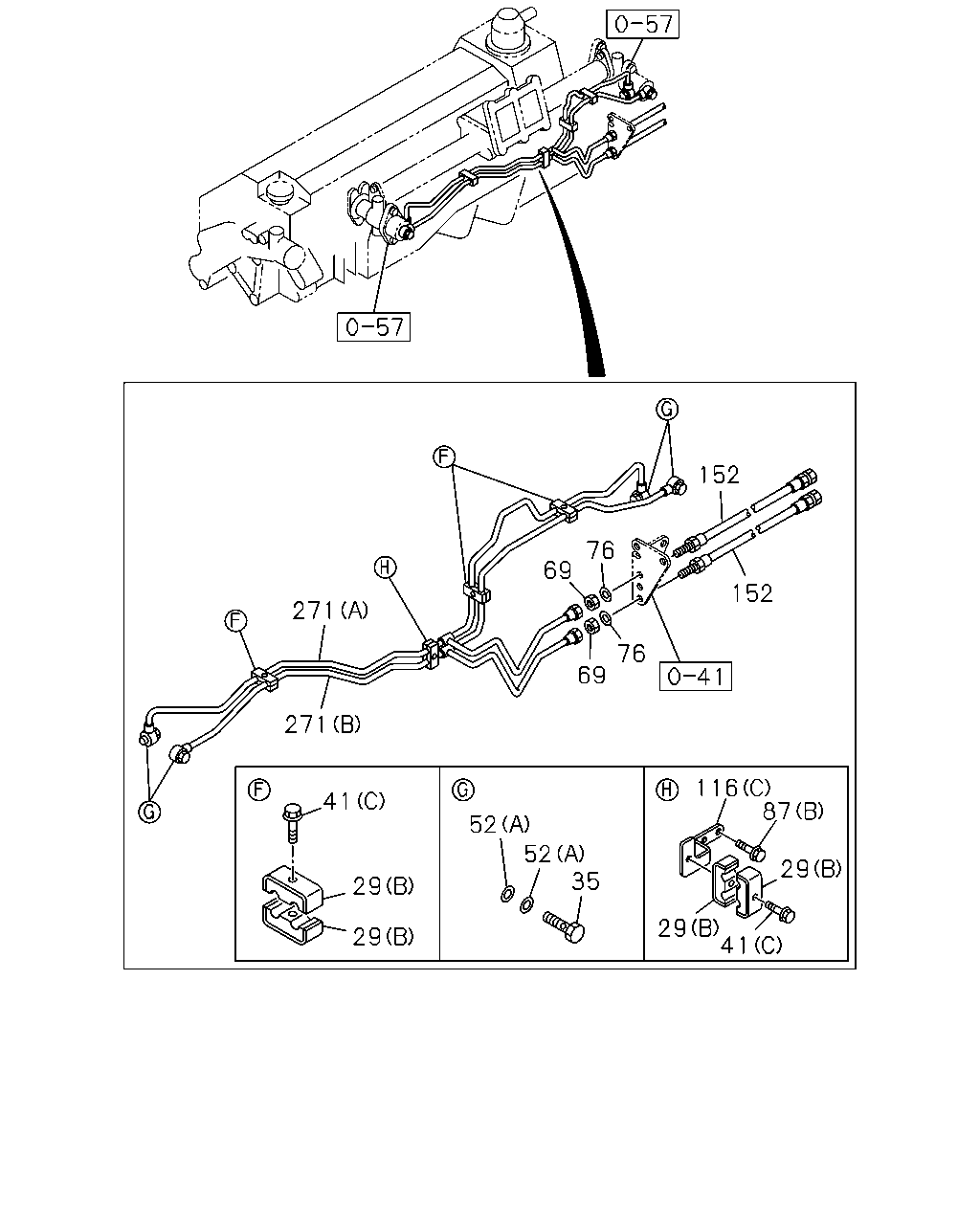

152 76 69 152 271 76 69 271 116 87 41 52 52 35 29 29 29 41 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	CLIP; AIR PIPE (B)	1-09701-132-1	08	1	0603-1210
29	CLIP; AIR PIPE (B)	1-09701-240-0	08	1	1211-
29	CLIP; AIR PIPE (A)	1-09701-210-0	04	1	0603-
35	BOLT; EYE,AIR PIPE M10X21 FLANGE	8-94396-711-0	04	1	0603-
41	BOLT; CLIP (C) M6X30 FLANGE	0-28050-630-0	04	1	0603-
41	BOLT; CLIP (A) M6X40 FLANGE	0-28050-640-0	02	1	0603-
41	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0603-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0603-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0603-
69	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0603-
76	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0603-0603
76	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	0604-
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0603-
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0603-
116	BRACKET; AIR PIPE (B)	1-15419-530-3	01	1	0603-
116	BRACKET; AIR PIPE (A)	1-19199-221-0	02	1	0603-
116	BRACKET; AIR PIPE (C)	1-19199-339-2	01	1	0603-
152	HOSE; FLEX L=280	1-09363-610-0	02	1	0603-
271	PIPE; AIR,EGR CONT (A)	1-19193-236-0	01	1	0603-
271	PIPE; AIR,EGR CONT (B)	1-19193-237-0	01	1	0603-

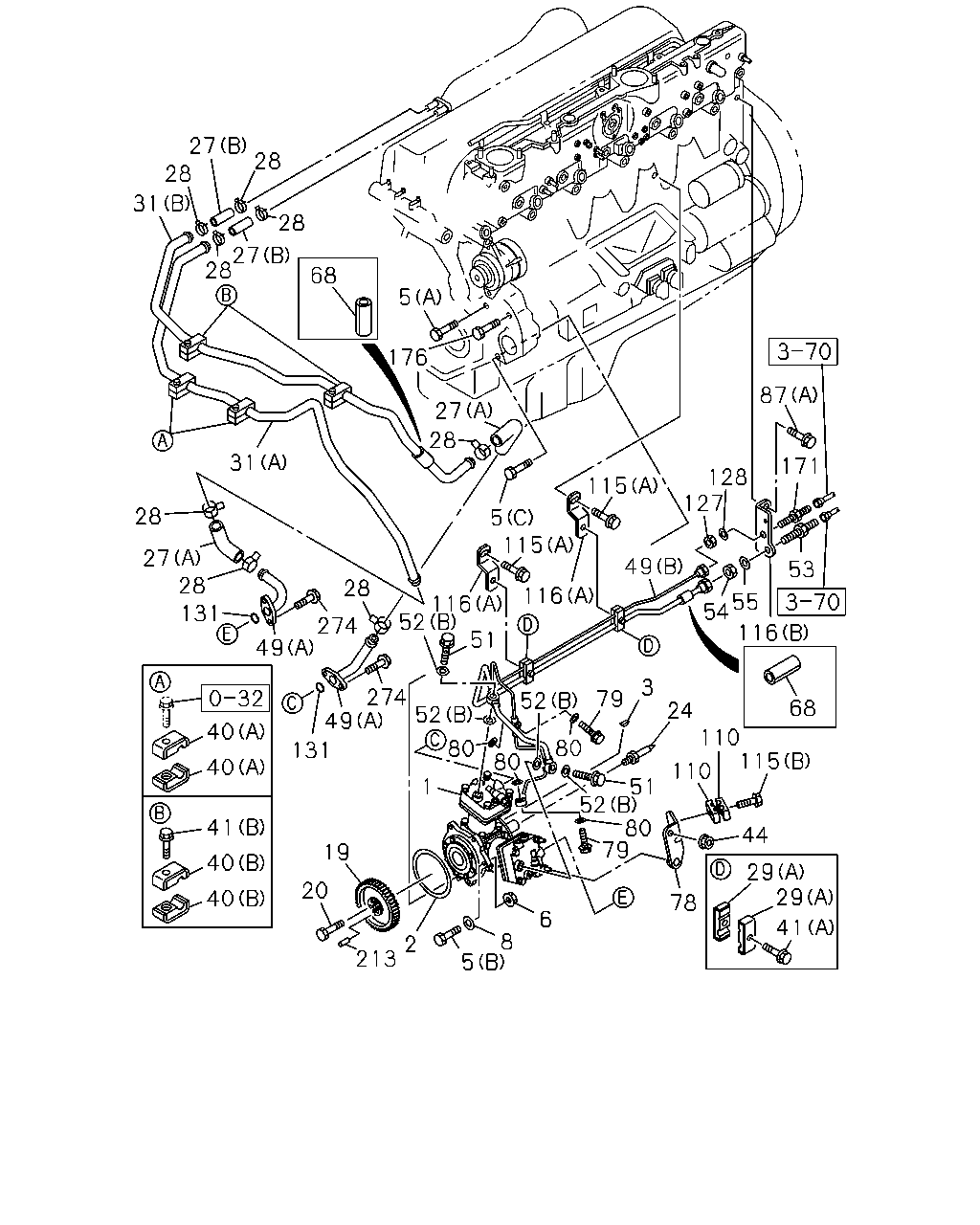

27 28 28 31 28 27 28 68 5 176 87 27 28 31 171 128 127 115 28 5 115 55 54 27 28 131 49 53 28 116 116 52 274 116 51 49 274 52 49 80 3 79 52 68 24 110 115 40 80 80 131 40 110 51 52 80 79 1 41 44 19 40 29 29 20 40 78 6 41 8 5 2 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-332-7	01	1	0603-1112
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98203-543-1	01	1	1201-1406
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98277-235-0	01	1	1407-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0603-
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0603-
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0603-
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0603-
5	BOLT; AIR CMPR FIX (C) M14X150	9-09804-172-1	01	1	0603-
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0603-
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0603-
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	0603-
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0603-
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0603-
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0603-
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0603-
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0603-
29	CLIP; AIR PIPE (B)	1-09701-132-1	08	1	0603-1210
29	CLIP; AIR PIPE (B)	1-09701-240-0	08	1	1211-
29	CLIP; AIR PIPE (A)	1-09701-210-0	04	1	0603-
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19193-403-0	01	1	0603-
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19193-463-0	01	1	0603-
40	CLIP; AIR PIPE (A)	1-09701-210-0	04	1	0603-
40	CLIP; AIR PIPE (B) ID=17 L=17	1-09701-284-0	04	1	0603-
41	BOLT; CLIP (C) M6X30 FLANGE	0-28050-630-0	04	1	0603-
41	BOLT; CLIP (A) M6X40 FLANGE	0-28050-640-0	02	1	0603-
41	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0603-
44	NUT M8 FLANGE	0-91150-208-0	02	1	0603-0603
44	NUT M8 FLANGE	0-91180-208-0	02	1	0603-
49	PIPE; AIR,CHARGE (A)	1-19193-402-0	02	1	0603-
49	PIPE; AIR,CHARGE (B)	1-19193-448-0	01	1	0603-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	02	1	0603-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0603-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0603-
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0603-
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0603-
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0603-0603
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0603-
78	BRACKET; PIPE,AIR GOV	1-13729-095-0	01	1	0603-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0603-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	04	1	0603-
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0603-
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0603-
110	CLIP; AIR PIPE	1-09701-132-1	02	1	0603-1210
110	CLIP; AIR PIPE	1-09701-240-0	02	1	1211-
115	BOLT; AIR PIPE (B) M6X30 FLANGE	0-28050-630-0	01	1	0603-
115	BOLT; AIR PIPE (A) M10X20 FLANGE	0-28151-020-0	02	1	0603-
116	BRACKET; AIR PIPE (B)	1-15419-530-3	01	1	0603-
116	BRACKET; AIR PIPE (A)	1-19199-221-0	02	1	0603-
116	BRACKET; AIR PIPE (C)	1-19199-339-2	01	1	0603-
127	NUT; UNION M12	9-09840-280-0	01	1	0603-
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0603-0603
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	02	1	0603-
171	UNION M12 L=62.5	9-09223-206-1	01	1	0603-0607
171	UNION M12 L=62.5	0-92113-206-0	01	1	0608-
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0603-
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0603-
274	BOLT; PIPE M8X20 FLANGE	0-28050-820-0	04	1	0603-
