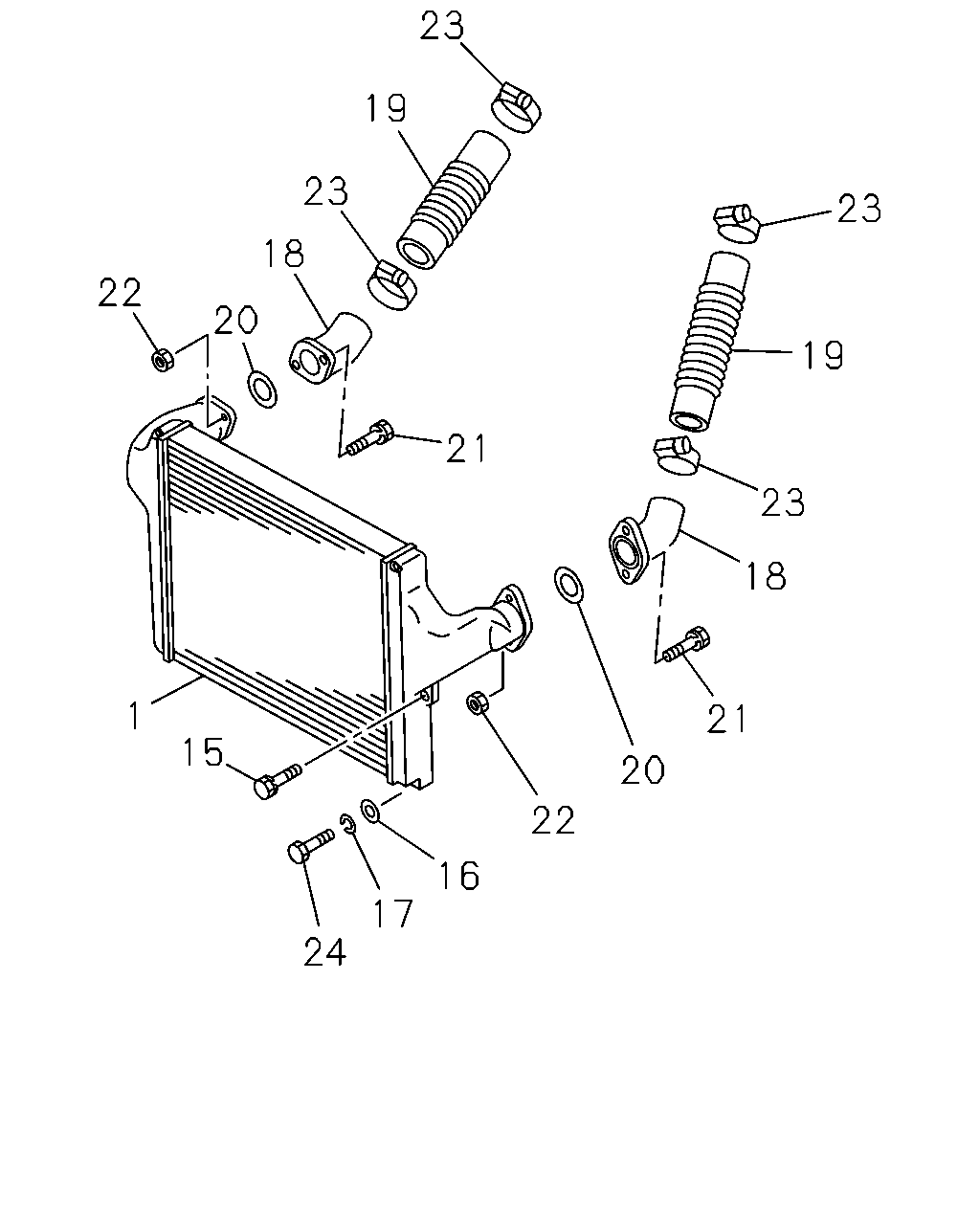

1-35A — CHARGE AIR COOLER
(#2439) — 30 parça
Tümü
A - 6RA1TC ENG
B - 6RB1TC-N ENG
23
19
23
23
18
22
20
19
21
23
18
1
21
15
20
22
16
17
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COOLER; CHARGE AIR
1-14431-013-1
01
1
9002-9306
●
1
COOLER; CHARGE AIR
1-14431-023-1
01
1
9012-
●
15
BOLT; CHARGE AIR COOLER
M10X80
9-01046-080-0
04
1
9002-9306
●
15
BOLT; CHARGE AIR COOLER
M8X50
9-01040-850-0
02
1
9012-
●
15
BOLT; CHARGE AIR COOLER
M10X80
9-01046-080-0
02
1
9012-
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=22
9-09160-610-0
08
1
9002-9306
●
16
WASHER; PL,CHARGE AIR COOLER
ID=8.4 OD=18
9-09160-608-0
02
1
9012-
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=22
9-09160-610-0
05
1
9012-
●
17
WASHER; LK,CHARGE AIR COOLER
ID=10.2
9-09150-510-0
08
1
9002-9306
●
17
WASHER; LK,CHARGE AIR COOLER
ID=8.2
9-09150-508-0
02
1
9012-
●
17
WASHER; LK,CHARGE AIR COOLER
ID=10.2
9-09150-510-0
06
1
9012-
●
18
ADAPTER
1-14112-175-0
01
1
9002-9004
●
18
ADAPTER
1-14112-176-0
01
1
9002-9004
●
18
ADAPTER
1-14112-045-2
01
1
9005-9407
●
●
18
ADAPTER
EXC. HONG KONG EQUIPMENT(PQ1)
1-14112-045-2
01
1
9408-
●
18
ADAPTER
1-14112-046-2
01
1
9005-
●
●
18
ADAPTER
HONG KONG EQUIPMENT(PQ1)
1-14112-593-0
01
1
9408-
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
L=280
1-09360-757-2
01
1
9002-
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
L=280
1-09360-758-1
01
1
9002-
●
●
20
GASKET
1-09623-372-0
02
1
9002-9111
●
●
20
GASKET
ID=84.6
1-09623-431-0
02
1
9112-
●
●
21
BOLT
M10X45
9-01971-045-0
04
1
9002-9002
●
21
BOLT
M10X45 W/LK&PL WASHER
0-50141-045-0
04
1
9003-9404
●
●
21
BOLT
M10X45 W/LK&PL WASHER
0-50141-045-0
02
1
9405-
●
●
22
NUT
M10 FLANGE
5-09440-006-0
04
1
9002-9011
●
22
NUT
M10 FLANGE
5-09440-006-0
02
1
9012-9404
●
●
22
NUT
M10 FLANGE
5-09440-006-0
04
1
9405-
●
●
23
CLIP; HOSE
ID=77-95
1-09707-114-0
08
1
9002-
●
●
24
BOLT; COOLER TO RAD
M10X38
9-01046-038-0
02
1
9002-9306
●
24
BOLT; COOLER TO RAD
M10X50
9-01046-050-0
01
1
9012-
●
