Isuzu WW
▶
TRUCKS
▶
FTR
▶
10942 - FTR(THAI)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#24378) — 37 parça
◀

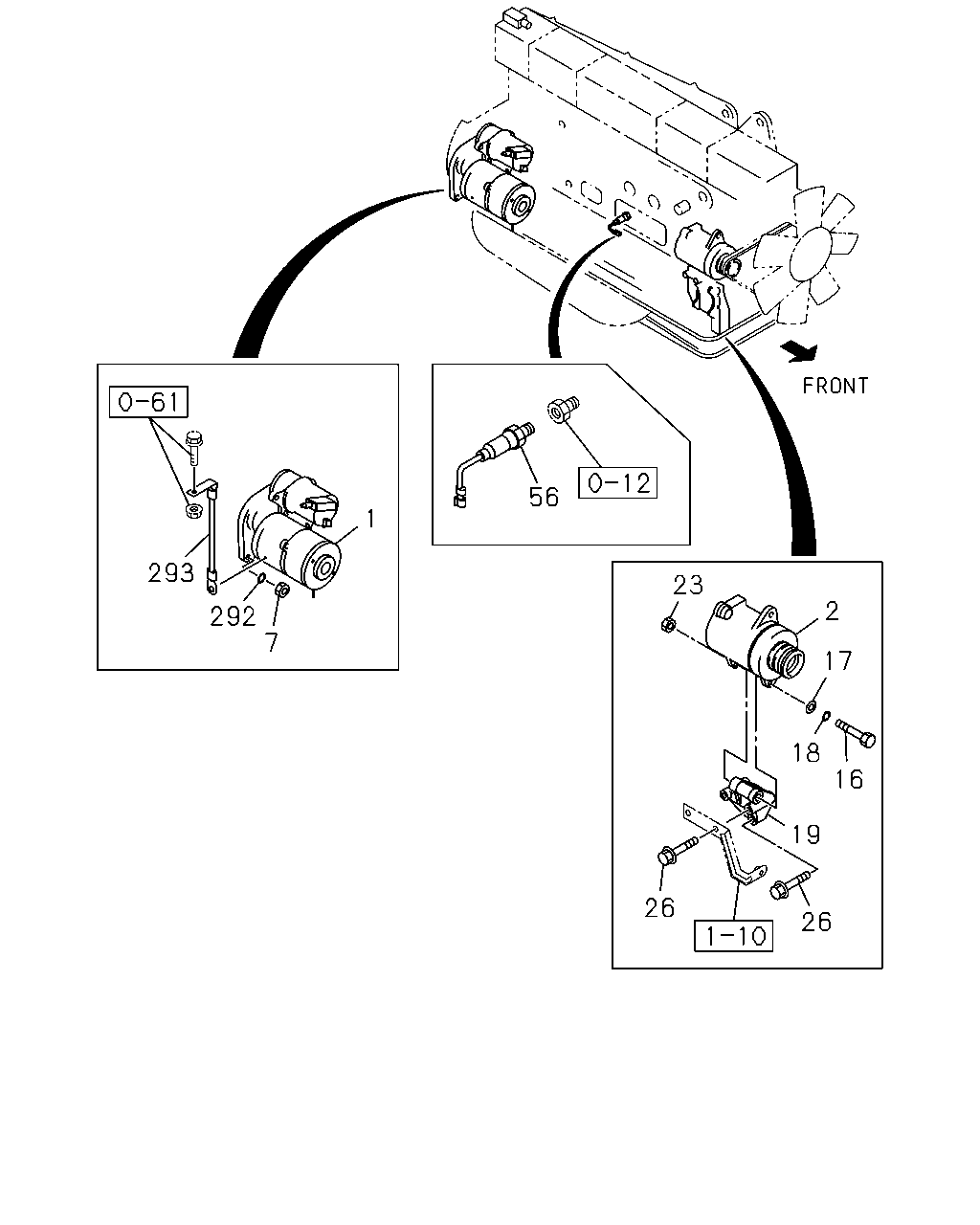

[060A] NO.1 (20 parça)
[060A] NO.2 (9 parça)
[060A] NO.3 (8 parça)
▶
56
1
293
23
2
292
7
17
18
16
19
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5W THA
8-97916-113-2
01
1
0407-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO THA
8-97913-530-2
01
1
0407-
7
NUT; STARTER
M14
9-99110-414-0
02
1
0407-0512
7
NUT; STARTER
M14 THA
0-91110-514-0
02
1
0601-
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
0407-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0407-0605
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0606-
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
01
1
0407-0603
18
WASHER; LK,GEN
ID=14.2
0-91510-514-0
01
1
0604-
19
BRACKET; GEN
THA
8-97916-133-0
01
1
0407-
23
NUT; GEN
M14
9-99110-414-0
01
1
0407-0512
23
NUT; GEN
M14 THA
0-91110-514-0
01
1
0601-
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28181-040-0
01
1
0407-0512
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28151-040-0
01
1
0601-
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28181-080-0
02
1
0407-0512
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28151-080-0
02
1
0601-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
0407-
292
WASHER; LK,STARTER
ID=14.2
9-09150-514-0
02
1
0407-0603
292
WASHER; LK,STARTER
ID=14.2
0-91510-514-0
02
1
0604-
293
CABLE; STARTER EARTH
THA
8-97912-334-0
01
1
0407-

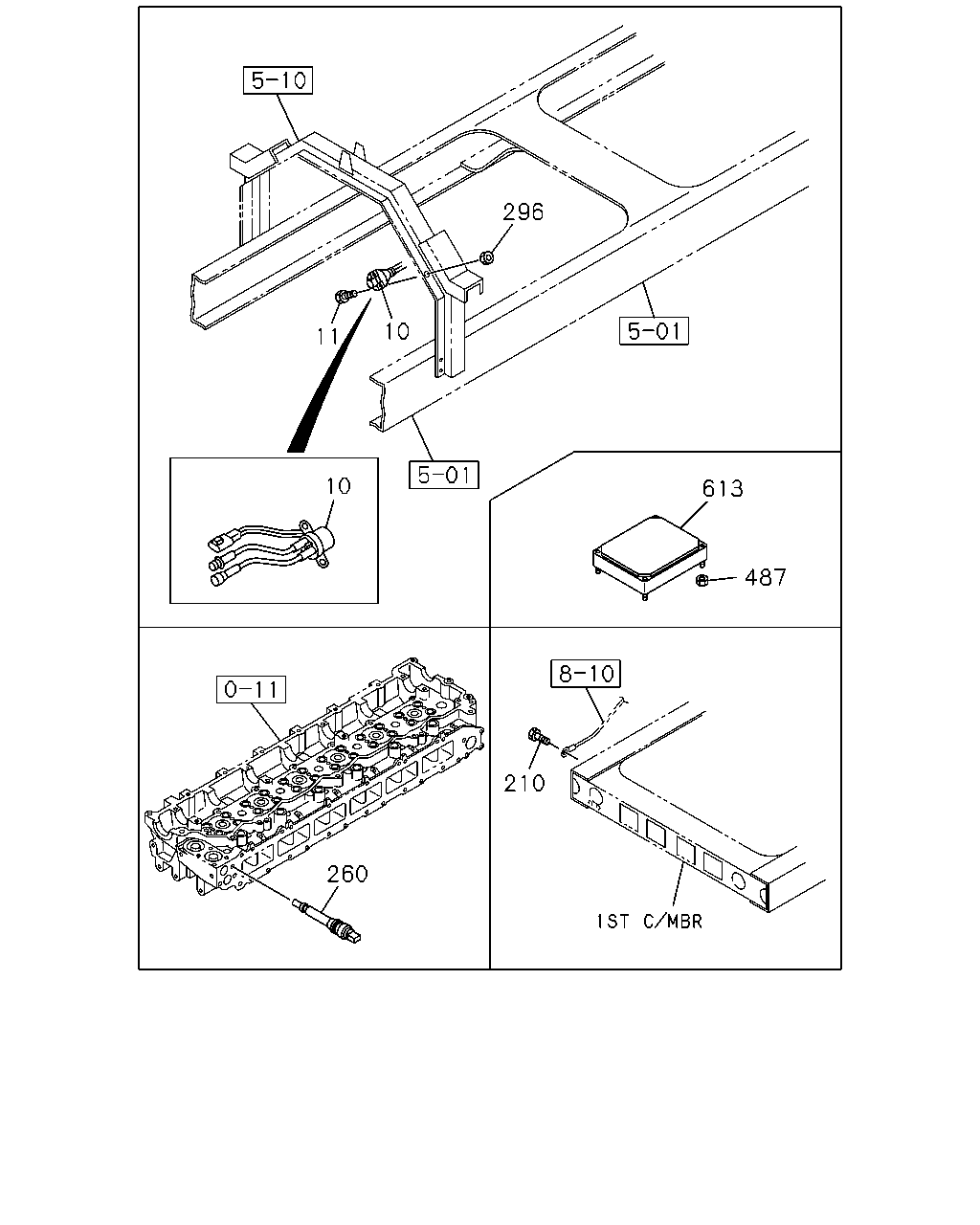

296
10
11
10
613
487
210
260
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
DENSO
1-81171-070-0
01
1
0407-
11
BOLT; RELAY STARTER
M8X25 FLANGE
0-28680-825-0
02
1
0407-0611
11
BOLT; RELAY STARTER
M8X25 FLANGE THA
0-28650-825-0
02
1
0612-
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
0407-
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
0407-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
0407-
487
NUT
M6 FLANGE
0-91150-106-0
04
1
0407-0605
487
NUT
M6 FLANGE THA
0-91180-106-0
04
1
0606-
613
CONTROL UNIT; ENG
8-94392-232-2
01
1
0407-

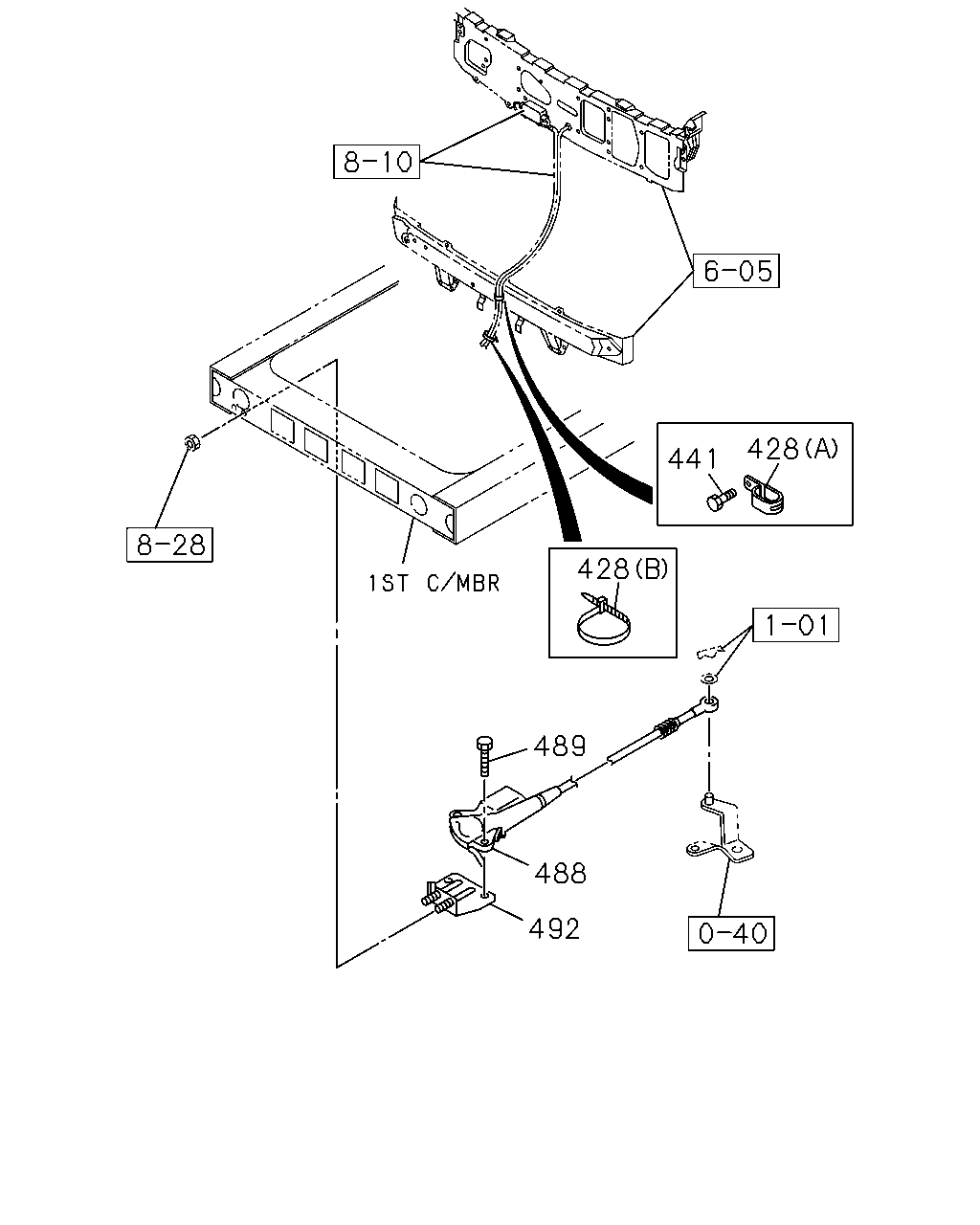

428
441
428
489
488
492
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
428
CLIP; HARNESS
(A) ID=35 L=50 THA
1-09701-214-0
02
1
0407-
428
CLIP; HARNESS
(B) L=300 THA
1-09707-001-1
03
1
0407-
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28680-825-0
02
1
0407-0611
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE THA
0-28650-825-0
02
1
0612-
488
STOPPER; ENG
1-82840-128-2
01
1
0407-
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50140-825-0
02
1
0407-0701
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50640-825-0
02
1
0702-
492
BRACKET; ENG STOPPER
1-82849-067-0
01
1
0407-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
