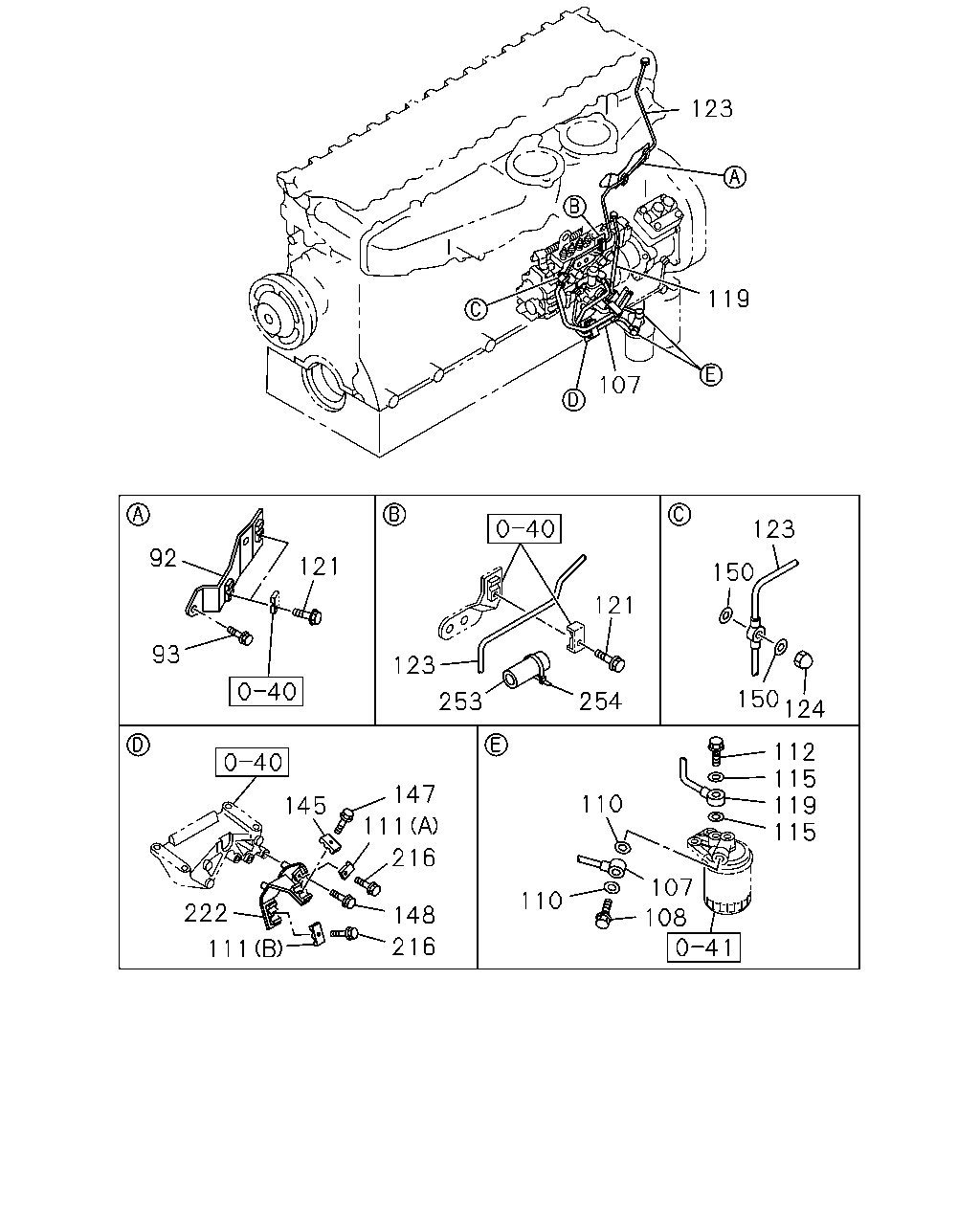

0-42 — FUEL PUMP AND PIPE
(#24374) — 24 parça
123
119
107
123
92
121
150
121
93
123
150
124
254
253
112
115
119
115
147
110
145
111
216
107
108
110
222
148
216
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
BRACKET; FUEL PIPE
8-94391-980-0
01
1
0407-
93
BOLT; PIPE BRKT
M8X14 FLANGE
0-28080-814-0
02
1
0407-
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-94392-069-0
01
1
0407-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0407-
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0407-
111
CLIP; FUEL PIPE
(A)
1-15419-215-1
01
1
0407-
111
CLIP; FUEL PIPE
(B) ID=6.0 & 9.5
8-94100-359-0
01
1
0407-
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0407-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0407-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-94392-959-0
01
1
0407-
121
BOLT; CLIP
M6X22 FLANGE
0-28080-622-0
03
1
0407-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
8-94392-617-1
01
1
0407-
124
NUT; CAP,FUEL PIPE
M14
1-09468-002-1
01
1
0407-
145
CLIP; FUEL PIPE
L=48
5-09709-103-0
01
1
0407-
147
BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER
0-50040-630-0
01
1
0407-0512
147
BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER
0-50540-630-0
01
1
0601-
148
BOLT; BRKT
M8X50 FLANGE
0-28080-850-0
02
1
0407-0512
148
BOLT; BRKT
M8X50 FLANGE THA
0-28050-850-0
02
1
0601-
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0407-
216
BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER
0-50040-630-0
02
1
0407-0512
216
BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER
0-50540-630-0
02
1
0601-
222
BRACKET; CLIP
8-94392-071-1
01
1
0407-
253
COVER; RUBBER
ID=6 OD=10 L=70
1-09376-512-0
01
1
0407-
254
CLIP
L=250
5-09707-030-1
01
1
0407-
