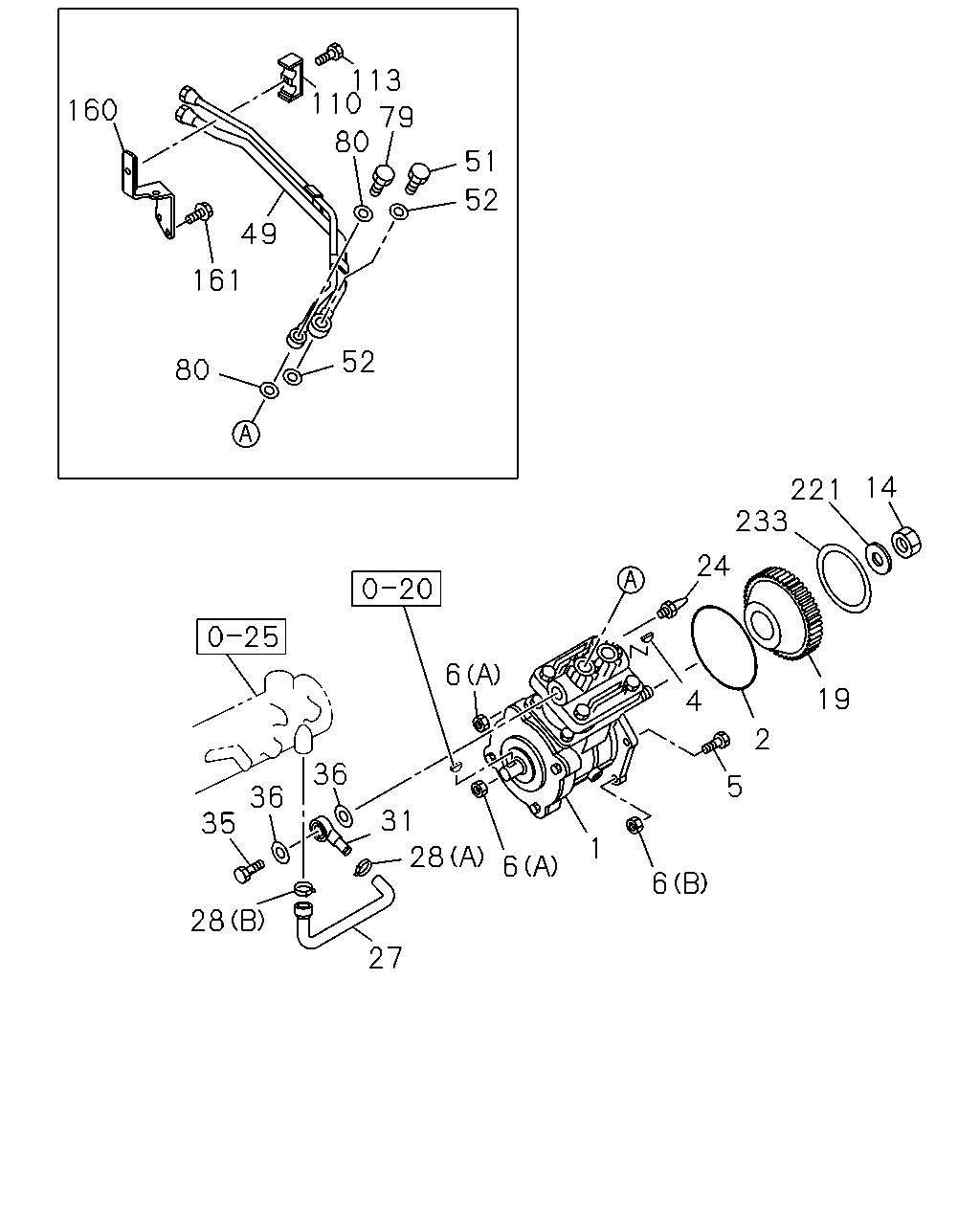

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#24370) — 32 parça
113
110
160
79
80
51
52
49
161
52
80
14
221
233
24
6
19
4
2
36
5
36
31
28
35
1
6
6
28
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-97600-699-1
01
1
0407-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6
1-09623-464-0
01
1
0407-
4
KEY; INJ PUMP GEAR
9-08055-519-0
01
1
0407-
5
BOLT; AIR CMPR FIX
M12X110
0-28186-211-0
01
1
0407-0512
5
BOLT; AIR CMPR FIX
M12X110 FLANGE
0-28156-211-0
01
1
0601-
6
NUT; AIR CMPR
(A) M10 FLANGE
0-91150-110-0
02
1
0407-0602
6
NUT; AIR CMPR
(A) M10 FLANGE THA
0-91180-110-0
02
1
0603-
6
NUT; AIR CMPR
(B) M12 FLANGE
0-91150-112-0
01
1
0407-0602
6
NUT; AIR CMPR
(B) M12 FLANGE THA
0-91180-112-0
01
1
0603-
14
NUT; GEAR
M24
9-99110-524-0
01
1
0407-0512
14
NUT; GEAR
M24
0-91110-524-0
01
1
0601-
19
GEAR; INJ PUMP
Z=35
8-94390-998-2
01
1
0407-
24
POINTER; AIR CMPR
L=21
9-11327-602-0
01
1
0407-
27
HOSE; AIR CMPR,SUCTION
8-94390-542-2
01
1
0407-
28
CLIP; HOSE,AIR CMPR
(A) ID=26
1-09707-091-0
01
1
0407-
28
CLIP; HOSE,AIR CMPR
(B) ID=22.7
8-94466-382-0
01
1
0407-
31
PIPE; AIR,AIR CMPR SUCTION
8-94390-949-0
01
1
0407-
35
BOLT; EYE,AIR PIPE
M24X39
1-09675-132-1
01
1
0407-
36
GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
0407-
49
PIPE; AIR,CHARGE
8-94392-087-0
01
1
0407-
51
BOLT; EYE,AIR PIPE TO CMPR
M20X38
1-09675-133-1
01
1
0407-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0
9-09571-420-0
02
1
0407-
79
BOLT; EYE,AIR PIPE TO CMPR
M18X33
1-09675-058-0
01
1
0407-
80
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4
1-09630-087-0
02
1
0407-
110
CLIP; AIR PIPE
8-94393-037-0
01
1
0407-
113
BOLT; CLIP,AIR PIPE
M6X40 FLANGE
0-28080-640-0
01
1
0407-0512
113
BOLT; CLIP,AIR PIPE
M6X40 FLANGE
0-28050-640-0
01
1
0601-
160
BRACKET; AIR PIPE
8-94394-569-0
01
1
0407-
161
BOLT; BRKT,AIR PIPE
M8X16 FLANGE
0-28080-816-0
02
1
0407-0512
161
BOLT; BRKT,AIR PIPE
M8X16 FLANGE THA
0-28050-816-0
02
1
0601-
221
WASHER; PL,GEAR
ID=25
9-09160-524-0
01
1
0407-
233
RING; FRICTION
8-97603-297-0
01
1
0407-
