10942 - FTR(THAI)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

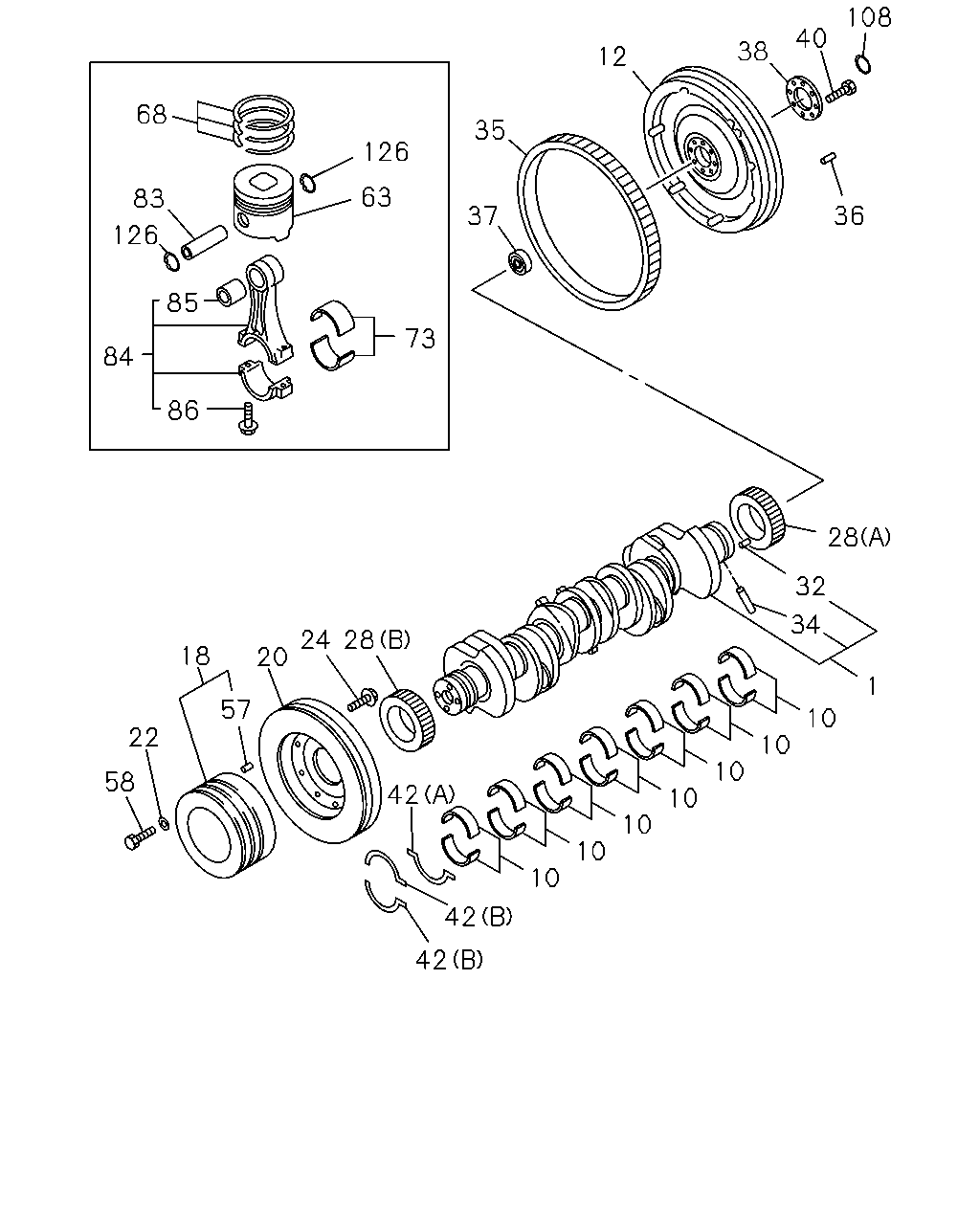

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#24359) — 36 parça
108
40
38
12
68
35
126
63
83
36
37
126
85
73
84
86
28
32
34
24
28
18
20
1
57
10
22
10
10
58
42
10
10
10
42
42
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-97603-003-0
01
1
0407-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
07
1
0407-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
07
1
0407-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
07
1
0407-
12
FLYWHEEL
8-94393-849-1
01
1
0407-
18
PULLEY; CR/SHF
3-GROOVE
8-94395-286-3
01
1
0407-
20
DAMPER; CR/SHF
8-94395-314-2
01
1
0407-
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
0407-
24
BOLT; DAMPER
M10X16 FLANGE
0-28181-016-0
06
1
0407-0512
24
BOLT; DAMPER
M10X16 FLANGE
0-28151-016-0
06
1
0601-
28
GEAR; CR/SHF
(A) Z=42
8-94394-342-4
01
1
0407-
28
GEAR; CR/SHF
(B) Z=41
8-94396-954-2
01
1
0407-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
02
1
0407-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
0407-
35
GEAR; RING
Z=140
8-94396-784-1
01
1
0407-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
0407-
37
BEARING; PILOT,TOP GEAR SHAFT
8-94392-288-0
01
1
0407-
38
WASHER; FLYWHEEL
ID=55 OD=110
8-94397-496-1
01
1
0407-
40
BOLT; FLYWHEEL
M16X62
8-94393-070-2
08
1
0407-
42
WASHER; THRUST,CR/SHF
(A)
8-94399-277-0
01
1
0407-0703
42
WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
0704-
42
WASHER; THRUST,CR/SHF
(B)
8-94399-283-0
02
1
0407-0703
42
WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
0704-
57
PIN; PULLEY
OD=8 L=16
8-94391-156-0
01
1
0407-
58
BOLT; CR/SHF PULLEY
M16X50
9-92061-650-0
04
1
0407-0512
58
BOLT; CR/SHF PULLEY
M16X50
0-20951-650-0
04
1
0601-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-97600-242-0
06
1
0407-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-94392-128-3
06
1
0407-
73
METAL SET; CONN ROD,STANDARD
8-94393-328-0
06
1
0407-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-94396-589-1
06
1
0407-
84
ROD ASM; CONN
8-94396-394-5
06
1
0407-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-036-0
06
1
0407-0805
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-98075-233-0
06
1
0806-
86
BOLT; CONNROD
M13X57 FLANGE
1-12235-035-0
12
1
0407-
108
RING; SNAP,BRG SET
OD=59.2
9-09180-155-0
01
1
0407-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
8-94318-798-2
12
1
0407-
