1-30A — AIR CLEANER (#2435) — 150 parça

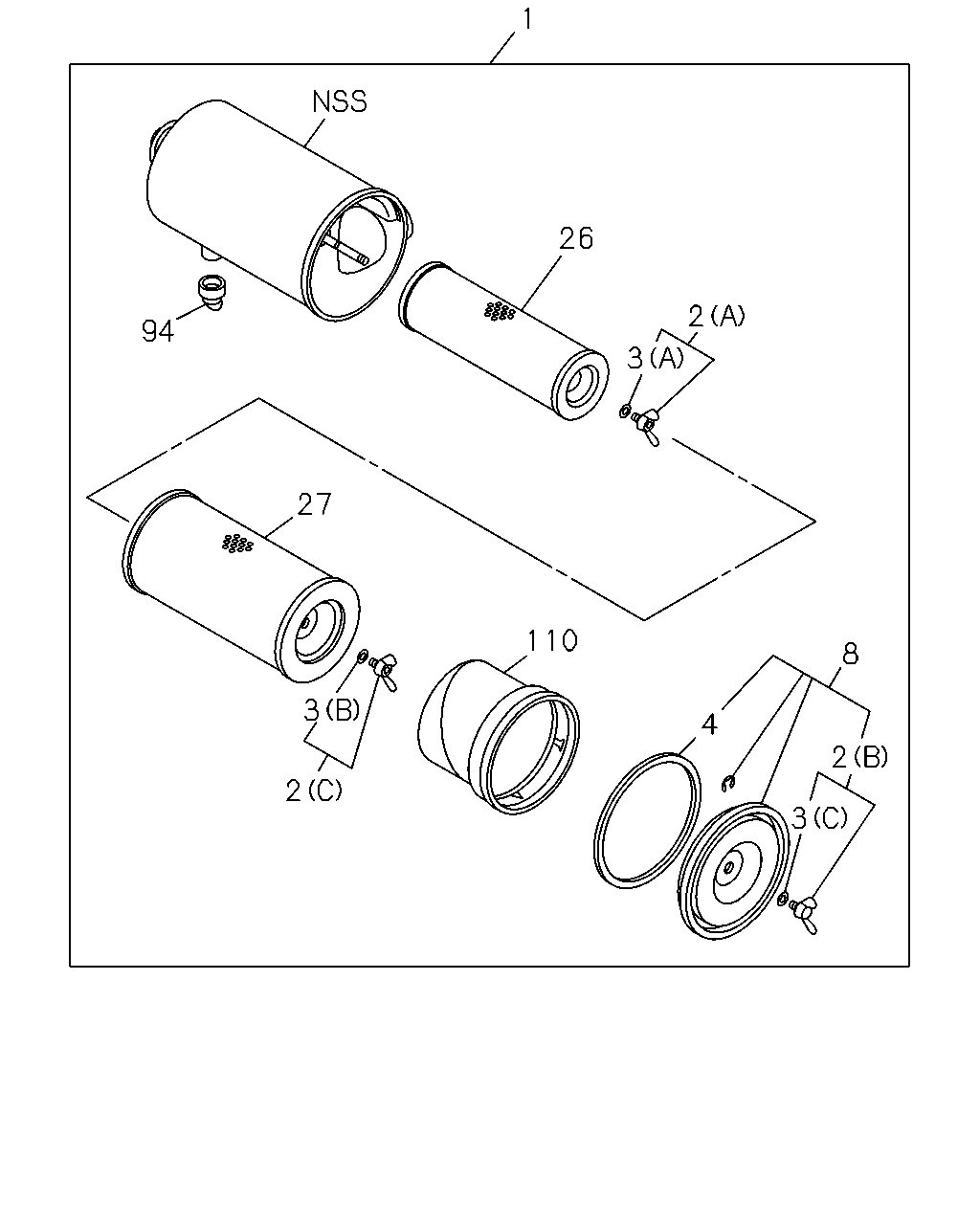

1 26 2 94 3 27 110 8 3 4 2 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLEANER ASM; AIR	1-14210-549-3	01	1	9002-9004	●
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45>	1-14210-433-5	01	1	9002-9004		●
1	CLEANER ASM; AIR	1-14210-433-5	01	1	9005-	●		●
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45>	1-14210-433-5	01	1	9005-		●
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-498-3	01	1	9002-		●
2	NUT; WING,ELEMENT (A)	1-14217-003-0	01	1	9002-	●	●	●
2	NUT; WING,ELEMENT (B)	1-14217-049-0	01	1	9002-	●	●	●
2	NUT; WING,ELEMENT (C)	1-14217-050-0	01	1	9002-	●	●	●
3	WASHER; SEAL,WING NUT (A)	1-14219-032-0	01	1	9002-	●	●	●
3	WASHER; SEAL,WING NUT (B)	1-14219-118-0	01	1	9002-	●	●	●
3	WASHER; SEAL,WING NUT (C)	1-14219-156-0	01	1	9002-	●	●	●
4	GASKET; COVER TO BODY	1-14219-130-0	01	1	9002-	●		●
4	GASKET; COVER TO BODY AIR CLEANER HEAVY DUTY<K45>	1-14219-130-0	01	1	9002-		●
4	GASKET; COVER TO BODY EXC. AIR CLEANER HEAVY DUTY<K45>	1-14219-128-0	01	1	9002-		●
8	COVER ASM; ACL	1-14212-091-0	01	1	9002-	●		●
8	COVER ASM; ACL AIR CLEANER HEAVY DUTY<K45>	1-14212-091-0	01	1	9002-		●
8	COVER ASM; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-14212-099-0	01	1	9002-		●
26	FILTER; ACL,INNER	1-14215-129-0	01	1	9002-9004	●
26	FILTER; ACL,INNER AIR CLEANER HEAVY DUTY<K45>	1-14215-127-0	01	1	9002-9004		●
26	FILTER; ACL,INNER	1-14215-127-0	01	1	9005-	●		●
26	FILTER; ACL,INNER AIR CLEANER HEAVY DUTY<K45>	1-14215-127-0	01	1	9005-		●
26	FILTER; ACL,INNER EXC. AIR CLEANER HEAVY DUTY<K45>	1-14215-125-0	01	1	9002-		●
27	FILTER; ACL,OUTER	1-14215-193-0	01	1	9002-9004	●
27	FILTER; ACL,OUTER AIR CLEANER HEAVY DUTY<K45>	1-14215-192-0	01	1	9002-9004		●
27	FILTER; ACL,OUTER	1-14215-192-0	01	1	9005-	●		●
27	FILTER; ACL,OUTER AIR CLEANER HEAVY DUTY<K45>	1-14215-192-0	01	1	9005-		●
27	FILTER; ACL,OUTER EXC. AIR CLEANER HEAVY DUTY<K45>	1-14215-183-0	01	1	9002-		●
94	VALVE; VACUATOR	1-14219-129-0	01	1	9002-	●	●	●
110	ADAPTER; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-14219-175-0	01	1	9002-		●

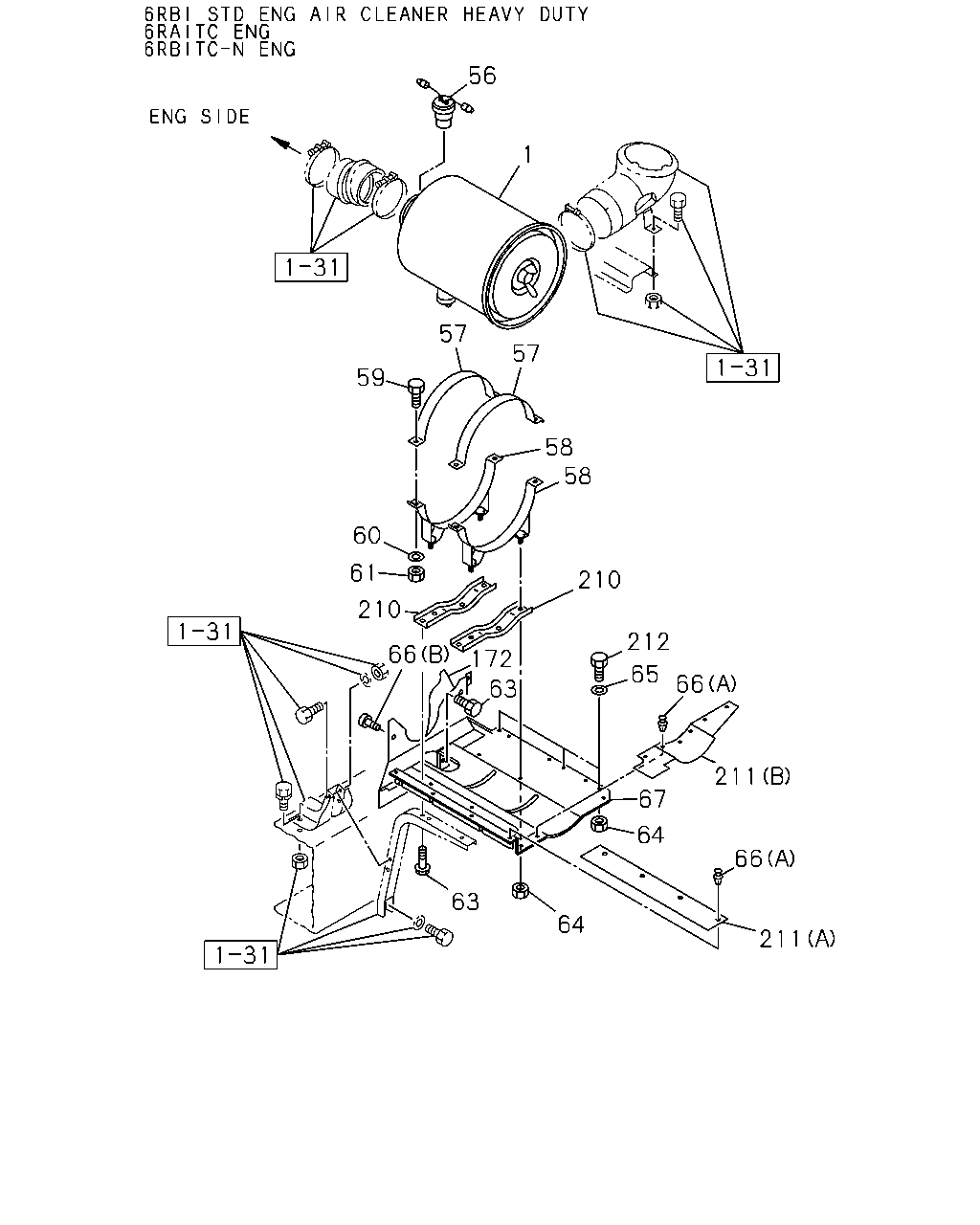

56 1 57 57 59 58 58 60 61 210 210 66 172 63 212 65 66 211 67 64 66 63 64 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLEANER ASM; AIR	1-14210-549-3	01	1	9002-9004	●
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45>	1-14210-433-5	01	1	9002-9004		●
1	CLEANER ASM; AIR	1-14210-433-5	01	1	9005-	●		●
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45>	1-14210-433-5	01	1	9005-		●
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-498-3	01	1	9002-		●
56	SWITCH; ACL	1-81530-011-0	01	1	9002-9306	●	●	●
56	SWITCH; ACL	1-81530-016-0	01	1	9307-		●	●
57	BAND; ACL	1-53419-131-1	02	1	9002-9304	●		●
57	BAND; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-131-1	02	1	9002-9304		●
57	BAND; ACL	1-53419-252-0	02	1	9305-	●		●
57	BAND; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-252-0	02	1	9305-		●
57	BAND; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-126-1	02	1	9002-9304		●
57	BAND; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-251-0	02	1	9305-		●
58	BRACKET; ACL BAND	1-53419-146-3	02	1	9002-9106	●		●
58	BRACKET; ACL BAND AIR CLEANER HEAVY DUTY<K45>	1-53419-146-3	02	1	9002-9106		●
58	BRACKET; ACL BAND	1-53419-250-0	02	1	9107-	●		●
58	BRACKET; ACL BAND AIR CLEANER HEAVY DUTY<K45>	1-53419-250-0	02	1	9107-		●
58	BRACKET; ACL BAND EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-124-3	01	1	9002-		●
59	BOLT; BAND,ACL M10X30 W/LK&PL WASHER	9-01961-030-0	04	1	9002-9204	●	●	●
59	BOLT; BAND,ACL M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9205-	●	●	●
60	WASHER; PL,ACL BAND ID=10.5 OD=22	9-09164-610-0	04	1	9002-	●	●	●
61	NUT; ACL BAND M10	9-09110-510-0	04	1	9002-	●	●	●
63	BOLT; BRKT M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005	●	●
63	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9009	●	●
63	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9010-9302	●	●	●
63	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9303-9304	●	●	●
63	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9305-	●	●	●
63	BOLT; BRKT EXC. AIR CLEANER HEAVY DUTY<K45> M10X25	9-01911-025-0	02	1	9002-9002		●
63	BOLT; BRKT EXC. AIR CLEANER HEAVY DUTY<K45> M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-		●
64	NUT; BAND BRKT M10	9-09110-410-0	05	1	9002-9009	●	●
64	NUT; BAND BRKT M10 FLANGE	5-09440-006-0	04	1	9002-	●	●	●
64	NUT; BAND BRKT M8	9-09110-408-0	01	1	9010-	●	●	●
64	NUT; BAND BRKT EXC. AIR CLEANER HEAVY DUTY<K45> M10 FLANGE	5-09440-006-0	02	1	9002-		●
64	NUT; BAND BRKT M10	9-09110-510-0	04	1	9010-	●	●	●
65	WASHER; PL ID=10.5 OD=22	9-09160-610-0	02	1	9002-	●	●	●
65	WASHER; PL ID=8.4 OD=22	9-09160-708-0	01	1	9002-9304	●	●	●
65	WASHER; PL ID=10.5 OD=26	9-09160-710-0	03	1	9002-	●	●	●
66	CLIP; ACL (A)	5-09987-033-0	08	1	9002-9410	●	●	●
66	CLIP; ACL (A)	5-09987-033-0	08	1	9411-		●
66	CLIP; ACL EXC. ANTI NOISE EQUIPMENT<SV9> (A)	5-09987-033-0	08	1	9411-			●
66	CLIP; ACL ANTI NOISE EQUIPMENT<SV9> (A)	5-09987-033-0	12	1	9411-			●
66	CLIP; ACL ANTI NOISE EQUIPMENT<SV9> (B)	8-94279-048-0	07	1	9411-			●
67	COVER; ACL	1-53419-214-0	01	1	9002-9301	●		●
67	COVER; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-214-0	01	1	9002-9301		●
67	COVER; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-214-0	01	1	9302-9410		●
67	COVER; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-214-0	01	1	9411-		●
67	COVER; ACL	1-53419-271-0	01	1	9302-9410	●		●
67	COVER; ACL EXC. ANTI NOISE EQUIPMENT<SV9>	1-53419-271-0	01	1	9411-			●
67	COVER; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-123-9	01	1	9002-		●
67	COVER; ACL ANTI NOISE EQUIPMENT<SV9>	1-53419-206-5	01	1	9411-			●
172	INSULATOR; NOISE ANTI NOISE EQUIPMENT<SV9>	1-53446-408-3	01	1	9411-			●
210	BRACKET; ACL MTG	1-53419-208-0	02	1	9002-9202	●		●
210	BRACKET; ACL MTG AIR CLEANER HEAVY DUTY<K45>	1-53419-208-0	02	1	9002-9202		●
210	BRACKET; ACL MTG	1-53419-239-0	02	1	9203-	●		●
210	BRACKET; ACL MTG AIR CLEANER HEAVY DUTY<K45>	1-53419-239-0	02	1	9203-		●
210	BRACKET; ACL MTG EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-209-0	02	1	9002-		●
211	RUBBER; SEAL (B)	1-53499-006-0	01	1	9002-	●	●	●
211	RUBBER; SEAL (A)	1-79930-358-1	01	1	9002-	●	●	●
212	BOLT; MUD COVER M10X25	9-01911-025-0	05	1	9002-9002	●	●
212	BOLT; MUD COVER M10X25 W/LK WASHER	0-50041-025-0	05	1	9003-9506	●	●	●
212	BOLT; MUD COVER M10X20 FLANGE	0-28081-020-0	05	1	9507-	●	●	●

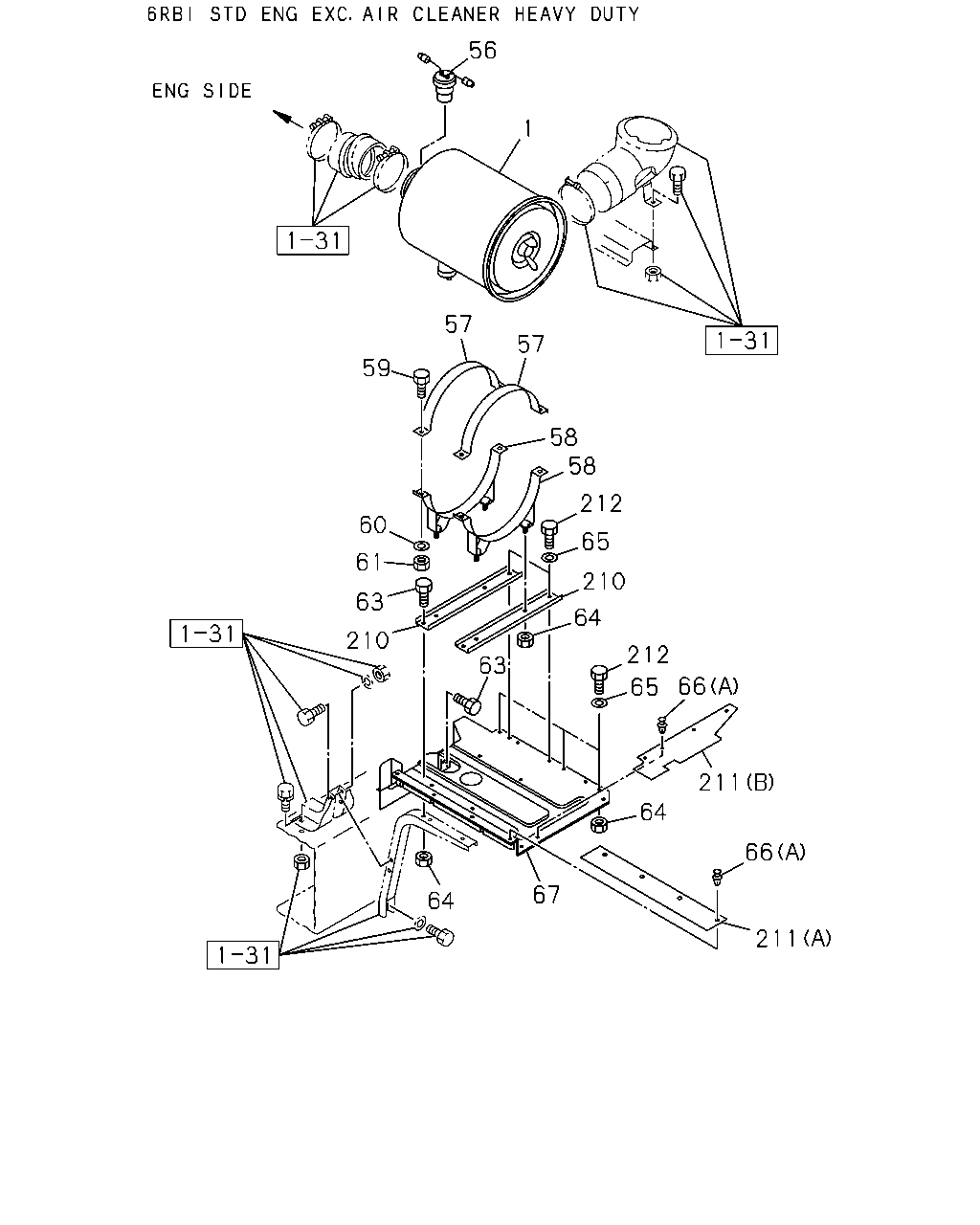

56 1 57 57 59 58 58 212 60 65 61 210 63 64 210 212 63 66 65 211 64 66 67 64 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLEANER ASM; AIR	1-14210-549-3	01	1	9002-9004	●
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45>	1-14210-433-5	01	1	9002-9004		●
1	CLEANER ASM; AIR	1-14210-433-5	01	1	9005-	●		●
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45>	1-14210-433-5	01	1	9005-		●
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-498-3	01	1	9002-		●
56	SWITCH; ACL	1-81530-011-0	01	1	9002-9306	●	●	●
56	SWITCH; ACL	1-81530-016-0	01	1	9307-		●	●
57	BAND; ACL	1-53419-131-1	02	1	9002-9304	●		●
57	BAND; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-131-1	02	1	9002-9304		●
57	BAND; ACL	1-53419-252-0	02	1	9305-	●		●
57	BAND; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-252-0	02	1	9305-		●
57	BAND; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-126-1	02	1	9002-9304		●
57	BAND; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-251-0	02	1	9305-		●
58	BRACKET; ACL BAND	1-53419-146-3	02	1	9002-9106	●		●
58	BRACKET; ACL BAND AIR CLEANER HEAVY DUTY<K45>	1-53419-146-3	02	1	9002-9106		●
58	BRACKET; ACL BAND	1-53419-250-0	02	1	9107-	●		●
58	BRACKET; ACL BAND AIR CLEANER HEAVY DUTY<K45>	1-53419-250-0	02	1	9107-		●
58	BRACKET; ACL BAND EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-124-3	01	1	9002-		●
59	BOLT; BAND,ACL M10X30 W/LK&PL WASHER	9-01961-030-0	04	1	9002-9204	●	●	●
59	BOLT; BAND,ACL M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9205-	●	●	●
60	WASHER; PL,ACL BAND ID=10.5 OD=22	9-09164-610-0	04	1	9002-	●	●	●
61	NUT; ACL BAND M10	9-09110-510-0	04	1	9002-	●	●	●
63	BOLT; BRKT M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005	●	●
63	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9009	●	●
63	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9010-9302	●	●	●
63	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9303-9304	●	●	●
63	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9305-	●	●	●
63	BOLT; BRKT EXC. AIR CLEANER HEAVY DUTY<K45> M10X25	9-01911-025-0	02	1	9002-9002		●
63	BOLT; BRKT EXC. AIR CLEANER HEAVY DUTY<K45> M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-		●
64	NUT; BAND BRKT M10	9-09110-410-0	05	1	9002-9009	●	●
64	NUT; BAND BRKT M10 FLANGE	5-09440-006-0	04	1	9002-	●	●	●
64	NUT; BAND BRKT M8	9-09110-408-0	01	1	9010-	●	●	●
64	NUT; BAND BRKT EXC. AIR CLEANER HEAVY DUTY<K45> M10 FLANGE	5-09440-006-0	02	1	9002-		●
64	NUT; BAND BRKT M10	9-09110-510-0	04	1	9010-	●	●	●
65	WASHER; PL ID=10.5 OD=22	9-09160-610-0	02	1	9002-	●	●	●
65	WASHER; PL ID=8.4 OD=22	9-09160-708-0	01	1	9002-9304	●	●	●
65	WASHER; PL ID=10.5 OD=26	9-09160-710-0	03	1	9002-	●	●	●
66	CLIP; ACL (A)	5-09987-033-0	08	1	9002-9410	●	●	●
66	CLIP; ACL (A)	5-09987-033-0	08	1	9411-		●
66	CLIP; ACL EXC. ANTI NOISE EQUIPMENT<SV9> (A)	5-09987-033-0	08	1	9411-			●
66	CLIP; ACL ANTI NOISE EQUIPMENT<SV9> (A)	5-09987-033-0	12	1	9411-			●
66	CLIP; ACL ANTI NOISE EQUIPMENT<SV9> (B)	8-94279-048-0	07	1	9411-			●
67	COVER; ACL	1-53419-214-0	01	1	9002-9301	●		●
67	COVER; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-214-0	01	1	9002-9301		●
67	COVER; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-214-0	01	1	9302-9410		●
67	COVER; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-214-0	01	1	9411-		●
67	COVER; ACL	1-53419-271-0	01	1	9302-9410	●		●
67	COVER; ACL EXC. ANTI NOISE EQUIPMENT<SV9>	1-53419-271-0	01	1	9411-			●
67	COVER; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-123-9	01	1	9002-		●
67	COVER; ACL ANTI NOISE EQUIPMENT<SV9>	1-53419-206-5	01	1	9411-			●
210	BRACKET; ACL MTG	1-53419-208-0	02	1	9002-9202	●		●
210	BRACKET; ACL MTG AIR CLEANER HEAVY DUTY<K45>	1-53419-208-0	02	1	9002-9202		●
210	BRACKET; ACL MTG	1-53419-239-0	02	1	9203-	●		●
210	BRACKET; ACL MTG AIR CLEANER HEAVY DUTY<K45>	1-53419-239-0	02	1	9203-		●
210	BRACKET; ACL MTG EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-209-0	02	1	9002-		●
211	RUBBER; SEAL (B)	1-53499-006-0	01	1	9002-	●	●	●
211	RUBBER; SEAL (A)	1-79930-358-1	01	1	9002-	●	●	●
212	BOLT; MUD COVER M10X25	9-01911-025-0	05	1	9002-9002	●	●
212	BOLT; MUD COVER M10X25 W/LK WASHER	0-50041-025-0	05	1	9003-9506	●	●	●
212	BOLT; MUD COVER M10X20 FLANGE	0-28081-020-0	05	1	9507-	●	●	●
