◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10937 - FVM(INDONESIA)WB6300 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#24348) — 32 parça

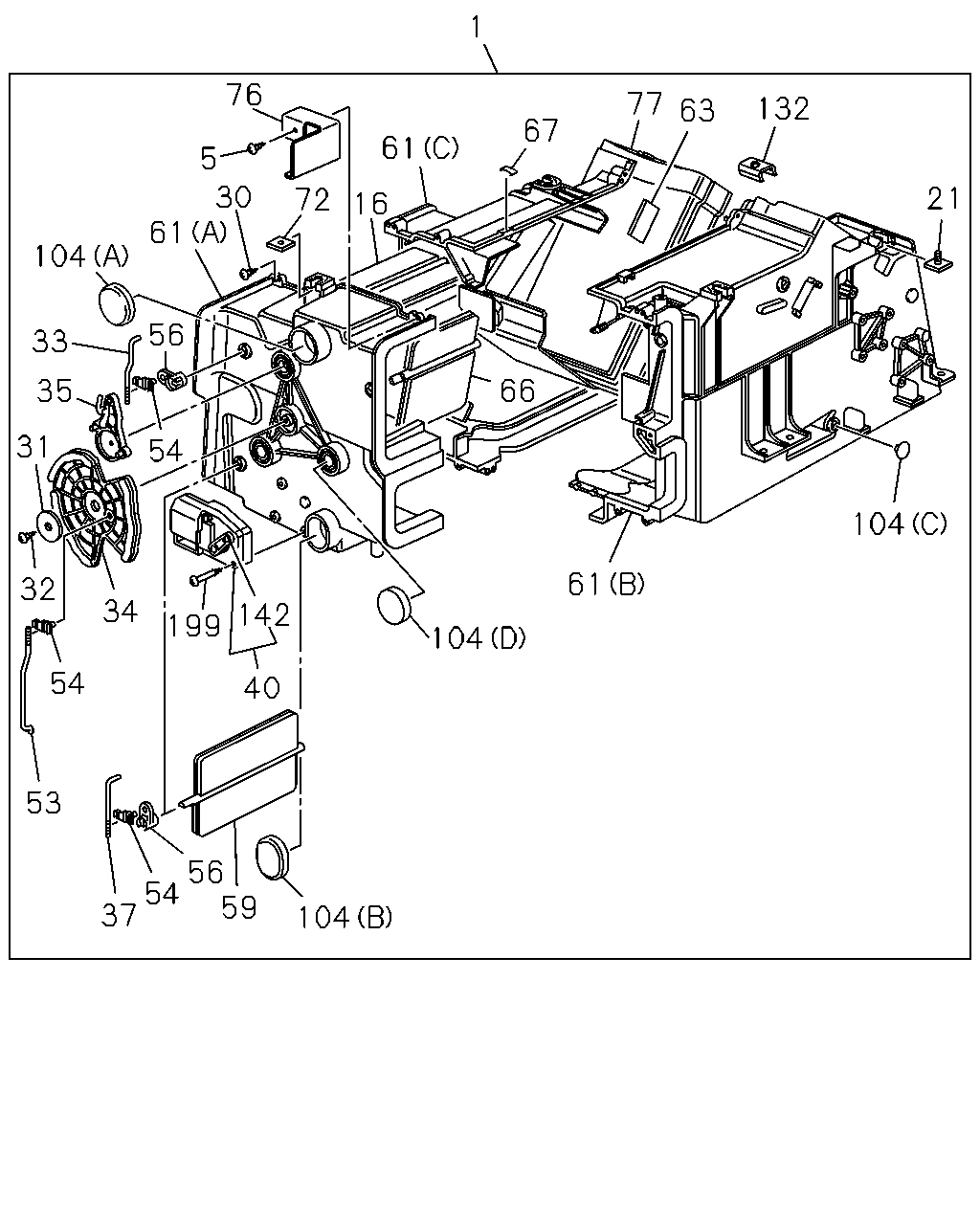

çizim 105235
1 76 77 132 63 67 61 5 30 21 72 16 61 104 56 33 35 66 31 54 104 61 32 34 142 199 104 54 40 53 56 54 59 37 104
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-139-3 01 1 0311-
5 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 0311-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0311-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0311-
30 SCREW; HTR UNIT
M4X16 		8-94324-850-0 11 1 0311-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0311-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 02 1 0311-
33 ROD; SHUTTER LEVER 1-83579-619-0 01 1 0311-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0311-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 02 1 0311-
37 ROD; LEVER 1-83579-620-1 01 1 0311-
40 ACTUATOR; HTR UNIT 1-83579-649-1 01 1 0311-
53 ROD; SHUTTER LEVER 1-83579-622-0 01 1 0311-
54 CLIP; SHUTTER LEVER 8-94248-794-0 03 1 0311-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 02 1 0311-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0311-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0311-
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0311-
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0311-
63 LINING; HTR UNIT 1-83578-033-0 01 1 0311-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 0311-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0311-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0311-
76 BRACKET; HTR UNIT 1-83573-194-0 01 1 0311-
77 COVER; HTR CASE 8-97102-661-0 01 1 0311-
104 CAP; CASE,HTR UNIT
(A) 		1-83579-617-0 01 1 0311-
104 CAP; CASE,HTR UNIT
(B) 		1-83579-618-0 01 1 0311-
104 CAP; CASE,HTR UNIT
(C) 		8-94328-657-0 04 1 0311-
104 CAP; CASE,HTR UNIT
(D) 		8-94387-703-0 01 1 0311-
132 BRACKET; HTR CORE 1-83573-195-0 01 1 0311-
142 LEVER; ACTUATOR 1-83564-345-1 01 1 0311-
199 SCREW; ACTUATOR 8-94348-809-0 02 1 0311-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
