8-15 — FIXING PARTS; WIRING HARNESS (#24340) — 133 parça
çizim 85755
16 81 121 206 395 16 217 171 178 178 178 16 171 305 513 530 334 335 59
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0311-
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 0311-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0311-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0311-
16 CLIP; HARNESS
(H) L=180 		1-09707-162-1 02 1 0311-
16 CLIP; HARNESS
(A) L=250 IDN 		5-09707-030-1 01 1 0311-
16 CLIP; HARNESS
(C) L=140 IDN 		5-09707-031-1 01 1 0311-
16 CLIP; HARNESS
(G) ID=20 L=50 		9-09917-430-0 03 1 0311-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0311-
81 CLIP; HARNESS
L=140 IDN 		5-09707-031-1 02 1 0311-
121 CLIP; FACIA HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0311-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0311-
171 CLIP; STARTER HARNESS
(G) ID=11 L=16 		9-09525-025-0 01 1 0402-0606
171 CLIP; STARTER HARNESS
(G) ID=11 L=16 		0-95235-025-0 01 1 0607-
171 CLIP; STARTER HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0311-
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 02 1 0311-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0311-
171 CLIP; STARTER HARNESS
(E) OD=9 H=6 		1-09709-178-0 02 1 0311-
171 CLIP; STARTER HARNESS
(C) ID=10 & 16.5 		8-94360-745-0 01 1 0311-
171 CLIP; STARTER HARNESS
(F) ID=19 L=40 		9-09525-876-0 01 1 0311-0606
171 CLIP; STARTER HARNESS
(F) ID=19 L=40 		0-95235-876-0 01 1 0607-
178 GROMMET; HARNESS
(C) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0408-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0311-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0311-0407
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0311-0407
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0408-
206 CLIP; FUEL TANK HARNESS
L=140 IDN 		5-09707-031-1 02 1 0311-
217 CLIP; RR BODY HARNESS
L=250 IDN 		5-09707-030-1 02 1 0311-
305 CLIP; ENG HARNESS
L=300 		1-09707-001-1 01 1 0311-
334 BRACKET 1-82699-425-0 01 1 0311-
335 BRACKET; CONNECTOR 1-82699-963-0 01 1 0311-
395 CLIP; WIPER HARNESS
L=140 IDN 		5-09707-031-1 01 1 0311-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0311-0906
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0311-

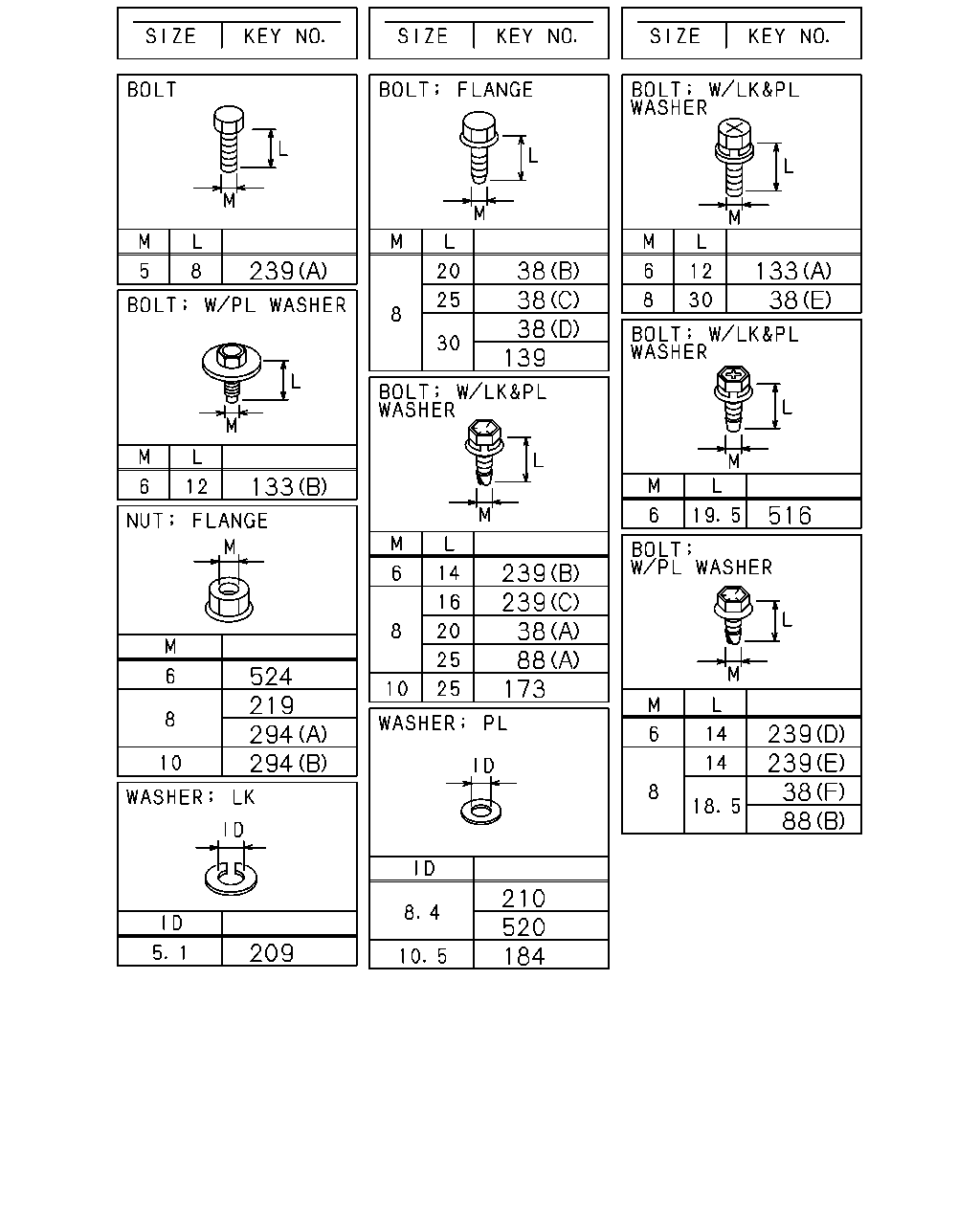

çizim 85964
239 38 38 38 139 133 38 133 516 239 239 38 88 173 524 219 294 294 239 239 38 88 210 520 184 209
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 04 1 0311-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE IDN 		0-28650-820-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE IDN 		0-28680-825-0 01 1 0311-0512
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 06 1 0311-0512
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 06 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0311-0512
38 BOLT; CLIP,HARNESS
(E) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 0311-1202
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1203-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0311-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0311-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0311-
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0311-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0311-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0311-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0311-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0311-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0311-
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0311-0602
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0311-0602
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0311-0602
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0311-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0311-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER IDN 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0311-1202
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1203-
294 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 0311-0602
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0603-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0311-0602
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0311-0602
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0311-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0311-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0311-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-

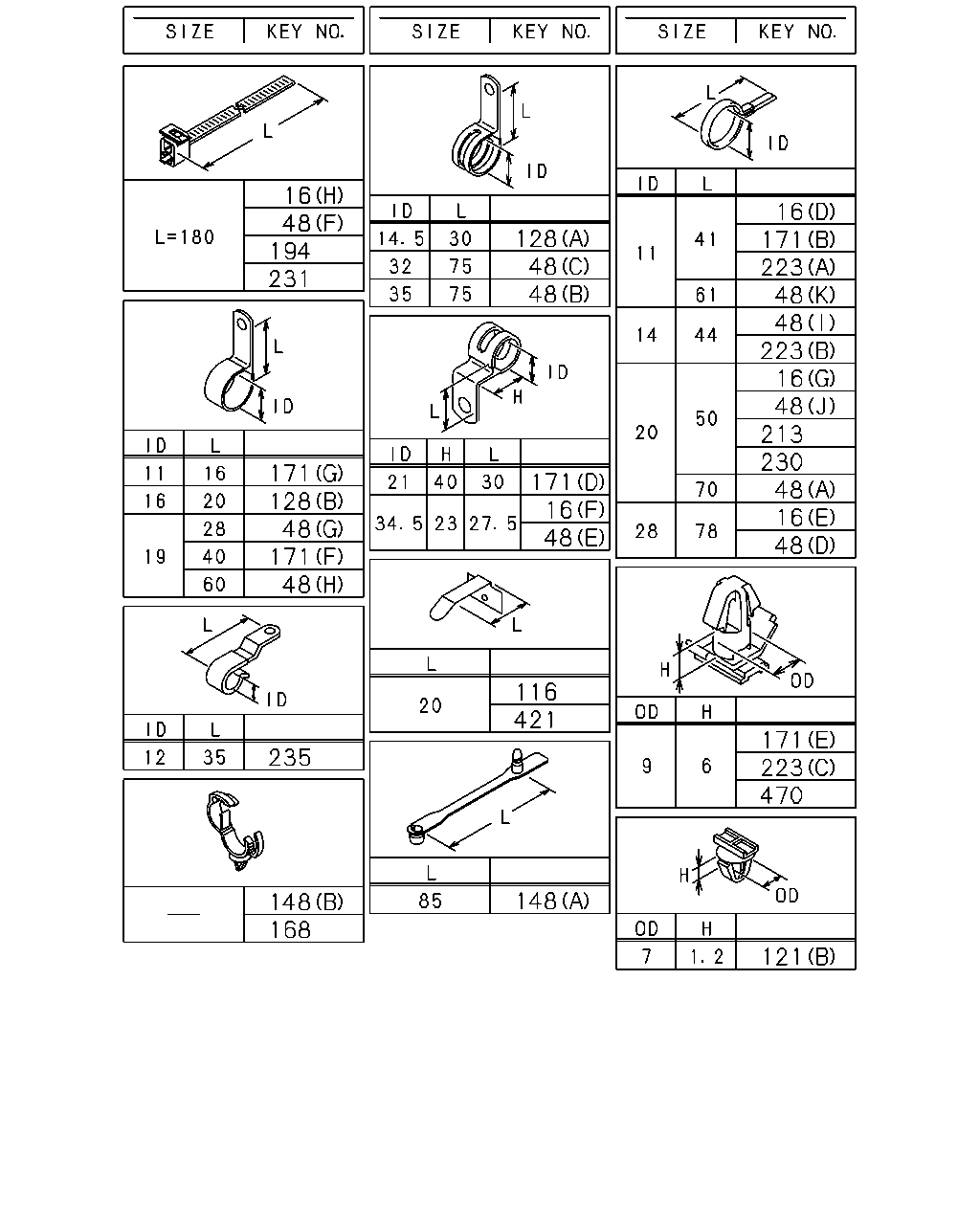

çizim 105120
16 48 194 231 16 171 223 48 48 223 16 48 213 230 48 16 48 128 48 48 171 128 48 171 48 171 16 48 116 421 171 223 470 235 148 148 168 121
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0311-
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 0311-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0311-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0311-
16 CLIP; HARNESS
(H) L=180 		1-09707-162-1 02 1 0311-
16 CLIP; HARNESS
(A) L=250 IDN 		5-09707-030-1 01 1 0311-
16 CLIP; HARNESS
(C) L=140 IDN 		5-09707-031-1 01 1 0311-
16 CLIP; HARNESS
(G) ID=20 L=50 		9-09917-430-0 03 1 0311-
48 CLIP; FRAME HARNESS
(K) ID=11 L=61 		1-09700-484-0 06 1 0311-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 0311-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 06 1 0311-
48 CLIP; FRAME HARNESS
(B) ID=35 L=75 		1-09700-608-2 01 1 0311-
48 CLIP; FRAME HARNESS
(C) ID=32 L=75 		1-09700-704-1 02 1 0311-
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 		1-09700-858-0 03 1 0311-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0311-
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0311-
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 0311-0606
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(H) ID=19 L=60 		9-09525-896-0 01 1 0311-0606
48 CLIP; FRAME HARNESS
(H) ID=19 L=60 		0-95235-896-0 01 1 0607-
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 02 1 0311-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 		9-09917-430-0 23 1 0311-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 		9-09917-430-0 01 1 0311-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 		9-09917-430-0 01 1 0311-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0311-1409
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 04 1 1410-
121 CLIP; FACIA HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0311-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0311-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0311-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0311-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0311-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0311-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 06 1 0311-
171 CLIP; STARTER HARNESS
(G) ID=11 L=16 		9-09525-025-0 01 1 0402-0606
171 CLIP; STARTER HARNESS
(G) ID=11 L=16 		0-95235-025-0 01 1 0607-
171 CLIP; STARTER HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0311-
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 02 1 0311-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0311-
171 CLIP; STARTER HARNESS
(E) OD=9 H=6 		1-09709-178-0 02 1 0311-
171 CLIP; STARTER HARNESS
(C) ID=10 & 16.5 		8-94360-745-0 01 1 0311-
171 CLIP; STARTER HARNESS
(F) ID=19 L=40 		9-09525-876-0 01 1 0311-0606
171 CLIP; STARTER HARNESS
(F) ID=19 L=40 		0-95235-876-0 01 1 0607-
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 0311-0410
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 0411-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0311-
223 CLIP; AIR TANK HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0411-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 10 1 0311-0410
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 07 1 0411-
223 CLIP; AIR TANK HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 0311-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0311-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0311-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=12 L=35 		5-09700-206-0 01 1 0311-
421 CLIP; FLOOR HARNESS
L=20 		1-09987-246-2 01 1 0311-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0311-
