Isuzu WW
▶
TRUCKS
▶
EXR
▶
10658 - EXR RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11B - RADIATOR HOSE AND SUB TANK
▶

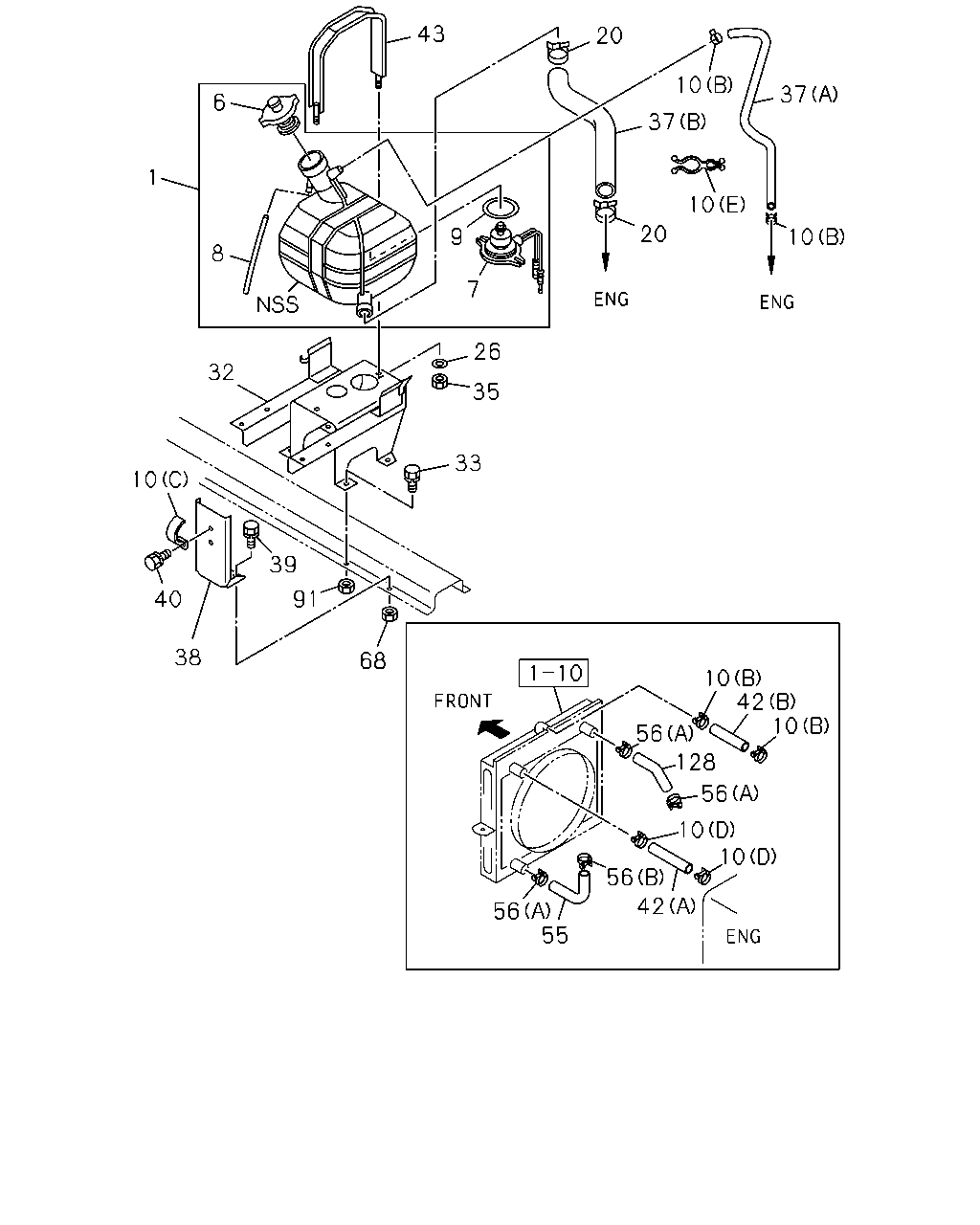

1-11B — RADIATOR HOSE AND SUB TANK
(#2434) — 40 parça
43
20
10
37
6
37
1
10
20
9
10
8
7
26
32
35
33
10
39
40
91
38
68
10
42
10
56
128
56
10
56
42
56
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
1-21481-039-5
01
1
9002-9306
1
TANK; SURGE,RAD
1-21481-080-1
01
1
9307-
6
CAP; SUB TANK
1-21450-083-4
01
1
9002-
7
SWITCH ASM; TANK
1-82480-022-3
01
1
9002-9306
7
SWITCH ASM; TANK
1-82480-045-0
01
1
9307-
8
HOSE; VINYL
L=1000 SERVICED BY L=3000
0-03259-300-0
01
1
9002-9306
8
HOSE; VINYL
L=680 SERVICED BY L=3000
0-03259-300-0
01
1
9307-
9
GASKET; SWITCH
ID=28 OD=35
1-09630-101-0
01
1
9002-9306
9
GASKET; SWITCH
ID=27.7
9-09565-228-0
01
1
9307-
10
CLIP; RUBBER HOSE
(C) D=43
1-09700-703-0
01
1
9002-
10
CLIP; RUBBER HOSE
(D) ID=44
1-09704-077-0
02
1
9002-
10
CLIP; RUBBER HOSE
(E) ID=44 & 16
1-09709-125-0
03
1
9002-
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
04
1
9002-
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
9002-
26
WASHER
ID=8.4
9-09160-508-0
04
1
9002-
32
BRACKET; SUB TANK
1-21489-111-0
01
1
9002-9109
32
BRACKET; SUB TANK
1-21489-137-1
01
1
9110-
33
BOLT; BRKT
M10X25
9-01911-025-0
04
1
9002-9002
33
BOLT; BRKT
M10X25 W/LK WASHER
0-50041-025-0
04
1
9003-
35
NUT
M8
9-09110-408-0
04
1
9002-
37
HOSE; RUBBER
(A) L=1150 SERVICED BY L=3000
0-03259-300-0
01
1
9002-
37
HOSE; RUBBER
(B) ID=31
1-21437-161-1
01
1
9002-
38
BRACKET; RUBBER HOSE
1-21464-092-0
01
1
9002-9212
38
BRACKET; RUBBER HOSE
1-21464-341-0
01
1
9301-
39
BOLT; BRKT FIX
M10X25
9-01911-025-0
02
1
9002-9002
39
BOLT; BRKT FIX
M10X25 W/LK WASHER
0-50041-025-0
02
1
9003-9506
39
BOLT; BRKT FIX
M10X20 FLANGE
0-28081-020-0
02
1
9507-
40
BOLT; CLIP
M10X25
9-01911-025-0
01
1
9002-9002
40
BOLT; CLIP
M10X25 W/LK WASHER
0-50041-025-0
01
1
9003-9506
40
BOLT; CLIP
M10X20 FLANGE
0-28081-020-0
01
1
9507-
42
HOSE; RUBBER
(B)
0-03259-300-0
01
1
9002-
42
HOSE; RUBBER
(A) L=290 SERVICED BY L=3000
5-09361-047-0
01
1
9002-
43
BAND ASM
1-21489-062-2
01
1
9002-9109
43
BAND ASM
1-21489-139-2
01
1
9110-
55
HOSE; WATER,RAD OUTLET
1-21437-199-2
01
1
9002-
56
CLIP; WATER HOSE,RAD
(A) ID=72
1-09704-068-0
03
1
9002-
56
CLIP; WATER HOSE,RAD
(B) ID=83
1-09704-075-0
01
1
9002-
68
NUT; BRKT
M10
9-09110-510-0
02
1
9002-
91
NUT; SUB TANK TO BRKT
M10
9-09110-510-0
04
1
9002-
128
HOSE; WATER,RAD INL
1-21437-025-1
01
1
9002-
