Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#24317) — 184 parça

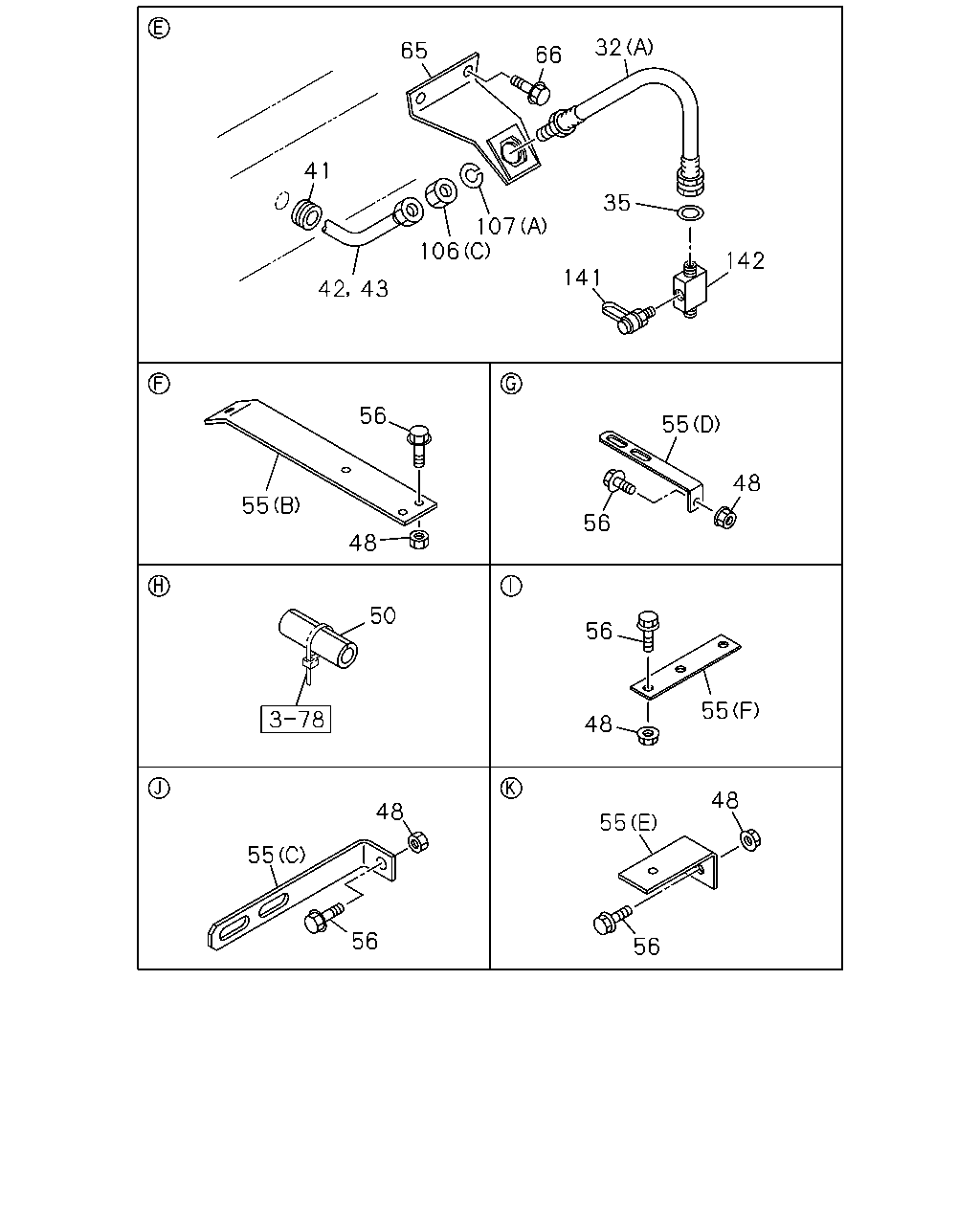

32 65 66 41 35 107 106 142 141 42 43 56 55 48 55 56 48 50 56 55 48 48 48 55 55 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=520	0-07475-520-1	02	1	0202-0605
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=520	0-57475-520-1	02	1	0606-
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=720	0-07807-720-1	01	1	0202-0605
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=720	0-57807-720-1	01	1	0606-
35	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	0202-
41	GROMMET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=24 OD=30 T=17	9-09956-092-1	02	1	0202-
42	PIPE; AIR,QUICK RELAY VALVE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1208 SERVICED BY L=1250	1-47428-791-0	01	1	0202-
43	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1182 SERVICED BY L=1250	1-47428-791-0	01	1	0202-
48	NUT; UNION BRKT M16	9-99111-416-0	01	1	9811-0201
48	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	0202-0512
48	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	0-91111-516-0	01	1	0601-
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	09	1	0202-0602
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	09	1	0603-
50	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0202-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=150 H=30	1-47477-629-2	03	1	0202-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) L=100 H=30	1-47477-645-2	02	1	0202-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=225	1-47477-646-3	01	1	0202-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-650-0	01	1	0202-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) L=55 B=25	1-47478-439-0	02	1	0202-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=59 B=20	1-47479-048-0	01	1	0202-
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16 FLANGE	0-28181-016-0	02	1	0202-0512
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16 FLANGE	0-28151-016-0	02	1	0601-
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	09	1	0202-0512
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	09	1	0601-
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-210-0	01	1	0202-
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-211-0	01	1	0202-
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	9811-0201
66	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	0202-0512
66	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	0202-0512
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	04	1	0601-
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9811-0201
106	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16	9-99111-416-0	02	1	0202-0512
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	01	1	0202-0512
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	0-91111-520-0	01	1	0601-
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-516-0	02	1	0202-0512
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-516-0	02	1	0202-0512
106	NUT; FLEX HOSE (C) M16	0-91111-516-0	02	1	0601-
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	0-91111-516-0	02	1	0601-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9811-0201
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	01	1	0202-0603
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	0-91510-520-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	0202-0603
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	9-09150-516-0	02	1	0202-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	0-91510-516-0	02	1	0604-
141	CONNECTOR; TEST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47459-013-1	01	1	0202-
142	UNION; 3-WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09660-838-0	01	1	0202-0305
142	UNION; 3-WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09661-592-0	01	1	0306-

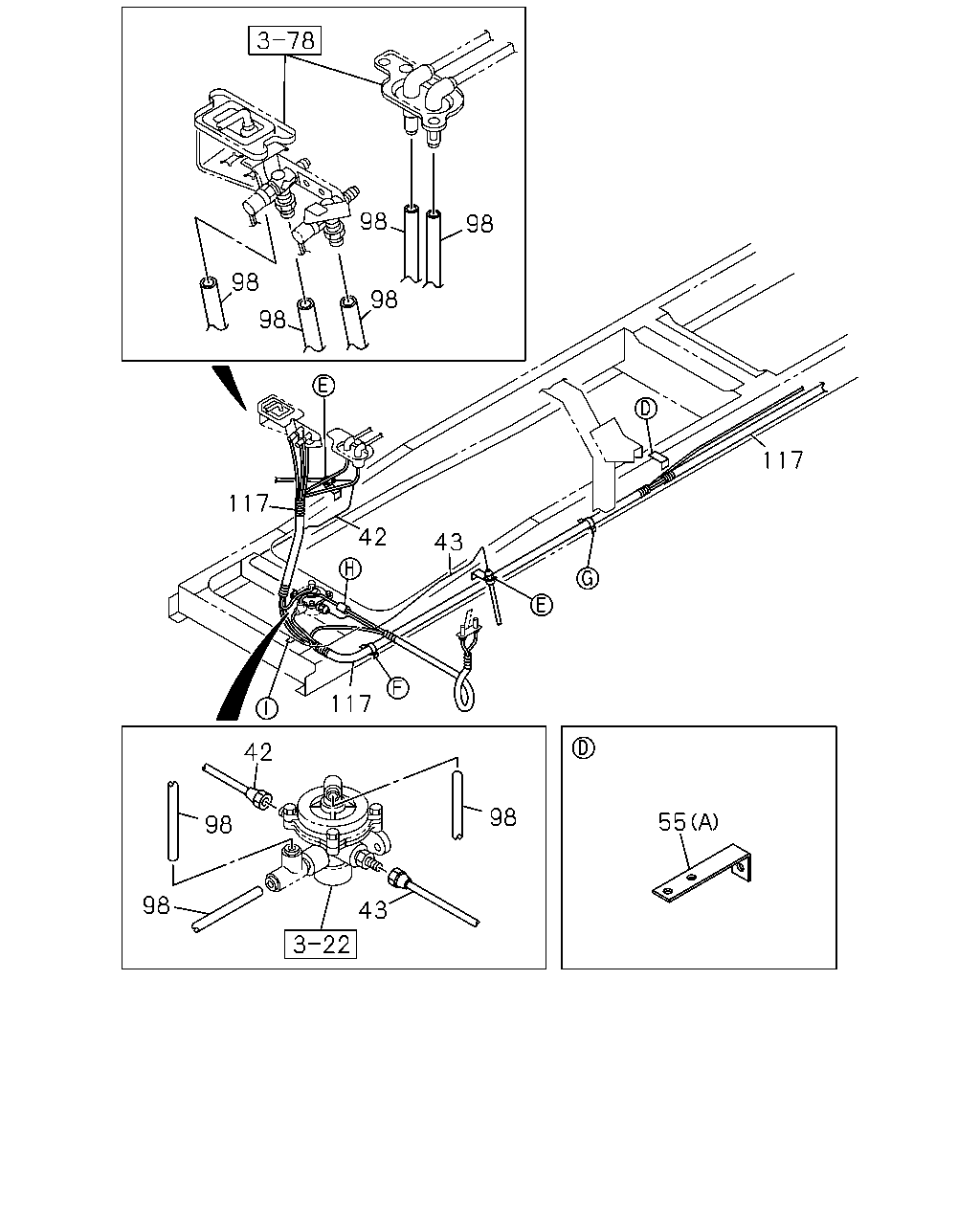

98 98 98 98 98 117 117 42 43 117 42 98 55 98 98 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	PIPE; AIR,QUICK RELAY VALVE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1208 SERVICED BY L=1250	1-47428-791-0	01	1	0202-
43	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1182 SERVICED BY L=1250	1-47428-791-0	01	1	0202-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=150 H=30	1-47477-629-2	03	1	0202-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) L=100 H=30	1-47477-645-2	02	1	0202-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=225	1-47477-646-3	01	1	0202-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-650-0	01	1	0202-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) L=55 B=25	1-47478-439-0	02	1	0202-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=59 B=20	1-47479-048-0	01	1	0202-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	9811-0201
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=8000 OD=12	1-87410-072-0	02	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0203
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0204-0212
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=8000 OD=8	1-87410-076-0	02	1	0202-
117	TUBE; CORRUGATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0202-
117	TUBE; CORRUGATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=22	1-87410-096-0	01	1	0202-
117	TUBE; CORRUGATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0202-

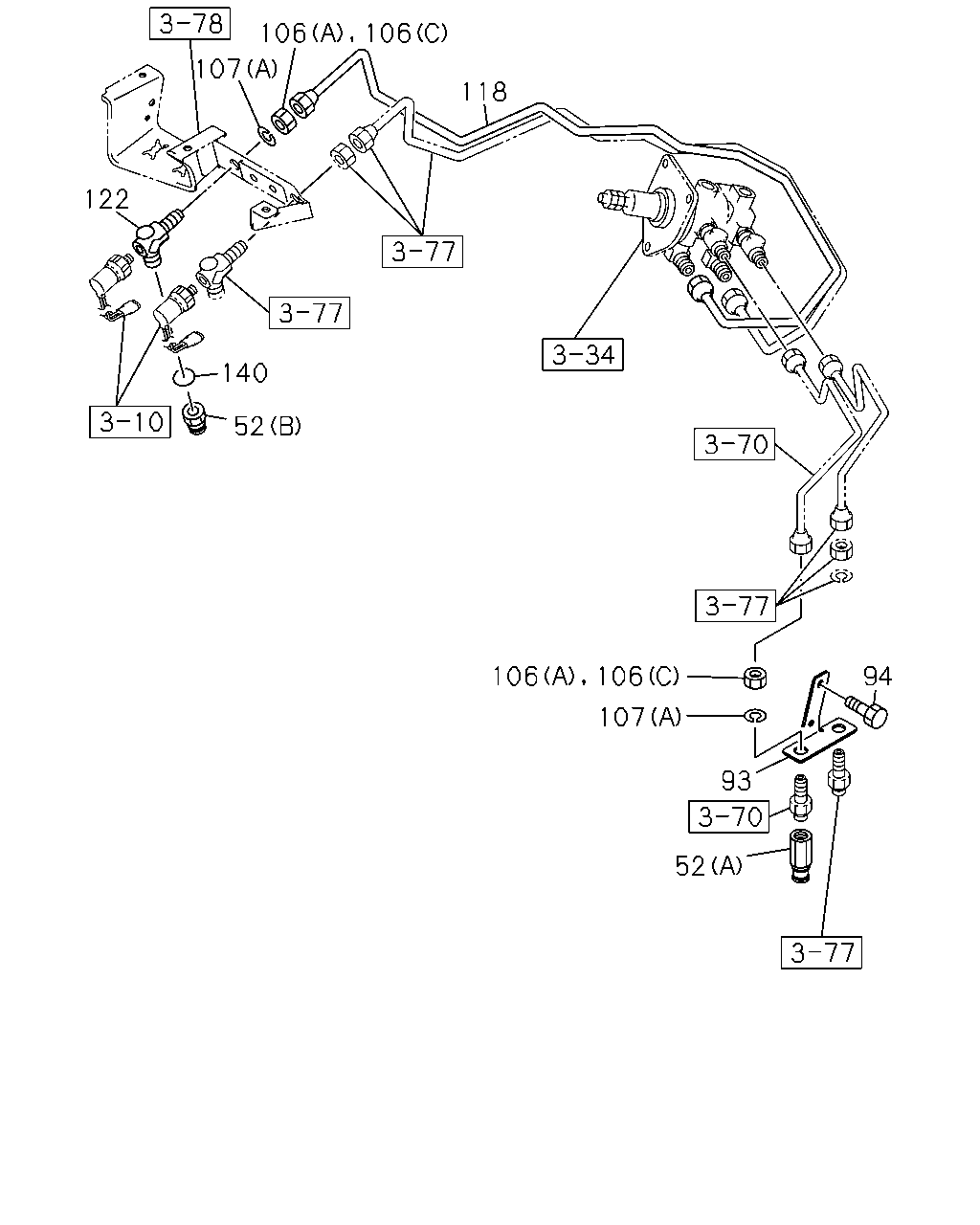

106 106 107 118 122 140 52 106 106 94 107 93 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	CONNECTOR; NYLON TUBE (B)	1-09660-728-1	02	1	9811-0201
52	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09660-728-1	02	1	0202-
52	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0202-
93	BRACKET; UNION,TUBE	1-71996-119-0	01	1	9811-
94	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9811-0904
94	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0905-
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9811-0201
106	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16	9-99111-416-0	02	1	0202-0512
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	01	1	0202-0512
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	0-91111-520-0	01	1	0601-
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-516-0	02	1	0202-0512
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-516-0	02	1	0202-0512
106	NUT; FLEX HOSE (C) M16	0-91111-516-0	02	1	0601-
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	0-91111-516-0	02	1	0601-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9811-0201
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	01	1	0202-0603
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	0-91510-520-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	0202-0603
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	9-09150-516-0	02	1	0202-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	0-91510-516-0	02	1	0604-
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=1303	1-49116-437-0	01	1	9811-0201
118	PIPE; AIR,BRK VLV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1303	1-49116-437-0	01	1	0202-
118	PIPE; AIR,BRK VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=989	1-49121-666-0	01	1	0202-
122	CONNECTOR; FLEX HOSE	1-09656-700-0	01	1	9811-0201
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09656-700-0	01	1	0202-
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	0202-
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9811-0201
140	GASKET; CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18	9-09572-510-0	02	1	0202-

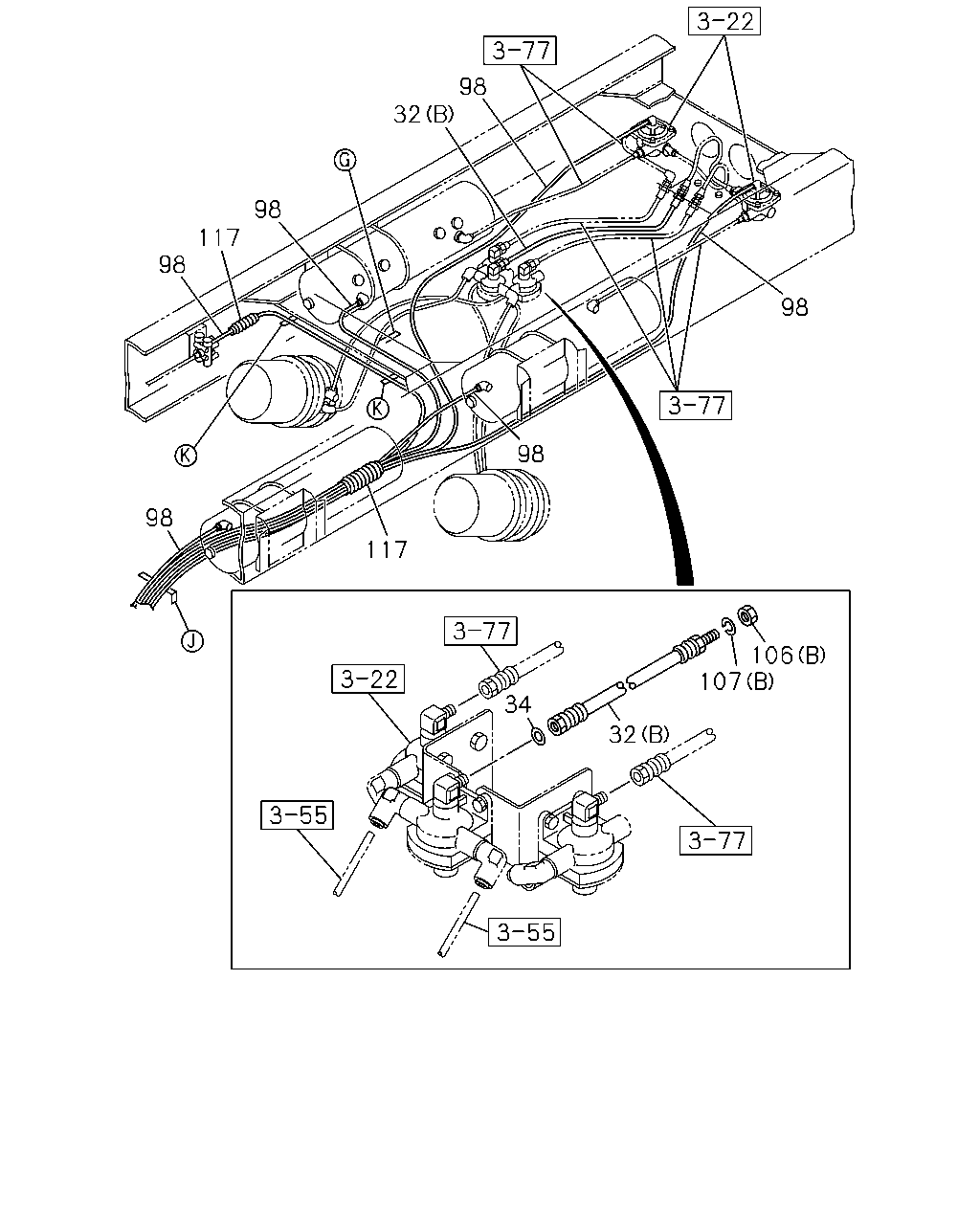

98 32 98 117 98 98 98 98 117 106 107 34 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=520	0-07475-520-1	02	1	0202-0605
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=520	0-57475-520-1	02	1	0606-
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=720	0-07807-720-1	01	1	0202-0605
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=720	0-57807-720-1	01	1	0606-
34	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	01	1	0202-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	9811-0201
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=8000 OD=12	1-87410-072-0	02	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0203
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0204-0212
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=8000 OD=8	1-87410-076-0	02	1	0202-
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9811-0201
106	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16	9-99111-416-0	02	1	0202-0512
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	01	1	0202-0512
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	0-91111-520-0	01	1	0601-
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-516-0	02	1	0202-0512
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-516-0	02	1	0202-0512
106	NUT; FLEX HOSE (C) M16	0-91111-516-0	02	1	0601-
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	0-91111-516-0	02	1	0601-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9811-0201
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	01	1	0202-0603
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	0-91510-520-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	0202-0603
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	9-09150-516-0	02	1	0202-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	0-91510-516-0	02	1	0604-
117	TUBE; CORRUGATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0202-
117	TUBE; CORRUGATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=22	1-87410-096-0	01	1	0202-
117	TUBE; CORRUGATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0202-

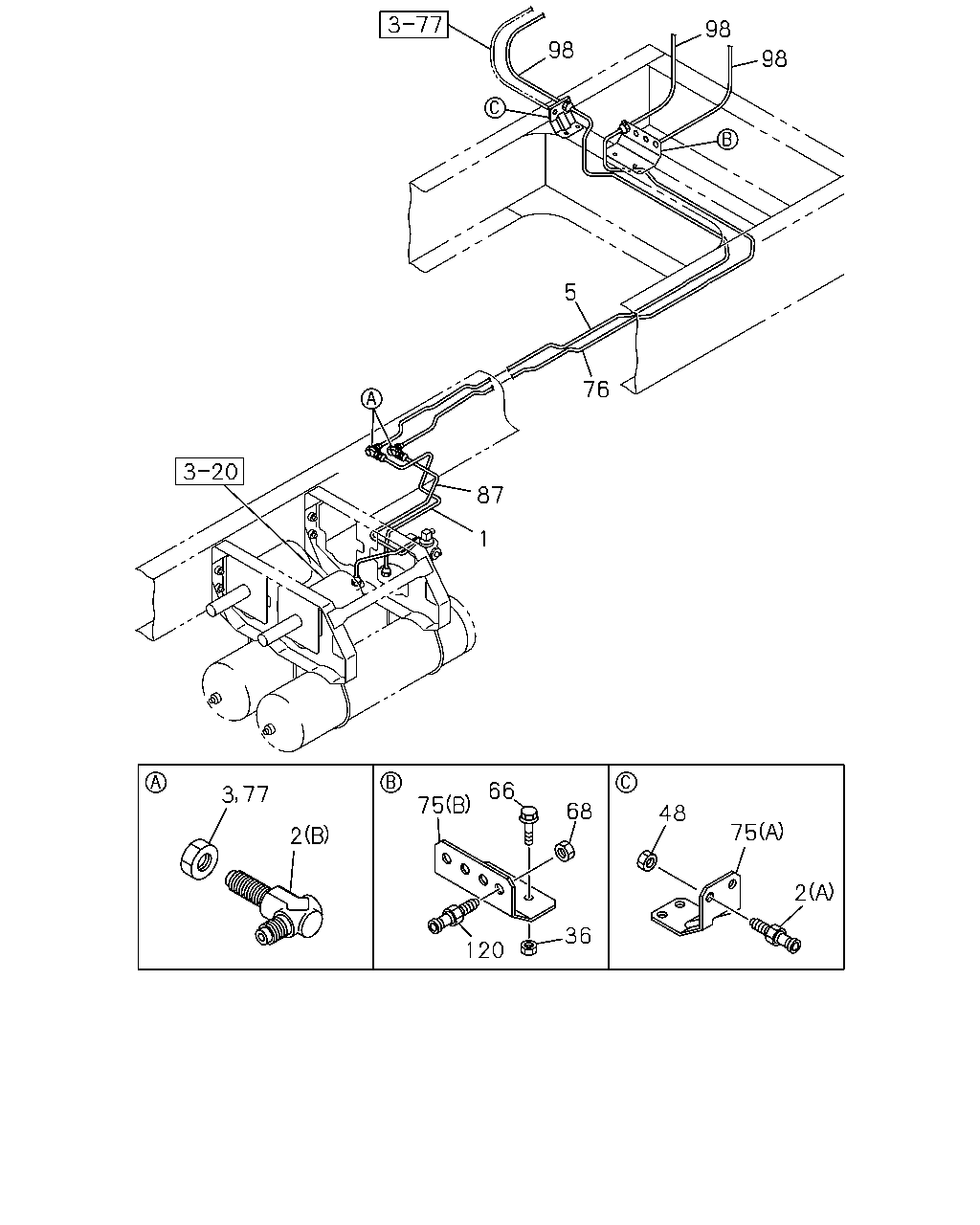

98 98 98 5 76 87 1 66 77 75 68 48 75 2 2 36 120 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION	1-49114-887-0	01	1	9811-0201
1	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49114-887-0	01	1	0202-
2	UNION; AIR PIPE (A)	1-09660-807-2	01	1	9811-0201
2	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09660-807-2	01	1	0202-
2	UNION; AIR PIPE (B) M16 ELBOW	9-09235-210-1	02	1	9811-0201
2	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 ELBOW	9-09235-210-1	02	1	0202-0607
2	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 ELBOW	0-92135-210-0	02	1	0608-
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9811-0201
3	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	0202-0512
3	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	0-91111-516-0	01	1	0601-
5	PIPE; AIR,UNION TO UNION L=2816 SERVICED BY L=2900	1-47426-425-0	01	1	9811-0201
5	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2816 SERVICED BY L=2900	1-47426-425-0	01	1	0202-
36	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0201
36	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0202-0602
36	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-
48	NUT; UNION BRKT M16	9-99111-416-0	01	1	9811-0201
48	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	0202-0512
48	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	0-91111-516-0	01	1	0601-
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	09	1	0202-0602
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	09	1	0603-
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	9811-0201
66	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	0202-0512
66	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	0202-0512
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	04	1	0601-
68	NUT; UNION M16	9-99111-416-0	01	1	9811-0201
68	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	0202-0512
68	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	0-91111-516-0	01	1	0601-
75	BRACKET; UNION (A)	1-47477-487-2	01	1	9811-0201
75	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47477-487-2	01	1	0202-
75	BRACKET; UNION (B)	1-47477-642-2	01	1	9811-0201
75	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47477-642-2	01	1	0202-
76	PIPE; AIR,UNION TO UNION L=2675 SERVICED BY L=2900	1-47426-425-0	01	1	9811-0201
76	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2675 SERVICED BY L=2900	1-47426-425-0	01	1	0202-
77	NUT; PIPE UNION M16	9-99111-416-0	01	1	9811-0201
77	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	0202-0512
77	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	0-91111-516-0	01	1	0601-
87	PIPE; AIR,UNION TO AIR MASTER L=1189 SERVICED BY L=1250	1-47426-416-0	01	1	9811-0201
87	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1189 SERVICED BY L=1250	1-47426-416-0	01	1	0202-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	9811-0201
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=8000 OD=12	1-87410-072-0	02	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0203
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0204-0212
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0202-
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=8000 OD=8	1-87410-076-0	02	1	0202-
120	UNION; AIR PIPE	1-09660-807-2	01	1	9811-0201
120	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09660-807-2	01	1	0202-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
