Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#24316) — 175 parça

297 296 297 229 296 296 297 341 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
229	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0202-
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	0202-
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0202-
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0202-
341	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28680-820-0	01	1	0202-0512
341	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	01	1	0601-
341	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	0202-0512
341	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	04	1	0601-
421	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	05	1	0202-0602
421	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	05	1	0603-

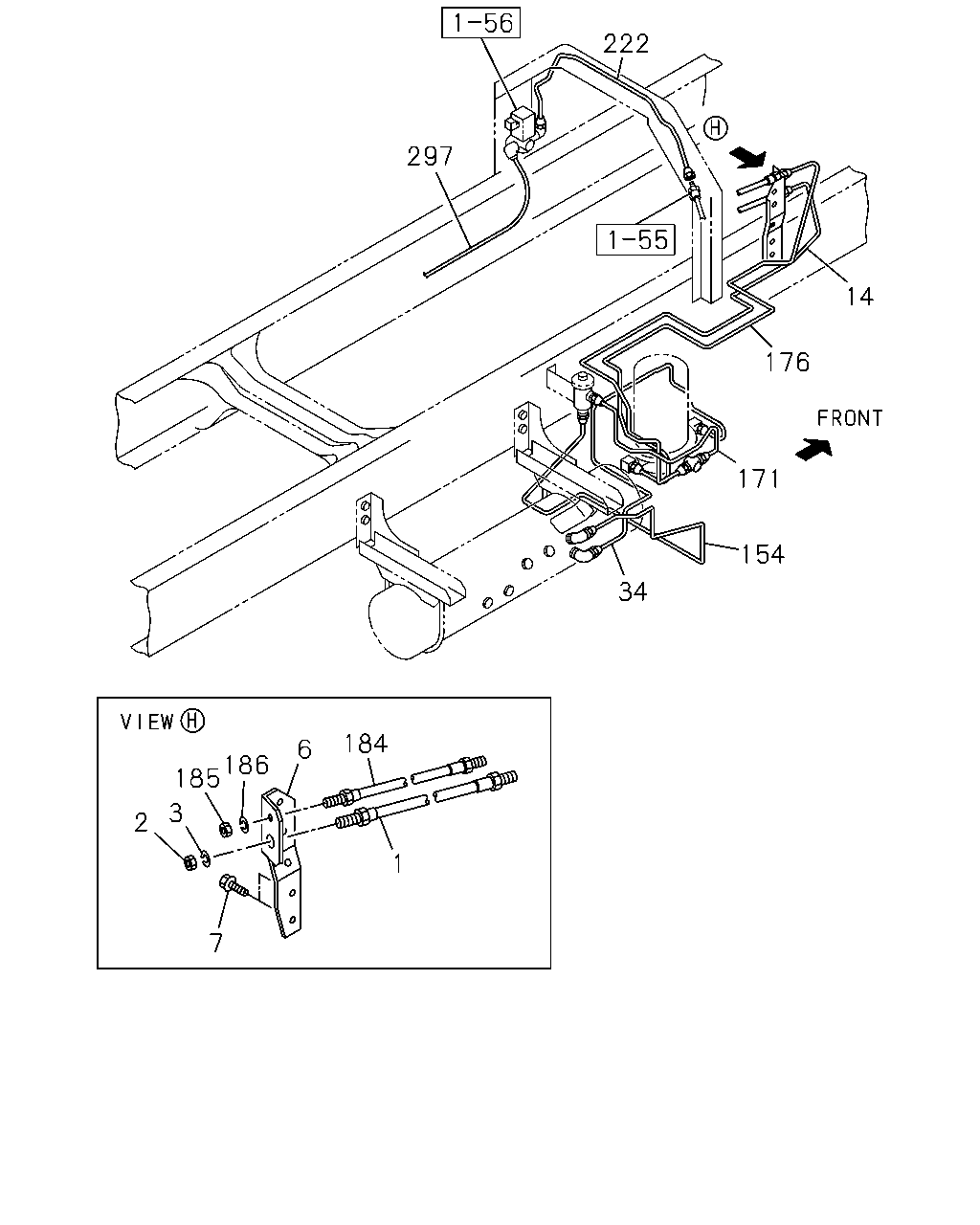

222 297 14 176 171 154 34 184 6 186 185 3 2 1 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=360	1-09363-530-0	01	1	9811-9902
1	HOSE; FLEX,AIR TANK EXC. EURO2 SPECIFICATION<THN> L=360	1-09363-530-0	01	1	9903-0203
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<THN> L=320	1-09363-560-1	01	1	9903-0203
1	HOSE; FLEX,AIR TANK L=320	1-09363-560-1	01	1	0204-
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	9811-0512
2	NUT; FLEX HOSE,AIR TANK M22	0-91111-522-0	01	1	0601-
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	9811-0603
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	0-91510-522-0	01	1	0604-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-264-2	01	1	9811-0304
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-864-0	01	1	0305-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	9811-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49114-877-0	01	1	9811-0201
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49114-877-0	01	1	0202-
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49122-460-0	01	1	0202-
34	PIPE; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49122-684-0	01	1	0202-
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49114-881-0	01	1	9811-0201
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49114-881-0	01	1	0202-
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49122-462-0	01	1	0202-
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49122-463-0	01	1	0202-
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49122-464-0	01	1	0202-
184	HOSE; FLEX,AIR GOV L=330	1-09363-584-0	01	1	9811-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9811-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9811-0603
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0604-
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=1011 SERVICED BY L=1100	1-47426-351-0	01	1	9811-
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0202-
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0202-

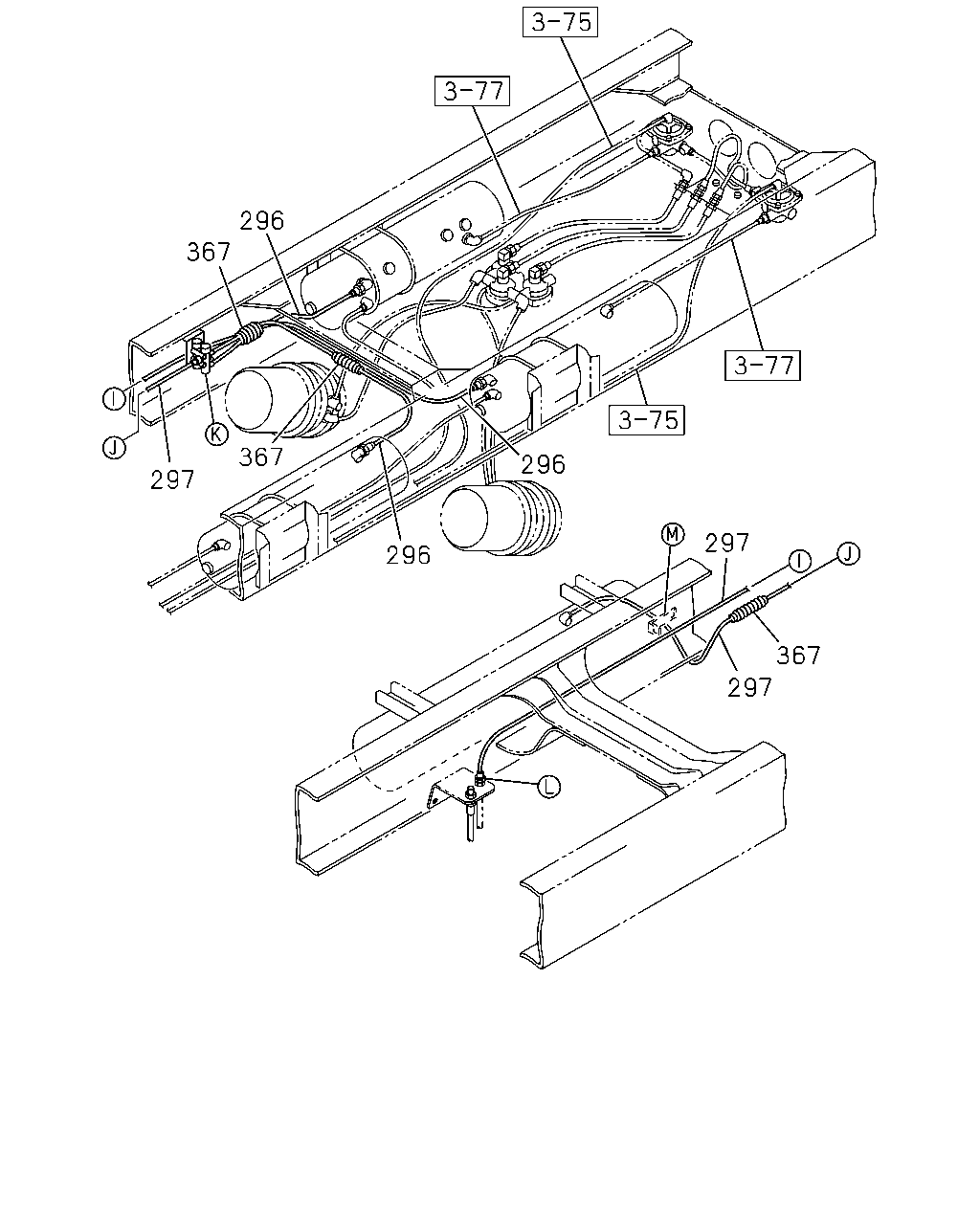

296 367 367 296 297 297 296 367 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	0202-
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0202-
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0202-
367	TUBE; CORRUGATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0202-
367	TUBE; CORRUGATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0202-
367	TUBE; CORRUGATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0202-

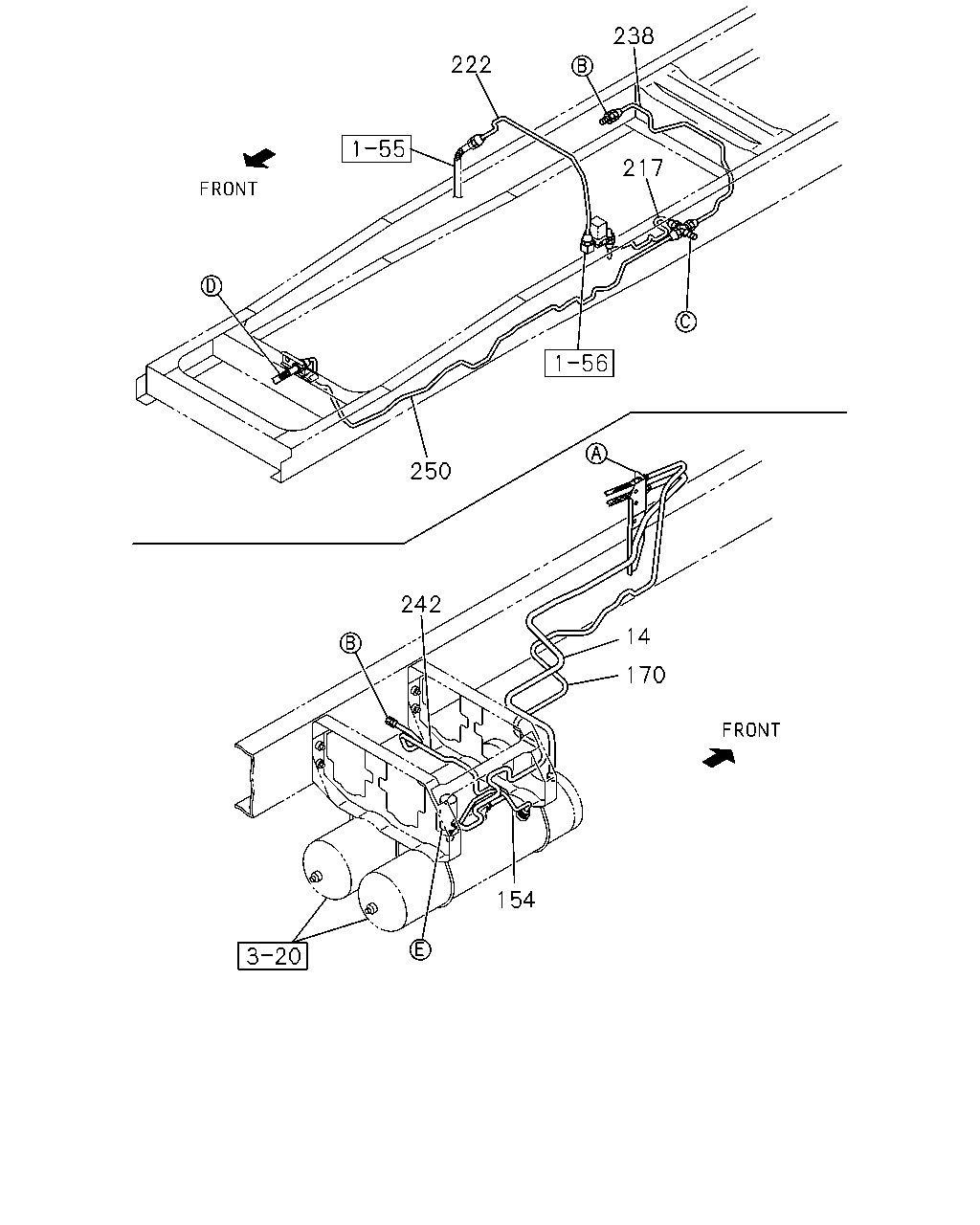

238 222 217 250 242 14 170 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49114-877-0	01	1	9811-0201
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49114-877-0	01	1	0202-
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49122-460-0	01	1	0202-
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49114-881-0	01	1	9811-0201
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49114-881-0	01	1	0202-
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49122-462-0	01	1	0202-
170	PIPE; AIR,AIR GOV TO FLEX HOSE	1-49114-883-0	01	1	9811-0201
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49114-883-0	01	1	0202-
217	PIPE; VAC,UNION TO MAG VLV	1-49114-886-0	01	1	9811-0201
217	PIPE; VAC,UNION TO MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49114-886-0	01	1	0202-
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=1011 SERVICED BY L=1100	1-47426-351-0	01	1	9811-
238	PIPE; AIR,UNION TO UNION L=1449 SERVICED BY L=1500	1-47426-355-0	01	1	9811-0201
238	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1449 SERVICED BY L=1500	1-47426-355-0	01	1	0202-
242	PIPE; AIR,AIR TANK TO UNION	1-49114-895-0	01	1	9811-0201
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49114-895-0	01	1	0202-
250	PIPE; AIR,UNION TO FLEX HOSE L=2728 SERVICED BY L=2900	1-47426-364-0	01	1	9811-0201
250	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2728 SERVICED BY L=2900	1-47426-364-0	01	1	0202-

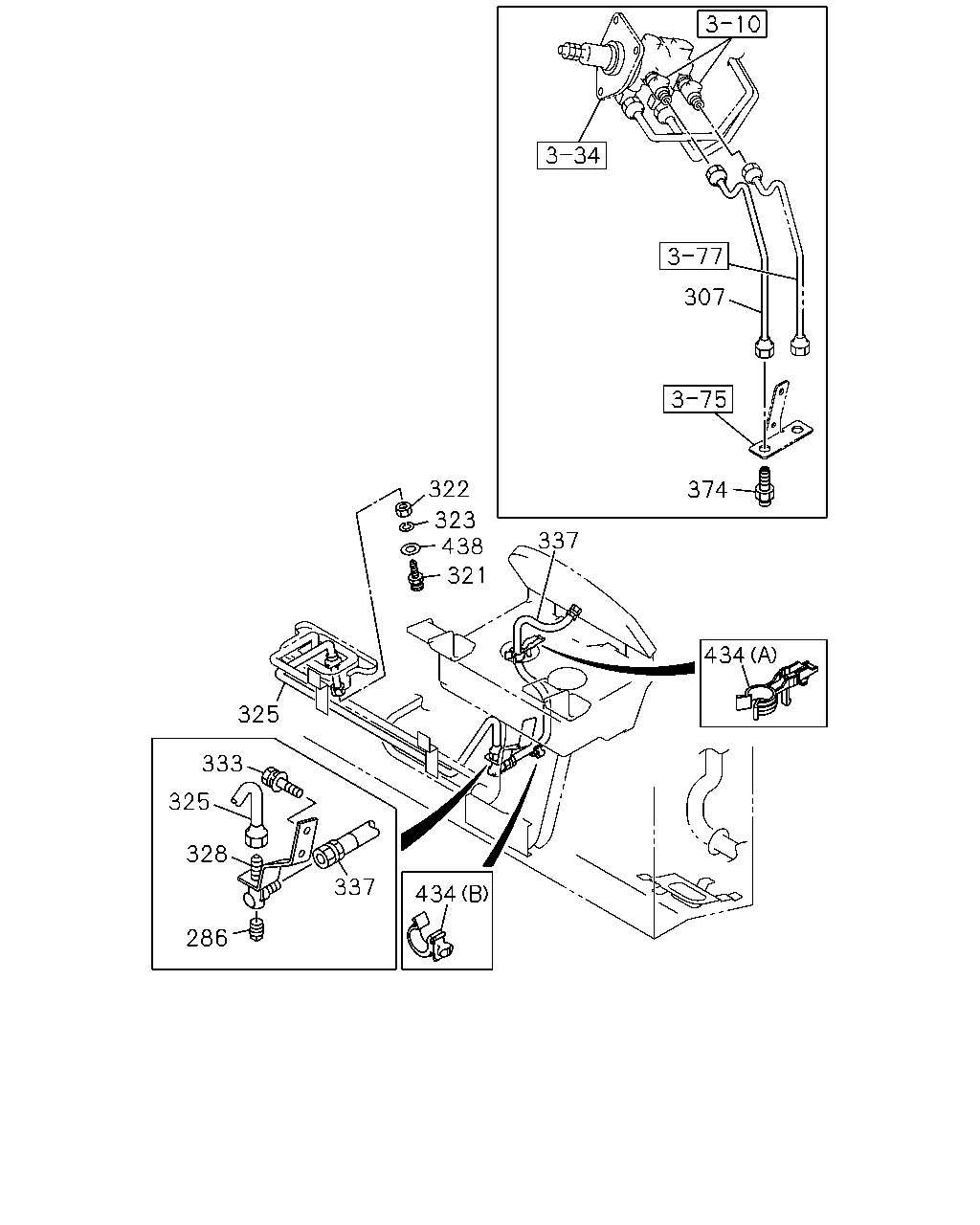

307 322 374 323 438 337 321 434 325 333 325 328 337 434 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
286	PLUG; AIR PIPE	9-09204-510-0	01	1	9812-0201
286	PLUG; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09204-510-0	01	1	0202-
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=434	1-49116-435-1	01	1	9811-0201
307	PIPE; AIR,FLEX HOSE TO BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=434	1-49116-435-1	01	1	0202-
307	PIPE; AIR,FLEX HOSE TO BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=540	1-49113-427-2	01	1	0202-
321	JOINT; FLEX HOSE	1-09654-362-1	01	1	9812-0201
321	JOINT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09654-362-1	01	1	0202-
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	9812-0201
322	NUT; JOINT,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 H=8	1-09400-029-0	01	1	0202-
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	9902-0201
323	WASHER; LK,JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2	9-09150-510-0	01	1	0202-0603
323	WASHER; LK,JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2	0-91510-510-0	01	1	0604-
325	PIPE; AIR,FLEX HOSE TO UNION L=791	1-49116-077-0	01	1	9902-0201
325	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=791	1-49116-077-0	01	1	0202-
328	UNION; AIR PIPE	1-47470-473-0	01	1	9812-0201
328	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47470-473-0	01	1	0202-
333	BOLT; PIPE UNION M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9812-0201
333	BOLT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0202-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-07210-810-0	01	1	9812-0201
337	HOSE; FLEX,UNION TO AIR PRESS GAGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=810	0-07210-810-0	01	1	0202-0605
337	HOSE; FLEX,UNION TO AIR PRESS GAGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=810	0-57210-810-0	01	1	0606-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=720	0-07210-720-0	02	1	0202-0608
337	HOSE; FLEX,UNION TO AIR PRESS GAGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=720	0-57210-720-0	02	1	0609-
374	CONNECTOR	1-09654-324-0	01	1	9811-0201
374	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09654-324-0	01	1	0202-
374	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 STRAIGHT	1-09654-380-0	01	1	0202-
434	CLIP (A) ID=17	1-09987-105-1	01	1	9812-0201
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=17	1-09987-105-1	01	1	0202-
434	CLIP (B)	8-94297-486-0	02	1	9812-0201
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94297-486-0	02	1	0202-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=10 & 10	1-09709-221-0	01	1	0202-
438	WASHER; PL,JOINT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9812-0201
438	WASHER; PL,JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0202-

184 1 6 186 185 3 170 2 7 14 243 243 244 244 250 138 139 155 140 170 155 137 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=360	1-09363-530-0	01	1	9811-9902
1	HOSE; FLEX,AIR TANK EXC. EURO2 SPECIFICATION<THN> L=360	1-09363-530-0	01	1	9903-0203
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<THN> L=320	1-09363-560-1	01	1	9903-0203
1	HOSE; FLEX,AIR TANK L=320	1-09363-560-1	01	1	0204-
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	9811-0512
2	NUT; FLEX HOSE,AIR TANK M22	0-91111-522-0	01	1	0601-
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	9811-0603
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	0-91510-522-0	01	1	0604-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-264-2	01	1	9811-0304
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-864-0	01	1	0305-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	9811-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49114-877-0	01	1	9811-0201
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49114-877-0	01	1	0202-
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49122-460-0	01	1	0202-
137	HOSE; FLEX,AIR PRESSURE GAGE L=450	0-07120-450-0	01	1	9811-0201
137	HOSE; FLEX,AIR PRESSURE GAGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	0-07120-450-0	01	1	0202-
138	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9811-0201
138	NUT; FLEX HOSE,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	0202-
139	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9811-0201
139	WASHER; LK,FLEX HOSE,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	0202-0603
139	WASHER; LK,FLEX HOSE,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	0-91510-512-0	01	1	0604-
140	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9811-0201
140	GASKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18	9-09572-510-0	01	1	0202-
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49114-881-0	01	1	9811-0201
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49114-881-0	01	1	0202-
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49122-462-0	01	1	0202-
155	GASKET; AIR PIPE ID=11 OD=18	9-09572-510-0	02	1	9811-0201
155	GASKET; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18	9-09572-510-0	02	1	0202-
170	PIPE; AIR,AIR GOV TO FLEX HOSE	1-49114-883-0	01	1	9811-0201
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49114-883-0	01	1	0202-
184	HOSE; FLEX,AIR GOV L=330	1-09363-584-0	01	1	9811-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9811-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9811-0603
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0604-
243	UNION; AIR PIPE (A) M12	9-09228-306-1	01	1	9811-0201
243	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12	9-09228-306-1	01	1	0202-0607
243	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12	0-92138-306-0	01	1	0608-
243	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	9811-0201
243	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 3WAY	9-09228-906-1	01	1	0202-0607
243	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 3WAY	0-92138-906-0	01	1	0608-
244	NUT; UNION,AIR PIPE (B) M12	9-09840-280-0	01	1	9811-0201
244	NUT; UNION,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12	9-09840-280-0	01	1	0202-
244	NUT; UNION,AIR PIPE (A) M12	9-99111-412-0	01	1	9811-0201
244	NUT; UNION,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12	9-99111-412-0	01	1	0202-0512
244	NUT; UNION,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12	0-91111-512-0	01	1	0601-
250	PIPE; AIR,UNION TO FLEX HOSE L=2728 SERVICED BY L=2900	1-47426-364-0	01	1	9811-0201
250	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2728 SERVICED BY L=2900	1-47426-364-0	01	1	0202-

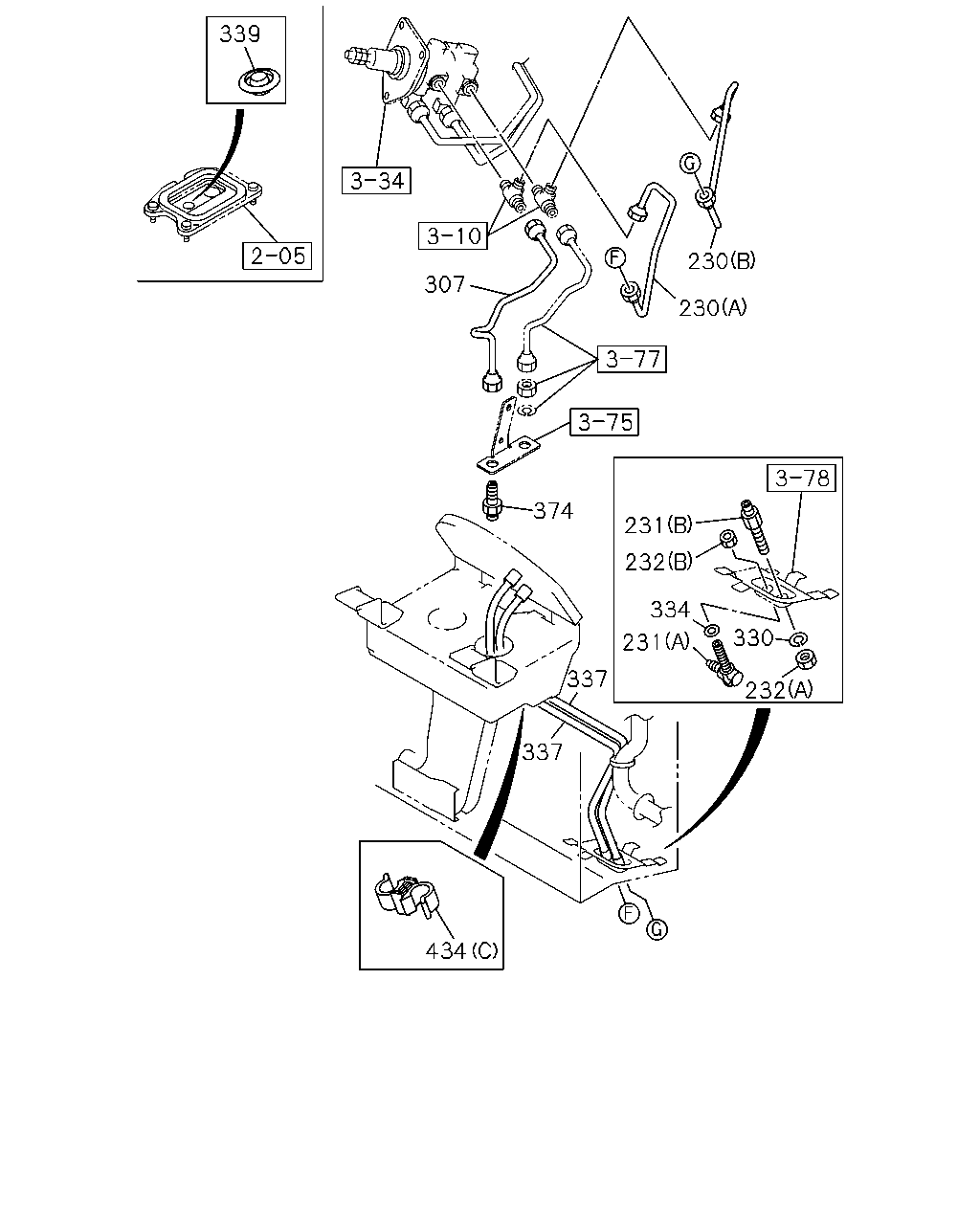

339 230 307 230 374 231 232 334 330 231 337 232 337 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
230	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=426	1-49116-433-0	01	1	0202-
230	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=483	1-49116-434-0	01	1	0202-
231	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 ELBOW	1-09654-186-2	01	1	0202-
231	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10 STRAIGHT	1-09654-361-0	01	1	0202-
232	NUT; UNION,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10 H=8	1-09400-029-0	01	1	0202-
232	NUT; UNION,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10	9-09110-410-0	01	1	0202-0512
232	NUT; UNION,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10	0-91110-510-0	01	1	0601-
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=434	1-49116-435-1	01	1	9811-0201
307	PIPE; AIR,FLEX HOSE TO BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=434	1-49116-435-1	01	1	0202-
307	PIPE; AIR,FLEX HOSE TO BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=540	1-49113-427-2	01	1	0202-
330	WASHER; LK,UNION,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	9-09150-510-0	02	1	0202-0603
330	WASHER; LK,UNION,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	0-91510-510-0	02	1	0604-
334	SPACER; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5 OD=22 T=4	1-09503-045-0	01	1	0202-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-07210-810-0	01	1	9812-0201
337	HOSE; FLEX,UNION TO AIR PRESS GAGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=810	0-07210-810-0	01	1	0202-0605
337	HOSE; FLEX,UNION TO AIR PRESS GAGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=810	0-57210-810-0	01	1	0606-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=720	0-07210-720-0	02	1	0202-0608
337	HOSE; FLEX,UNION TO AIR PRESS GAGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=720	0-57210-720-0	02	1	0609-
339	GROMMET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=28	8-94279-720-0	01	1	0202-
374	CONNECTOR	1-09654-324-0	01	1	9811-0201
374	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09654-324-0	01	1	0202-
374	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 STRAIGHT	1-09654-380-0	01	1	0202-
434	CLIP (A) ID=17	1-09987-105-1	01	1	9812-0201
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=17	1-09987-105-1	01	1	0202-
434	CLIP (B)	8-94297-486-0	02	1	9812-0201
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94297-486-0	02	1	0202-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=10 & 10	1-09709-221-0	01	1	0202-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
