3-41 — REAR BRAKE POWER CHAMBER (#24311) — 45 parça

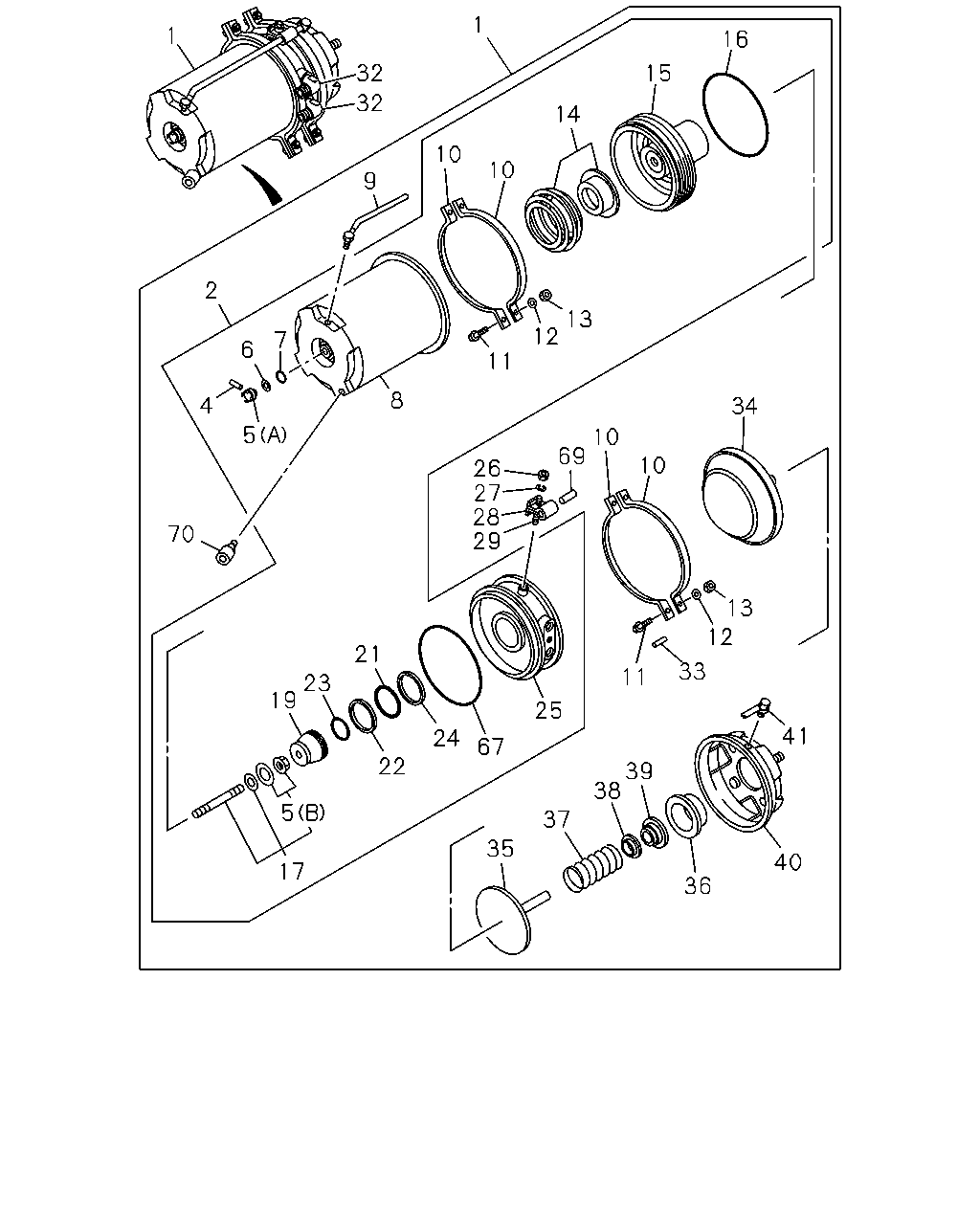

çizim 22981
1 1 16 32 15 32 14 10 10 9 2 13 12 7 6 11 8 4 34 5 10 69 10 26 27 28 29 70 13 12 21 33 11 23 19 25 41 24 67 22 39 38 5 37 35 40 17 36
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-641-1 01 1 0202-
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-640-1 01 1 0202-
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-015-0 01 1 0202-
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-014-0 01 1 0202-
4 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-056-0 04 1 0202-
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-054-0 02 1 0202-
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-074-0 02 1 0202-
6 GASKET; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-09920-268-0 02 1 0202-
7 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-055-0 02 1 0202-
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-070-0 01 1 0202-
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-069-0 01 1 0202-
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-076-0 02 1 0202-
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-016-0 08 1 0202-
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-092-0 08 1 0202-
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2 		9-09150-510-0 08 1 0202-
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-83315-080-0 08 1 0202-
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-037-1 02 1 0202-
15 PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48262-005-0 02 1 0202-
16 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-048-0 02 1 0202-
17 BOLT ASM; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-073-0 02 1 0202-
19 COVER; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-011-0 02 1 0202-
21 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-049-0 02 1 0202-
22 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-019-0 02 1 0202-
23 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-047-0 02 1 0202-
24 BEARING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-020-0 02 1 0202-
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-078-0 01 1 0202-
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-077-0 01 1 0202-
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-058-0 04 1 0202-
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8.2 		9-09150-508-0 02 1 0202-
28 BRACKET; PRESSURE PLATE,HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-059-0 02 1 0202-
29 STUD; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-050-0 02 1 0202-
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0202-
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-044-0 04 1 0202-
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-056-0 02 1 0202-
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48253-010-0 02 1 0202-
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-043-0 02 1 0202-
37 SPRING; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-016-0 02 1 0202-
38 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-066-0 02 1 0202-
39 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-065-0 02 1 0202-
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-068-1 01 1 0202-
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-067-1 01 1 0202-
41 PIPE ASM; LWR COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-075-0 02 1 0202-
67 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-053-0 02 1 0202-
69 HOSE; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-051-0 02 1 0202-
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-052-0 02 1 0202-
