Isuzu WW
▶
TRUCKS
▶
FTR
▶
10896 - FTR BUS CHASSIS LHD
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#24309) — 37 parça
◀

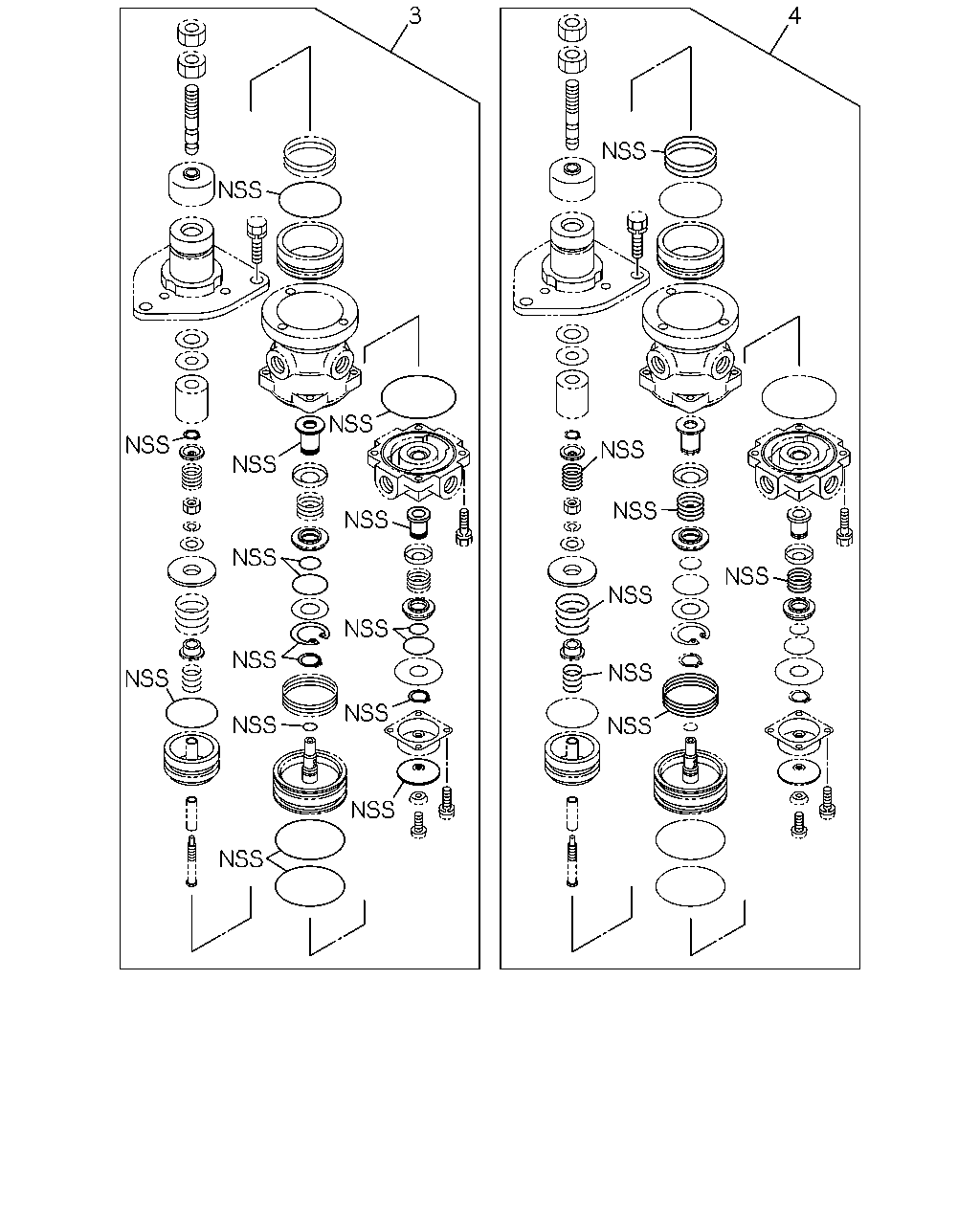

[334A] REPAIR KIT (3 parça)

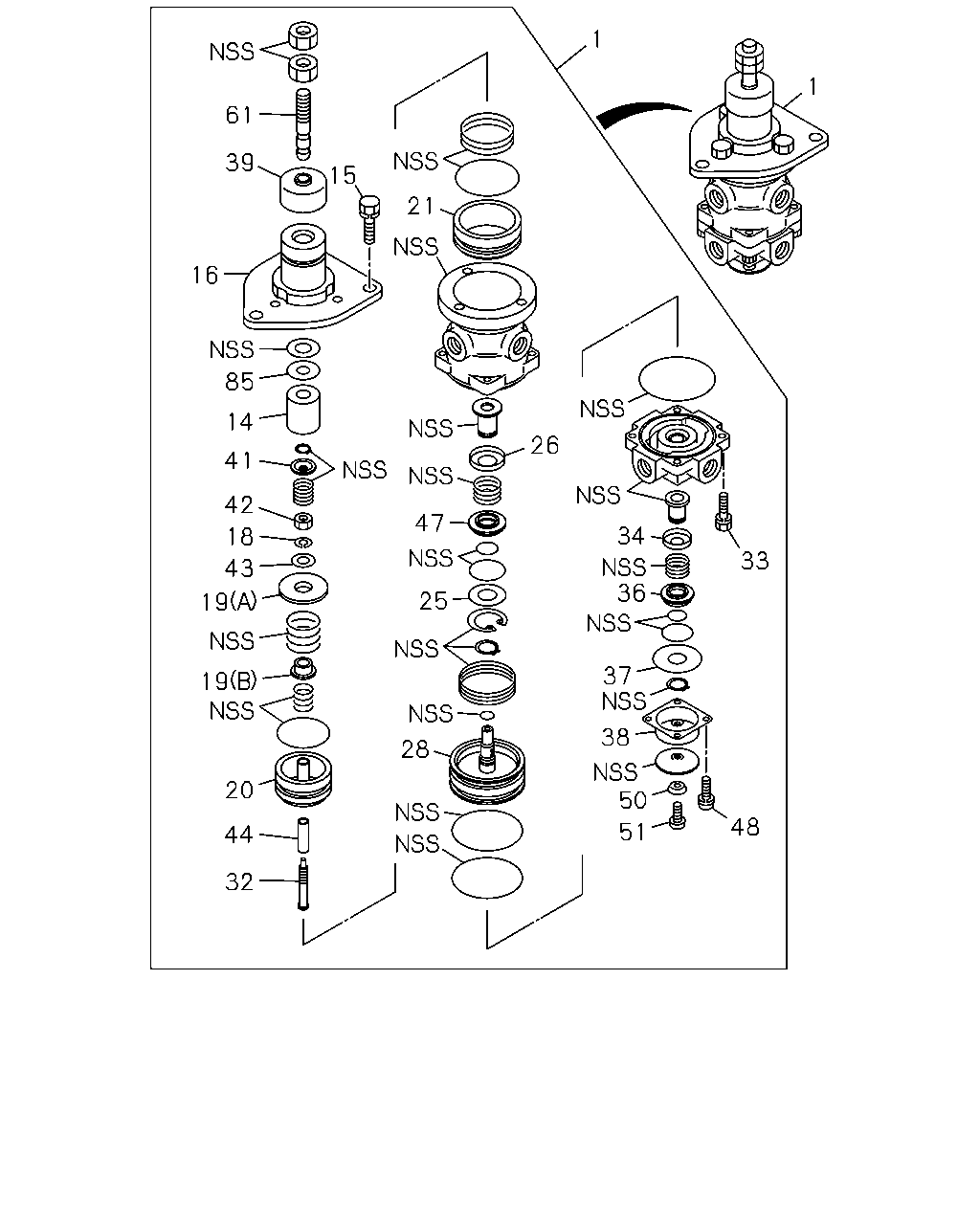

[334A] COMPONENT (34 parça)
▶
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; RUBBER,BRK VLV
1-85576-177-0
01
1
9811-0405
3
REPAIR KIT; RUBBER,BRK VLV
1-85576-391-0
01
1
0406-
4
REPAIR KIT; SPRING,BRK VLV
1-85576-179-0
01
1
9811-
1
1
61
39
15
21
16
85
14
26
41
42
47
34
18
33
36
43
25
19
37
19
38
28
50
20
48
51
44
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98166-520-0
01
1
1005-
1
VALVE; BRK
1-48100-750-4
01
1
9811-0405
1
VALVE; BRK
1-48100-872-0
01
1
0406-1004
1
VALVE; BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
1-48100-872-0
01
1
1005-
14
PLUNGER; BRK VLV
1-48119-365-0
01
1
9811-
15
BOLT; PLATE,BRK VLV
1-48119-232-1
03
1
9811-
16
PLATE; MTG,BRKT VLV
1-48119-364-2
01
1
9811-
18
WASHER; LK,SEAT,BRK VLV
1-48199-024-0
01
1
9811-
19
SEAT; SPRING,BRK VLV
(A)
1-48119-370-1
01
1
9811-
19
SEAT; SPRING,BRK VLV
(B)
1-48119-371-0
01
1
9811-
20
PISTON; UPR,BRK VLV
1-48119-318-0
01
1
9811-
21
BUSHING; UPR BODY
1-48119-317-0
01
1
9811-
25
WASHER; PISTON,BRK VLV
1-48129-149-0
01
1
9811-
26
RETAINER; VLV,BRK VLV
1-48122-003-0
01
1
9811-
28
PISTON; LWR,BRK VLV
1-48119-337-0
01
1
9811-
32
SCREW; BRK VLV
1-48119-323-0
01
1
9811-
33
BOLT; BODY,BRK VLV
1-48129-068-0
04
1
9811-
34
RETAINER; VLV,BRK VLV
1-48122-010-0
01
1
9811-
36
RETAINER; GASKET,BRK VLV
1-48129-298-0
01
1
9811-
37
WASHER; VLV LWR,BRK VLV
1-48129-166-0
01
1
9811-0405
37
WASHER; VLV LWR,BRK VLV
1-48129-321-0
01
1
0406-
38
COVER; EXH,BRK VLV
1-48119-217-0
01
1
9811-0405
38
COVER; EXH,BRK VLV
1-48119-597-0
01
1
0406-
39
BOOT; PLUNGER,BRK VLV
1-48119-438-0
01
1
9811-
41
PLATE; STEM,BRK VLV
1-48129-167-0
01
1
9811-
42
NUT; SPR SEAT,BRK VLV
1-48199-025-0
01
1
9811-
43
WASHER; SPR SEAT,BRK VLV
1-48129-170-0
01
1
9811-
44
SLEEVE; PISTON,BRK VLV
1-48119-322-0
01
1
9811-
47
RETAINER; GASKET,BRK VLV
1-48129-297-0
01
1
9811-
48
BOLT; COVER,BRK VLV
1-48119-216-0
04
1
9811-0405
50
WASHER; RET,BRK VLV
1-48129-112-0
01
1
9811-0405
51
SCREW; FORMING,BRK VLV
1-48129-111-0
01
1
9811-0405
61
ROD; PUSH,BRK VLV
1-48119-363-0
01
1
9811-
85
WASHER; PUSH ROD
1-48119-366-0
01
1
9811-
