Sayfa 3-22 - Isuzu EPC

240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
240	REPAIR KIT; AIR CONT GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-466-0	01	1	0204-
240	REPAIR KIT; AIR CONT GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-467-0	01	1	0204-
240	REPAIR KIT; AIR CONT GOV	1-85576-207-0	01	1	9811-0201
240	REPAIR KIT; AIR CONT GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-207-0	01	1	0202-0203
240	REPAIR KIT; AIR CONT GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-303-0	01	1	0202-0203

62 63 112 54 15 13 59 114 19 158 6 157 216 13 6 67 108 59 47 54 47 15 47 114 66 108 19 45 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28680-825-0	04	1	0202-0512
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X30 FLANGE	0-28681-030-0	02	1	0202-0512
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-

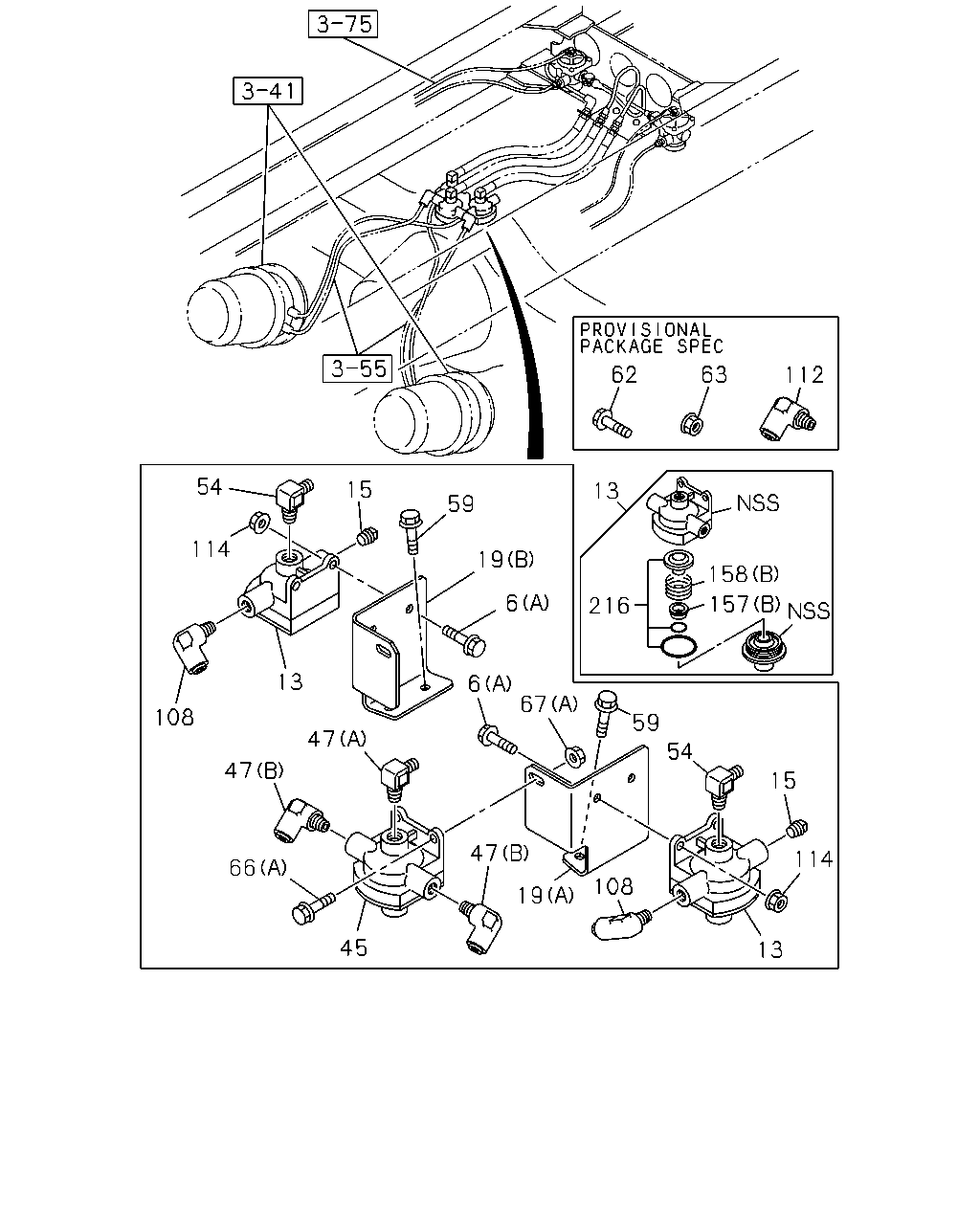

13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-659-0	02	1	0202-
15	PLUG; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT3/8	9-09204-517-0	02	1	0202-
19	BRACKET; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48495-221-0	01	1	0202-
19	BRACKET; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48495-220-0	01	1	0202-
45	VALVE; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-659-0	01	1	0202-
47	CONNECTOR; RELAY VLV,CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0202-
47	CONNECTOR; RELAY VLV,CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0202-
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	0202-
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	0202-0512
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28050-820-0	04	1	0601-
62	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PROVISIONAL PACKAGE SPEC<BCC> M12X35 FLANGE	0-28651-235-0	04	1	0707-
63	NUT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PROVISIONAL PACKAGE SPEC<BCC> M12 FLANGE	0-91180-212-0	04	1	0707-
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28680-825-0	02	1	0202-0512
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28681-025-0	02	1	0202-0512
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	02	1	0202-0602
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	02	1	0603-
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10 FLANGE	0-91150-210-0	02	1	0202-0602
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10 FLANGE	0-91180-210-0	02	1	0603-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0202-
112	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PROVISIONAL PACKAGE SPEC<BCC> DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0707-
114	NUT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	0202-0602
114	NUT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	04	1	0603-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48419-020-0	03	1	0204-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	03	1	0202-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	9-48419-003-0	03	1	0204-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	03	1	0202-
216	REPAIR KIT; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-235-0	03	1	0204-

185 31 30 35 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

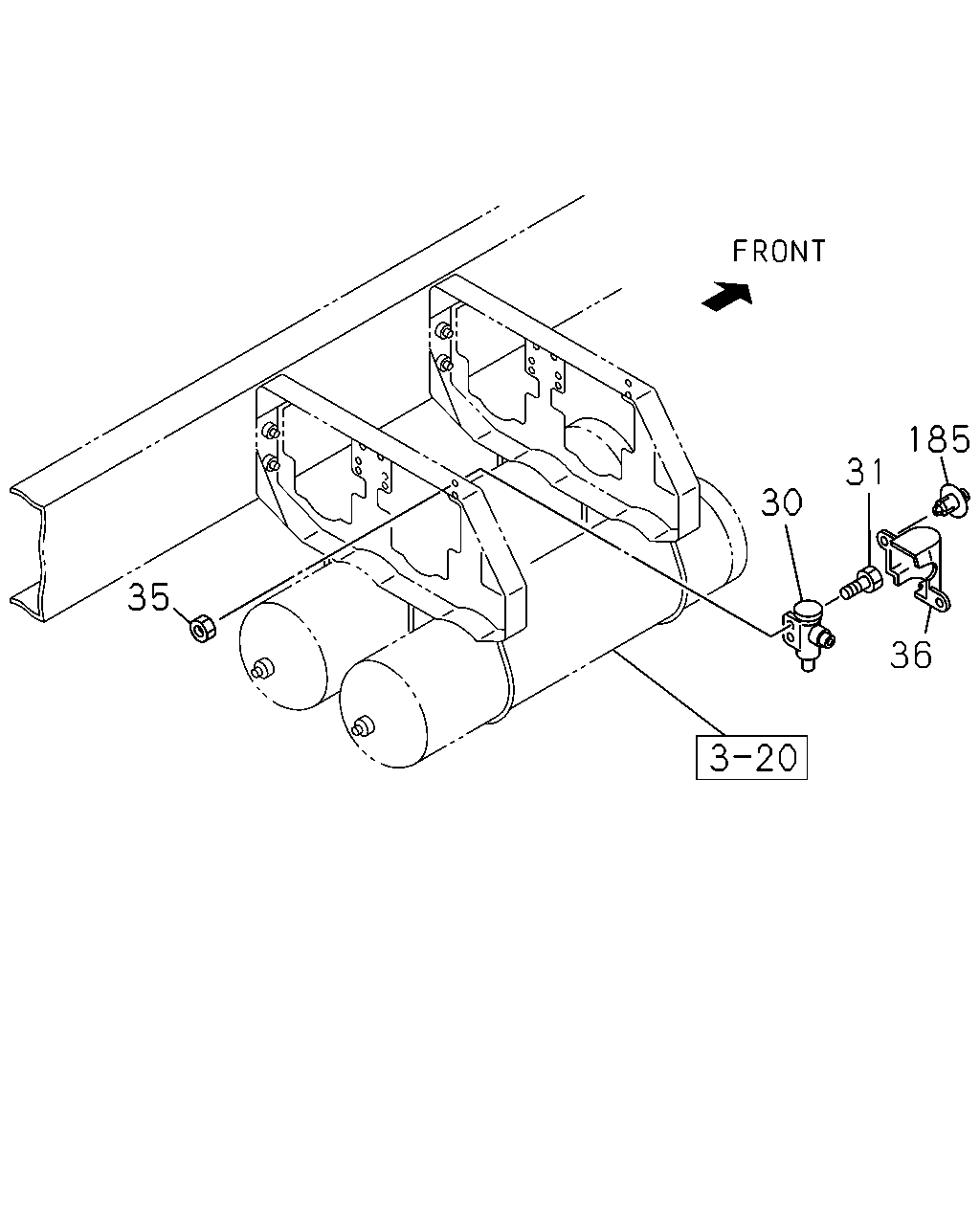

30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9811-0201
30	GOVERNOR; AIR CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48350-059-0	01	1	0202-
30	GOVERNOR; AIR CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48350-063-2	01	1	0202-
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9811-0512
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9811-0602
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
36	COVER; GOV	1-48359-081-0	01	1	9811-0201
36	COVER; GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48359-081-0	01	1	0202-
185	FASTENER; COVER	1-09470-006-0	02	1	9811-0201
185	FASTENER; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09470-006-0	02	1	0202-

12 12 2 9 12 52 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

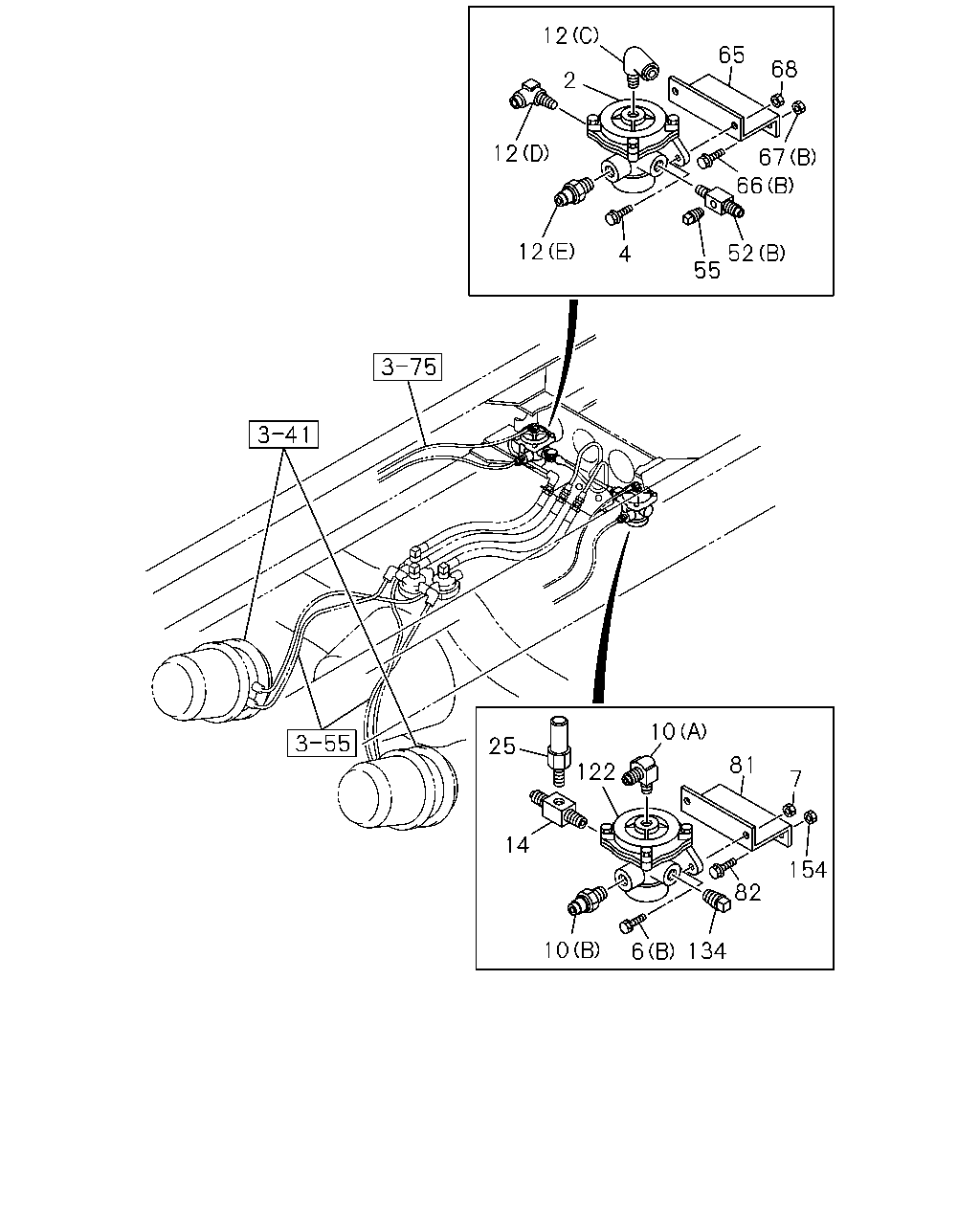

2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	02	1	0202-
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	02	1	0202-0512
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28651-030-0	02	1	0601-
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	0202-0602
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16	1-09650-245-1	02	1	0202-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0202-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0202-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0202-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0202-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09656-476-0	01	1	0202-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0202-

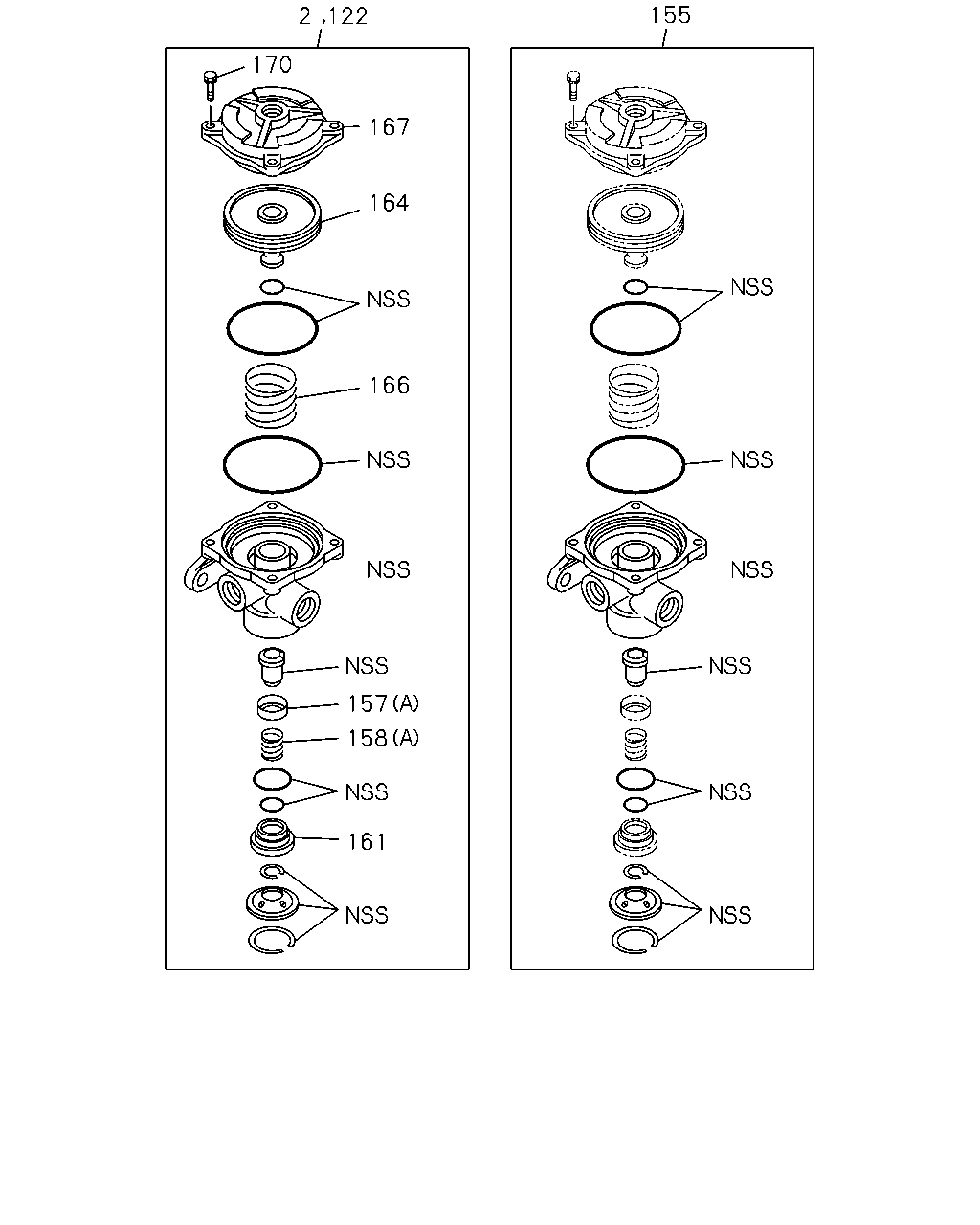

12 65 68 2 12 67 66 12 52 55 4 10 25 81 122 7 14 154 82 10 134 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	02	1	0202-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	02	1	0202-0512
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28651-030-0	02	1	0601-
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28680-825-0	04	1	0202-0512
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X30 FLANGE	0-28681-030-0	02	1	0202-0512
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	0202-0602
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0202-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0202-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16	1-09650-245-1	02	1	0202-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0202-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0202-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0202-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0202-
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09656-476-0	01	1	0202-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82410-163-1	01	1	0202-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09656-476-0	01	1	0202-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0202-
55	PLUG; SUPPLY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/4	9-99204-513-0	01	1	0202-
65	BRACKET; RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-964-0	01	1	0202-
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28680-825-0	02	1	0202-0512
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28681-025-0	02	1	0202-0512
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	02	1	0202-0602
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	02	1	0603-
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10 FLANGE	0-91150-210-0	02	1	0202-0602
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10 FLANGE	0-91180-210-0	02	1	0603-
68	NUT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	0202-0602
68	NUT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-
81	BRACKET; RELAY VLV,PARKING BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-964-0	01	1	0202-
82	BOLT; BRKT,RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28681-025-0	02	1	0202-0512
82	BOLT; BRKT,RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28651-025-0	02	1	0601-
122	VALVE ASM; CONT,WHEEL PARKING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0202-
134	PLUG; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/2	9-09204-521-0	01	1	0202-
154	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	0202-0602
154	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-

240 241 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

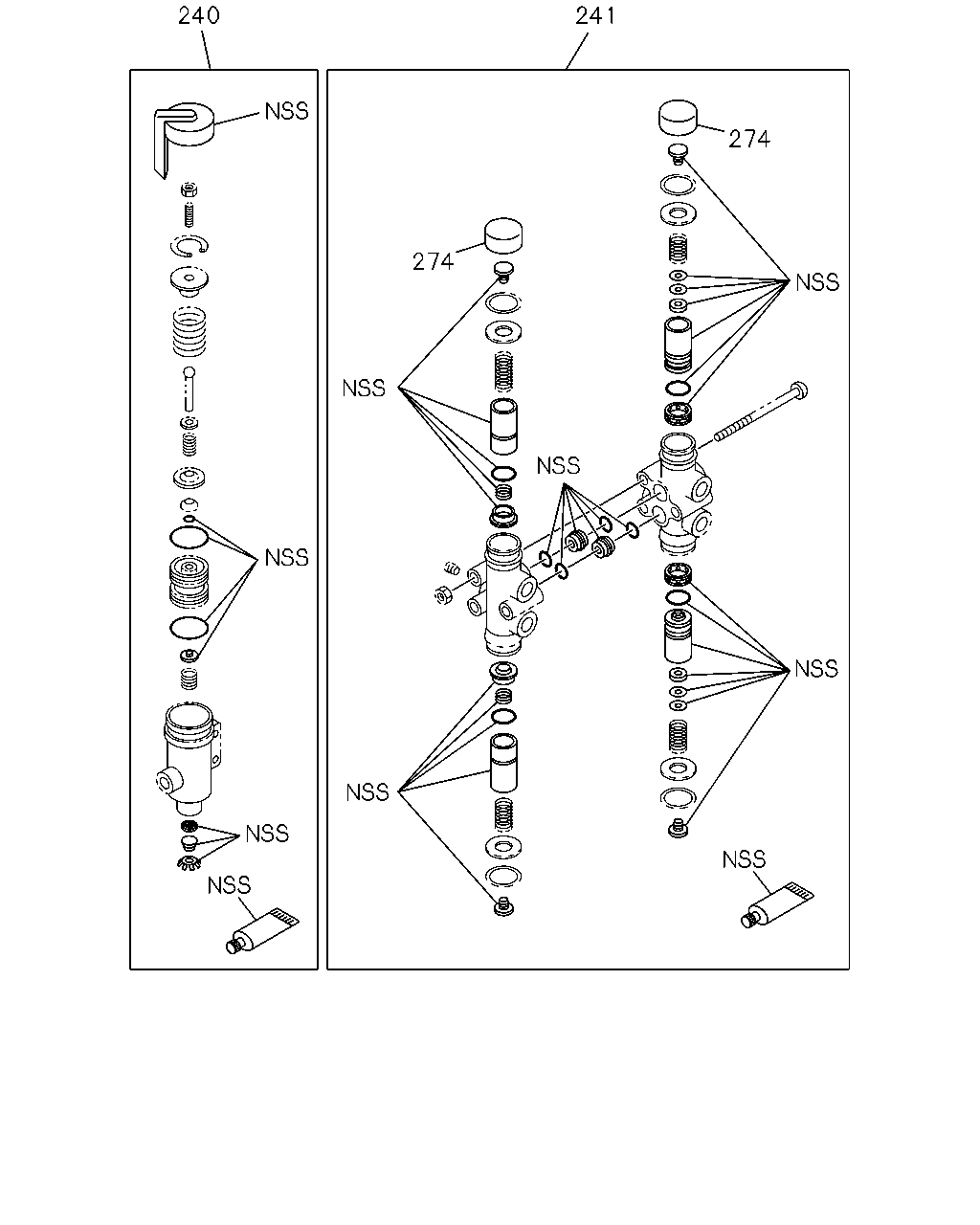

240	REPAIR KIT; AIR CONT GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-466-0	01	1	0204-
240	REPAIR KIT; AIR CONT GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-467-0	01	1	0204-
240	REPAIR KIT; AIR CONT GOV	1-85576-207-0	01	1	9811-0201
240	REPAIR KIT; AIR CONT GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-207-0	01	1	0202-0203
240	REPAIR KIT; AIR CONT GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-303-0	01	1	0202-0203
241	REPAIR KIT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-224-0	01	1	0204-
274	COVER; DUST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48119-450-0	02	1	0204-

34 31 38 33 93 30 35 93 99 105 103 104 274 274 29 224 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

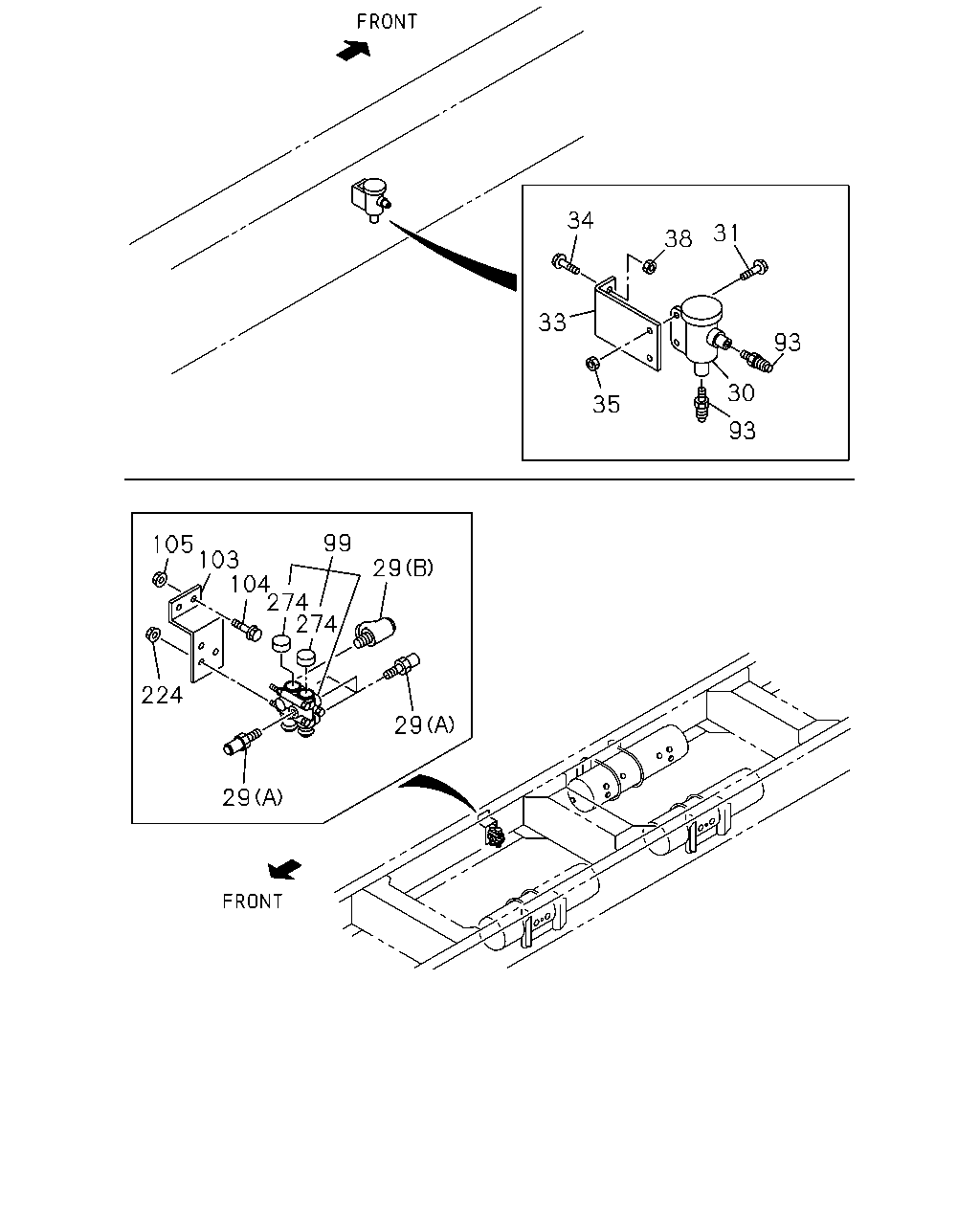

29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0202-
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0202-
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9811-0201
30	GOVERNOR; AIR CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48350-059-0	01	1	0202-
30	GOVERNOR; AIR CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48350-063-2	01	1	0202-
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9811-0512
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-
33	BRACKET; GOV,AIR CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48359-106-1	01	1	0202-
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	0202-0512
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	0601-
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9811-0602
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
38	NUT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0202-0602
38	NUT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-
93	CONNECTOR; GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0202-
99	VALVE; PROTECTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48110-135-5	01	1	0202-
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47478-694-0	01	1	0202-
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	0202-0512
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	0601-
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0202-0602
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-
224	NUT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	0202-0602
224	NUT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	03	1	0603-
274	COVER; DUST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48119-450-0	02	1	0204-
