Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#24305) — 316 parça

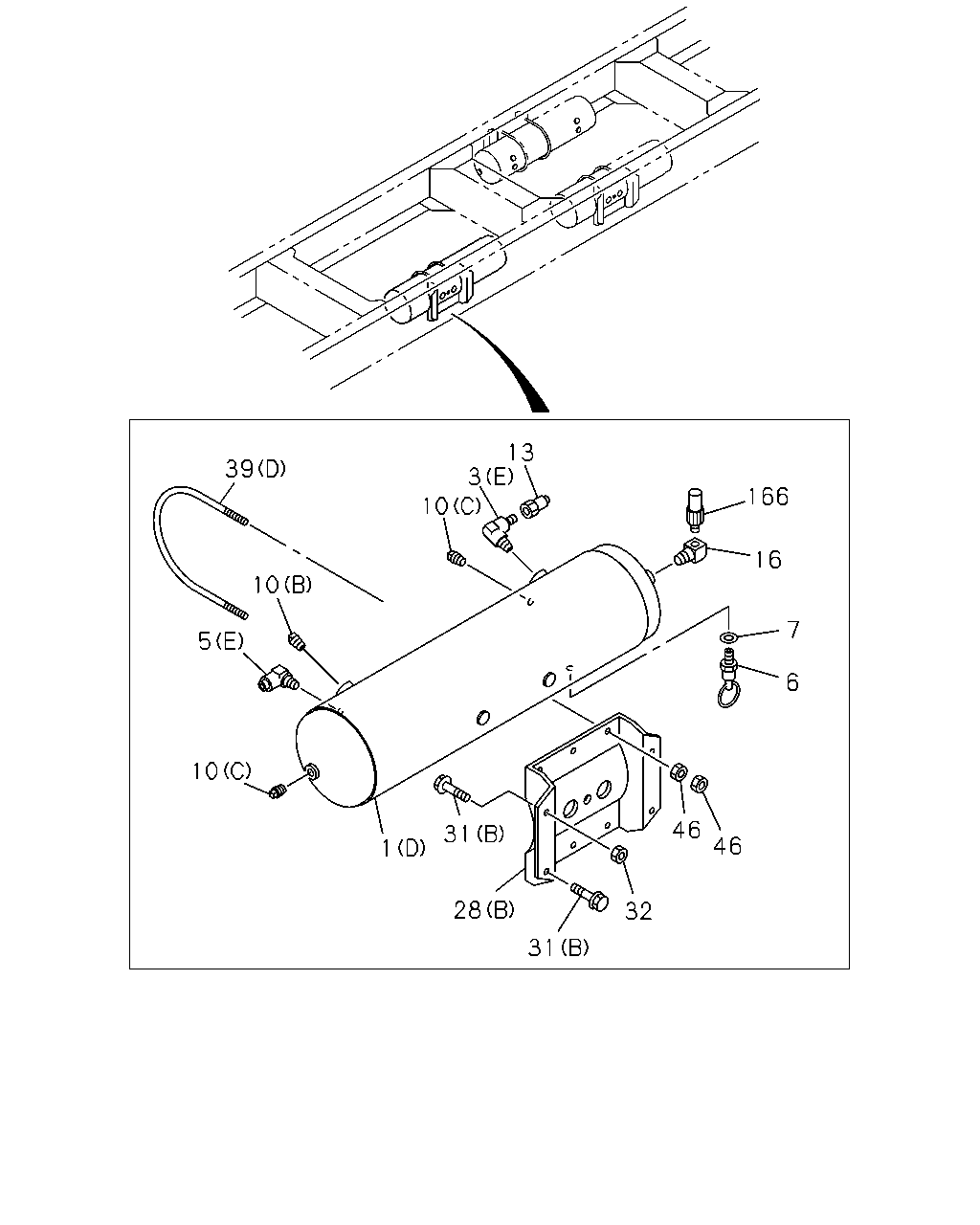

46 46 166 28 16 1 32 10 31 3 5 13 31 39 10 5 10 5 166 7 16 6 3 39 7 13 6 5 28 46 46 32 31 10 1 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9811-0201
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48330-598-0	01	1	0202-
1	TANK ASM; AIR (B)	1-48370-299-0	01	1	9811-0201
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-299-0	01	1	0202-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48371-151-0	01	1	0202-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48371-152-0	03	1	0202-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	9811-0201
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4	1-48410-136-3	01	1	0202-
3	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9811-0201
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	01	1	0202-
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9811-0201
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0202-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0202-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0202-
5	UNION; AIR TANK (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9811-0201
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0202-
5	UNION; AIR TANK (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9811-
5	UNION; AIR TANK (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9811-0201
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0202-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0202-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0202-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9811-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9811-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	06	1	9811-0201
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT1/4	9-99204-513-0	06	1	0202-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT3/8	9-09204-517-0	08	1	0202-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/4	9-09204-526-0	03	1	0202-
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0202-
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0202-
28	BRACKET; AIR TANK (A)	1-53318-338-6	02	1	9811-0201
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-338-6	02	1	0202-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48317-324-2	02	1	0202-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-441-0	03	1	0202-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-871-1	02	1	0202-
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28681-025-0	12	1	0202-0512
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28651-025-0	12	1	0601-
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X35 FLANGE	0-28681-235-0	04	1	0202-0512
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X35 FLANGE	0-28651-235-0	04	1	0601-
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91150-212-0	04	1	0202-0602
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91180-212-0	04	1	0603-
39	U-BOLT; AIR TANK (A) L=97.5	1-48317-323-1	02	1	9811-0201
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	0202-
39	U-BOLT; AIR TANK (B) L=195	1-48317-367-2	02	1	9811-0201
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	0202-
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=250	1-48317-308-0	02	1	0202-
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=210	1-48317-458-1	06	1	0202-
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	32	1	0202-0305
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	32	1	0306-0512
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	32	1	0601-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	9811-0201
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-1	01	1	0202-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-1	03	1	0202-

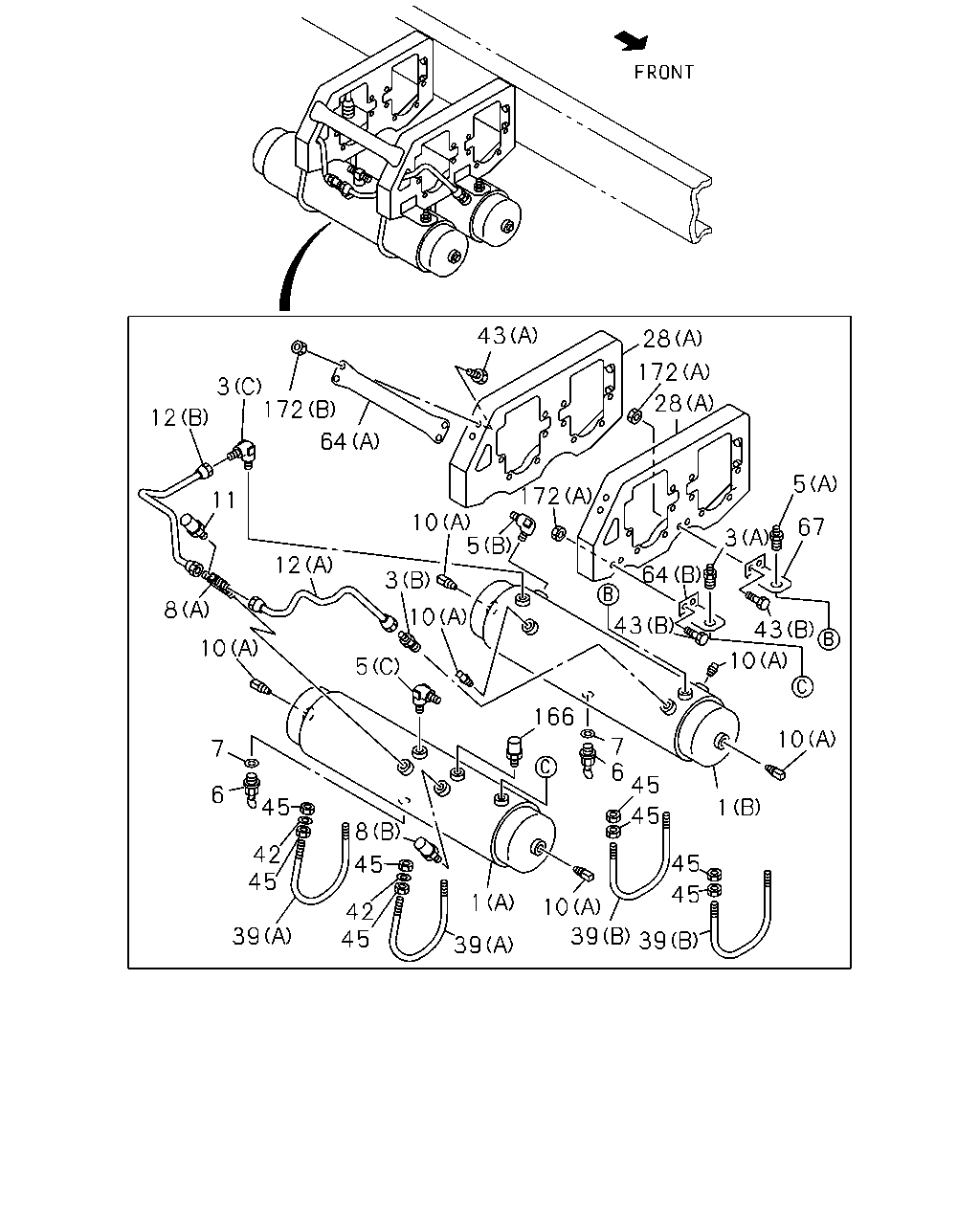

43 28 172 3 172 28 12 64 172 5 11 10 5 67 3 64 12 3 43 8 10 43 10 10 5 166 10 7 6 45 7 6 45 1 45 8 42 45 45 45 45 1 10 39 39 42 45 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9811-0201
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48330-598-0	01	1	0202-
1	TANK ASM; AIR (B)	1-48370-299-0	01	1	9811-0201
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-299-0	01	1	0202-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48371-151-0	01	1	0202-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48371-152-0	03	1	0202-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	9811-0201
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4	1-48410-136-3	01	1	0202-
3	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9811-0201
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	01	1	0202-
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9811-0201
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0202-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0202-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0202-
5	UNION; AIR TANK (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9811-0201
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0202-
5	UNION; AIR TANK (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9811-
5	UNION; AIR TANK (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9811-0201
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0202-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0202-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0202-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9811-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9811-
8	CONNECTOR; AIR TANK (B)	1-09650-283-1	01	1	9811-0201
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09650-283-1	01	1	0202-
8	CONNECTOR; AIR TANK (A)	1-09656-699-0	01	1	9811-0201
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09656-699-0	01	1	0202-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	06	1	9811-0201
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT1/4	9-99204-513-0	06	1	0202-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT3/8	9-09204-517-0	08	1	0202-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/4	9-09204-526-0	03	1	0202-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9811-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-011-0	01	1	9811-0201
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47497-011-0	01	1	0202-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-012-0	01	1	9811-0201
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47497-012-0	01	1	0202-
28	BRACKET; AIR TANK (A)	1-53318-338-6	02	1	9811-0201
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-338-6	02	1	0202-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48317-324-2	02	1	0202-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-441-0	03	1	0202-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-871-1	02	1	0202-
39	U-BOLT; AIR TANK (A) L=97.5	1-48317-323-1	02	1	9811-0201
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	0202-
39	U-BOLT; AIR TANK (B) L=195	1-48317-367-2	02	1	9811-0201
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	0202-
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=250	1-48317-308-0	02	1	0202-
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=210	1-48317-458-1	06	1	0202-
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	9811-0201
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	04	1	0202-0605
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	0-91610-608-0	04	1	0606-
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	04	1	9811-0201
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28680-820-0	04	1	0202-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28681-025-0	04	1	9811-0201
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28681-025-0	04	1	0202-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE	0-28680-820-0	02	1	0202-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	16	1	9811-0201
45	NUT; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	16	1	0202-0512
45	NUT; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	16	1	0601-
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	9811-0201
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	0202-
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	9811-0201
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	0202-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-907-0	01	1	0202-
67	STAY; SUB TANK	1-48317-349-0	01	1	9811-0201
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	0202-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	9811-0201
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-1	01	1	0202-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-1	03	1	0202-
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	04	1	9811-0201
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91150-108-0	04	1	0202-0602
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91180-108-0	04	1	0603-
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	9811-0201
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10 FLANGE	0-91150-210-0	04	1	0202-0602
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10 FLANGE	0-91180-210-0	04	1	0603-

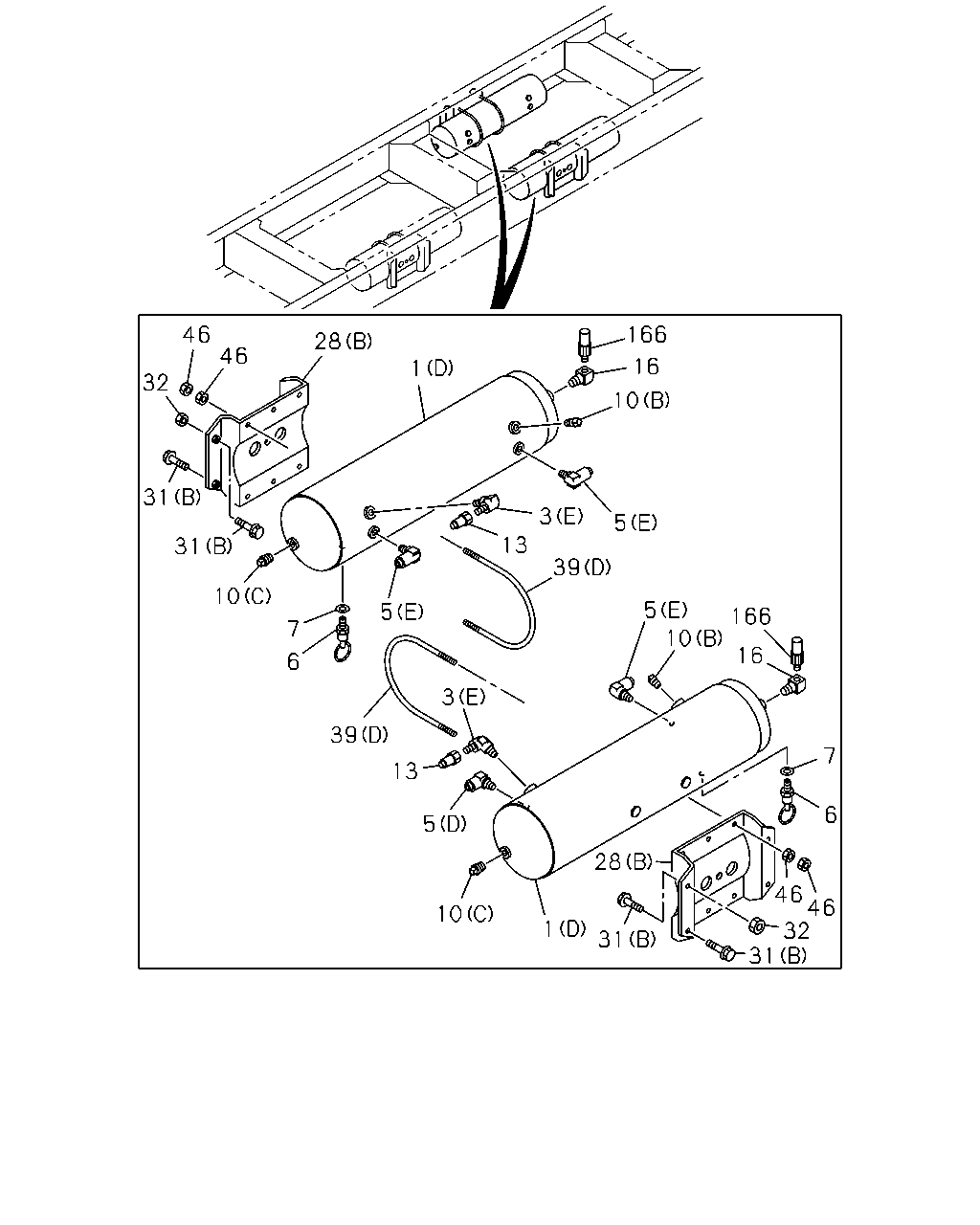

13 3 10 39 166 16 10 7 5 6 10 46 31 46 1 28 32 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9811-0201
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48330-598-0	01	1	0202-
1	TANK ASM; AIR (B)	1-48370-299-0	01	1	9811-0201
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-299-0	01	1	0202-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48371-151-0	01	1	0202-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48371-152-0	03	1	0202-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	9811-0201
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4	1-48410-136-3	01	1	0202-
3	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9811-0201
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	01	1	0202-
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9811-0201
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0202-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0202-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0202-
5	UNION; AIR TANK (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9811-0201
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0202-
5	UNION; AIR TANK (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9811-
5	UNION; AIR TANK (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9811-0201
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0202-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0202-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0202-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9811-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9811-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	06	1	9811-0201
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT1/4	9-99204-513-0	06	1	0202-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT3/8	9-09204-517-0	08	1	0202-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/4	9-09204-526-0	03	1	0202-
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0202-
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0202-
28	BRACKET; AIR TANK (A)	1-53318-338-6	02	1	9811-0201
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-338-6	02	1	0202-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48317-324-2	02	1	0202-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-441-0	03	1	0202-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-871-1	02	1	0202-
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28681-025-0	12	1	0202-0512
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28651-025-0	12	1	0601-
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X35 FLANGE	0-28681-235-0	04	1	0202-0512
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X35 FLANGE	0-28651-235-0	04	1	0601-
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91150-212-0	04	1	0202-0602
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91180-212-0	04	1	0603-
39	U-BOLT; AIR TANK (A) L=97.5	1-48317-323-1	02	1	9811-0201
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	0202-
39	U-BOLT; AIR TANK (B) L=195	1-48317-367-2	02	1	9811-0201
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	0202-
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=250	1-48317-308-0	02	1	0202-
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=210	1-48317-458-1	06	1	0202-
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	32	1	0202-0305
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	32	1	0306-0512
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	32	1	0601-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	9811-0201
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-1	01	1	0202-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-1	03	1	0202-

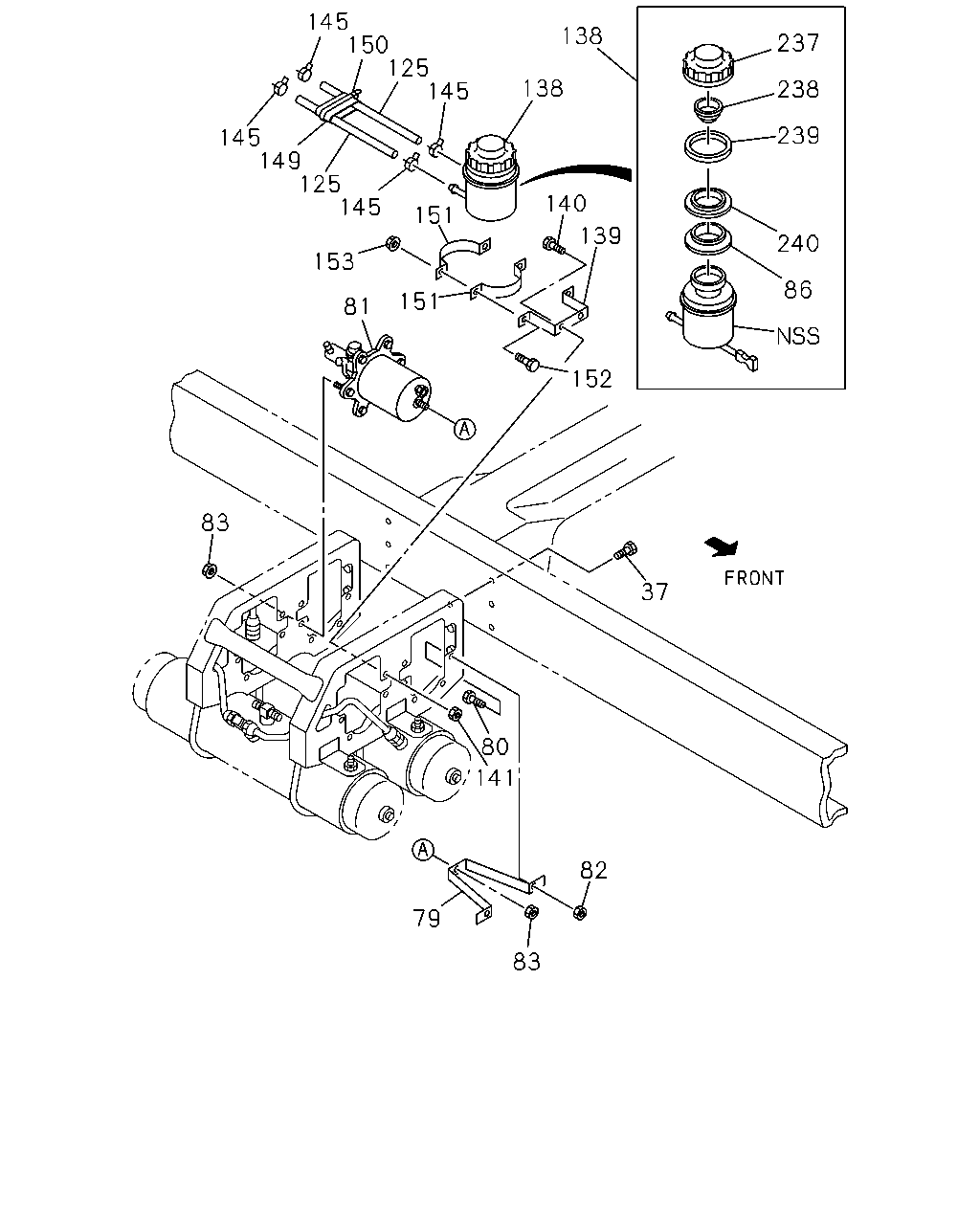

145 150 125 145 138 237 138 238 239 145 149 125 145 140 151 139 240 153 86 151 81 152 83 37 80 141 82 79 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	9811-0201
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28681-240-0	06	1	0202-0512
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	0601-
79	STAY; AIR MASTER TO BRKT H=203	1-53318-217-0	02	1	9811-0201
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H=203	1-53318-217-0	02	1	0202-
80	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	9811-0201
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	04	1	0202-0512
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	04	1	0601-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28681-025-0	04	1	0202-0512
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28651-025-0	04	1	0601-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-468-1	01	1	9811-0201
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SECONDARY	1-47800-468-1	01	1	0202-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-469-1	01	1	9811-0201
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PRIMARY	1-47800-469-1	01	1	0202-
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	9811-0201
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	04	1	0202-0602
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	04	1	0603-
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0202-0602
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	9811-0201
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	10	1	0202-0602
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	10	1	0603-
86	SEAL; DUST	1-47529-019-0	01	1	9811-0201
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	0202-
125	HOSE; OIL TANK TO AIR MASTER L=325 SERVICED BY L=1800	1-09360-320-0	02	1	9811-0201
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=325 SERVICED BY L=1800	1-09360-320-0	02	1	0202-
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	9811-0011
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0201
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-184-0	01	1	0202-0206
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-185-1	01	1	0207-
139	BRACKET; OIL TANK	1-47537-081-2	01	1	9811-0201
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-081-2	01	1	0202-
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE	0-28681-025-0	02	1	9811-0201
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28681-025-0	02	1	0202-0512
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	02	1	0601-
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	9811-0201
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	0202-0602
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	02	1	0603-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9811-0201
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	0202-
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9811-0201
149	SLEEVE; RUBBER,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=23 OD=27 L=40	1-09337-015-0	01	1	0202-
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	9811-0201
150	CLIP; BAND,RUBBER SLEEVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=140	5-09707-031-1	01	1	0202-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9811-0201
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-056-2	02	1	0202-
152	BOLT; OIL TANK TO BAND M8X25 FLANGE	0-28680-825-0	02	1	9811-0201
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	0202-0512
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	0601-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9811-0201
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0202-0602
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-
237	CAP; OIL TANK	1-47525-024-0	01	1	9811-0011
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-0201
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-030-0	01	1	0202-
238	PLATE; BAFFLE	1-47529-022-0	01	1	9811-0201
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	0202-
239	FILTER; DUST	1-47529-017-0	01	1	9811-0201
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	0202-
240	HOLDER; FILTER	1-47529-018-0	01	1	9811-0201
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	0202-

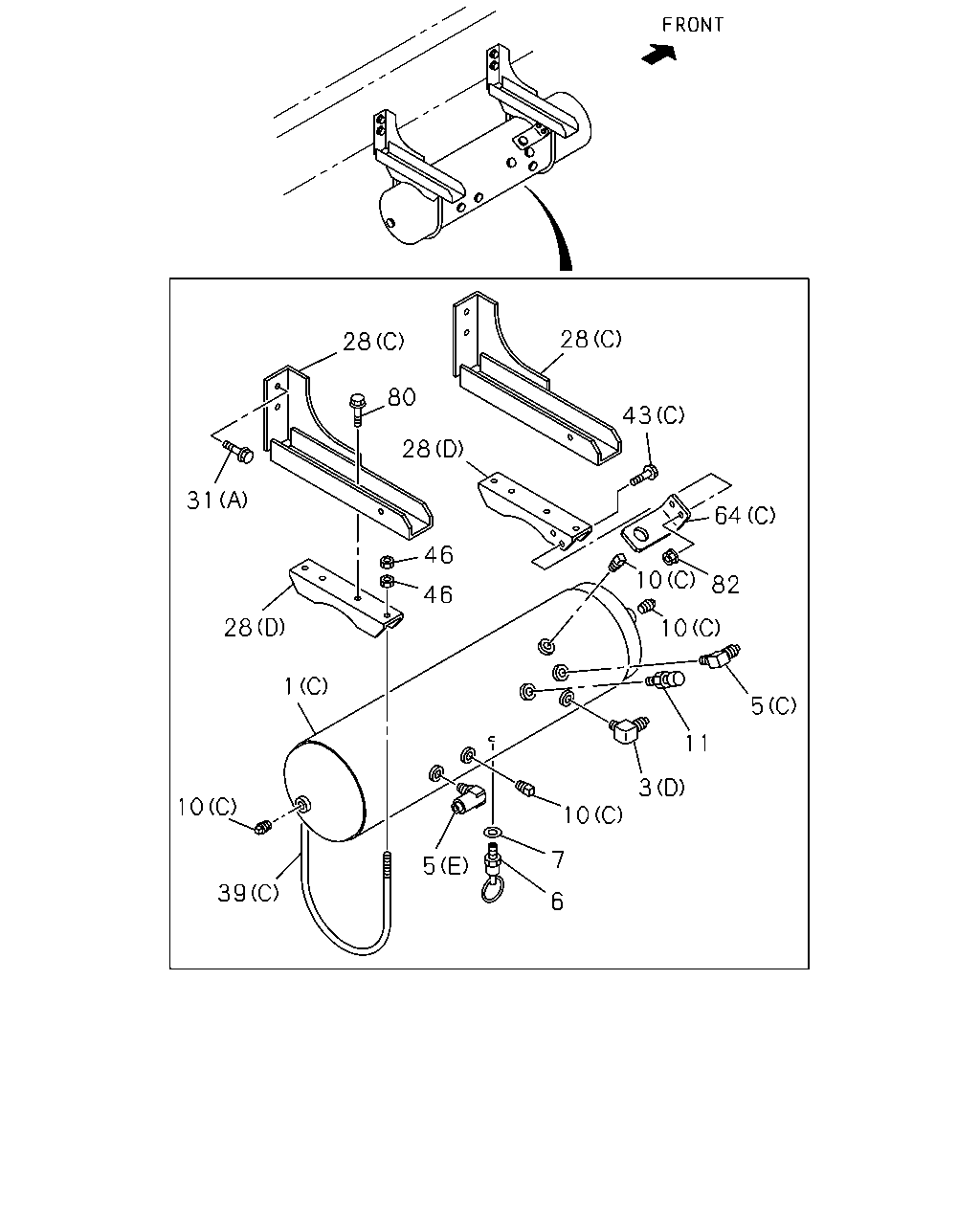

28 28 80 43 28 31 64 46 10 82 46 28 10 1 5 11 3 10 10 7 5 39 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9811-0201
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48330-598-0	01	1	0202-
1	TANK ASM; AIR (B)	1-48370-299-0	01	1	9811-0201
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-299-0	01	1	0202-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48371-151-0	01	1	0202-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48371-152-0	03	1	0202-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	9811-0201
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4	1-48410-136-3	01	1	0202-
3	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9811-0201
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	01	1	0202-
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9811-0201
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0202-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0202-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0202-
5	UNION; AIR TANK (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9811-0201
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0202-
5	UNION; AIR TANK (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9811-
5	UNION; AIR TANK (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9811-0201
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0202-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0202-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0202-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9811-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9811-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	06	1	9811-0201
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT1/4	9-99204-513-0	06	1	0202-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT3/8	9-09204-517-0	08	1	0202-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/4	9-09204-526-0	03	1	0202-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9811-
28	BRACKET; AIR TANK (A)	1-53318-338-6	02	1	9811-0201
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-338-6	02	1	0202-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48317-324-2	02	1	0202-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-441-0	03	1	0202-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-871-1	02	1	0202-
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28681-025-0	12	1	0202-0512
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28651-025-0	12	1	0601-
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X35 FLANGE	0-28681-235-0	04	1	0202-0512
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X35 FLANGE	0-28651-235-0	04	1	0601-
39	U-BOLT; AIR TANK (A) L=97.5	1-48317-323-1	02	1	9811-0201
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	0202-
39	U-BOLT; AIR TANK (B) L=195	1-48317-367-2	02	1	9811-0201
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	0202-
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=250	1-48317-308-0	02	1	0202-
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=210	1-48317-458-1	06	1	0202-
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	04	1	9811-0201
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28680-820-0	04	1	0202-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28681-025-0	04	1	9811-0201
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28681-025-0	04	1	0202-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE	0-28680-820-0	02	1	0202-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	32	1	0202-0305
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	32	1	0306-0512
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	32	1	0601-
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	9811-0201
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	0202-
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	9811-0201
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	0202-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-907-0	01	1	0202-
80	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	9811-0201
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	04	1	0202-0512
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	04	1	0601-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28681-025-0	04	1	0202-0512
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28651-025-0	04	1	0601-
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	9811-0201
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	04	1	0202-0602
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	04	1	0603-
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0202-0602
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-

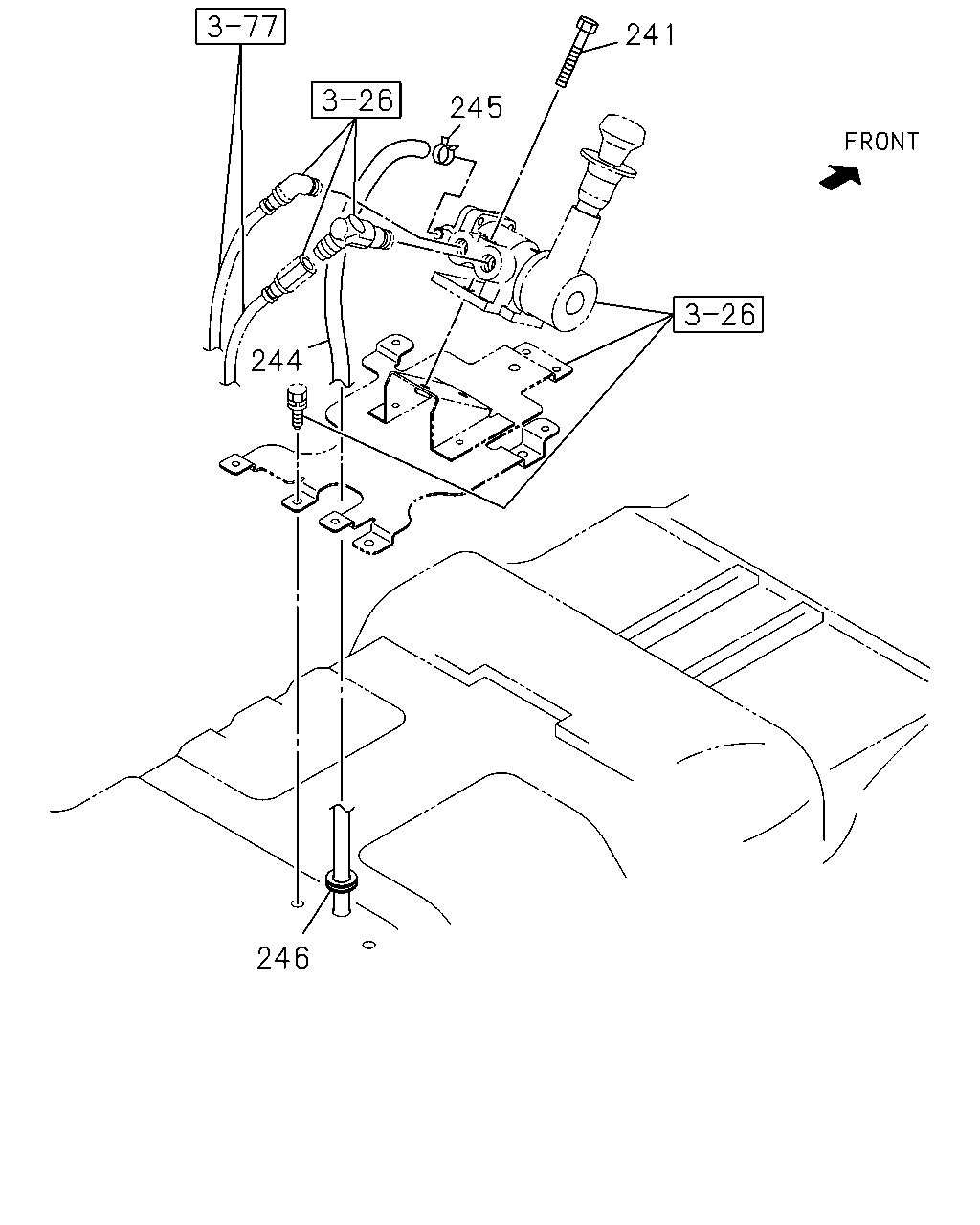

241 245 244 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	BOLT; SET,CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X70 FLANGE	0-28080-870-0	02	1	0202-0512
241	BOLT; SET,CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X70 FLANGE	0-28050-870-0	02	1	0601-
244	PIPE; VINYL,EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350 SERVICED BY L=10000	9-09914-701-0	01	1	0202-
245	CLIP; VINYL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	8-94238-572-0	01	1	0202-
246	GROMMET; VINYL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=24	9-61166-007-0	01	1	0202-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
