3-11 — PARKING BRAKE CONTROL (#24304) — 63 parça

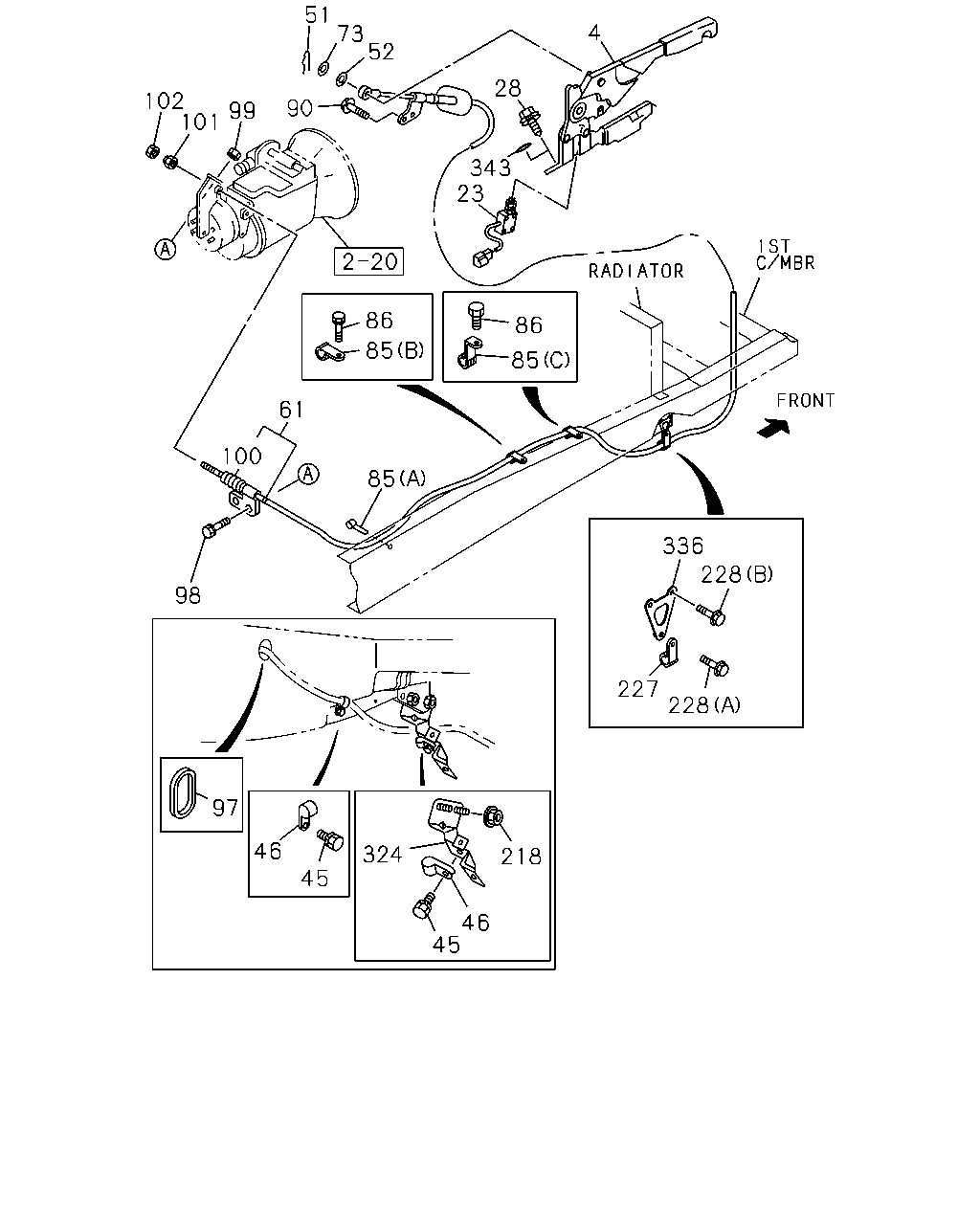

çizim 80998
51 4 73 52 28 102 101 90 99 343 23 86 86 85 85 61 100 85 336 228 98 227 228 97 46 324 218 45 46 45
BalonParca AdiParca NoAdetTipApplied Date
4 STEM; PARKING BRK 1-79996-423-0 01 1 9811-9910
4 STEM; PARKING BRK 1-79996-485-0 01 1 9911-9911
4 STEM; PARKING BRK 1-79996-505-0 01 1 9912-0102
4 STEM; PARKING BRK 1-79996-565-0 01 1 0103-0201
4 STEM; PARKING BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-79996-565-0 01 1 0202-
23 SWITCH; PARKING BRK 1-82440-100-0 01 1 9811-0201
23 SWITCH; PARKING BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82440-100-0 01 1 0202-
28 BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9811-0201
28 BOLT; HAND BRK LEVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0202-
45 BOLT; CABLE TO FLOOR
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9811-0201
45 BOLT; CABLE TO FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0202-
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		9-09525-535-0 02 1 9811-0201
46 CLIP; FRT CABLE TO FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16 L=20 		9-09525-535-0 02 1 0202-0606
46 CLIP; FRT CABLE TO FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16 L=20 		0-95235-535-0 02 1 0607-
51 PIN; JOINT,RELAY LEVER 1-09987-243-1 01 1 9811-0201
51 PIN; JOINT,RELAY LEVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-09987-243-1 01 1 0202-
52 WASHER; CURVED RELAY LEVER
ID=19 		8-94206-429-1 02 1 9811-0201
52 WASHER; CURVED RELAY LEVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=19 		8-94206-429-1 02 1 0202-
61 CABLE; PARKING BRK
L=5294 		1-46151-782-0 01 1 9811-9910
61 CABLE; PARKING BRK
L=5294 		1-79996-468-0 01 1 9911-0201
61 CABLE; PARKING BRK
BUS BODY FRONT OVERHANG VAR1<YK9> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=5294 		1-79996-468-0 01 1 0202-
73 WASHER; PL,CABLE
ID=17 		9-09160-516-0 01 1 9811-0201
73 WASHER; PL,CABLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=17 		9-09160-516-0 01 1 0202-0605
73 WASHER; PL,CABLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=17 OD=30 		0-91610-516-0 01 1 0606-
85 CLIP; BRKT
(A) ID=15 L=65 		1-09700-466-0 02 1 9811-0201
85 CLIP; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15 L=65 		1-09700-466-0 02 1 0202-
85 CLIP; BRKT
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 9811-0201
85 CLIP; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=16 H=30 L=30 		1-09701-080-0 01 1 0202-
85 CLIP; BRKT
(B) ID=24 L=40 		1-09701-139-0 01 1 9811-0201
85 CLIP; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=24 L=40 		1-09701-139-0 01 1 0202-
86 BOLT
M8X25 FLANGE 		0-28680-825-0 02 1 9811-0201
86 BOLT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28680-825-0 02 1 0202-0512
86 BOLT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
90 BOLT; CABLE TO BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9811-0201
90 BOLT; CABLE TO BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0202-
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09983-078-0 01 1 0202-
98 BOLT; RR COVER
M10X30 FLANGE 		0-28681-030-0 02 1 9811-0201
98 BOLT; RR COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE 		0-28681-030-0 02 1 0202-0512
98 BOLT; RR COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
99 NUT; CONT CABLE
M10 FLANGE 		0-91150-210-0 02 1 9811-0201
99 NUT; CONT CABLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE 		0-91150-210-0 02 1 0202-0602
99 NUT; CONT CABLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE 		0-91180-210-0 02 1 0603-
100 BELLOWS; CONT WIRE 1-46159-004-0 01 1 9811-9910
100 BELLOWS; CONT WIRE 1-46159-034-0 01 1 9911-0201
100 BELLOWS; CONT WIRE
BUS BODY FRONT OVERHANG VAR1<YK9> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-46159-034-0 01 1 0202-
101 NUT; CABLE TO LEVER 1-46259-007-0 01 1 9811-0201
101 NUT; CABLE TO LEVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-46259-007-0 01 1 0202-
102 NUT; LK,CABLE TO LEVER
M8 FLANGE 		0-91150-108-0 01 1 9811-0201
102 NUT; LK,CABLE TO LEVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91150-108-0 01 1 0202-0602
102 NUT; LK,CABLE TO LEVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 01 1 0603-
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9811-
227 CLIP; RAD
ID=13 L=20 		9-09525-235-0 01 1 9811-0201
227 CLIP; RAD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=13 L=20 		9-09525-235-0 01 1 0202-0606
227 CLIP; RAD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=13 L=20 		0-95235-235-0 01 1 0607-
228 BOLT; CLIP RAD MTG
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9811-0201
228 BOLT; CLIP RAD MTG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0202-0512
228 BOLT; CLIP RAD MTG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
228 BOLT; CLIP RAD MTG
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9811-0201
228 BOLT; CLIP RAD MTG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0202-
324 BRACKET 1-79996-260-2 01 1 9811-
336 BRACKET; RADIATOR 1-36183-162-1 01 1 9811-0201
336 BRACKET; RADIATOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-36183-162-1 01 1 0202-
343 SEAL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 03 1 0202-
