◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#24303) — 54 parça

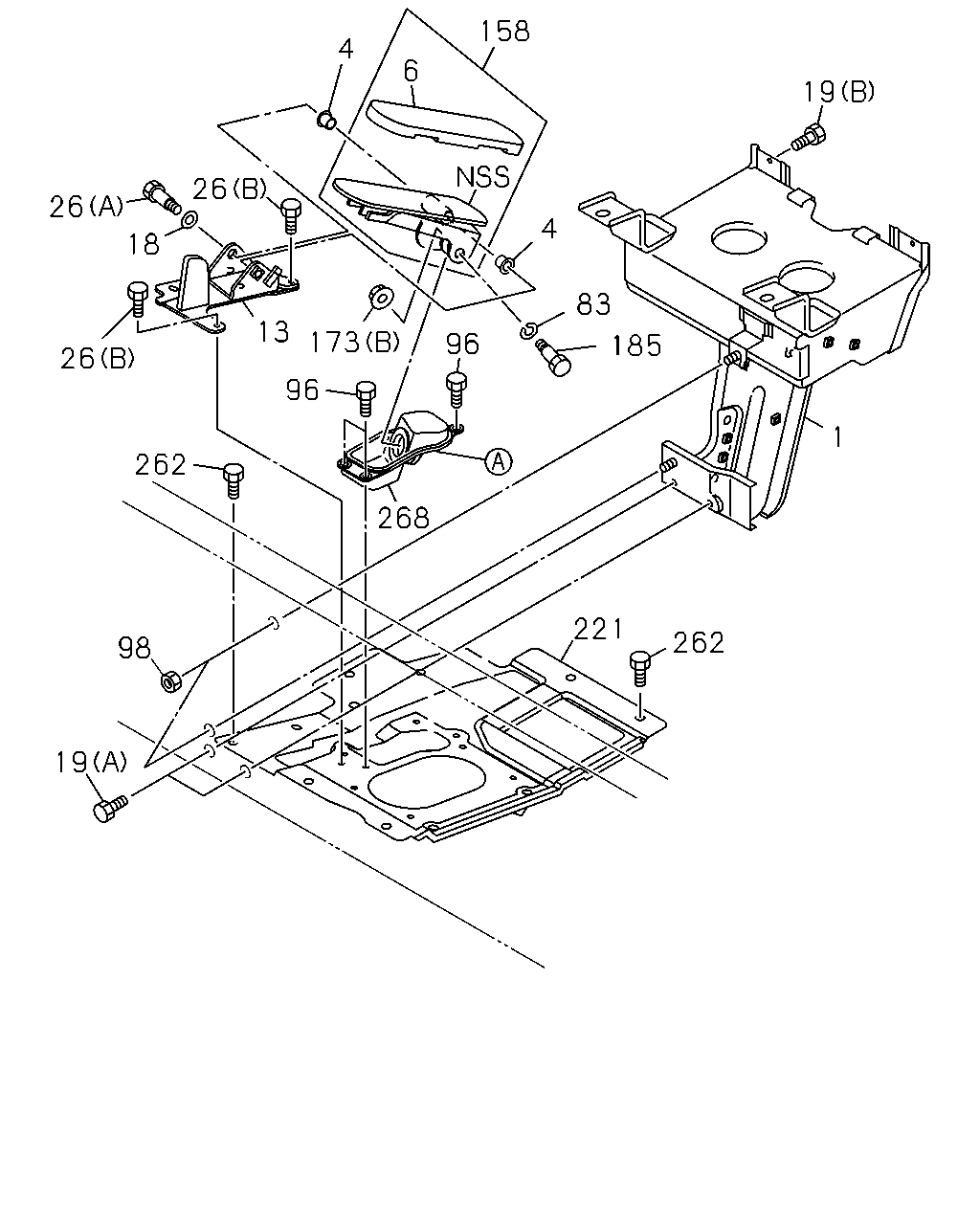

çizim 79727
158 4 6 19 26 26 4 18 83 13 173 96 185 26 96 1 262 268 221 262 98 19
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET ASM; PEDAL 1-73908-077-9 01 1 9811-
4 BUSHING; BRK PEDAL 1-73908-201-1 02 1 9811-
6 COVER; BRK PEDAL 1-48119-333-0 01 1 0204-
13 BRACKET; BRK PEDAL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-73908-069-6 01 1 0907-
13 BRACKET; BRK PEDAL 1-73908-203-1 01 1 9811-0906
13 BRACKET; BRK PEDAL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-73908-203-1 01 1 0907-
18 WASHER; PL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.5 		0-91614-512-0 01 1 0910-
18 WASHER; PL
ID=12.5 		9-09164-512-0 01 1 9811-0909
18 WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.5 		9-09164-512-0 01 1 0910-
19 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 9811-
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9811-0904
19 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0905-
26 BOLT; PEDAL
(A) 		1-09980-614-0 01 1 9811-
26 BOLT; PEDAL
(B) M6X25 		8-94279-204-0 02 1 9811-
83 WASHER; LK,BRKT
ID=14.2 		9-09150-814-0 01 1 9811-0603
83 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 01 1 0604-
96 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9811-
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9811-
158 PEDAL ASM; BRK 1-73908-068-5 01 1 9811-
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91150-110-0 01 1 9811-0201
173 NUT; JOINT LOCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 		9-99110-512-0 01 1 0202-0512
173 NUT; JOINT LOCK
(A) M12 		9-99110-412-0 01 1 9811-0201
173 NUT; JOINT LOCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 		9-99110-412-0 01 1 0202-0512
173 NUT; JOINT LOCK
(A) M12 		0-91110-512-0 01 1 0601-
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91150-110-0 01 1 0202-0602
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91180-110-0 01 1 0603-
185 BOLT; BRKT 1-73996-282-1 01 1 9811-
221 PLATE ASM; SIDE 1-73908-114-7 01 1 9811-
262 BOLT; PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9811-0904
262 BOLT; PLATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0905-
268 COVER; ROD 1-73908-192-1 01 1 9811-

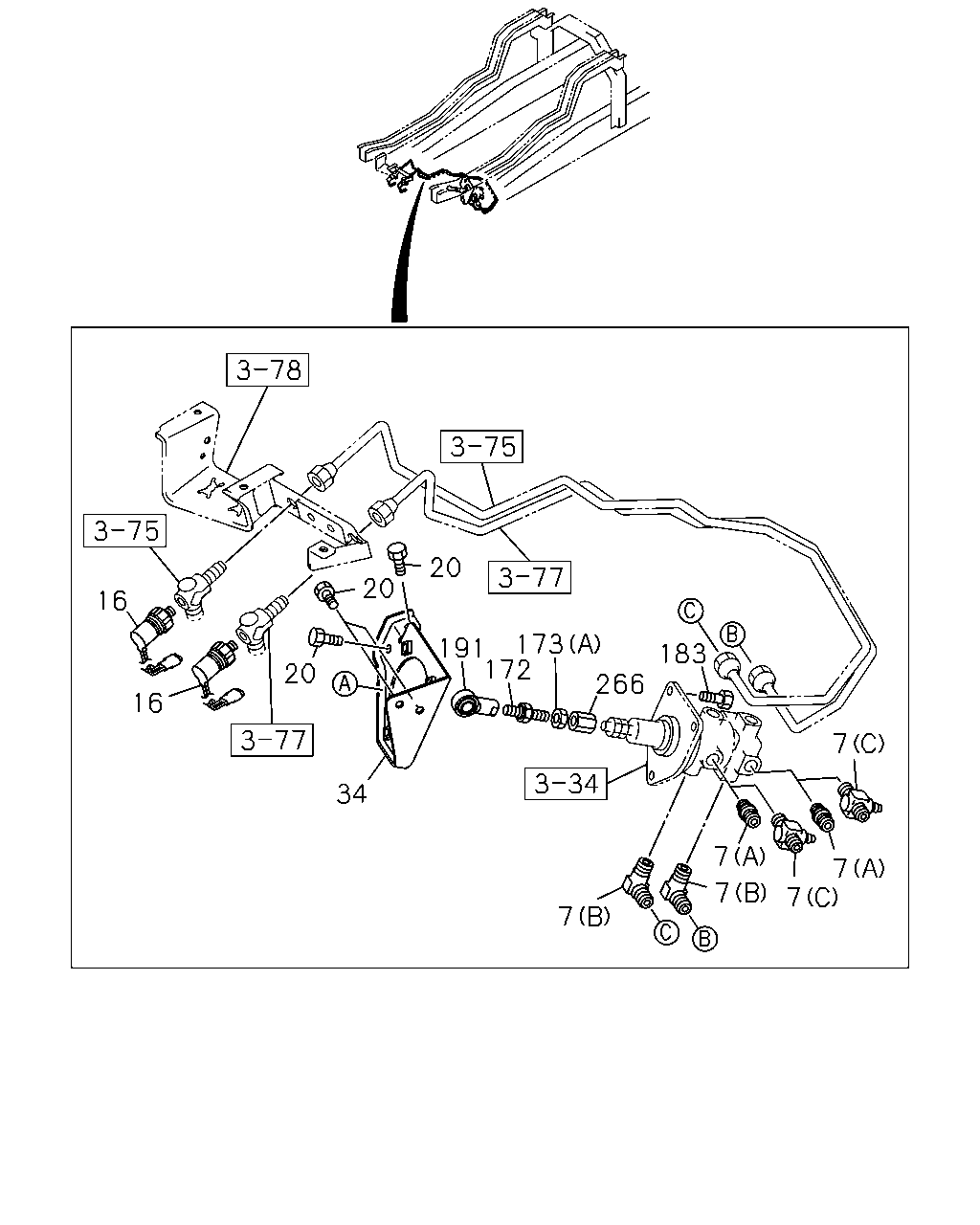

çizim 80160
20 20 16 191 173 172 183 20 266 7 16 7 34 7 7 7 7 7
BalonParca AdiParca NoAdetTipApplied Date
7 CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT 		1-09650-233-1 02 1 9811-0201
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 & PT3/8 STRAIGHT 		1-09650-233-1 02 1 0202-
7 CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 9811-0201
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-09656-701-0 02 1 0202-
7 CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0202-
16 SWITCH; STOP LAMP
GREEN 		1-82410-176-1 02 1 9811-
20 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
20 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9811-0904
20 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0905-
34 BRACKET ASM; BRK VLV 1-79738-808-3 01 1 9811-
172 JOINT; JAW,BRK PEDAL 1-73908-167-1 01 1 9811-
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91150-110-0 01 1 9811-0201
173 NUT; JOINT LOCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 		9-99110-512-0 01 1 0202-0512
173 NUT; JOINT LOCK
(A) M12 		9-99110-412-0 01 1 9811-0201
173 NUT; JOINT LOCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 		9-99110-412-0 01 1 0202-0512
173 NUT; JOINT LOCK
(A) M12 		0-91110-512-0 01 1 0601-
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91150-110-0 01 1 0202-0602
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91180-110-0 01 1 0603-
183 BOLT; BRK VLV
M10X25 W/LK WASHER 		1-09980-503-0 03 1 9811-
191 JOINT; BALL,PUSH ROD 1-47355-001-0 01 1 9811-
266 JOINT ROD 1-73908-166-3 01 1 9811-
