Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#24301) — 204 parça

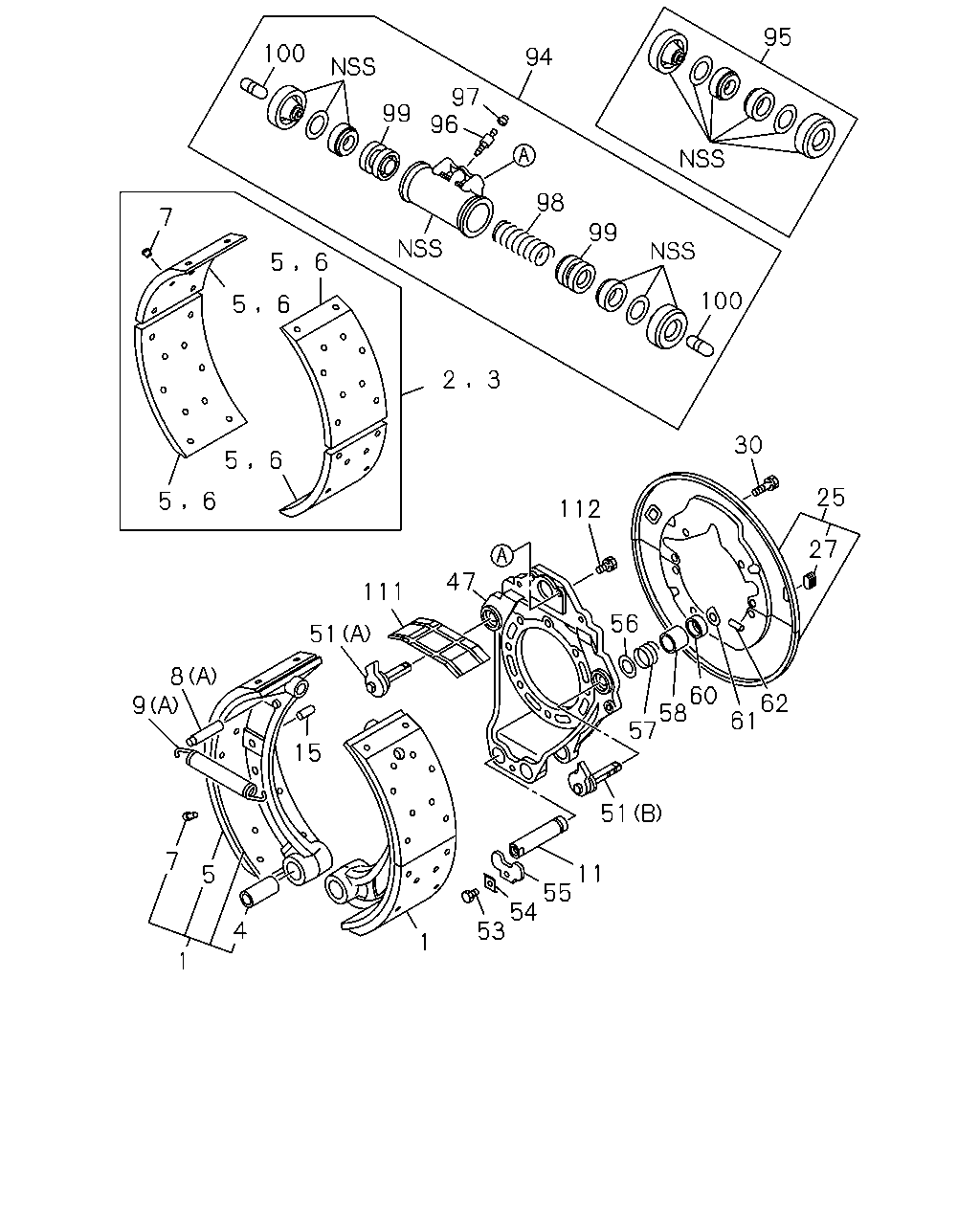

95 100 94 97 96 99 98 7 99 5 6 100 5 6 3 2 30 5 6 25 5 6 112 27 47 111 56 51 8 60 58 57 62 61 9 15 51 7 11 55 54 53 5 4 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR	1-47110-962-0	04	1	9811-0201
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47110-962-0	04	1	0202-0308
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47120-706-0	04	1	0309-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-715-0	01	1	0202-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-716-0	01	1	0202-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-713-0	01	1	0202-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-714-0	01	1	0202-
2	LINING SET; RR BRK,STANDARD	1-88302-956-0	02	1	9811-0201
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88302-956-0	02	1	0202-0308
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88310-495-0	02	1	0309-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-521-0	01	1	0202-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-523-0	01	1	0202-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BEST VALUE PARTS	1-87610-125-0	02	1	0309-
3	LINING SET; RR BRK,OVER SIZE	1-88310-001-0	02	1	9811-0201
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88310-001-0	02	1	0202-0308
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88310-496-0	02	1	0309-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-522-0	01	1	0202-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-524-0	01	1	0202-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-011-0	04	1	9811-0201
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	0202-
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47112-012-0	04	1	0202-
5	LINING; RR BRK SHOE,STANDARD	1-47115-867-0	08	1	9811-0201
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-867-0	08	1	0202-0308
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47125-811-0	08	1	0309-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-797-0	04	1	0202-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-799-0	04	1	0202-
6	LINING; RR BRK SHOE,OVER SIZE	1-47115-869-0	08	1	9811-0201
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-869-0	08	1	0202-0308
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47125-812-0	08	1	0309-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-798-0	04	1	0202-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-800-0	04	1	0202-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	80	1	9811-0201
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=18.5	1-09732-034-0	80	1	0202-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=18.5	1-09732-034-0	AR	1	0202-
8	PIN; RETURN SPRING,RR BRK SHOE (A) L=73.5	1-47119-017-1	04	1	9811-0201
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=73.5	1-47119-017-1	04	1	0202-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	04	1	0202-1209
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47119-029-0	04	1	0202-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-175-0	02	1	9811-1209
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09583-175-0	02	1	1210-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09583-196-0	02	1	0202-1209
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98219-175-0	02	1	1210-
11	PIN; ANCHOR,RR WHEEL BRK L=106.5	1-47131-038-0	04	1	9811-0201
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	0202-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=121.5	1-47131-039-0	04	1	0202-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK	1-47116-002-0	04	1	9811-0201
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47116-002-0	04	1	0202-
25	COVER SET; RR BRK DRUM	1-47151-458-1	02	1	9811-0201
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-458-1	02	1	0202-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	02	1	0202-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9811-
30	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X12	1-47159-187-0	12	1	1210-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9811-0906
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-1209
30	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 W/LK WASHER	0-50541-016-0	12	1	1210-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-112-3	02	1	9811-0201
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-112-4	02	1	0202-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK (A)	1-47165-058-1	02	1	9811-0201
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47165-058-1	02	1	0202-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK (B)	1-47165-059-1	02	1	9811-0201
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47165-059-1	02	1	0202-
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1210-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9811-0512
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-1209
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1210-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9811-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9811-
56	WASHER; ADJ CAM,RR WHEEL BRK	1-47169-033-0	04	1	9811-0201
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	04	1	0202-
57	SPRING; ADJ CAM,RR WHEEL BRK	1-47169-046-0	04	1	9811-0201
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-046-0	04	1	0202-
58	BOOT; ADJ CAM,RR WHEEL BRK	1-47169-034-0	04	1	9811-0201
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-034-0	04	1	0202-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK	1-47169-031-0	04	1	9811-0201
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-031-0	04	1	0202-
61	INDICATOR; WEAR,RR BRK SHOE	1-47169-032-1	04	1	9811-0201
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-032-1	04	1	0202-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK	1-47169-030-0	04	1	9811-0201
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-030-0	04	1	0202-
94	CYLINDER; WHEEL,RR BRK	1-47600-524-1	02	1	9811-0201
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-524-1	02	1	0202-
95	CUP SET; RR WHEEL CYL	1-87830-527-0	02	1	9811-0201
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-527-0	02	1	0202-
96	SCREW; BLEEDER,RR BRK L=66.5	1-47615-005-0	02	1	9811-0201
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=66.5	1-47615-005-0	02	1	0202-
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	9811-0201
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	0202-
98	SPRING; RR WHEEL CYL	1-09580-019-0	02	1	9811-0201
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-019-0	02	1	0202-
99	PISTON; RR WHEEL CYL	1-47624-302-0	04	1	9811-0201
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-302-0	04	1	0202-
100	ROD; PUSH,RR WHEEL CYL	1-47621-009-0	04	1	9811-0201
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-009-0	04	1	0202-
111	COVER; WHEEL CYL	1-47159-080-0	02	1	9811-0201
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-080-0	02	1	0202-
112	BOLT; WHEEL CYL SETTING M12X32 W/LK WASHER	0-50051-232-0	04	1	9811-0201
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X32 W/LK WASHER	0-50051-232-0	04	1	0202-0906
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X32 W/LK WASHER	0-50551-232-0	04	1	0907-

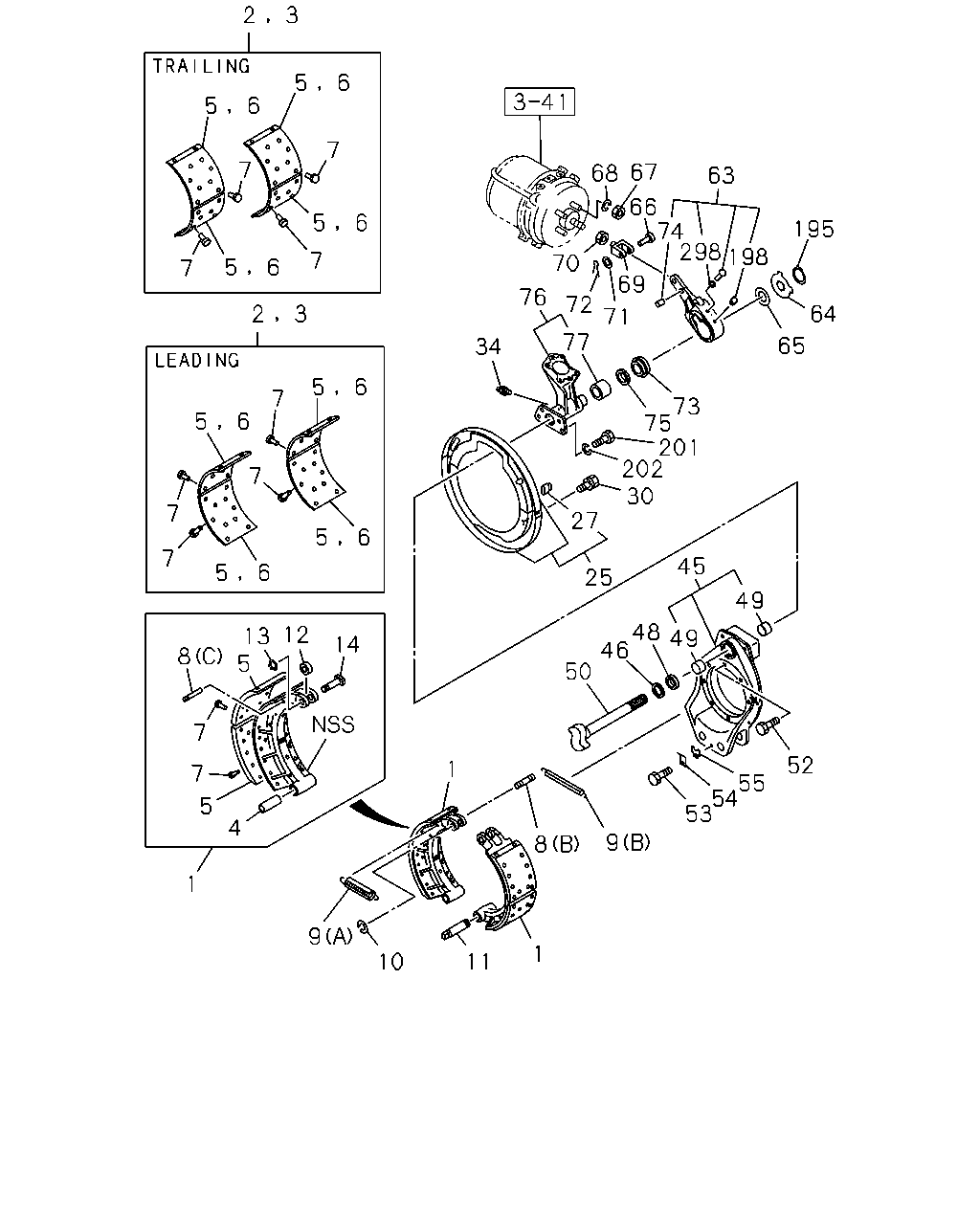

2 3 5 6 5 6 7 7 67 68 63 66 74 298 198 5 6 195 70 69 7 5 6 7 76 72 2 3 64 71 77 65 34 5 6 7 73 75 201 202 30 5 6 7 7 27 5 6 7 45 5 6 25 49 48 49 46 50 12 13 5 14 8 7 52 1 7 55 54 53 5 4 9 8 1 9 1 10 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR	1-47110-962-0	04	1	9811-0201
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47110-962-0	04	1	0202-0308
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47120-706-0	04	1	0309-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-715-0	01	1	0202-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-716-0	01	1	0202-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-713-0	01	1	0202-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-714-0	01	1	0202-
2	LINING SET; RR BRK,STANDARD	1-88302-956-0	02	1	9811-0201
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88302-956-0	02	1	0202-0308
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88310-495-0	02	1	0309-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-521-0	01	1	0202-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-523-0	01	1	0202-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BEST VALUE PARTS	1-87610-125-0	02	1	0309-
3	LINING SET; RR BRK,OVER SIZE	1-88310-001-0	02	1	9811-0201
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88310-001-0	02	1	0202-0308
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88310-496-0	02	1	0309-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-522-0	01	1	0202-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-524-0	01	1	0202-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-011-0	04	1	9811-0201
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	0202-
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47112-012-0	04	1	0202-
5	LINING; RR BRK SHOE,STANDARD	1-47115-867-0	08	1	9811-0201
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-867-0	08	1	0202-0308
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47125-811-0	08	1	0309-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-797-0	04	1	0202-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-799-0	04	1	0202-
6	LINING; RR BRK SHOE,OVER SIZE	1-47115-869-0	08	1	9811-0201
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-869-0	08	1	0202-0308
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47125-812-0	08	1	0309-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-798-0	04	1	0202-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-800-0	04	1	0202-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	80	1	9811-0201
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=18.5	1-09732-034-0	80	1	0202-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=18.5	1-09732-034-0	AR	1	0202-
8	PIN; RETURN SPRING,RR BRK SHOE (A) L=73.5	1-47119-017-1	04	1	9811-0201
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=73.5	1-47119-017-1	04	1	0202-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	04	1	0202-1209
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47119-029-0	04	1	0202-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-175-0	02	1	9811-1209
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09583-175-0	02	1	1210-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09583-196-0	02	1	0202-1209
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98219-175-0	02	1	1210-
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	9-09185-410-0	08	1	0202-0604
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	08	1	0605-1209
11	PIN; ANCHOR,RR WHEEL BRK L=106.5	1-47131-038-0	04	1	9811-0201
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	0202-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=121.5	1-47131-039-0	04	1	0202-
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47113-005-0	04	1	0202-
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47119-022-0	04	1	0202-
14	PIN; CAM ROLLER,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-061-0	04	1	0202-
25	COVER SET; RR BRK DRUM	1-47151-458-1	02	1	9811-0201
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-458-1	02	1	0202-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	02	1	0202-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9811-
30	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X12	1-47159-187-0	12	1	1210-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9811-0906
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-1209
30	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 W/LK WASHER	0-50541-016-0	12	1	1210-
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	02	1	0202-0512
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-120-2	02	1	0202-
46	RING; SPACER,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-005-0	02	1	0202-
48	SEAL; OIL,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09625-228-0	02	1	0202-
49	BUSHING; CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	02	1	0202-
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-053-0	01	1	0202-
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-054-0	01	1	0202-
52	BOLT; ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X50	1-09040-066-0	02	1	0202-1209
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1210-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9811-0512
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-1209
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1210-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9811-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9811-
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-045-0	01	1	0202-
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-046-0	01	1	0202-
64	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-022-0	02	1	0202-
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09180-038-0	01	1	0202-
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-004-0	02	1	0202-
66	PIN; JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-088-0	02	1	0202-
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99110-416-0	08	1	0202-0512
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91110-516-0	08	1	0601-
68	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	08	1	0202-0603
68	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-516-0	08	1	0604-0802
68	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	08	1	0803-
69	JOINT; JAW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09768-060-1	02	1	0202-
70	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	0202-0512
70	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	02	1	0601-
71	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=32	9-09160-616-0	02	1	0202-
72	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	9-08114-028-0	02	1	0202-0606
72	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	0-81124-028-0	02	1	0607-
73	COLLAR; FELT RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-016-0	02	1	0202-
74	BUSHING; SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09330-041-0	02	1	0202-
75	RING; FELT,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09620-009-0	02	1	0202-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-083-0	01	1	0202-0906
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-248-0	01	1	0907-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-084-0	01	1	0202-0906
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-249-0	01	1	0907-
77	BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	02	1	0202-
195	RING; SNAP,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09180-038-0	01	1	0202-
198	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0202-0512
198	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-
201	BOLT; BRKT,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X35	0-28081-435-0	08	1	0202-1209
201	BOLT; BRKT,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X35	0-20851-435-0	08	1	1210-
202	WASHER; LK,BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	08	1	0202-0603
202	WASHER; LK,BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	0-91510-514-0	08	1	0604-
298	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=23.3	9-09561-223-0	02	1	0204-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
