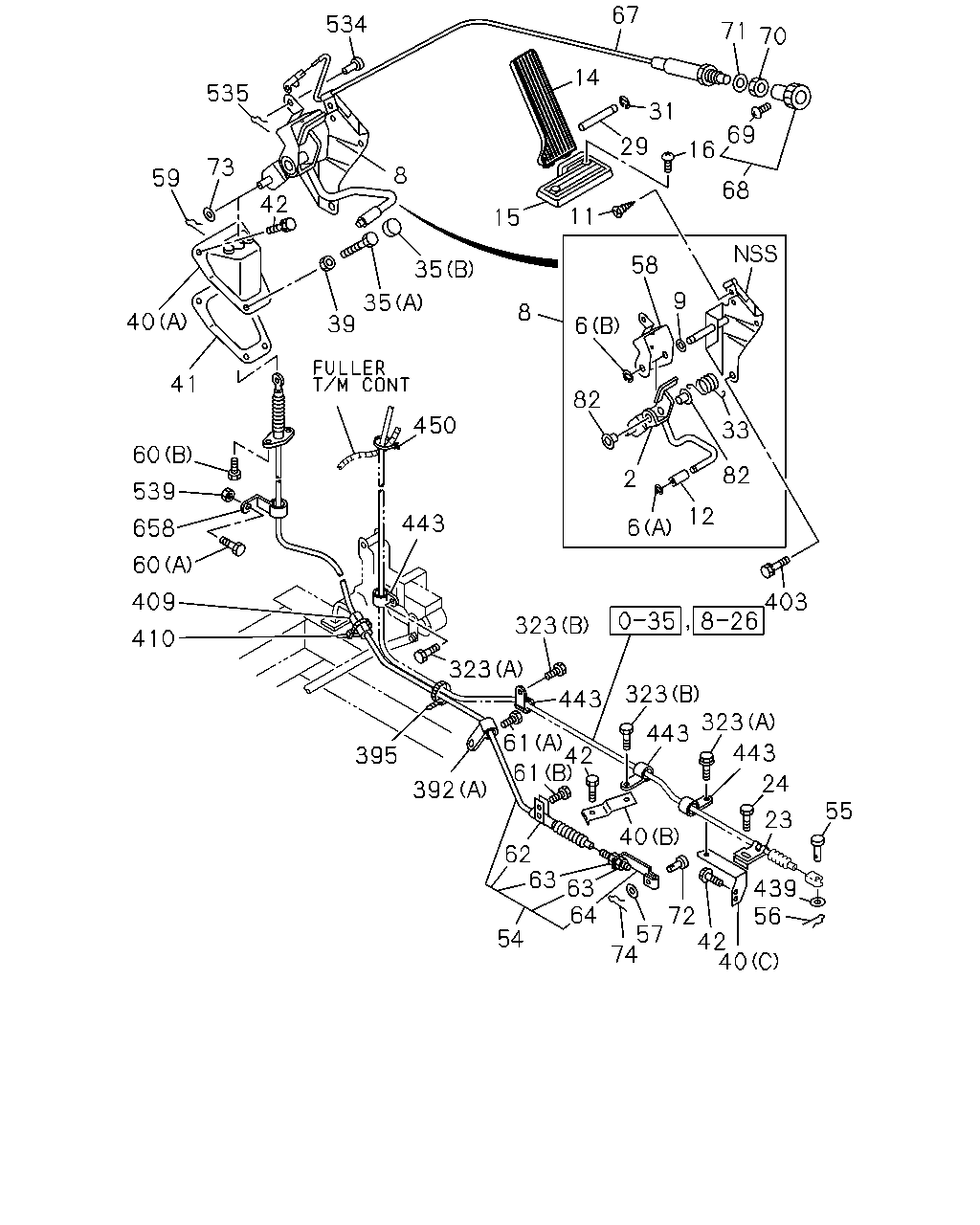

2 |
LEVER; ENG CONT
|
1-73997-904-1 |
01 |
1 |
9002- |
| |
6 |
RING; SNAP,LINK TO LINK
(A)
ID=6
|
9-09185-406-0 |
01 |
1 |
9002- |
| |
6 |
RING; SNAP,LINK TO LINK
(B)
ID=8
|
9-09185-408-0 |
01 |
1 |
9002- |
| |
8 |
LINK ASM; ENG CONT
|
1-23240-067-2 |
01 |
1 |
9002- |
| |
9 |
WASHER; PL,CONT LINK
ID=10.5 OD=16
|
9-09855-178-0 |
01 |
1 |
9002- |
| |
11 |
SCREW; IDLE CONT CABLE
M5X12 W/LK&PL WASHER
|
9-03920-512-0 |
01 |
1 |
9002- |
| |
12 |
ROLLER; ENG CONT LEVER
|
1-09989-007-0 |
01 |
1 |
9002- |
| |
14 |
PAD; PEDAL,ACCEL
|
1-23241-021-0 |
01 |
1 |
9002- |
| |
15 |
STAND; HEEL,ACCEL PEDAL
|
1-73997-675-3 |
01 |
1 |
9002-9305 |
| |
15 |
STAND; HEEL,ACCEL PEDAL
|
1-73907-266-2 |
01 |
1 |
9306- |
| |
16 |
SCREW; HEEL STAND,ACCEL PEDAL
M6X24 W/PL WASHER
|
1-09981-504-0 |
02 |
1 |
9002- |
| |
23 |
BRACKET; FUEL CUT CABLE
|
1-14319-082-0 |
01 |
1 |
9002- |
| |
24 |
BOLT; BRKT
|
5-09030-026-0 |
01 |
1 |
9002- |
| |
29 |
SHAFT; ACCEL PEDAL
OD=8 L=74
|
1-09987-206-0 |
01 |
1 |
9002- |
| |
31 |
RING; SNAP,ACCEL PEDAL
ID=6
|
9-09185-406-0 |
01 |
1 |
9002- |
| |
33 |
SPRING; IDLING CONT LEVER
|
1-73997-906-0 |
01 |
1 |
9002- |
| |
35 |
STOPPER; ACCEL PEDAL
(A)
|
1-09980-582-0 |
01 |
1 |
9002- |
| |
35 |
STOPPER; ACCEL PEDAL
(B)
RUBBER
|
1-23249-009-0 |
01 |
1 |
9002- |
| |
39 |
NUT; ACCEL PEDAL STOPPER
M8 FLANGE
|
8-94279-060-0 |
01 |
1 |
9002- |
| |
40 |
BRACKET; ENG CONT CABLE
(A)
|
1-73997-632-1 |
01 |
1 |
9002- |
| |
40 |
BRACKET; ENG CONT CABLE
(B)
|
1-47476-527-0 |
01 |
1 |
9002- |
| |
40 |
BRACKET; ENG CONT CABLE
AUTO ENG SHUTOFF(KB6)
(C)
|
1-15779-372-0 |
01 |
1 |
9411-9503 |
| |
40 |
BRACKET; ENG CONT CABLE
(C)
|
1-15779-372-0 |
01 |
1 |
9504- |
| |
41 |
SEAL; BRKT,ENG CONT CABLE
|
1-73998-451-0 |
01 |
1 |
9002- |
| |
42 |
BOLT; BRKT,ENG CONT CABLE
M6X16 W/LK&PL WASHER
|
1-09980-497-0 |
03 |
1 |
9002-9301 |
| |
42 |
BOLT; BRKT,ENG CONT CABLE
M6X16 W/LK&PL WASHER
|
1-09980-586-0 |
03 |
1 |
9302- |
| |
42 |
BOLT; BRKT,ENG CONT CABLE
M8X20 W/LK WASHER
|
9-01900-820-0 |
01 |
1 |
9002-9204 |
| |
42 |
BOLT; BRKT,ENG CONT CABLE
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9205-9302 |
| |
42 |
BOLT; BRKT,ENG CONT CABLE
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9303- |
| |
42 |
BOLT; BRKT,ENG CONT CABLE
AUTO ENG SHUTOFF(KB6)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9411-9503 |
| |
42 |
BOLT; BRKT,ENG CONT CABLE
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9504- |
| |
54 |
CABLE; ENG CONT
L=1610
|
1-23210-700-9 |
01 |
1 |
9002- |
| |
55 |
PIN; JAW JOINT
L=11
|
1-09744-102-0 |
01 |
1 |
9002- |
| |
56 |
PIN; SNAP,JAW JOINT
L=17.9
|
1-09747-002-0 |
01 |
1 |
9002- |
| |
57 |
WASHER; ENG CONT CABLE
ID=8.4
|
9-09160-508-0 |
01 |
1 |
9002- |
| |
58 |
LEVER; IDLING CONT
|
1-73997-905-1 |
01 |
1 |
9002- |
| |
59 |
PIN; SNAP,ENG CONT CABLE
L=27.7
|
1-09747-005-0 |
01 |
1 |
9002- |
| |
60 |
BOLT; CABLE
(A) BLACK CHROMATE
M6X16 W/LK&PL WASHER
|
1-09980-497-0 |
01 |
1 |
9002- |
| |
60 |
BOLT; CABLE
(B) BLACK CHROMATE
M6X16 W/LK&PL WASHER
|
1-09980-497-0 |
02 |
1 |
9002-9301 |
| |
60 |
BOLT; CABLE
(B)
M6X16 W/LK&PL WASHER
|
1-09980-586-0 |
02 |
1 |
9302- |
| |
61 |
BOLT; BRKT TO FRAME ENG CONT CABLE
(A)
M8X16 W/LK WASHER
|
9-01900-816-0 |
01 |
1 |
9002-9204 |
| |
61 |
BOLT; BRKT TO FRAME ENG CONT CABLE
(A)
M8X16 W/LK WASHER
|
0-50040-816-0 |
01 |
1 |
9205-9302 |
| |
61 |
BOLT; BRKT TO FRAME ENG CONT CABLE
(A)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9303-9306 |
| |
61 |
BOLT; BRKT TO FRAME ENG CONT CABLE
(B)
M8X16 W/LK WASHER
|
9-01910-816-0 |
02 |
1 |
9002-9005 |
| |
61 |
BOLT; BRKT TO FRAME ENG CONT CABLE
(B)
M8X16 W/LK WASHER
|
0-50040-816-0 |
02 |
1 |
9006-9302 |
| |
61 |
BOLT; BRKT TO FRAME ENG CONT CABLE
(B)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9303-9306 |
| |
61 |
BOLT; BRKT TO FRAME ENG CONT CABLE
(B)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9307- |
| |
61 |
BOLT; BRKT TO FRAME ENG CONT CABLE
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9307- |
| |
62 |
CLIP; ENG CONT CABLE
L=30
|
1-09700-326-0 |
01 |
1 |
9002- |
| |
63 |
NUT; LOCK,BRKT
M8
|
9-09111-408-0 |
02 |
1 |
9002- |
| |
64 |
BRACKET; ENG CONT CABLE
|
1-09768-018-1 |
01 |
1 |
9002- |
| |
67 |
CABLE ASM; IDLE CONT
L=422
|
1-73997-647-0 |
01 |
1 |
9002- |
| |
68 |
KNOB; IDLE CONT
W/SCREW
|
8-94134-716-0 |
01 |
1 |
9002- |
| |
69 |
SCREW; KNOB,IDLE CONT
|
5-09120-004-0 |
01 |
1 |
9002- |
| |
70 |
NUT; CONT CABLE
M18 RING NUT
|
5-09409-004-1 |
01 |
1 |
9002- |
| |
71 |
WASHER; WAVE,CONT CABLE
ID=18.5
|
5-09550-005-0 |
01 |
1 |
9002- |
| |
72 |
PIN; JAW JOINT,CABLE END
OD=8 L=17
|
9-08220-817-0 |
01 |
1 |
9002- |
| |
73 |
WASHER; PL,ACCEL CONT CABLE
ID=8.4
|
9-09160-508-0 |
01 |
1 |
9002- |
| |
74 |
PIN; SNAP,CABLE END
L=27.7
|
1-09747-005-0 |
01 |
1 |
9002- |
| |
82 |
BUSHING; ENG CONT LVR
|
8-94206-569-0 |
02 |
1 |
9002- |
| |
323 |
BOLT; CLIP
(A)
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9307-9410 |
| |
323 |
BOLT; CLIP
(A)
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9411- |
| |
323 |
BOLT; CLIP
(A)
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9411- |
| |
323 |
BOLT; CLIP
(B)
M8X20 W/LK WASHER
|
9-01900-820-0 |
02 |
1 |
9002-9204 |
| |
323 |
BOLT; CLIP
(B)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9205-9302 |
| |
323 |
BOLT; CLIP
(B)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9303- |
| |
392 |
CLIP; ACCEL CONT CABLE
(A)
ID=9 L=20
|
9-09524-835-0 |
01 |
1 |
9002-9306 |
| |
392 |
CLIP; ACCEL CONT CABLE
(A)
ID=9 L=20
|
9-09524-835-0 |
01 |
1 |
9307- |
| |
395 |
CLIP; BAND,ACCEL CONT CABLE
L=100
|
5-09707-036-1 |
01 |
1 |
9307- |
| |
403 |
BOLT; BRKT,ACCEL PEDAL
M6X16 W/LK&PL WASHER
|
1-09980-497-0 |
03 |
1 |
9002-9301 |
| |
403 |
BOLT; BRKT,ACCEL PEDAL
M6X16 W/LK&PL WASHER
|
1-09980-586-0 |
03 |
1 |
9302- |
| |
409 |
SLEEVE
AUTO ENG SHUTOFF(KB6)
ID=12.5 OD=15.5 L=30
|
9-09714-002-0 |
01 |
1 |
9307-9410 |
| |
410 |
CLIP; BAND
AUTO ENG SHUTOFF(KB6)
L=100
|
5-09707-036-0 |
01 |
1 |
9307-9410 |
| |
439 |
WASHER; PL,PIN,JAW JOINT
ID=5.3
|
9-09160-505-0 |
01 |
1 |
9002- |
| |
443 |
CLIP; CABLE
AUTO ENG SHUTOFF(KB6)
ID=7 L=20
|
9-09524-635-0 |
01 |
1 |
9307-9503 |
| |
443 |
CLIP; CABLE
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>
EXC. AUTO ENG SHUTOFF(KB6)
ID=7 L=20
|
9-09524-635-0 |
01 |
1 |
9504- |
| |
443 |
CLIP; CABLE
ID=9 L=20
|
9-09524-835-0 |
02 |
1 |
9002-9306 |
| |
443 |
CLIP; CABLE
EXC. AUTO ENG SHUTOFF(KB6)
ID=9 L=20
|
9-09524-835-0 |
01 |
1 |
9307-9503 |
| |
443 |
CLIP; CABLE
EXC. AUTO ENG SHUTOFF(KB6),EMISSION SYSTEM '90US
FEDERAL REQUIREMENT<TEH>
ID=9 L=20
|
9-09524-835-0 |
01 |
1 |
9504- |
| |
443 |
CLIP; CABLE
AUTO ENG SHUTOFF(KB6)
ID=7 L=20
|
9-09524-635-0 |
02 |
1 |
9307-9410 |
| |
443 |
CLIP; CABLE
AUTO ENG SHUTOFF(KB6)
ID=7 L=20
|
9-09524-635-0 |
03 |
1 |
9411-9503 |
| |
443 |
CLIP; CABLE
ID=7 L=20
|
9-09524-635-0 |
03 |
1 |
9504- |
| |
443 |
CLIP; CABLE
EXC. AUTO ENG SHUTOFF(KB6)
ID=9 L=20
|
9-09524-835-0 |
02 |
1 |
9307-9503 |
| |
443 |
CLIP; CABLE
EXC. AUTO ENG SHUTOFF(KB6),EMISSION SYSTEM '90US
FEDERAL REQUIREMENT<TEH>
ID=9 L=20
|
9-09524-835-0 |
02 |
1 |
9504- |
| |
450 |
CLIP; BAND
FULLER M/T<X9B>
L=140
|
5-09707-031-1 |
01 |
1 |
9008- |
| |
534 |
PIN; JAW JOINT,IDLING CONT CABLE
|
1-09987-034-1 |
01 |
1 |
9002- |
| |
535 |
PIN; SNAP,IDLING CONT CABLE
L=17.9
|
1-09747-002-0 |
01 |
1 |
9002- |
| |
539 |
NUT; CLIP
M6 FLANGE
|
1-09984-141-0 |
01 |
1 |
9002- |
| |
658 |
CLIP; ENG CONT CABLE
ID=13 H=24 L=20
|
9-09527-012-0 |
02 |
1 |
9002- |
