Isuzu WW
▶
TRUCKS
▶
FTR
▶
10896 - FTR BUS CHASSIS LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#24298) — 45 parça
Tümü
A - MLD6B M/T
B - MLD6Q M/T
◀

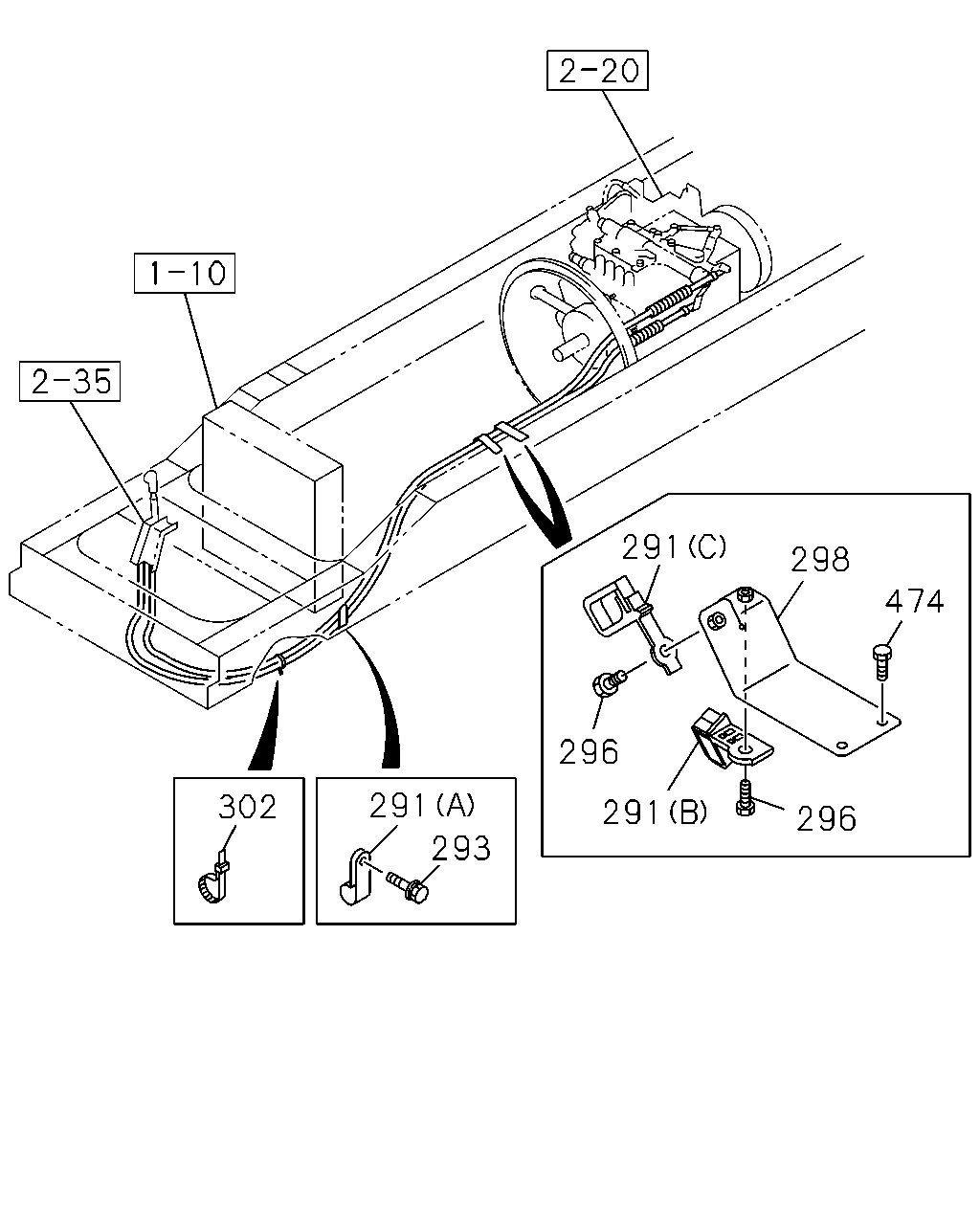

[236A] FRAME SIDE (17 parça)
[236A] CAB AND T/M SIDE (28 parça)
▶
291
298
474
296
291
302
291
296
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
291
CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8
1-09701-220-0
01
1
9811-0201
●
291
CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8
1-09701-220-0
01
1
0202-
●
●
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32
1-09701-245-0
01
1
9811-0201
●
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32
1-09701-245-0
01
1
0202-
●
●
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
9-09535-026-0
01
1
9811-0201
●
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
9-09535-026-0
01
1
0202-0606
●
●
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
0-95325-026-0
01
1
0607-
●
●
293
BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE
0-28080-816-0
01
1
9811-0201
●
293
BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE
0-28080-816-0
01
1
0202-0512
●
●
293
BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE
0-28050-816-0
01
1
0601-
●
●
296
BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE
0-28080-820-0
02
1
9811-0201
●
296
BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE
0-28080-820-0
02
1
0202-0512
●
●
296
BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE
0-28050-820-0
02
1
0601-
●
●
298
BRACKET
1-47478-690-0
01
1
0202-
●
302
CLIP; BAND
L=300
1-09707-001-1
01
1
9811-0201
●
302
CLIP; BAND
L=300
1-09707-001-1
01
1
0202-
●
●
474
BOLT; BRKT
M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
0202-
●

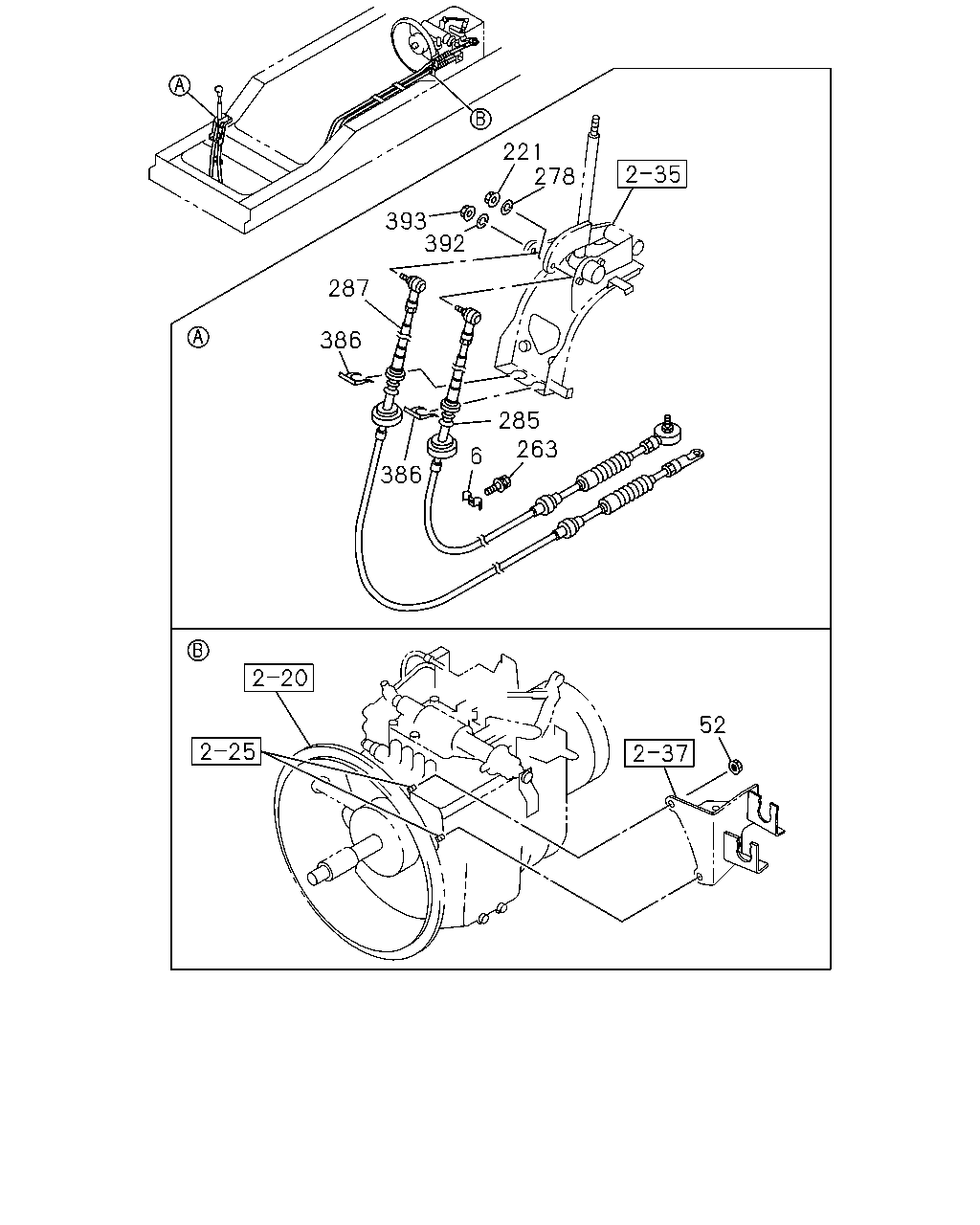

221
278
393
392
287
386
285
263
6
386
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
9811-0201
●
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
0202-
●
●
52
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
9811-0201
●
52
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
0202-0602
●
●
52
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0603-
●
●
221
NUT; SHIFT WIRE TO LEVER
M8
9-09110-408-0
01
1
9811-0201
●
221
NUT; SHIFT WIRE TO LEVER
M8
9-09110-408-0
01
1
0202-0512
●
●
221
NUT; SHIFT WIRE TO LEVER
M8
0-91110-508-0
01
1
0601-
●
●
263
BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
●
●
263
BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
9811-0201
●
263
BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0202-
●
●
278
WASHER; LK,SHIFT WIRE
ID=8.2
9-09150-508-0
01
1
9811-0201
●
278
WASHER; LK,SHIFT WIRE
ID=8.2
9-09150-508-0
01
1
0202-0603
●
●
278
WASHER; LK,SHIFT WIRE
ID=8.2
0-91510-508-0
01
1
0604-
●
●
285
WIRE; SHIFT,TRANS CONT
L=4024
1-33671-490-0
01
1
9811-0103
●
285
WIRE; SHIFT,TRANS CONT
BUS BODY FRONT OVERHANG VAR1<YK9> L=4024
1-33671-490-0
01
1
0104-0201
●
285
WIRE; SHIFT,TRANS CONT
BUS BODY FRONT OVERHANG VAR1<YK9> L=4024
1-33671-490-0
01
1
0202-
●
●
287
WIRE; SELECT,TRANS CONT
L=4086
1-33671-489-0
01
1
9811-0103
●
287
WIRE; SELECT,TRANS CONT
BUS BODY FRONT OVERHANG VAR1<YK9> L=4086
1-33671-489-0
01
1
0104-0201
●
287
WIRE; SELECT,TRANS CONT
BUS BODY FRONT OVERHANG VAR1<YK9> L=4086
1-33671-489-0
01
1
0202-
●
●
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
9811-0201
●
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
0202-
●
●
392
WASHER; LK,SELECT CABLE,CAB
ID=8.2
9-09150-508-0
01
1
9811-0201
●
392
WASHER; LK,SELECT CABLE,CAB
ID=8.2
9-09150-508-0
01
1
0202-0603
●
●
392
WASHER; LK,SELECT CABLE,CAB
ID=8.2
0-91510-508-0
01
1
0604-
●
●
393
NUT; SELECT CABLE,CAB
M8
9-09110-408-0
01
1
9811-0201
●
393
NUT; SELECT CABLE,CAB
M8
9-09110-408-0
01
1
0202-0512
●
●
393
NUT; SELECT CABLE,CAB
M8
0-91110-508-0
01
1
0601-
●
●
