◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#24297) — 49 parça

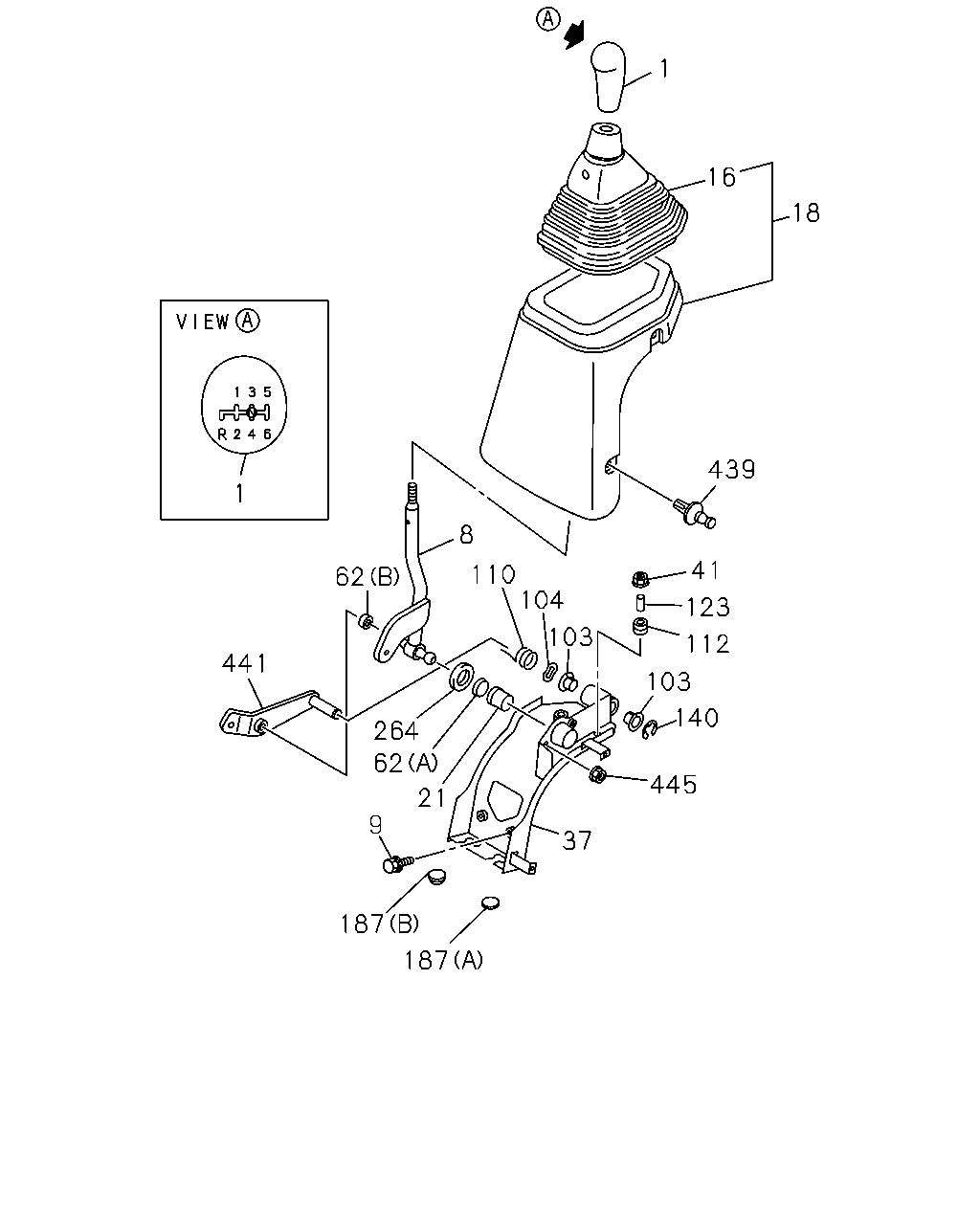

çizim 80297
1 16 18 439 1 8 41 110 104 62 123 103 112 441 103 140 264 62 445 21 9 37 187 187
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER 1-33611-070-0 01 1 9811-0201 ●
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 0202- ● ●
8 LEVER; CHANGE 1-33619-462-0 01 1 9811-0201 ●
8 LEVER; CHANGE 1-33619-462-0 01 1 0202- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 9811-0201 ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0202- ● ●
16 BOOT; CHANGE LEVER 1-79998-913-0 01 1 9811-0201 ●
16 BOOT; CHANGE LEVER 1-79998-913-1 01 1 0202- ● ●
18 BOOT; CHANGE LEVER 1-79998-910-1 01 1 9811- ●
18 BOOT; CHANGE LEVER 1-79996-415-1 01 1 0202- ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9811-0201 ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0202- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-461-0 01 1 9811-0201 ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-461-0 01 1 0202- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806- ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 9811-0107 ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0108-0201 ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0202-0805 ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0806- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9811-0201 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0202- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9811-0201 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0202- ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9811-0201 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0202- ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 9811-0201 ●
104 WASHER; WAVED 1-09550-009-0 01 1 0202- ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 9811-0201 ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0202- ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9811-0201 ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0202- ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9811-0201 ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0202- ● ●
140 RING; SNAP
ID=10 		9-09185-410-0 01 1 9811-0201 ●
140 RING; SNAP
ID=10 		9-09185-410-0 01 1 0202-0604 ● ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 0605- ● ●
187 GROMMET; HOLE,CHANGE LEVER
(A) 		1-09983-016-0 01 1 9811-0201 ●
187 GROMMET; HOLE,CHANGE LEVER
(A) 		1-09983-016-0 01 1 0202- ● ●
187 GROMMET; HOLE,CHANGE LEVER
(B) 		1-09983-098-0 01 1 9811-0201 ●
187 GROMMET; HOLE,CHANGE LEVER
(B) 		1-09983-098-0 01 1 0202- ● ●
264 PLATE; COVER 1-33619-430-0 01 1 9811-0201 ●
264 PLATE; COVER 1-33619-430-0 01 1 0202- ● ●
439 FASTENER; COVER 1-09987-245-1 04 1 9811- ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0202- ●
441 LEVER; SELECT 1-33619-437-2 01 1 9811-0201 ●
441 LEVER; SELECT 1-33619-437-2 01 1 0202- ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9811-0201 ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0202-0602 ● ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
