Sayfa 2-30 - Isuzu EPC

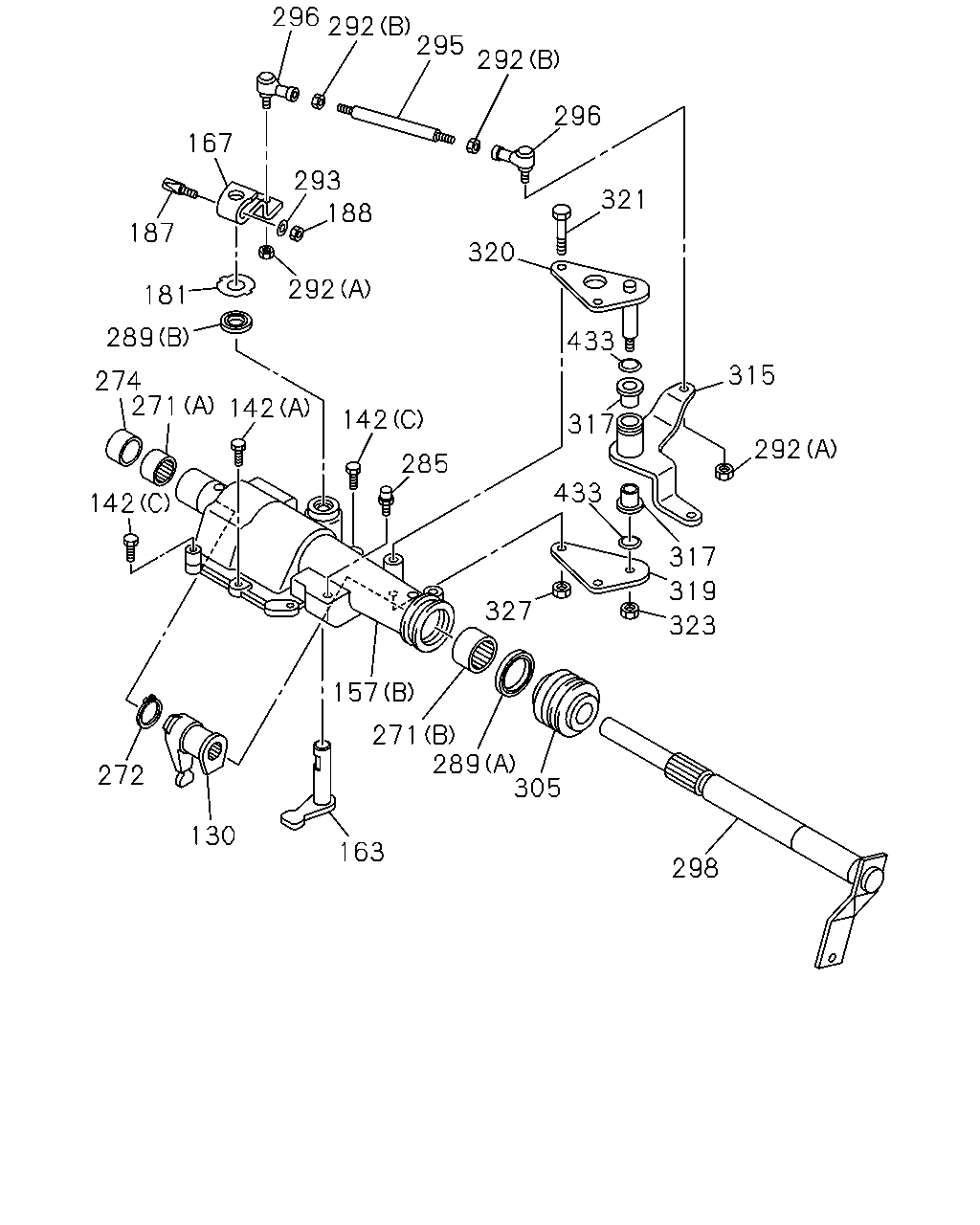

2-30 — GEAR SHIFTER AND QUADRANT BOX (#24296) — 482 parça

296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 271 142 142 317 292 285 433 142 317 319 327 323 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0204-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9811-0201		●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0202-0203	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0204-	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	0204-0512	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	0601-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0204-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0806-	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0204-0805	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0806-	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9811-0201		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0202-0203	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9811-0201		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	0202-0203	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9811-0201		●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0202-0203	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	9811-0201		●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0202-0203	●	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0204-0311	●	●
157	BOX; QUAD,TRANS (A)	1-33541-527-0	01	1	0312-	●
157	BOX; QUAD,TRANS (B)	1-33541-529-0	01	1	0312-	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	9811-0201		●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0202-0203	●	●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9811-		●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0202-0311	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0312-		●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0204-	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9811-0201		●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0202-0203	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	0204-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9811-0201		●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	0202-0203	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0204-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9811-0201		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0202-0203	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0204-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9811-0201		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0202-0203	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0204-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9811-0201		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0202-0203	●	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0204-	●	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0204-	●	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9811-0201		●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0202-0203	●	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9811-0201		●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0202-0203	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0204-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9811-0201		●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0202-0203	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0204-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9811-0201		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0202-0203	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0204-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9811-0201		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0202-0203	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0204-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0204-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9811-0201		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0202-0203	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9811-0201		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0202-0203	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0204-	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0204-0512	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0601-	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9811-0201		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0202-0203	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9811-0201		●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0202-0203	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0204-0605	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0606-	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9811-0201		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0202-0203	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0204-	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9811-0201		●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0202-0203	●	●
296	ROD END L=48	1-09760-038-1	02	1	0204-0309	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-	●	●
296	ROD END L=48	1-09760-038-1	02	1	9811-0201		●
296	ROD END L=48	1-09760-038-1	02	1	0202-0203	●	●
298	SHAFT; SHIFT LEVER	1-33522-122-0	01	1	9811-0307		●
298	SHAFT; SHIFT LEVER	1-33522-185-0	01	1	0308-		●
298	SHAFT; SHIFT LEVER	1-33522-166-0	01	1	0202-0307	●
298	SHAFT; SHIFT LEVER	1-33522-187-0	01	1	0308-	●
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	0204-	●	●
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	9811-0201		●
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	0202-0203	●	●
315	LEVER; SELECT	1-33651-648-1	01	1	9811-		●
315	LEVER; SELECT	1-33651-702-0	01	1	0202-	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0204-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9811-0201		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0202-0203	●	●
319	BRACKET; SELECT LEVER	1-33657-515-0	01	1	0204-	●	●
319	BRACKET; SELECT LEVER	1-33657-515-0	01	1	9811-0201		●
319	BRACKET; SELECT LEVER	1-33657-515-0	01	1	0202-0203	●	●
320	SHAFT; LEVER	1-33619-474-0	01	1	0204-	●	●
320	SHAFT; LEVER	1-33619-474-0	01	1	9811-0201		●
320	SHAFT; LEVER	1-33619-474-0	01	1	0202-0203	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	0204-0512	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	0601-	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10856-080-0	02	1	0601-		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9811-0201		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	0202-0203	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0204-	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9811-0201		●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0202-0203	●	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	0204-0311	●	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	0204-0602	●	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	0603-	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9811-0201		●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	0202-0203	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	0204-	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	9811-0201		●
433	GASKET; BUSHING	1-09623-594-0	02	1	0202-0203	●	●

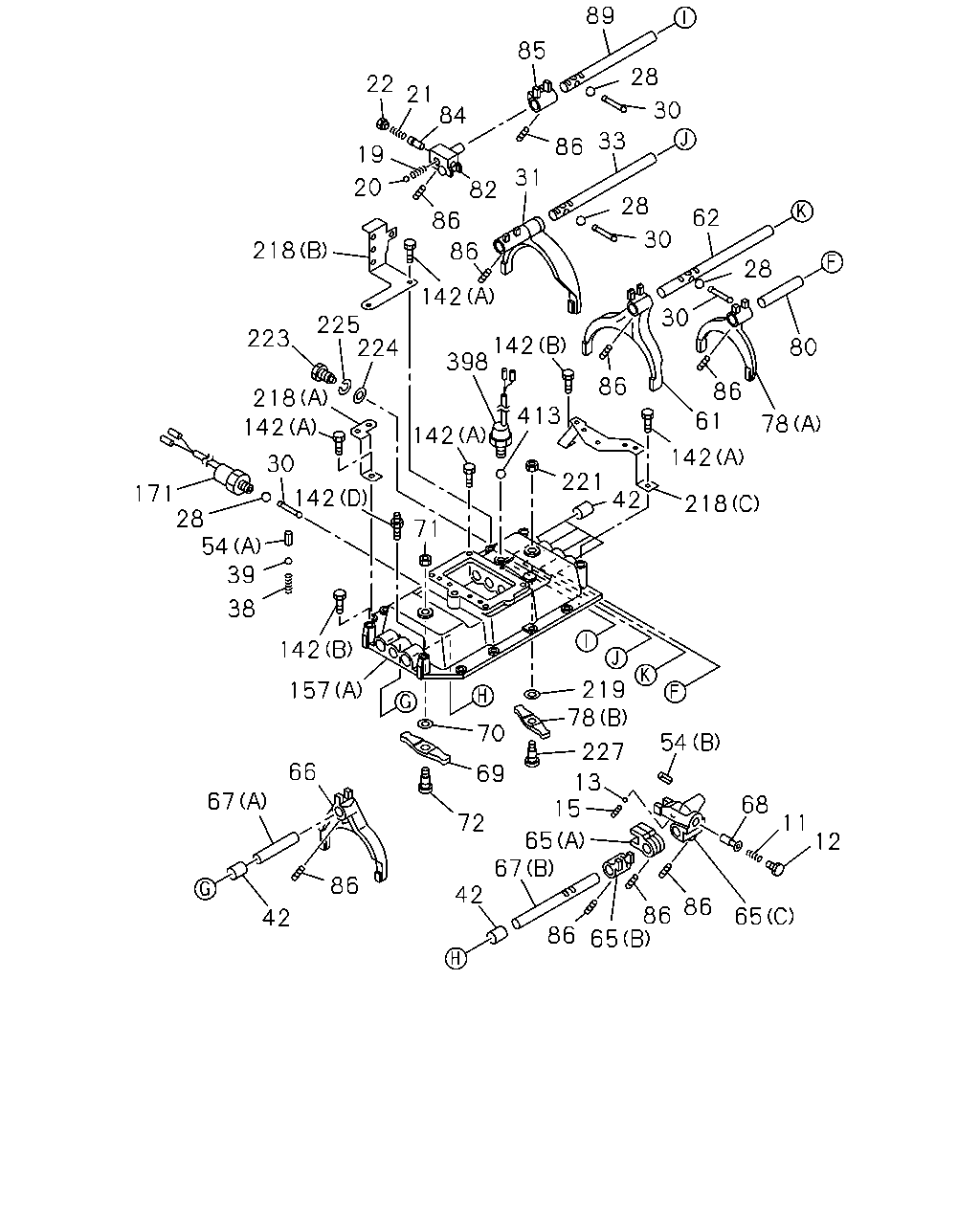

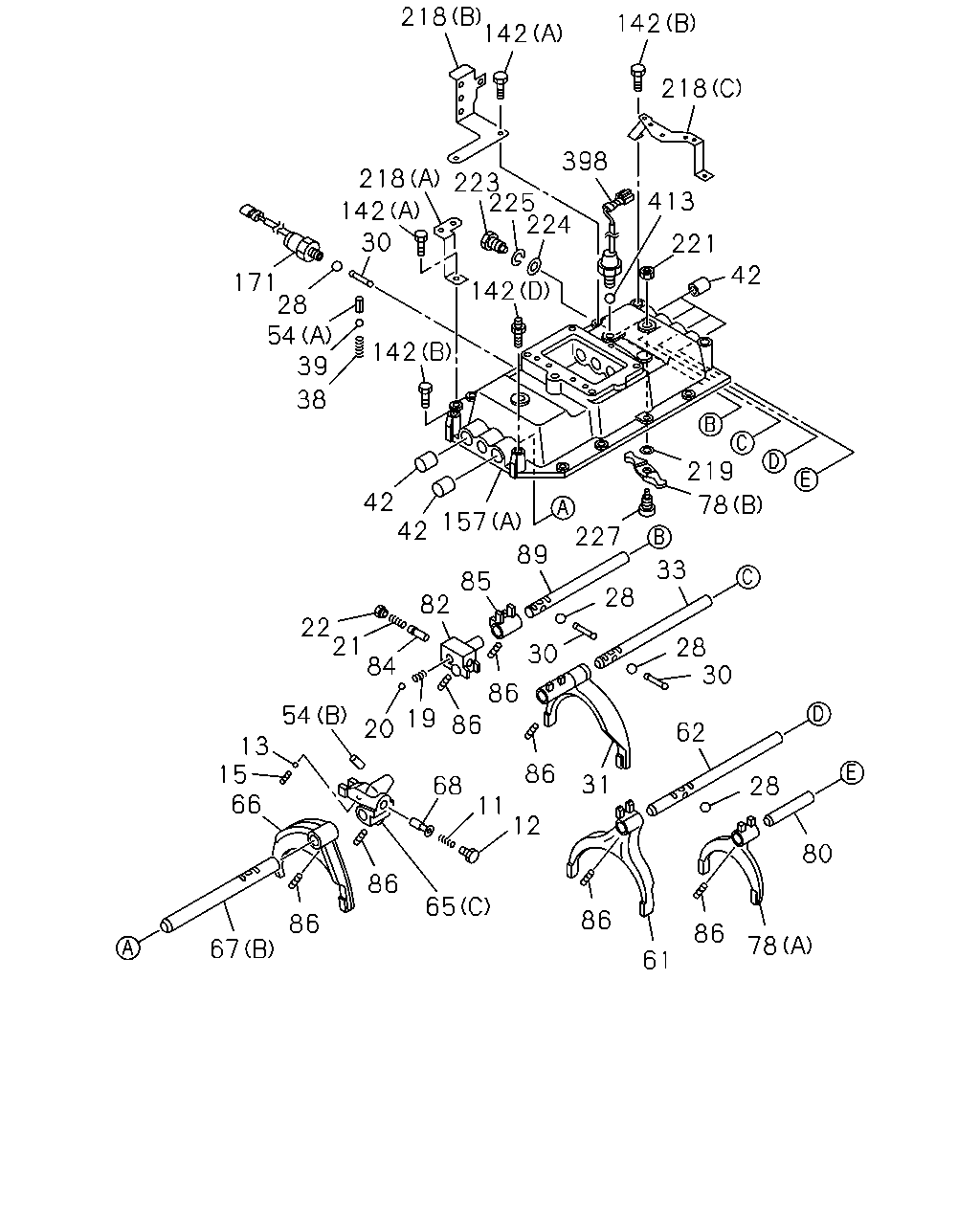

218 142 142 218 398 223 225 224 218 413 142 30 221 142 42 171 28 54 39 142 38 219 42 42 78 227 157 89 33 85 28 82 22 21 84 28 30 30 86 54 19 86 20 62 13 15 66 86 31 68 28 11 12 80 86 65 86 86 86 78 67 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0204-	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9811-0201		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0202-0203	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0204-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9811-0201		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0202-0203	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0204-	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9811-0201		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0202-0203	●	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0204-	●	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9811-0201		●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0202-0203	●	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0204-	●	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9811-0201		●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0202-0203	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0204-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9811-0201		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0202-0203	●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0204-	●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9811-0201		●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0202-0203	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0204-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9811-0201		●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0202-0203	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0204-	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9811-0201		●
28	BALL; INTER LK	9-00097-501-0	04	1	0202-0203	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0204-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9811-0201		●
30	PIN; INTER LK	9-33534-003-0	03	1	0202-0203	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0204-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9811-0201		●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0202-0203	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0204-1202	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	1203-	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9811-0201		●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0202-0203	●	●
38	SPRING; DETENT	1-09580-419-0	04	1	0204-	●	●
38	SPRING; DETENT	1-09580-419-0	04	1	9811-0201		●
38	SPRING; DETENT	1-09580-419-0	04	1	0202-0203	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0204-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9811-0201		●
39	BALL; DETENT	1-09843-012-0	04	1	0202-0203	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0204-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9811-0201		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0202-0203	●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0204-	●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9811-0201		●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0202-0203	●	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9811-0201		●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0204-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9811-0201		●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0202-0203	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0204-1202	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	1203-	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9811-0201		●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0202-0203	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0204-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	9811-0201		●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0202-0203	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0202-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0202-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9811-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0202-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0204-1202	●	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	1203-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-		●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	9811-0201		●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0202-0203	●	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0202-	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0204-	●	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9811-0201		●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0202-0203	●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0204-	●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0204-	●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9811-0201		●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0202-0203	●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9811-0201		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0202-0203	●	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0204-1202	●	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	1203-	●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-		●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9811-0201		●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0202-0203	●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0204-	●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9811-0201		●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0202-0203	●	●
84	SLEEVE; REV	1-33516-025-0	01	1	0204-	●	●
84	SLEEVE; REV	1-33516-025-0	01	1	9811-0201		●
84	SLEEVE; REV	1-33516-025-0	01	1	0202-0203	●	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0204-	●	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9811-0201		●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0202-0203	●	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	9811-		●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0202-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0204-1202	●	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	1203-	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-		●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9811-0201		●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0202-0203	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0204-	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	0204-0512	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	0601-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0204-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0806-	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0204-0805	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0806-	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9811-0201		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0202-0203	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9811-0201		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	0202-0203	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9811-0201		●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0202-0203	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	9811-0201		●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0202-0203	●	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0204-0311	●	●
157	BOX; QUAD,TRANS (A)	1-33541-527-0	01	1	0312-	●
157	BOX; QUAD,TRANS (B)	1-33541-529-0	01	1	0312-	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	9811-0201		●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0202-0203	●	●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9811-		●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0202-0311	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0312-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0204-0702	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0703-	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104		●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109		●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-		●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9811-0201		●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	0202-0203	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0204-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0204-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0204-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9811-0201		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0202-0203	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	9811-0201		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0202-0203	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	9811-0201		●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0202-0203	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0204-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9811-0201		●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0202-0203	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0204-0602	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0603-	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-		●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9811-0201		●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0202-0203	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0204-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9811-0201		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0202-0203	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0204-0605	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0606-	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-		●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9811-0201		●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0202-0203	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0204-0603	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0604-	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-		●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9811-0201		●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0202-0203	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0204-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9811-0201		●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0202-0203	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0204-0602	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0603-	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209		●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-		●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	9811-0201		●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	0202-0203	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	0204-	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9811-0201		●
413	BALL; BACK SW	9-00097-013-0	01	1	0202-0203	●	●

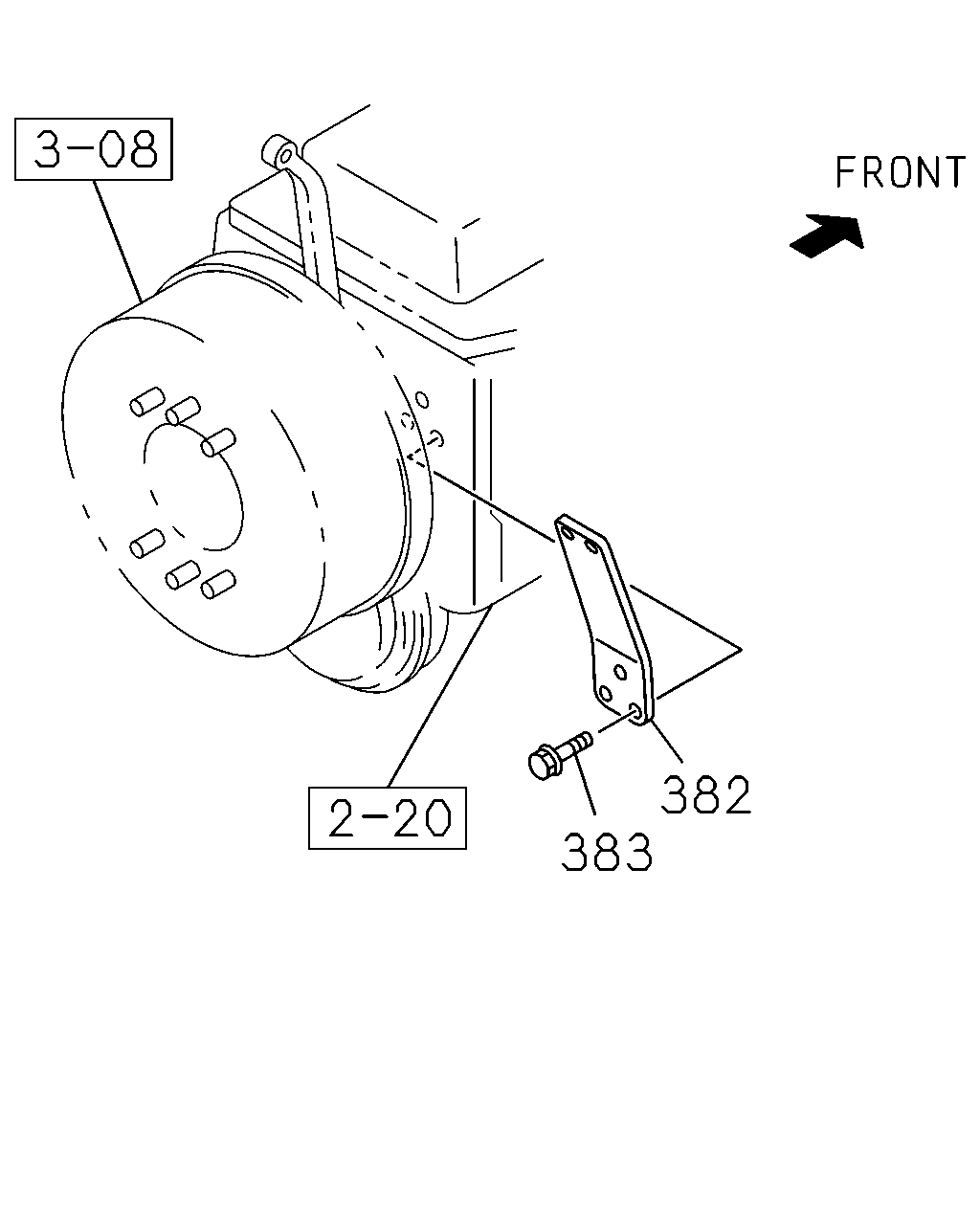

382 383

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-1	01	1	9811-		●
	383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	9811-		●

89 85 28 22 21 84 30 19 33 86 31 20 82 28 62 86 30 218 86 28 142 225 224 30 223 142 398 80 86 86 218 142 413 61 78 142 142 30 142 221 42 171 28 54 39 218 71 38 142 219 78 157 70 54 227 66 69 13 15 67 68 72 11 65 67 12 86 42 86 86 65 65 42 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0204-	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9811-0201		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0202-0203	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0204-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9811-0201		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0202-0203	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0204-	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9811-0201		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0202-0203	●	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0204-	●	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9811-0201		●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0202-0203	●	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0204-	●	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9811-0201		●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0202-0203	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0204-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9811-0201		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0202-0203	●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0204-	●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9811-0201		●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0202-0203	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0204-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9811-0201		●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0202-0203	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0204-	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9811-0201		●
28	BALL; INTER LK	9-00097-501-0	04	1	0202-0203	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0204-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9811-0201		●
30	PIN; INTER LK	9-33534-003-0	03	1	0202-0203	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0204-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9811-0201		●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0202-0203	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0204-1202	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	1203-	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9811-0201		●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0202-0203	●	●
38	SPRING; DETENT	1-09580-419-0	04	1	0204-	●	●
38	SPRING; DETENT	1-09580-419-0	04	1	9811-0201		●
38	SPRING; DETENT	1-09580-419-0	04	1	0202-0203	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0204-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9811-0201		●
39	BALL; DETENT	1-09843-012-0	04	1	0202-0203	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0204-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9811-0201		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0202-0203	●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0204-	●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9811-0201		●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0202-0203	●	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9811-0201		●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0204-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9811-0201		●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0202-0203	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0204-1202	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	1203-	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9811-0201		●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0202-0203	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0204-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	9811-0201		●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0202-0203	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0202-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0202-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9811-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0202-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0204-1202	●	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	1203-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-		●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	9811-0201		●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0202-0203	●	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0202-	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0204-	●	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9811-0201		●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0202-0203	●	●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0202-	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0202-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	0202-	●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0202-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0204-	●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0204-	●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9811-0201		●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0202-0203	●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9811-0201		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0202-0203	●	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0204-1202	●	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	1203-	●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-		●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9811-0201		●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0202-0203	●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0204-	●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9811-0201		●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0202-0203	●	●
84	SLEEVE; REV	1-33516-025-0	01	1	0204-	●	●
84	SLEEVE; REV	1-33516-025-0	01	1	9811-0201		●
84	SLEEVE; REV	1-33516-025-0	01	1	0202-0203	●	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0204-	●	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9811-0201		●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0202-0203	●	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	9811-		●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0202-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0204-1202	●	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	1203-	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-		●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9811-0201		●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0202-0203	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0204-	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	0204-0512	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	0601-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0204-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0806-	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0204-0805	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0806-	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9811-0201		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0202-0203	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9811-0201		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	0202-0203	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9811-0201		●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0202-0203	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	9811-0201		●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0202-0203	●	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0204-0311	●	●
157	BOX; QUAD,TRANS (A)	1-33541-527-0	01	1	0312-	●
157	BOX; QUAD,TRANS (B)	1-33541-529-0	01	1	0312-	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	9811-0201		●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0202-0203	●	●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9811-		●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0202-0311	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0312-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0204-0702	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0703-	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104		●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109		●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-		●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9811-0201		●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	0202-0203	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0204-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0204-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0204-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9811-0201		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0202-0203	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	9811-0201		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0202-0203	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	9811-0201		●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0202-0203	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0204-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9811-0201		●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0202-0203	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0204-0602	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0603-	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-		●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9811-0201		●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0202-0203	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0204-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9811-0201		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0202-0203	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0204-0605	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0606-	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-		●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9811-0201		●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0202-0203	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0204-0603	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0604-	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-		●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9811-0201		●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0202-0203	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0204-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9811-0201		●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0202-0203	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0204-0602	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0603-	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209		●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-		●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	9811-0201		●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	0202-0203	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	0204-	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9811-0201		●
413	BALL; BACK SW	9-00097-013-0	01	1	0202-0203	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
