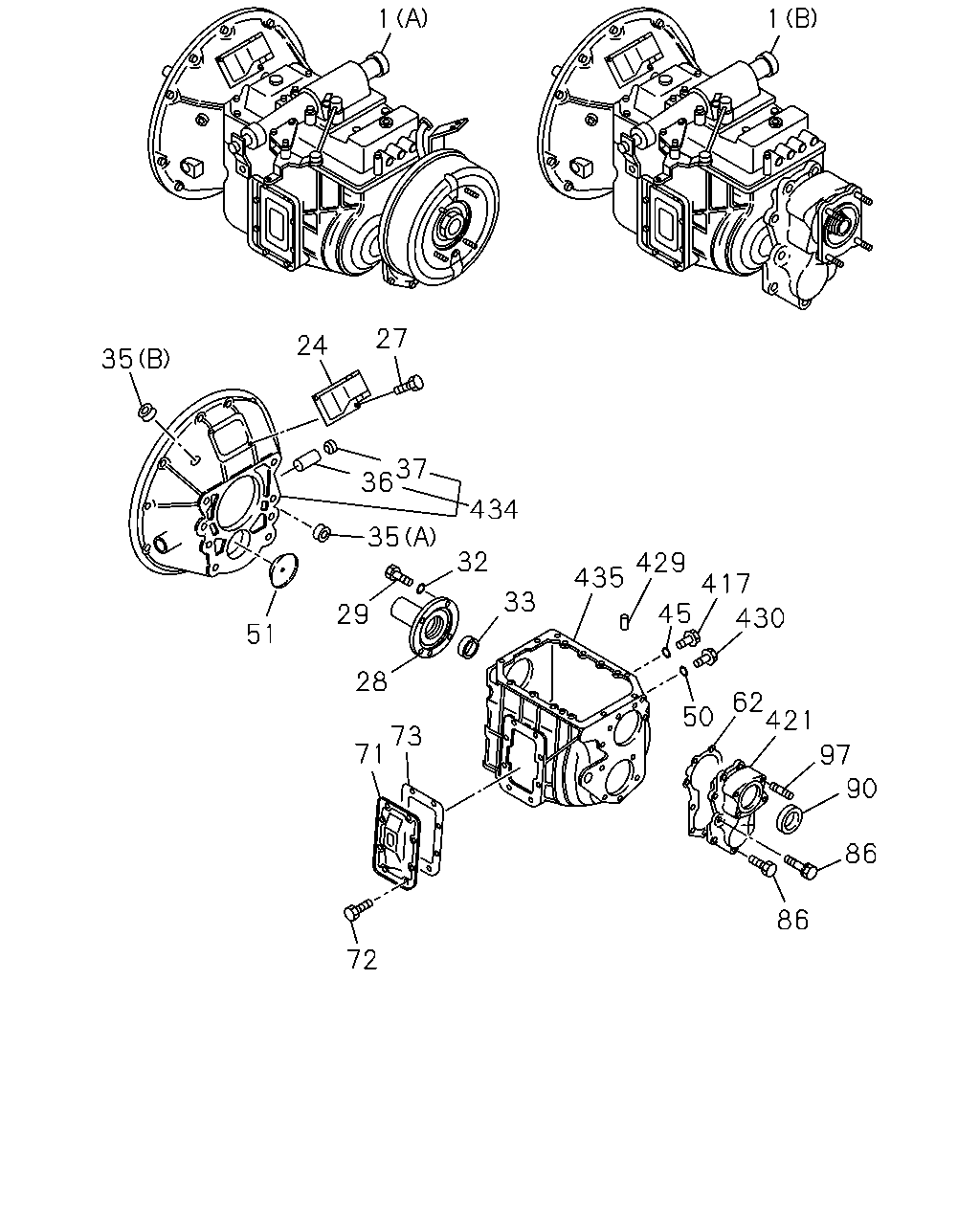

2-20 — MANUAL TRANSMISSION ASM AND CASE (#24293) — 102 parça

1 1 27 24 35 37 36 434 35 32 429 435 417 45 33 29 430 51 28 62 421 50 73 71 97 90 86 86 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL (A)	1-33041-500-0	01	1	9811-	●
1	TRANSMISSION ASM; MANUAL (B)	1-33043-759-0	01	1	0312-		●
1	TRANSMISSION ASM; MANUAL (B)	1-33041-568-0	01	1	0202-0311		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0204-1410	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1411-		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9811-0201	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0202-0203	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0204-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0601-		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9811-0104	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0201	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0202-0203	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	0204-	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9811-0201	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	0202-0203	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0204-0805	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0806-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9811-0201	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0202-0203	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0204-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9811-0201	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0202-0203	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	0204-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9811-0201	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	0202-0203	●	●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	0204-	●	●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9811-0201	●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	0202-	●	●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9811-0201	●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	0202-0203	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0204-	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9811-0201	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0202-0203	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0204-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9811-0201	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0202-0203	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0204-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9811-0201	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0202-0203	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0204-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9811-0201	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0202-0203	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0204-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9811-0201	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	0202-0203	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0204-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9811-0201	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0202-0203	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	0204-	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9811-0201	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	0202-0203	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0204-0512	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0601-		●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9811-0201	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0202-0203	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0204-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9811-0201	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0202-0203	●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	0204-	●	●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	0204-	●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9811-0201	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	0202-0203	●	●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	9811-0201	●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	0202-0203	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0204-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9811-0201	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0202-0203	●	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	0204-	●	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	03	1	9811-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9811-0201	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	0202-0203	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0204-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9811-0201	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-0202	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-0203	●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0204-0311	●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0312-	●
421	COVER; RR,TRANS	1-33131-242-0	01	1	0312-		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9811-0201	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0202-0203	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0204-	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9811-0201	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0202-0203	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0204-	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9811-0201	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0202-0203	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	0204-0311	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	0312-	●
434	HOUSING; CLU	1-31110-199-0	01	1	0312-		●
434	HOUSING; CLU	1-31110-169-0	01	1	9811-0201	●
434	HOUSING; CLU	1-31110-169-0	01	1	0202-0203	●	●
435	CASE; TRANS	1-33111-323-0	01	1	0204-0303	●	●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0311	●	●
435	CASE; TRANS	1-33111-342-0	01	1	0312-0406	●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802	●
435	CASE; TRANS	1-33111-346-0	01	1	0312-		●
435	CASE; TRANS	1-33111-235-0	01	1	9811-0201	●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0203	●	●
