◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶

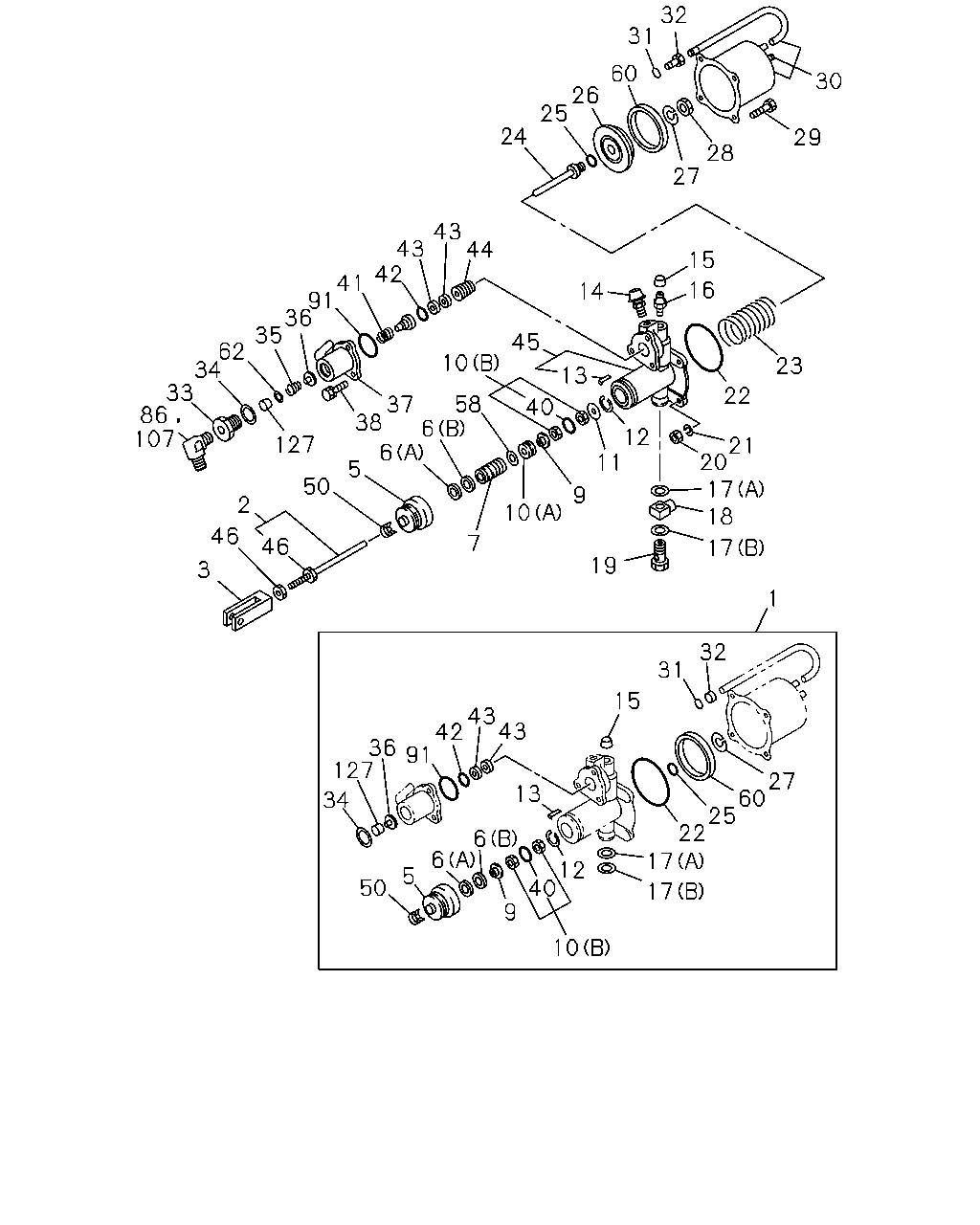

2-07 — CLUTCH BOOSTER; MINIPACK (#24290) — 192 parça
çizim 25314
32 31 60 30 26 25 24 29 28 27 43 42 15 41 91 36 35 62 34 33 86 107 16 14 45 10 23 13 22 37 58 38 6 40 12 11 127 21 20 17 18 6 50 9 2 10 46 7 46 17 19 3 1 32 31 15 43 91 36 127 13 27 60 25 22 17 34 6 6 12 40 5 50 17 9 10 44 43 5 42 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-542-0 01 1 0204-0307 ● ●
1 REPAIR KIT; CLU BOOSTER 1-31829-550-0 01 1 0308-0311 ● ●
1 REPAIR KIT; CLU BOOSTER 1-31829-550-0 01 1 0312- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-539-0 01 1 0312- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-352-0 01 1 9811-0106 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-542-0 01 1 0107-0201 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-542-0 01 1 0202-0203 ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 0204- ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 9811-0201 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 0202-0203 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-538-0 01 1 0204-0307 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0308- ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 9811-0106 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-538-0 01 1 0107-0201 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-538-0 01 1 0202-0203 ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0204- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9811-0201 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0202-0203 ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9811-0201 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0202- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9811-0201 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0202- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0204- ● ●
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9811-0106 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107-0201 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0202-0203 ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0204-0311 ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0312- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0312- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9811-0201 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0202-0203 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-285-0 01 1 0204-0311 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-285-0 01 1 0312- ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-428-0 01 1 0204-0311 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-428-0 01 1 0312- ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0312- ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0312- ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-285-0 01 1 9811-0201 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-285-0 01 1 0202-0203 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-293-0 01 1 9811-0106 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-428-0 01 1 0107-0201 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-428-0 01 1 0202-0203 ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0204- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9811-0201 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0202-0203 ● ●
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0204- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9811-0106 ●
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0107-0201 ●
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0202-0203 ● ●
13 PIN; SPR 1-31829-109-0 01 1 0204- ● ●
13 PIN; SPR 1-31829-109-0 01 1 9811-0201 ●
13 PIN; SPR 1-31829-109-0 01 1 0202-0203 ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0204-0307 ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0308- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9811-0106 ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0201 ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0202-0203 ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0204- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9811-0201 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0202-0203 ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0204- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9811-0201 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0202-0203 ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9811-0201 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0202- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9811-0201 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0202- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0204- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9811-0201 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0202-0203 ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0204- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9811-0201 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0202-0203 ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0204- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 9811-0201 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0202-0203 ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0204- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 9811-0201 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0202-0203 ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0204- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 9811-0201 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0202-0203 ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0204- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 9811-0106 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0107-0201 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0202-0203 ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 0204-0311 ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 0312- ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0312- ●
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 9811-0201 ●
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 0202-0203 ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0204- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9811-0201 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0202-0203 ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0204- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-057-0 01 1 9811-0106 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0107-0201 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0202-0203 ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0204- ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9811-0201 ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0202-0203 ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0204- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9811-0201 ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0202-0203 ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0204- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 9811-0201 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0202-0203 ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0204- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-026-0 01 1 9811-0106 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0107-0201 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0202-0203 ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0204- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 9811-0201 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0202-0203 ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0204- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 9811-0201 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0202-0203 ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 0204- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 9811-0201 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 0202-0203 ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0204- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9811-0201 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0202-0203 ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0204- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9811-0106 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0107-0201 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0202-0203 ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0204- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9811-0106 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0107-0201 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0202-0203 ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-089-0 01 1 0204-0307 ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-138-0 01 1 0308- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-018-0 01 1 9811-0106 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-089-0 01 1 0107-0201 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-089-0 01 1 0202-0203 ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0204- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 1-44519-022-0 03 1 9811-0106 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0107-0201 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0202-0203 ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0204-1412 ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1501- ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9811-0201 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0202-0203 ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0204- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 9811-0201 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0202-0203 ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0204-0311 ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0312- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0312- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 9811-0201 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0202-0203 ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0204- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9811-0201 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0202-0203 ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-019-0 01 1 0204-0307 ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-089-0 01 1 0308-0311 ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-089-0 01 1 0312- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0312- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-019-0 01 1 9811-0201 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-019-0 01 1 0202-0203 ● ●
45 PLATE; END,CLU BOOSTER 1-31811-062-0 01 1 0204-0311 ● ●
45 PLATE; END,CLU BOOSTER 1-31811-062-0 01 1 0312- ●
45 PLATE; END,CLU BOOSTER 1-31811-081-0 01 1 0312- ●
45 PLATE; END,CLU BOOSTER 1-31811-062-0 01 1 9811-0201 ●
45 PLATE; END,CLU BOOSTER 1-31811-062-0 01 1 0202-0203 ● ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0204-0307 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0308- ● ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 01 1 9811-0106 ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0107-0201 ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0202-0203 ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 0204- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 9811-0201 ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 0202-0203 ● ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 9811-0106 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0204- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-066-0 01 1 9811-0106 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0107-0201 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0202-0203 ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0204- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0107-0201 ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0202-0203 ● ●
86 ELBOW ASM; CLU BOOSTER 1-09650-358-1 01 1 9811-0106 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0204- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9811-0201 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0202-0203 ● ●
107 CONNECTOR; ELBOW 1-09650-358-1 01 1 0204- ● ●
107 CONNECTOR; ELBOW 1-09650-358-1 01 1 0107-0201 ●
107 CONNECTOR; ELBOW 1-09650-358-1 01 1 0202-0203 ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0204- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0107-0201 ●
127 FILTER; POPPET 1-31829-495-0 01 1 0202-0203 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
