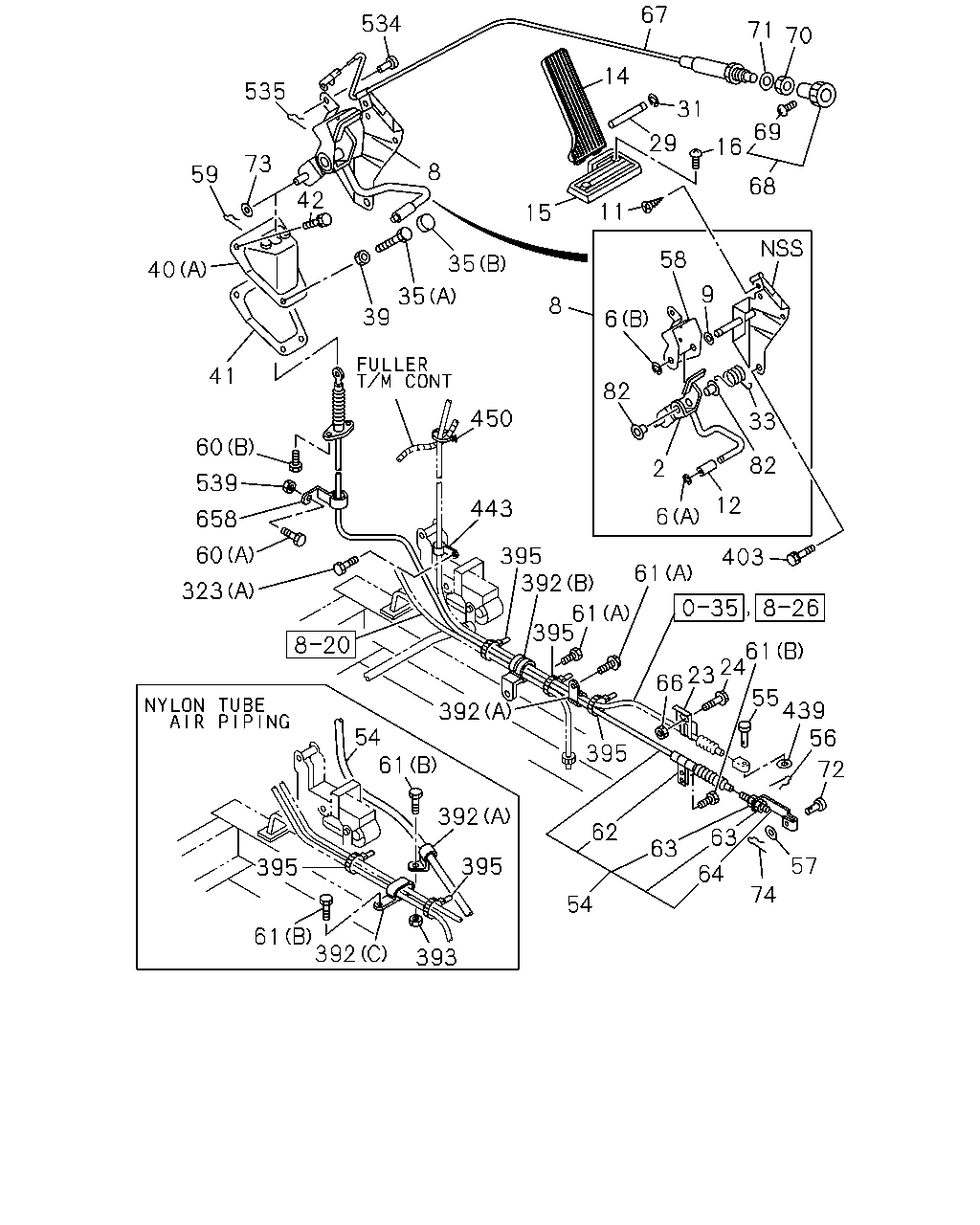

1-01A — ACCELERATOR PEDAL AND CONTROL (#2429) — 73 parça

67 534 71 70 14 535 31 69 29 16 73 8 59 68 42 11 15 58 35 40 9 35 39 8 6 41 82 450 33 60 82 2 539 12 443 6 658 60 395 392 403 61 323 61 395 61 24 23 66 55 439 56 392 395 54 61 72 392 62 63 63 57 395 395 64 74 54 61 392 393

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT	1-73997-904-1	01	1	9002-	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=6	9-09185-406-0	01	1	9002-	●	●	●
6	RING; SNAP,LINK TO LINK (B) ID=8	9-09185-408-0	01	1	9002-	●	●	●
8	LINK ASM; ENG CONT	1-23240-067-2	01	1	9002-	●	●	●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	9002-	●	●	●
11	SCREW; IDLE CONT CABLE M5X12 W/LK&PL WASHER	9-03920-512-0	01	1	9002-	●	●	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9002-	●	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9002-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73997-675-3	01	1	9002-9305	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9306-	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	9002-	●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9002-	●	●	●
24	BOLT; BRKT	5-09030-026-0	01	1	9002-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9002-	●	●	●
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	9002-	●	●	●
33	SPRING; IDLING CONT LEVER	1-73997-906-0	01	1	9002-	●	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9002-	●	●	●
35	STOPPER; ACCEL PEDAL (B) RUBBER	1-23249-009-0	01	1	9002-	●	●	●
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	9002-	●	●	●
40	BRACKET; ENG CONT CABLE (A)	1-73997-632-1	01	1	9002-	●	●	●
41	SEAL; BRKT,ENG CONT CABLE	1-73998-451-0	01	1	9002-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●	●
54	CABLE; ENG CONT L=2445	1-23210-794-6	01	1	9002-	●	●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9002-	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9002-	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●	●
58	LEVER; IDLING CONT	1-73997-905-1	01	1	9002-	●	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9002-	●	●	●
60	BOLT; CABLE (A) BLACK CHROMATE M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9002-	●	●	●
60	BOLT; CABLE (B) BLACK CHROMATE M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●	●	●
60	BOLT; CABLE (B) M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (A) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (A) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (A) M8X16 FLANGE	0-28080-816-0	01	1	9303-9306	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (B) M8X16 FLANGE	0-28080-816-0	02	1	9307-	●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE NYLON TUBE AIR PIPING<Z29> (B) M8X16 FLANGE	0-28080-816-0	02	1	9307-			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (A) M8X16 FLANGE	0-28080-816-0	02	1	9307-	●		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9002-	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9002-	●	●	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9002-	●	●	●
66	NUT; BRKT M8	9-09110-408-0	01	1	9002-	●	●	●
67	CABLE ASM; IDLE CONT L=422	1-73997-647-0	01	1	9002-	●	●	●
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	9002-	●	●	●
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	9002-	●	●	●
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	9002-	●	●	●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	9002-	●	●	●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08220-817-0	01	1	9002-	●	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9002-	●	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9002-	●	●	●
323	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9307-9410	●		●
323	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9411-	●		●
392	CLIP; ACCEL CONT CABLE (A) ID=9	9-09524-825-0	01	1	9010-9306	●	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9307-	●		●
392	CLIP; ACCEL CONT CABLE NYLON TUBE AIR PIPING<Z29> (A) ID=9 L=20	9-09524-835-0	01	1	9307-			●
392	CLIP; ACCEL CONT CABLE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=19 L=24 H=21	1-09700-109-1	01	1	9307-	●		●
392	CLIP; ACCEL CONT CABLE NYLON TUBE AIR PIPING<Z29> (C) ID=9X2 L=20	9-09534-835-0	01	1	9307-			●
393	NUT; CLIP TO FRAME NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-			●
395	CLIP; BAND,ACCEL CONT CABLE L=100	5-09707-036-0	02	1	9002-9306	●	●	●
395	CLIP; BAND,ACCEL CONT CABLE L=100	5-09707-036-1	03	1	9307-	●		●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9002-	●	●	●
443	CLIP; CABLE AUTO ENG SHUTOFF(KB6) ID=7 L=20	9-09524-635-0	01	1	9307-9503			●
443	CLIP; CABLE AUTO ENG SHUTOFF(KB6) ID=7 L=20	9-09524-635-0	01	1	9504-	●	●	●
443	CLIP; CABLE EXC. AUTO ENG SHUTOFF(KB6) ID=9 L=20	9-09524-835-0	01	1	9307-9503	●		●
443	CLIP; CABLE EXC. AUTO ENG SHUTOFF(KB6),EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=9 L=20	9-09524-835-0	01	1	9504-	●	●	●
450	CLIP; BAND FULLER M/T<X9B> L=140	5-09707-031-1	01	1	9008-	●	●	●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	9002-	●	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9002-	●	●	●
539	NUT; CLIP M6 FLANGE	1-09984-141-0	01	1	9002-	●	●	●
658	CLIP; ENG CONT CABLE ID=13 H=24 L=20	9-09527-012-0	02	1	9002-	●	●	●
