2-05 — CLUTCH PIPING (#24289) — 117 parça

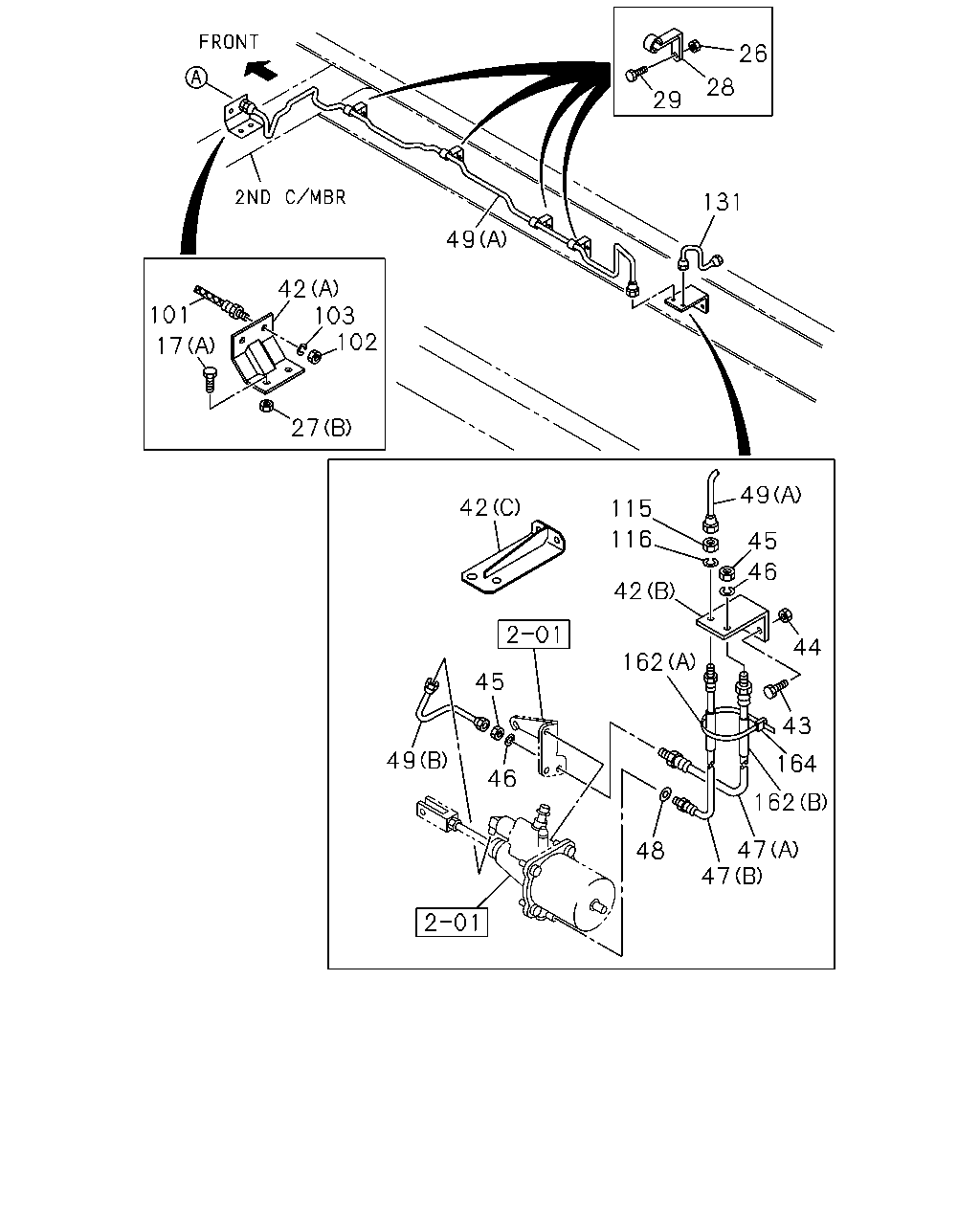

26 28 29 131 49 42 103 102 101 17 27 49 42 115 116 45 46 42 44 162 45 43 49 164 46 162 47 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9811-0201	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0202-0512	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0201	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0202-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9811-0602	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	06	1	0202-0602		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	0603-		●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9811-0201	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0202-0602	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0201	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0202-	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9811-	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	0202-		●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9811-0512	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	06	1	0202-0512		●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	06	1	0601-		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9811-0201	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0202-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9811-	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47476-912-1	01	1	0202-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9811-0201	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0202-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9811-0201	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0202-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	9811-0201	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	0202-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	02	1	9811-0201	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	02	1	0202-0603	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	02	1	0604-	●	●
47	HOSE; FLEX,CLU CONT (A) L=490	0-07030-490-0	01	1	9811-	●
47	HOSE; FLEX,CLU CONT (B) L=415	1-09364-490-0	01	1	9811-	●
47	HOSE; FLEX,CLU CONT (A) L=560	1-09363-689-0	01	1	0202-		●
47	HOSE; FLEX,CLU CONT (B) L=470	1-09364-692-0	01	1	0202-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9811-0201	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0202-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2874 SERVICED BY L=3000	1-47426-397-0	01	1	9811-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=216	1-47493-418-1	01	1	9811-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=3037 SERVICED BY L=3300	1-47426-398-0	01	1	0202-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	0202-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9811-0201	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0202-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9811-0201	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0202-0512	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9811-0201	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0202-0603	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9811-0201	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0202-0512	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9811-0201	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0202-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49114-903-0	01	1	9811-	●
162	COVER; RUBBER,FLEX HOSE (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	9811-0201	●
162	COVER; RUBBER,FLEX HOSE (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	0202-	●	●
162	COVER; RUBBER,FLEX HOSE (B) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9811-0201	●
162	COVER; RUBBER,FLEX HOSE (B) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0202-	●	●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	9811-0201	●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0202-	●	●

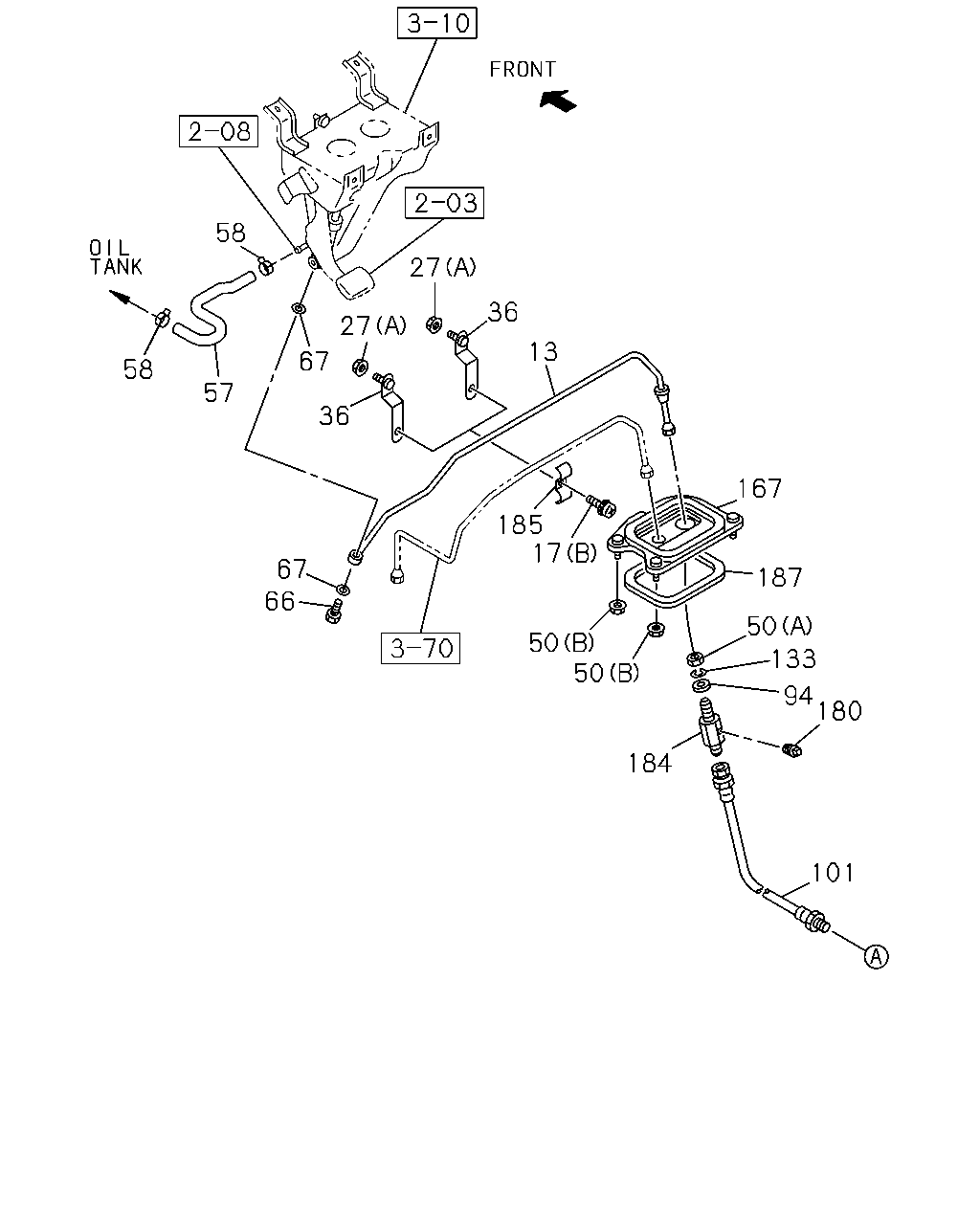

58 27 36 27 13 67 58 57 36 167 185 17 67 66 187 50 50 50 133 94 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	9811-0201	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	0202-	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9811-0201	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0202-0512	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0201	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0202-	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9811-0201	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0202-0602	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0201	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0202-	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	9811-0201	●
36	BRACKET; CLIP	1-79738-186-1	02	1	0202-	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9811-0201	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0202-	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9811-0201	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0202-0512	●	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9811-0201	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0202-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9811-0201	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0202-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-		●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9811-0201	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0202-0805	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0806-	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-0201	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0202-1312	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	1401-	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9811-0201	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0202-0605	●	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9811-0201	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0202-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9811-0201	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0202-0603	●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●	●
167	BRACKET; UNION	1-79738-204-3	01	1	9811-	●
167	BRACKET; UNION	1-79738-845-1	01	1	0202-		●
180	PLUG; PIPE	9-09204-510-0	01	1	9811-0201	●
180	PLUG; PIPE	9-09204-510-0	01	1	0202-	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9811-0201	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0202-	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9811-0201	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0202-	●	●
187	SEAL; BRKT	1-79738-190-0	01	1	9811-0201	●
187	SEAL; BRKT	1-79738-190-0	01	1	0202-	●	●
